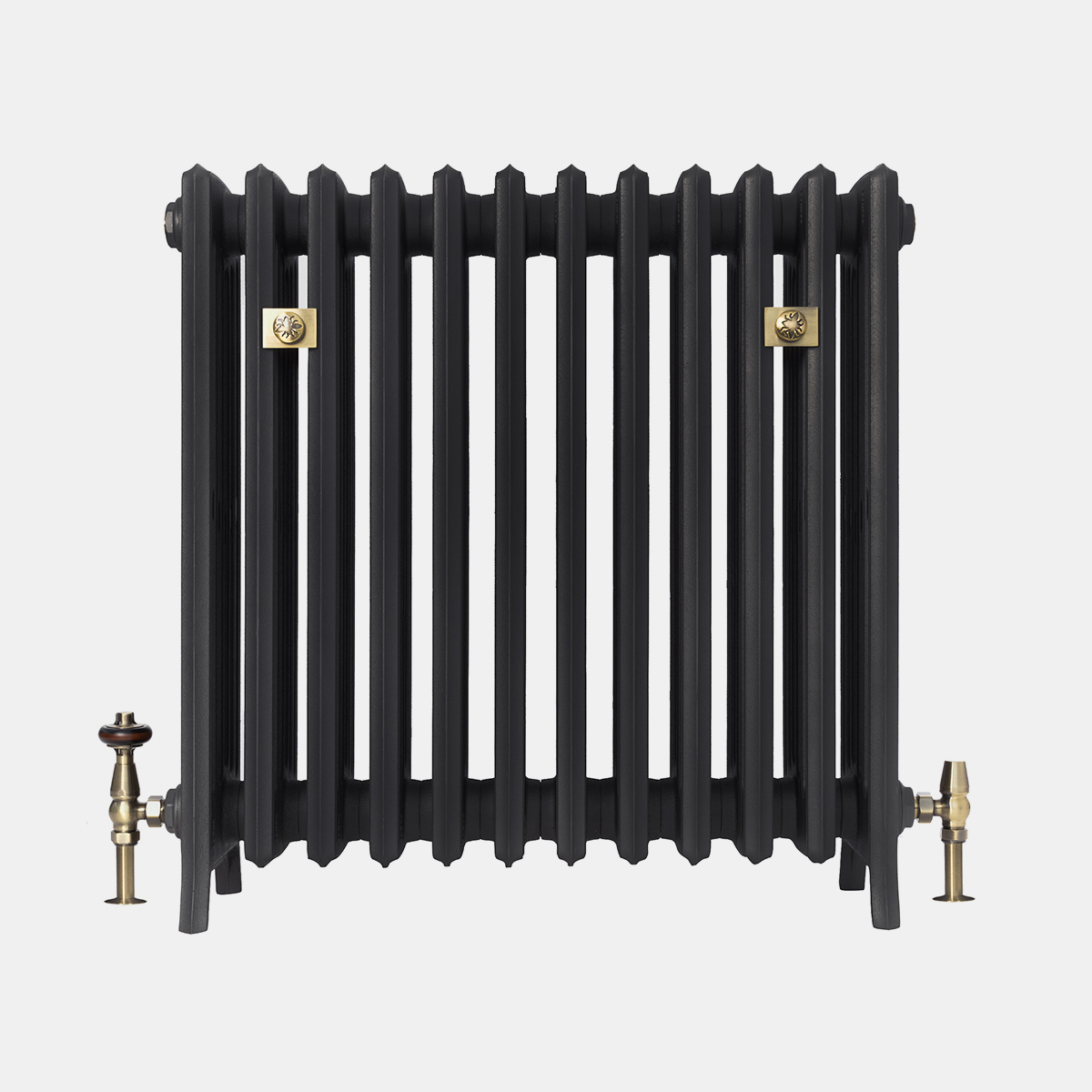

• Grace 6 column 760mm Castrads radiator in matt black finish

Grace 6 Column 760mm

From: £396.00

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-G6C-760

Model Specifications

Label Attribute Value
A Height With Legs (mm) 750
B Bottom Inlet To Floor (mm) 105
C Max Section Depth (mm) 255
- Output (ΔT50, W) 141.3
- Output (ΔT30, W) 71.4
D Interaxis Distance (mm) 600
E Height Without Legs (mm) 700
F Section Length (mm) 60.5
G Mid Section Depth (mm) 221
- Internal Volume (L) 1.4
- Empty Leg Section Weight (kg) 9.3
- Empty Mid Section Weight (kg) 8.7
- Factor, Km 0.7593
- Exponent, n 1.3358
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Grace 6 Column 760mm - Single Section Technical Drawing - SVG

Sizes Available

83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
83733
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-G6C-760-3 3 211 423 214 1 £396.00
CI-G6C-760-4 4 272 565 285 1 £474.00
CI-G6C-760-5 5 332 706 357 1 £552.00
CI-G6C-760-6 6 393 847 428 1 £630.00
CI-G6C-760-7 7 453 989 499 1 £708.00
CI-G6C-760-8 8 514 1130 571 1 £786.00
CI-G6C-760-9 9 574 1271 642 1 £864.00
CI-G6C-760-10 10 635 1413 714 1 £942.00
CI-G6C-760-11 11 695 1554 785 2 £1,104.00
CI-G6C-760-12 12 756 1695 856 1 £1,098.00
CI-G6C-760-13 13 816 1836 928 2 £1,260.00
CI-G6C-760-14 14 877 1978 999 2 £1,338.00
CI-G6C-760-15 15 937 2119 1071 2 £1,416.00
CI-G6C-760-16 16 998 2260 1142 2 £1,494.00
CI-G6C-760-17 17 1058 2402 1213 2 £1,572.00
CI-G6C-760-18 18 1119 2543 1285 2 £1,650.00
CI-G6C-760-19 19 1179 2684 1356 2 £1,728.00
CI-G6C-760-20 20 1240 2826 1428 3 £1,806.00
CI-G6C-760-21 21 1300 2967 1499 3 £1,884.00
CI-G6C-760-22 22 1361 3108 1570 3 £1,962.00
CI-G6C-760-23 23 1421 3249 1642 3 £2,040.00
CI-G6C-760-24 24 1482 3391 1713 3 £2,118.00
CI-G6C-760-25 25 1542 3532 1785 3 £2,196.00
CI-G6C-760-26 26 1603 3673 1856 3 £2,274.00
CI-G6C-760-27 27 1663 3815 1927 3 £2,352.00
CI-G6C-760-28 28 1724 3956 1999 3 £2,430.00
CI-G6C-760-29 29 1784 4097 2070 3 £2,508.00
CI-G6C-760-30 30 1845 4239 2142 3 £2,586.00
CI-G6C-760-31 31 1905 4380 2213 4 £2,664.00
CI-G6C-760-32 32 1966 4521 2284 4 £2,742.00
CI-G6C-760-33 33 2026 4662 2356 4 £2,820.00
CI-G6C-760-34 34 2087 4804 2427 4 £2,898.00
CI-G6C-760-35 35 2147 4945 2499 4 £2,976.00
CI-G6C-760-36 36 2208 5086 2570 4 £3,054.00
CI-G6C-760-37 37 2268 5228 2641 4 £3,132.00
CI-G6C-760-38 38 2329 5369 2713 4 £3,210.00
CI-G6C-760-39 39 2389 5510 2784 4 £3,288.00
CI-G6C-760-40 40 2450 5652 2856 4 £3,366.00
Grace 6 Column 760mm - 10 Section Battery Technical Drawing - SVG
