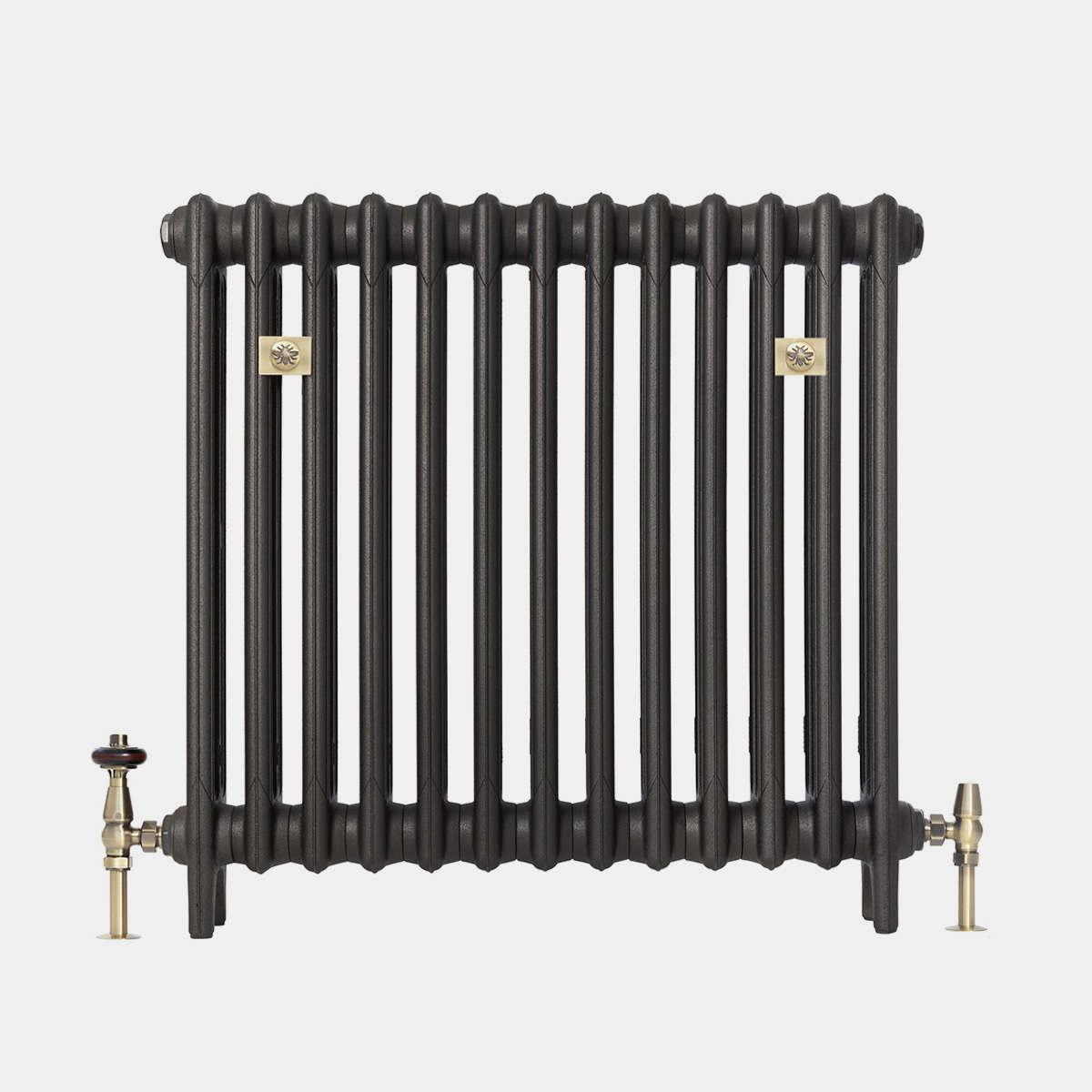

• Mercury 3 column 760mm slimline Castrads radiator

Mercury 3 Column 760mm

From: £302.40

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-M3C-760

Model Specifications

Label Attribute Value
A Height With Legs (mm) 760
B Bottom Inlet To Floor (mm) 100
C Max Section Depth (mm) 101
- Output (ΔT50, W) 77.5
- Output (ΔT30, W) 39.9
D Interaxis Distance (mm) 623
E Height Without Legs (mm) 698
F Section Length (mm) 58.3
G Mid Section Depth (mm) 101
- Internal Volume (L) 0.7
- Empty Leg Section Weight (kg) 5.3
- Empty Mid Section Weight (kg) 4.7
- Factor, Km 0.4769
- Exponent, n 1.3013
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Mercury 3 Column 760mm - Single Section Technical Drawing - SVG

Sizes Available

83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
83740
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-M3C-760-3 3 204 232 119 1 £302.40
CI-M3C-760-4 4 263 310 159 1 £349.20
CI-M3C-760-5 5 321 387 199 1 £396.00
CI-M3C-760-6 6 379 465 239 1 £442.80
CI-M3C-760-7 7 438 542 279 1 £489.60
CI-M3C-760-8 8 496 620 319 1 £536.40
CI-M3C-760-9 9 554 697 359 1 £583.20
CI-M3C-760-10 10 613 775 399 1 £630.00
CI-M3C-760-11 11 671 852 438 1 £676.80
CI-M3C-760-12 12 729 930 478 1 £723.60
CI-M3C-760-13 13 787 1007 518 1 £770.40
CI-M3C-760-14 14 846 1085 558 1 £817.20
CI-M3C-760-15 15 904 1162 598 1 £864.00
CI-M3C-760-16 16 962 1240 638 1 £910.80
CI-M3C-760-17 17 1021 1317 678 1 £957.60
CI-M3C-760-18 18 1079 1395 718 1 £1,004.40
CI-M3C-760-19 19 1137 1472 758 2 £1,135.20
CI-M3C-760-20 20 1196 1550 798 2 £1,182.00
CI-M3C-760-21 21 1254 1627 837 2 £1,228.80
CI-M3C-760-22 22 1312 1705 877 2 £1,275.60
CI-M3C-760-23 23 1370 1782 917 2 £1,322.40
CI-M3C-760-24 24 1429 1860 957 2 £1,369.20
CI-M3C-760-25 25 1487 1937 997 2 £1,416.00
CI-M3C-760-26 26 1545 2015 1037 2 £1,462.80
CI-M3C-760-27 27 1604 2092 1077 3 £1,509.60
CI-M3C-760-28 28 1662 2170 1117 3 £1,556.40
CI-M3C-760-29 29 1720 2247 1157 3 £1,603.20
CI-M3C-760-30 30 1779 2325 1197 3 £1,650.00
CI-M3C-760-31 31 1837 2402 1236 3 £1,696.80
CI-M3C-760-32 32 1895 2480 1276 3 £1,743.60
CI-M3C-760-33 33 1953 2557 1316 3 £1,790.40
CI-M3C-760-34 34 2012 2635 1356 3 £1,837.20
CI-M3C-760-35 35 2070 2712 1396 3 £1,884.00
CI-M3C-760-36 36 2128 2790 1436 3 £1,930.80
CI-M3C-760-37 37 2187 2867 1476 3 £1,977.60
CI-M3C-760-38 38 2245 2945 1516 3 £2,024.40
CI-M3C-760-39 39 2303 3022 1556 3 £2,071.20
CI-M3C-760-40 40 2362 3100 1596 3 £2,118.00
Mercury 3 Column 760mm - 10 Section Battery Technical Drawing - SVG
