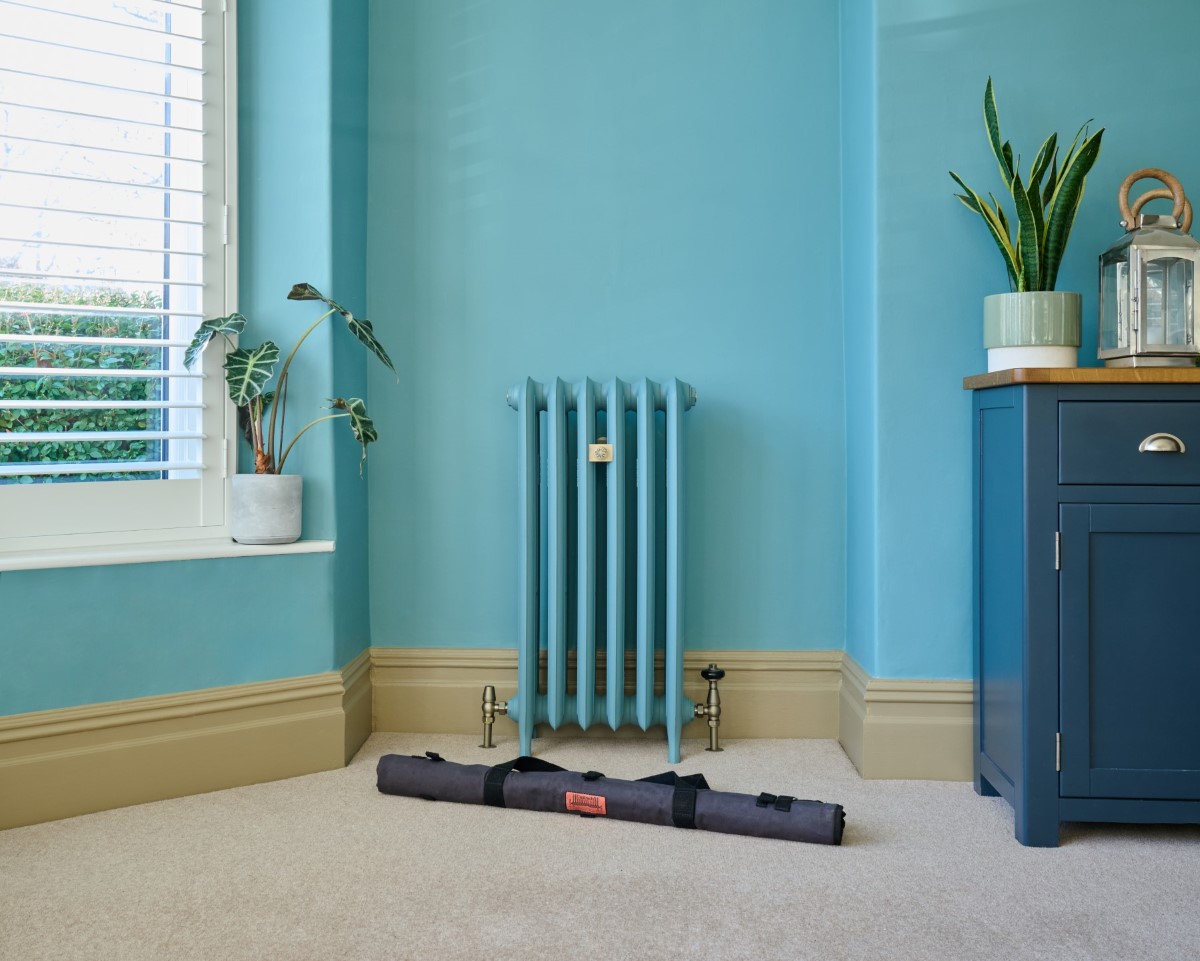

  • Emmeline III 870mm in Paint & Paper Library Bluegum with the ATK2 Toolkit

Radiator Assembly Toolkit ATK2


Additional information

Weight 26.5 kg
Dimensions 915 × 185 × 107 mm

The ultimate cast iron radiator assembly toolkit. Comprises scratchless socket, assembly toolheads for either 1¼” or 1½” steel joining nipples and two lengths of extension to assemble oversized cast iron radiators of various sizes.

Designed only by Castrads. Made only for Castrads.


Radiator Assembly Toolkit

Cast Iron Radiator Assembly Made Easy

Toolkits are available as a one-time purchase or, as part of an order of oversized radiators, as a rental – the cost is refunded when the kit is returned after use.

Instructions are included with the kit and you can also see our Cast Iron Radiator Assembly Guide for additional help.

Joining Forces

The only toolkit you’ll ever need for assembling Castrads cast iron radiators on site. Contains non-marking 42mm socket, two lengths of extension, assembly tool heads for both 1-¼” IPS and 1-½” IPS threaded joining nipples and 3′ long sliding T-bar (¾” drive).

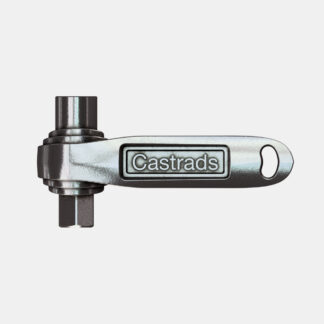

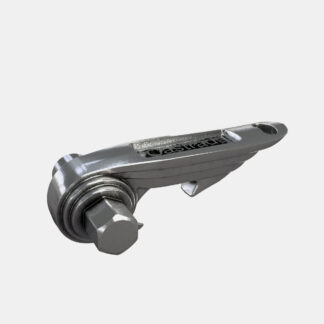

Also included are a depth stop to make finding the join easier and a Utility Bleed Key, perfect for bleeding hydronic radiators, closing our lockshield valves and cracking open a cold one.

Ornate cast iron radiator in Edwardian wedding venue Staffordshire

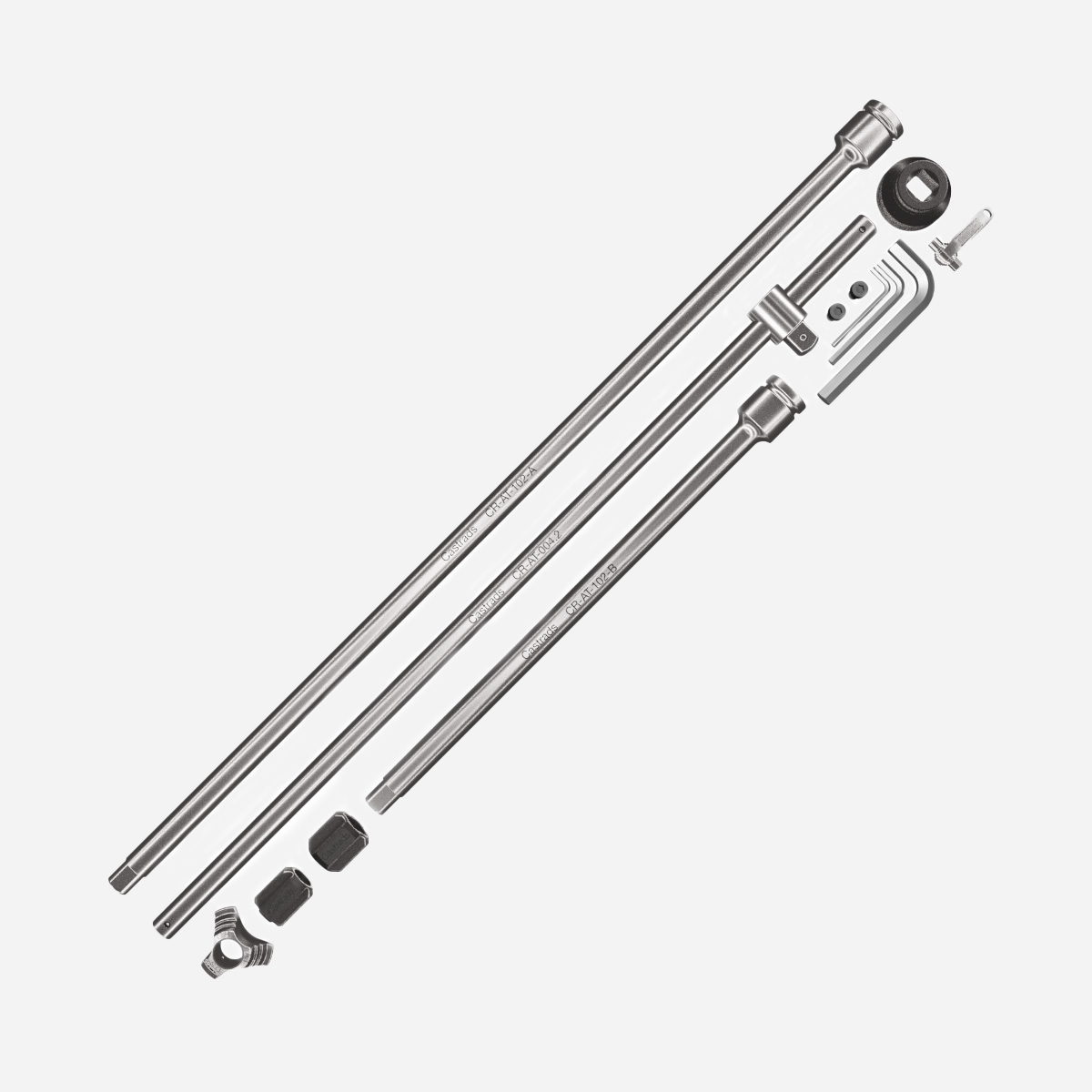

Toolkit Contents

# Part name Qty Description
1 CR-AT-101-A 1
1½” assembly tool head
2 CR-AT-001-B 1 1¼” assembly tool head
3 CR-AT-102-A 1 800mm extension bar
4 CR-AT-102-B 1 400mm extension bar
6 CR-AT-004 1 Sliding T-bar – ¾” drive
9 CR-AT-005-C 1 Scratchless Socket – 42mm
13 CR-AT-DS 1 Depth stop
14 M8 Bolt 3 M8 bolt
15 #6 ALLEN KEY 1 6mm Allen key for M8 bolt
16 BLK-AD-04 1 Utility Bleed Key
ATK2 - Collection
