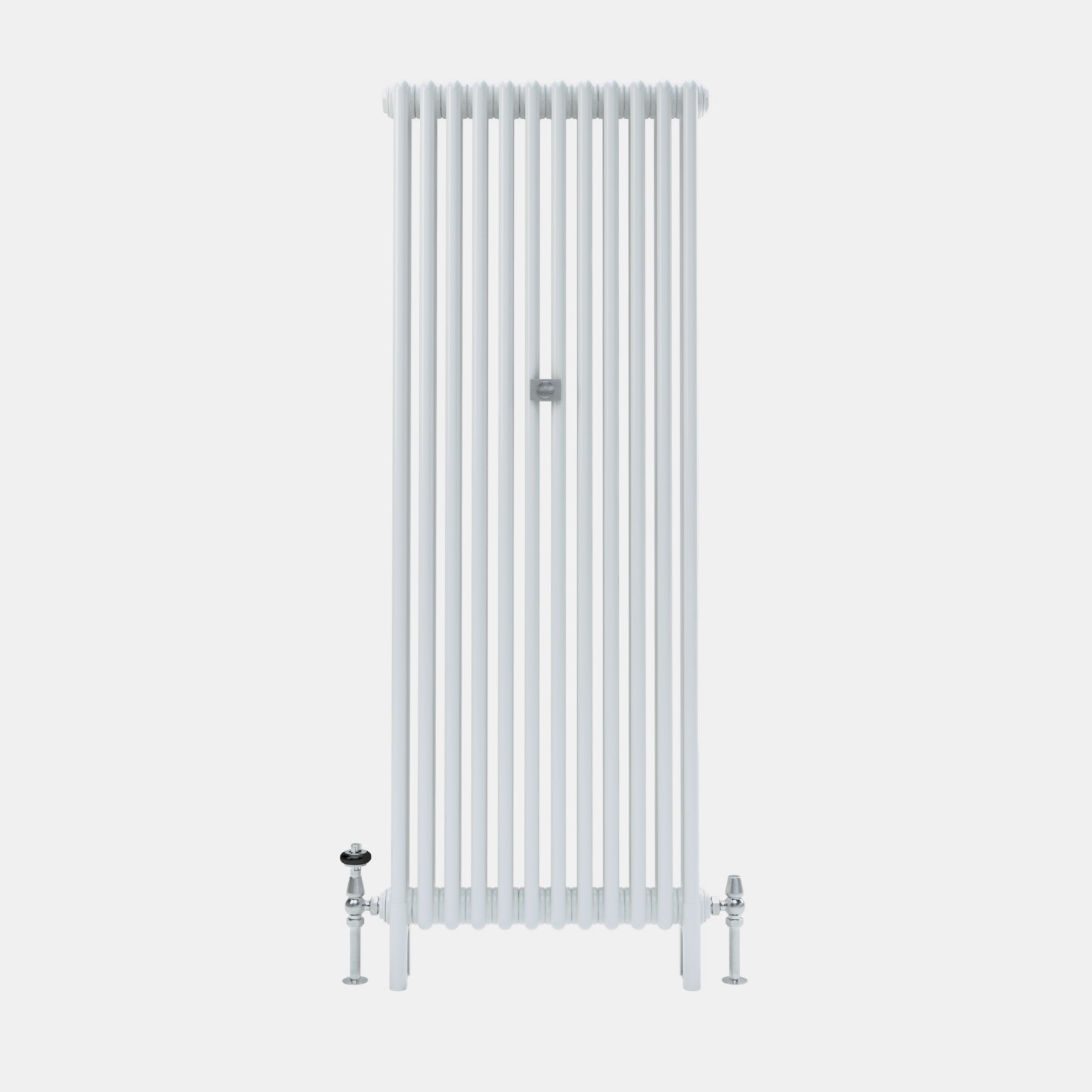

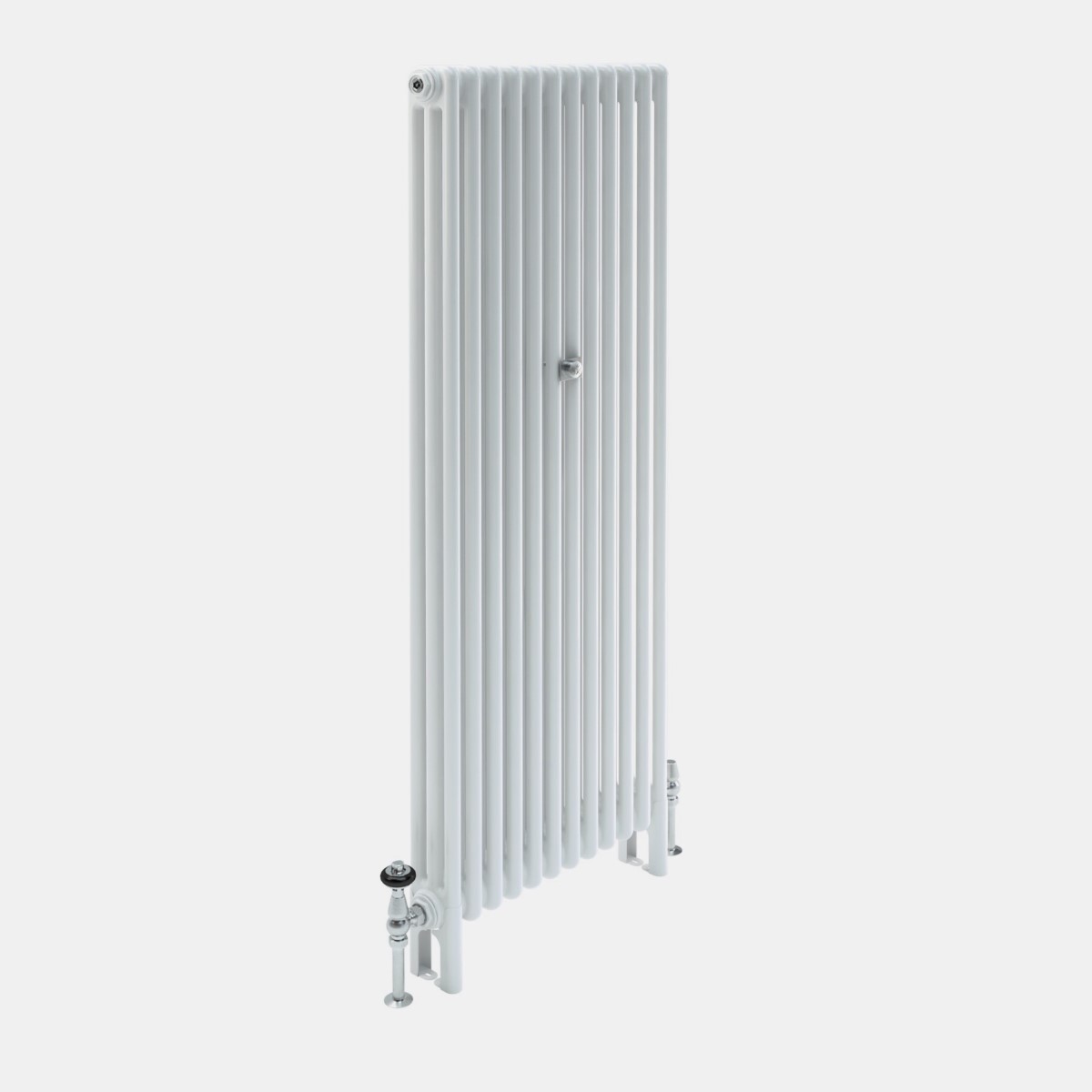

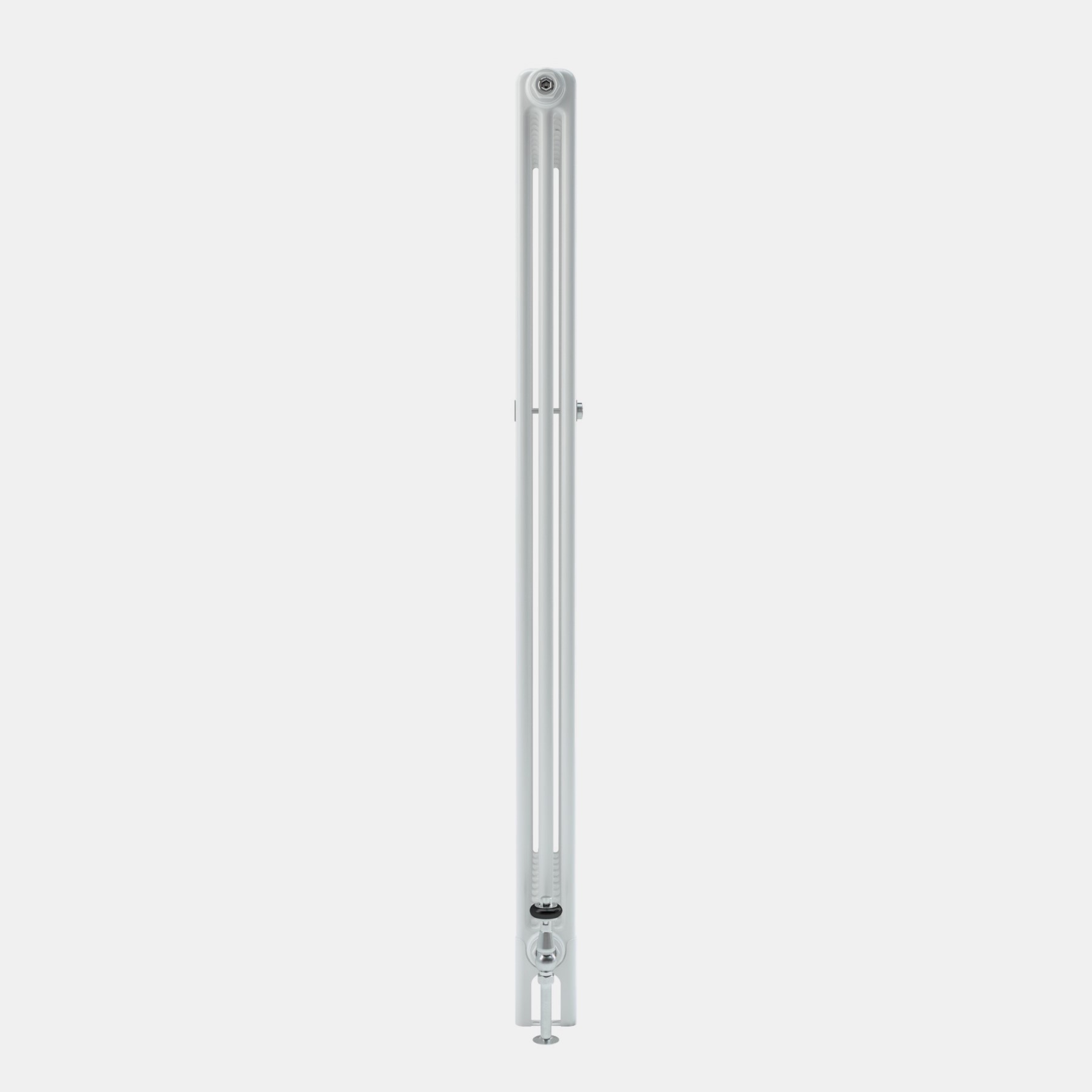

Florence 3 Column 1500mm

From: £370.20

Product Description
  • Available from 3 to 40 sections long (see below for technical specs)
  • Delivered ready to install
  • Heat pump compatible
  • 10 year warranty
  • Not suitable for steam
  • Welded joins with powder coat finish
  • Made in Italy
SKU: SMC-F3C-1502

Model Specifications

Label Attribute Value
A Height With Legs (mm) 1602
B Bottom Inlet To Floor (mm) 134
C Max Section Depth (mm) 103
D Interaxis Distance (mm) 1435
E Height Without Legs (mm) 1502
- Output (ΔT50, W) 141.7
F Section Length (mm) 45
- Output (ΔT30, W) 71.9
G Mid Section Depth (mm) 101
- Internal Volume (L) 2.07
- Empty Leg Section Weight (kg) 3.3
- Empty Mid Section Weight (kg) 3
- Factor, Km 0.7798
- Exponent, n 1.32995
Florence 3 Column 1500mm - Single Section Technical Drawing - SVG

Sizes Available

83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
83800
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
SMC-F3C-1502-3 3 165 425 215 1 £370.20
SMC-F3C-1502-4 4 210 566 287 1 £447.60
SMC-F3C-1502-5 5 255 708 359 1 £525.00
SMC-F3C-1502-6 6 300 850 431 1 £602.40
SMC-F3C-1502-7 7 345 991 503 1 £679.80
SMC-F3C-1502-8 8 390 1133 575 1 £757.20
SMC-F3C-1502-9 9 435 1275 647 1 £834.60
SMC-F3C-1502-10 10 480 1417 719 1 £912.00
SMC-F3C-1502-11 11 525 1558 790 1 £989.40
SMC-F3C-1502-12 12 570 1700 862 1 £1,066.80
SMC-F3C-1502-13 13 615 1842 934 1 £1,144.20
SMC-F3C-1502-14 14 660 1983 1006 1 £1,221.60
SMC-F3C-1502-15 15 705 2125 1078 1 £1,299.00
SMC-F3C-1502-16 16 750 2267 1150 1 £1,376.40
SMC-F3C-1502-17 17 795 2408 1222 1 £1,453.80
SMC-F3C-1502-18 18 840 2550 1294 1 £1,531.20
SMC-F3C-1502-19 19 885 2692 1366 1 £1,608.60
SMC-F3C-1502-20 20 930 2834 1438 1 £1,686.00
SMC-F3C-1502-21 21 975 2975 1509 1 £1,763.40
SMC-F3C-1502-22 22 1020 3117 1581 1 £1,840.80
SMC-F3C-1502-23 23 1065 3259 1653 1 £1,918.20
SMC-F3C-1502-24 24 1110 3400 1725 1 £1,995.60
SMC-F3C-1502-25 25 1155 3542 1797 1 £2,073.00
SMC-F3C-1502-26 26 1200 3684 1869 1 £2,150.40
SMC-F3C-1502-27 27 1245 3825 1941 1 £2,227.80
SMC-F3C-1502-28 28 1290 3967 2013 1 £2,305.20
SMC-F3C-1502-29 29 1335 4109 2085 1 £2,382.60
SMC-F3C-1502-30 30 1380 4251 2157 1 £2,460.00
SMC-F3C-1502-31 31 1425 4392 2228 1 £2,537.40
SMC-F3C-1502-32 32 1470 4534 2300 1 £2,614.80
SMC-F3C-1502-33 33 1515 4676 2372 1 £2,692.20
SMC-F3C-1502-34 34 1560 4817 2444 1 £2,769.60
SMC-F3C-1502-35 35 1605 4959 2516 1 £2,847.00
SMC-F3C-1502-36 36 1650 5101 2588 1 £2,924.40
SMC-F3C-1502-37 37 1695 5242 2660 1 £3,001.80
SMC-F3C-1502-38 38 1740 5384 2732 1 £3,079.20
SMC-F3C-1502-39 39 1785 5526 2804 1 £3,156.60
SMC-F3C-1502-40 40 1830 5668 2876 1 £3,234.00
Florence 3 Column 1500mm - 10 Section Battery Technical Drawing - SVG
