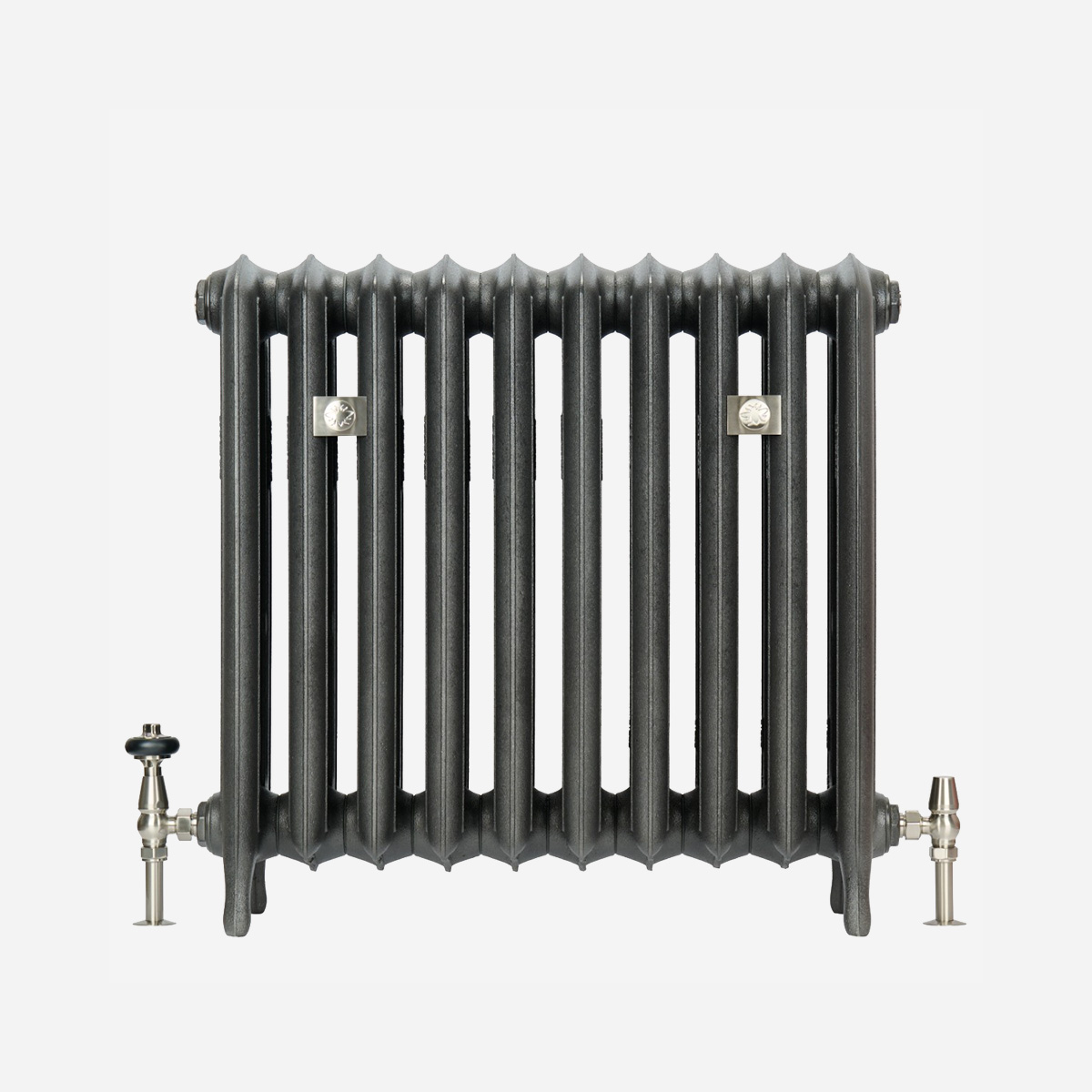

Emmeline III 670mm
From: £460.80
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 11 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 670 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 230 |
| - | Output (ΔT50, W) | 112 |
| - | Output (ΔT30, W) | 58.1 |
| D | Interaxis Distance (mm) | 523 |
| E | Height Without Legs (mm) | 616 |
| F | Section Length (mm) | 66.5 |
| G | Mid Section Depth (mm) | 210 |
| - | Internal Volume (L) | 1.82 |
| - | Empty Leg Section Weight (kg) | 10.7 |
| - | Empty Mid Section Weight (kg) | 9.6 |
| - | Factor, Km | 0.72519 |
| - | Exponent, n | 1.2889 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-EML3-670-3 | 3 | 229 | 336 | 174 | 1 | £460.80 |
| CI-EML3-670-4 | 4 | 296 | 448 | 232 | 1 | £560.40 |
| CI-EML3-670-5 | 5 | 362 | 560 | 290 | 1 | £660.00 |
| CI-EML3-670-6 | 6 | 429 | 672 | 348 | 1 | £759.60 |
| CI-EML3-670-7 | 7 | 495 | 784 | 406 | 1 | £859.20 |
| CI-EML3-670-8 | 8 | 562 | 896 | 464 | 1 | £958.80 |
| CI-EML3-670-9 | 9 | 628 | 1008 | 522 | 1 | £1,058.40 |
| CI-EML3-670-10 | 10 | 695 | 1120 | 581 | 1 | £1,158.00 |
| CI-EML3-670-11 | 11 | 761 | 1232 | 639 | 1 | £1,257.60 |
| CI-EML3-670-12 | 12 | 828 | 1344 | 697 | 2 | £1,441.20 |
| CI-EML3-670-13 | 13 | 894 | 1456 | 755 | 2 | £1,540.80 |
| CI-EML3-670-14 | 14 | 961 | 1568 | 813 | 2 | £1,640.40 |
| CI-EML3-670-15 | 15 | 1027 | 1680 | 871 | 2 | £1,740.00 |
| CI-EML3-670-16 | 16 | 1094 | 1792 | 929 | 2 | £1,839.60 |
| CI-EML3-670-17 | 17 | 1160 | 1904 | 987 | 2 | £1,939.20 |
| CI-EML3-670-18 | 18 | 1227 | 2016 | 1045 | 2 | £2,038.80 |
| CI-EML3-670-19 | 19 | 1293 | 2128 | 1103 | 2 | £2,138.40 |
| CI-EML3-670-20 | 20 | 1360 | 2240 | 1162 | 2 | £2,238.00 |
| CI-EML3-670-21 | 21 | 1426 | 2352 | 1220 | 2 | £2,337.60 |
| CI-EML3-670-22 | 22 | 1493 | 2464 | 1278 | 3 | £2,437.20 |
| CI-EML3-670-23 | 23 | 1559 | 2576 | 1336 | 3 | £2,536.80 |
| CI-EML3-670-24 | 24 | 1626 | 2688 | 1394 | 3 | £2,636.40 |
| CI-EML3-670-25 | 25 | 1692 | 2800 | 1452 | 3 | £2,736.00 |
| CI-EML3-670-26 | 26 | 1759 | 2912 | 1510 | 3 | £2,835.60 |
| CI-EML3-670-27 | 27 | 1825 | 3024 | 1568 | 3 | £2,935.20 |
| CI-EML3-670-28 | 28 | 1892 | 3136 | 1626 | 3 | £3,034.80 |
| CI-EML3-670-29 | 29 | 1958 | 3248 | 1684 | 3 | £3,134.40 |
| CI-EML3-670-30 | 30 | 2025 | 3360 | 1743 | 3 | £3,234.00 |
| CI-EML3-670-31 | 31 | 2091 | 3472 | 1801 | 3 | £3,333.60 |
| CI-EML3-670-32 | 32 | 2158 | 3584 | 1859 | 3 | £3,433.20 |
| CI-EML3-670-33 | 33 | 2224 | 3696 | 1917 | 4 | £3,532.80 |
| CI-EML3-670-34 | 34 | 2291 | 3808 | 1975 | 4 | £3,632.40 |
| CI-EML3-670-35 | 35 | 2357 | 3920 | 2033 | 4 | £3,732.00 |
| CI-EML3-670-36 | 36 | 2424 | 4032 | 2091 | 4 | £3,831.60 |
| CI-EML3-670-37 | 37 | 2490 | 4144 | 2149 | 4 | £3,931.20 |
| CI-EML3-670-38 | 38 | 2557 | 4256 | 2207 | 4 | £4,030.80 |
| CI-EML3-670-39 | 39 | 2623 | 4368 | 2265 | 4 | £4,130.40 |
| CI-EML3-670-40 | 40 | 2690 | 4480 | 2324 | 4 | £4,230.00 |
