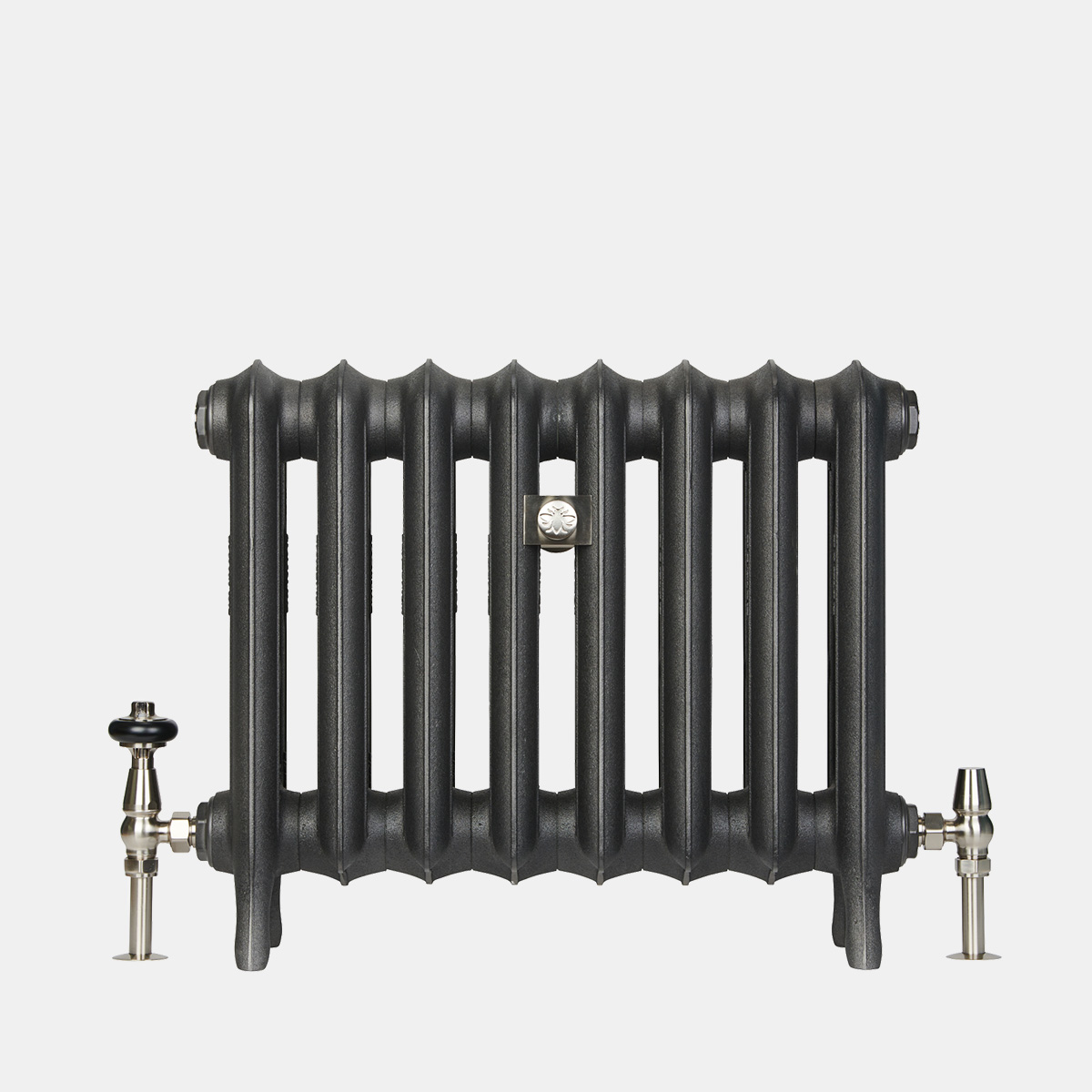

• Emmeline II 470mm cast iron bay window radiator in Black Iron finish

Emmeline II 470mm

From: £309.60

Product Description
SKU: CI-EML2-470

Model Specifications

Label Attribute Value
A Height With Legs (mm) 470
B Bottom Inlet To Floor (mm) 100
C Max Section Depth (mm) 170
- Output (ΔT50, W) 56.5
- Output (ΔT30, W) 29.8
D Interaxis Distance (mm) 323
E Height Without Legs (mm) 413
F Section Length (mm) 66.5
G Mid Section Depth (mm) 150
- Internal Volume (L) 1.05
- Empty Leg Section Weight (kg) 5.3
- Empty Mid Section Weight (kg) 4.3
- Factor, Km 0.434353
- Exponent, n 1.24414
Emmeline II 470mm - Single Section Technical Drawing - SVG

Sizes Available

83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
83717
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-EML2-470-3 3 229 169 89 1 £309.60
CI-EML2-470-4 4 296 226 119 1 £358.80
CI-EML2-470-5 5 362 282 149 1 £408.00
CI-EML2-470-6 6 429 339 178 1 £457.20
CI-EML2-470-7 7 495 395 208 1 £506.40
CI-EML2-470-8 8 562 452 238 1 £555.60
CI-EML2-470-9 9 628 508 268 1 £604.80
CI-EML2-470-10 10 695 565 298 1 £654.00
CI-EML2-470-11 11 761 621 327 1 £703.20
CI-EML2-470-12 12 828 678 357 1 £752.40
CI-EML2-470-13 13 894 734 387 1 £801.60
CI-EML2-470-14 14 961 791 417 1 £850.80
CI-EML2-470-15 15 1027 847 447 1 £900.00
CI-EML2-470-16 16 1094 904 476 1 £949.20
CI-EML2-470-17 17 1160 960 506 2 £1,082.40
CI-EML2-470-18 18 1227 1017 536 2 £1,131.60
CI-EML2-470-19 19 1293 1073 566 2 £1,180.80
CI-EML2-470-20 20 1360 1130 596 2 £1,230.00
CI-EML2-470-21 21 1426 1186 625 2 £1,279.20
CI-EML2-470-22 22 1493 1243 655 2 £1,328.40
CI-EML2-470-23 23 1559 1299 685 2 £1,377.60
CI-EML2-470-24 24 1626 1356 715 2 £1,426.80
CI-EML2-470-25 25 1692 1412 745 2 £1,476.00
CI-EML2-470-26 26 1759 1469 774 3 £1,525.20
CI-EML2-470-27 27 1825 1525 804 3 £1,574.40
CI-EML2-470-28 28 1892 1582 834 3 £1,623.60
CI-EML2-470-29 29 1958 1638 864 3 £1,672.80
CI-EML2-470-30 30 2025 1695 894 3 £1,722.00
CI-EML2-470-31 31 2091 1751 923 3 £1,771.20
CI-EML2-470-32 32 2158 1808 953 3 £1,820.40
CI-EML2-470-33 33 2224 1864 983 3 £1,869.60
CI-EML2-470-34 34 2291 1921 1013 3 £1,918.80
CI-EML2-470-35 35 2357 1977 1043 3 £1,968.00
CI-EML2-470-36 36 2424 2034 1072 3 £2,017.20
CI-EML2-470-37 37 2490 2090 1102 3 £2,066.40
CI-EML2-470-38 38 2557 2147 1132 3 £2,115.60
CI-EML2-470-39 39 2623 2203 1162 3 £2,164.80
CI-EML2-470-40 40 2690 2260 1192 3 £2,214.00
Emmeline II 470mm - 10 Section Battery Technical Drawing - SVG
