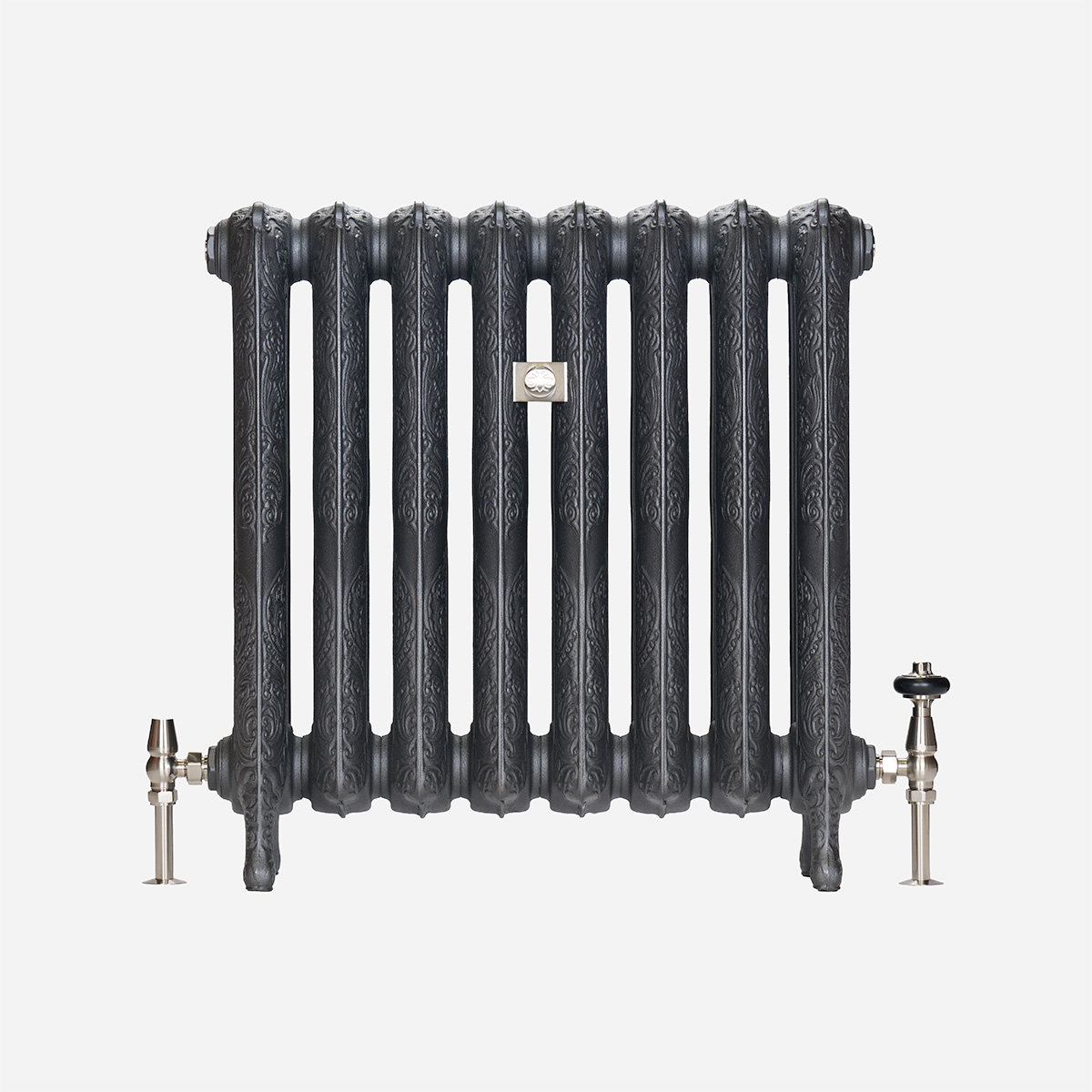

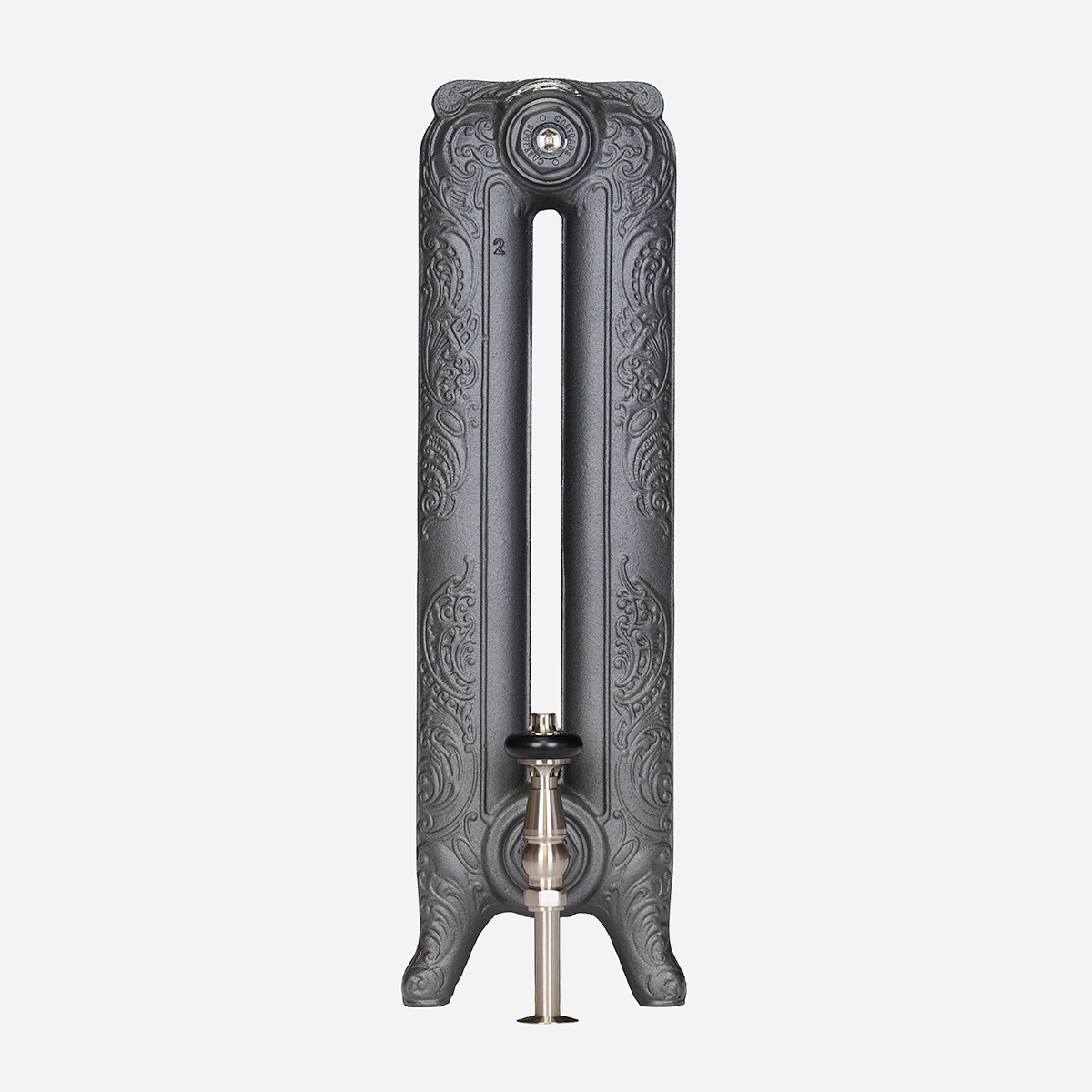

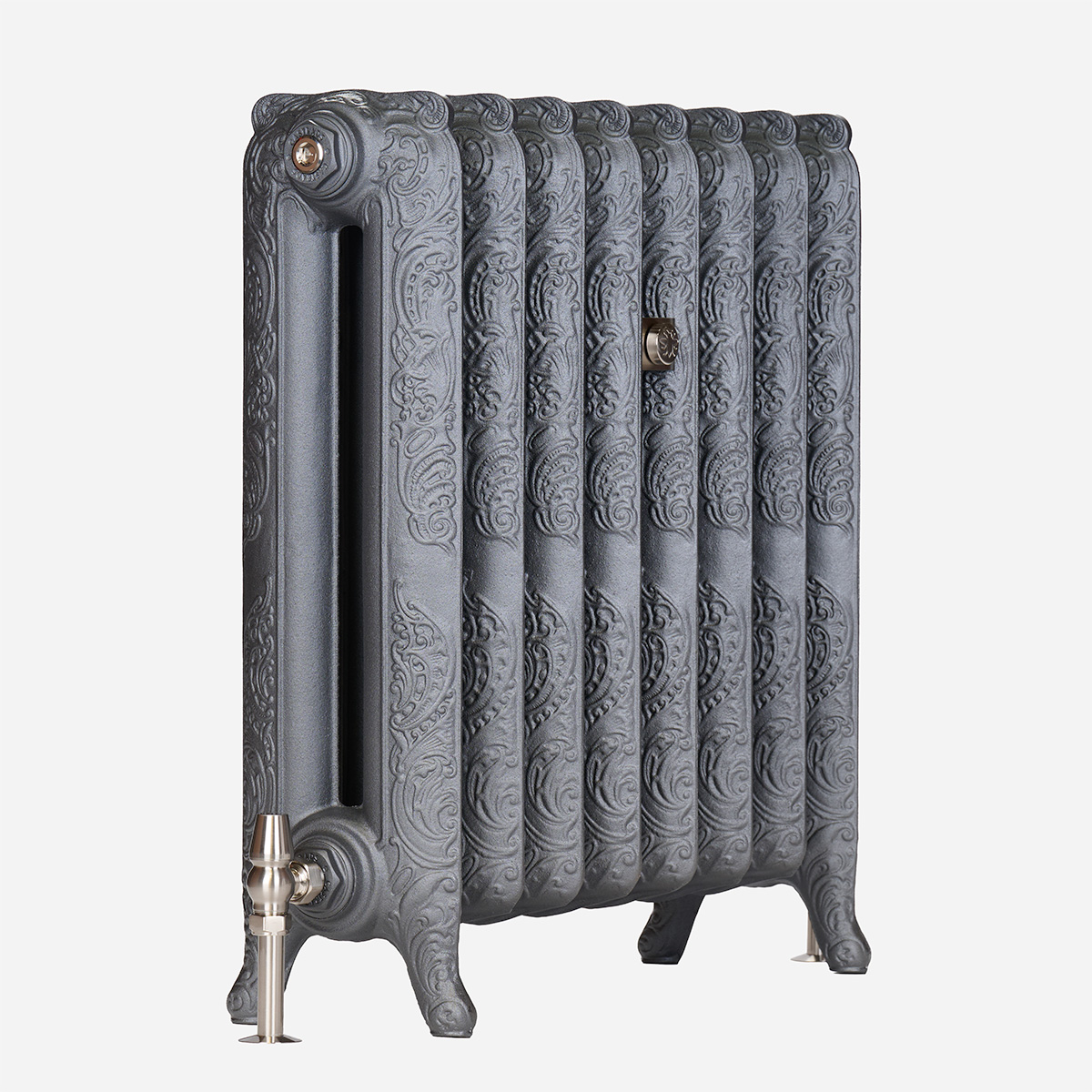

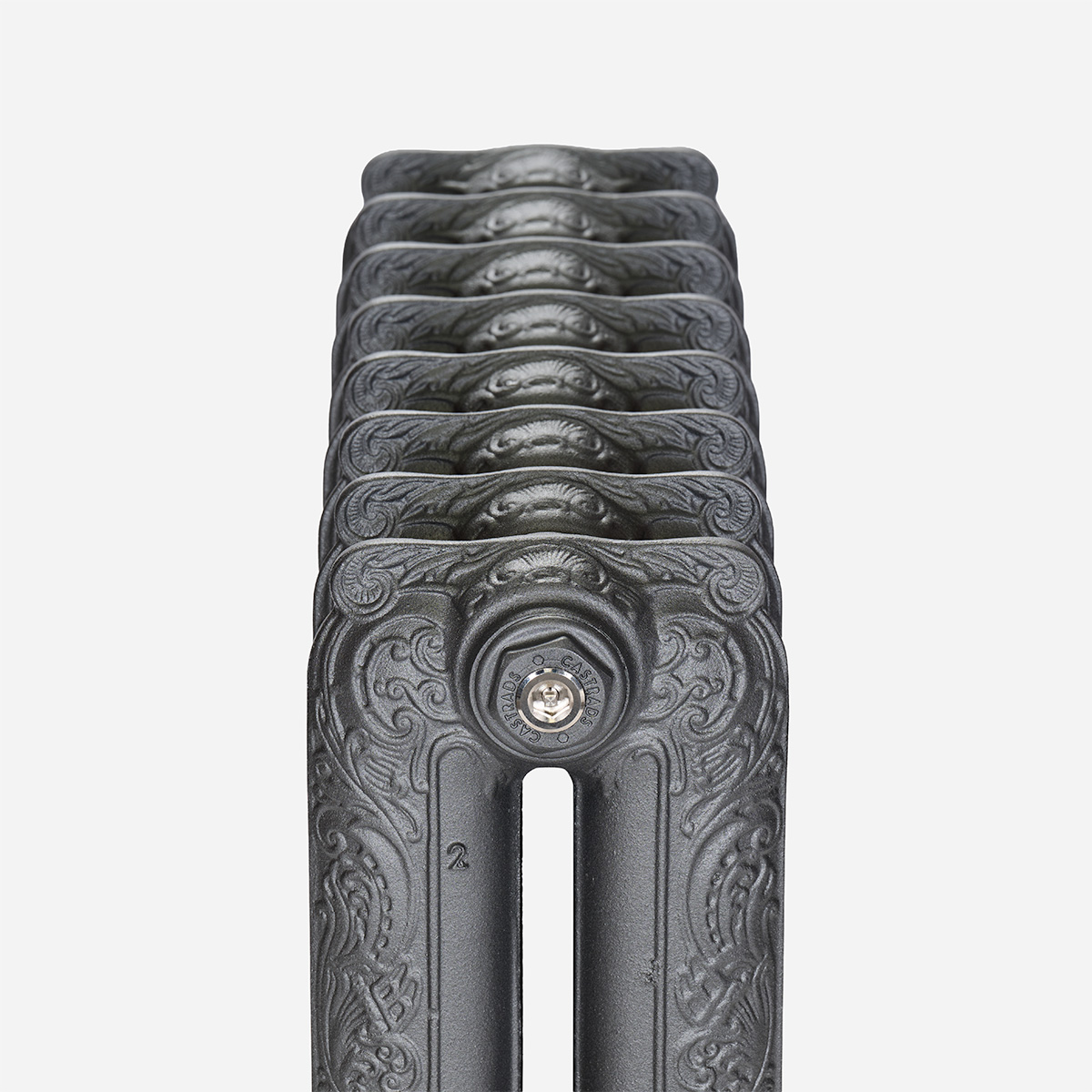

Rococo II 660mm, 22 sections

From: £1,316.40

  • 660mm tall, 1720mm long, 205mm deep.
  • Heat output (ΔT50): 2178 Watts
  • Heat output (ΔT50): 7431 BTUs
  • Weight: 220 kg
  • Guarantee: 10 years
  • Delivered in: 2 weeks (Signature range) / 4 weeks (Bare Metal)
  • Delivered in 3 pieces for partial home assembly. You will need to hire an Assembly Toolkit with purchase of this radiator.

Configure Radiator

Rococo II 660mm, 22 sections

Description
Additional information
Product files
Radiator drawing
(H) Height mm
(D) Depth mm
(L) Length mm
(PC) Pipe centres
(TS) Total space required
Open pipe centre measurements document for more information.
Heat output (ΔT50) Watts
Empty weight
Internal volume L
Delivery 1 piece
Maximum operating pressure
Weight 220.0 kg
Dimensions 1720 × 205 × 660 mm
Number of sections

22

Internal volume

49.72

Length (mm)

1720

Certification

EN442

Height (mm)

660

Construction material

Cast iron

Depth (mm)

205

Made in

England

Heat output (ΔT50) Watts

2178

Heat output (ΔT50) BTUs

7431

Maximum operating temperature

95°C for hot water systems

Maximum operating pressure

8 bar

Bleed valve included

Brass or Nickel

Connections

½" BSP as standard

Pipe centres Open document
Declaration of Performance dop-202009-1133_rc2_660
