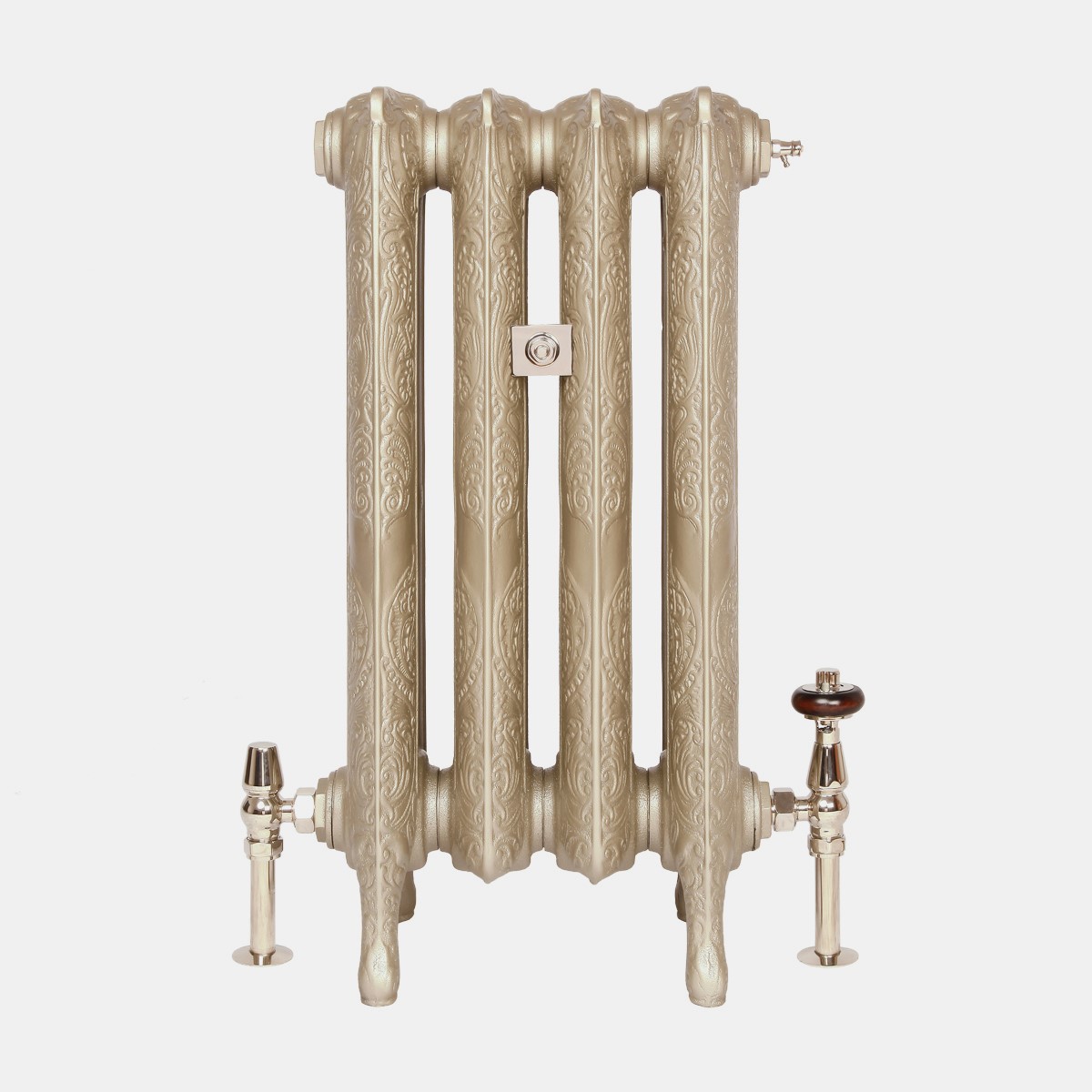

• Rococo II 660mm Castrads bay window radiator in pearl mouse grey finish

Rococo II 660mm

From: £352.80

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in

Model Specifications

Label Attribute Value
A Height With Legs (mm) 660
B Bottom Inlet To Floor (mm) 114
C Max Section Depth (mm) 207
- Output (ΔT50, W) 99.8
- Output (ΔT30, W) 52
D Interaxis Distance (mm) 500
E Height Without Legs (mm) 570
F Section Length (mm) 77
G Mid Section Depth (mm) 181
- Internal Volume (L) 2
- Empty Leg Section Weight (kg) 12
- Empty Mid Section Weight (kg) 10.9
- Factor, Km 0.6977
- Exponent, n 1.2688
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Rococo II 660mm - Single Section Technical Drawing - SVG

Sizes Available

83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
83756
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-RC2-660-3 3 261 299 156 1 £352.80
CI-RC2-660-4 4 338 399 208 1 £416.40
CI-RC2-660-5 5 415 499 260 1 £480.00
CI-RC2-660-6 6 492 598 312 1 £543.60
CI-RC2-660-7 7 569 698 364 1 £607.20
CI-RC2-660-8 8 646 798 416 1 £670.80
CI-RC2-660-9 9 723 898 468 1 £734.40
CI-RC2-660-10 10 800 998 520 1 £798.00
CI-RC2-660-11 11 877 1097 572 1 £861.60
CI-RC2-660-12 12 954 1197 624 2 £1,009.20
CI-RC2-660-13 13 1031 1297 676 2 £1,072.80
CI-RC2-660-14 14 1108 1397 728 2 £1,136.40
CI-RC2-660-15 15 1185 1497 780 2 £1,200.00
CI-RC2-660-16 16 1262 1596 832 2 £1,263.60
CI-RC2-660-17 17 1339 1696 884 2 £1,327.20
CI-RC2-660-18 18 1416 1796 936 2 £1,390.80
CI-RC2-660-19 19 1493 1896 988 2 £1,454.40
CI-RC2-660-20 20 1570 1996 1040 3 £1,518.00
CI-RC2-660-21 21 1647 2095 1092 3 £1,581.60
CI-RC2-660-22 22 1724 2195 1144 3 £1,645.20
CI-RC2-660-23 23 1801 2295 1196 3 £1,708.80
CI-RC2-660-24 24 1878 2395 1248 3 £1,772.40
CI-RC2-660-25 25 1955 2495 1300 3 £1,836.00
CI-RC2-660-26 26 2032 2594 1352 3 £1,899.60
CI-RC2-660-27 27 2109 2694 1404 3 £1,963.20
CI-RC2-660-28 28 2186 2794 1456 3 £2,026.80
CI-RC2-660-29 29 2263 2894 1508 4 £2,090.40
CI-RC2-660-30 30 2340 2994 1560 3 £2,154.00
CI-RC2-660-31 31 2417 3093 1612 4 £2,217.60
CI-RC2-660-32 32 2494 3193 1664 4 £2,281.20
CI-RC2-660-33 33 2571 3293 1716 4 £2,344.80
CI-RC2-660-34 34 2648 3393 1768 4 £2,408.40
CI-RC2-660-35 35 2725 3493 1820 4 £2,472.00
CI-RC2-660-36 36 2802 3592 1872 4 £2,535.60
CI-RC2-660-37 37 2879 3692 1924 4 £2,599.20
CI-RC2-660-38 38 2956 3792 1976 4 £2,662.80
CI-RC2-660-39 39 3033 3892 2028 4 £2,726.40
CI-RC2-660-40 40 3110 3992 2080 5 £2,790.00
Rococo II 660mm - 10 Section Battery Technical Drawing - SVG
