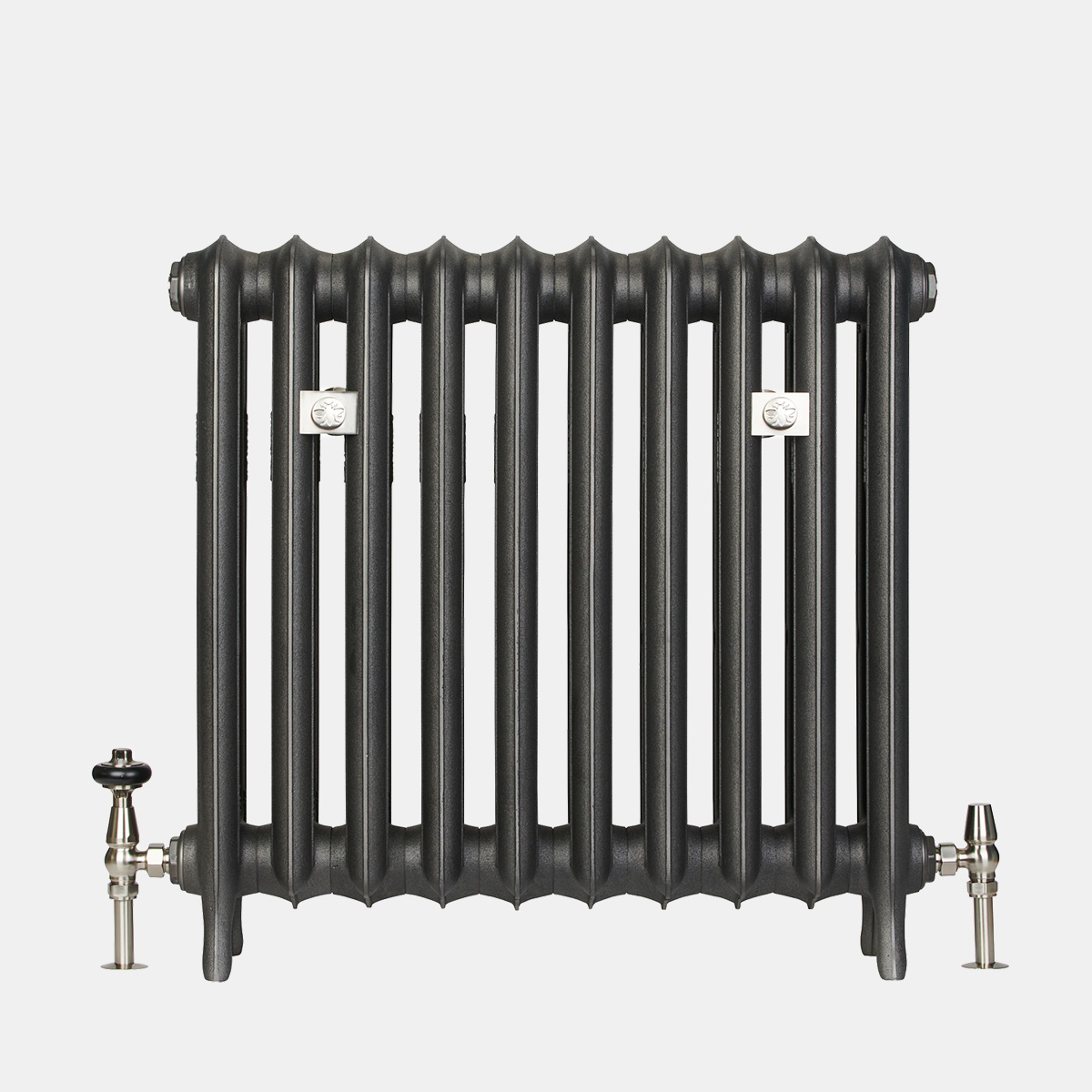

Emmeline II 670mm
From: £370.80
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 16 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 670 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 170 |
| - | Output (ΔT50, W) | 83.4 |
| - | Output (ΔT30, W) | 43.4 |
| D | Interaxis Distance (mm) | 523 |
| E | Height Without Legs (mm) | 613 |
| F | Section Length (mm) | 66.5 |
| G | Mid Section Depth (mm) | 150 |
| - | Internal Volume (L) | 1.49 |
| - | Empty Leg Section Weight (kg) | 7.3 |
| - | Empty Mid Section Weight (kg) | 6.3 |
| - | Factor, Km | 0.512299 |
| - | Exponent, n | 1.3022 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-EML2-670-3 | 3 | 229 | 250 | 130 | 1 | £370.80 |
| CI-EML2-670-4 | 4 | 296 | 333 | 173 | 1 | £440.40 |
| CI-EML2-670-5 | 5 | 362 | 417 | 217 | 1 | £510.00 |
| CI-EML2-670-6 | 6 | 429 | 500 | 260 | 1 | £579.60 |
| CI-EML2-670-7 | 7 | 495 | 583 | 303 | 1 | £649.20 |
| CI-EML2-670-8 | 8 | 562 | 667 | 347 | 1 | £718.80 |
| CI-EML2-670-9 | 9 | 628 | 750 | 390 | 1 | £788.40 |
| CI-EML2-670-10 | 10 | 695 | 834 | 434 | 1 | £858.00 |
| CI-EML2-670-11 | 11 | 761 | 917 | 477 | 1 | £927.60 |
| CI-EML2-670-12 | 12 | 828 | 1000 | 520 | 1 | £997.20 |
| CI-EML2-670-13 | 13 | 894 | 1084 | 564 | 1 | £1,066.80 |
| CI-EML2-670-14 | 14 | 961 | 1167 | 607 | 1 | £1,136.40 |
| CI-EML2-670-15 | 15 | 1027 | 1251 | 651 | 1 | £1,206.00 |
| CI-EML2-670-16 | 16 | 1094 | 1334 | 694 | 1 | £1,275.60 |
| CI-EML2-670-17 | 17 | 1160 | 1417 | 737 | 2 | £1,429.20 |
| CI-EML2-670-18 | 18 | 1227 | 1501 | 781 | 2 | £1,498.80 |
| CI-EML2-670-19 | 19 | 1293 | 1584 | 824 | 2 | £1,568.40 |
| CI-EML2-670-20 | 20 | 1360 | 1668 | 868 | 2 | £1,638.00 |
| CI-EML2-670-21 | 21 | 1426 | 1751 | 911 | 2 | £1,707.60 |
| CI-EML2-670-22 | 22 | 1493 | 1834 | 954 | 2 | £1,777.20 |
| CI-EML2-670-23 | 23 | 1559 | 1918 | 998 | 2 | £1,846.80 |
| CI-EML2-670-24 | 24 | 1626 | 2001 | 1041 | 2 | £1,916.40 |
| CI-EML2-670-25 | 25 | 1692 | 2085 | 1085 | 2 | £1,986.00 |
| CI-EML2-670-26 | 26 | 1759 | 2168 | 1128 | 3 | £2,055.60 |
| CI-EML2-670-27 | 27 | 1825 | 2251 | 1171 | 3 | £2,125.20 |
| CI-EML2-670-28 | 28 | 1892 | 2335 | 1215 | 3 | £2,194.80 |
| CI-EML2-670-29 | 29 | 1958 | 2418 | 1258 | 3 | £2,264.40 |
| CI-EML2-670-30 | 30 | 2025 | 2502 | 1302 | 3 | £2,334.00 |
| CI-EML2-670-31 | 31 | 2091 | 2585 | 1345 | 3 | £2,403.60 |
| CI-EML2-670-32 | 32 | 2158 | 2668 | 1388 | 3 | £2,473.20 |
| CI-EML2-670-33 | 33 | 2224 | 2752 | 1432 | 3 | £2,542.80 |
| CI-EML2-670-34 | 34 | 2291 | 2835 | 1475 | 3 | £2,612.40 |
| CI-EML2-670-35 | 35 | 2357 | 2919 | 1519 | 3 | £2,682.00 |
| CI-EML2-670-36 | 36 | 2424 | 3002 | 1562 | 3 | £2,751.60 |
| CI-EML2-670-37 | 37 | 2490 | 3085 | 1605 | 3 | £2,821.20 |
| CI-EML2-670-38 | 38 | 2557 | 3169 | 1649 | 3 | £2,890.80 |
| CI-EML2-670-39 | 39 | 2623 | 3252 | 1692 | 3 | £2,960.40 |
| CI-EML2-670-40 | 40 | 2690 | 3336 | 1736 | 3 | £3,030.00 |
