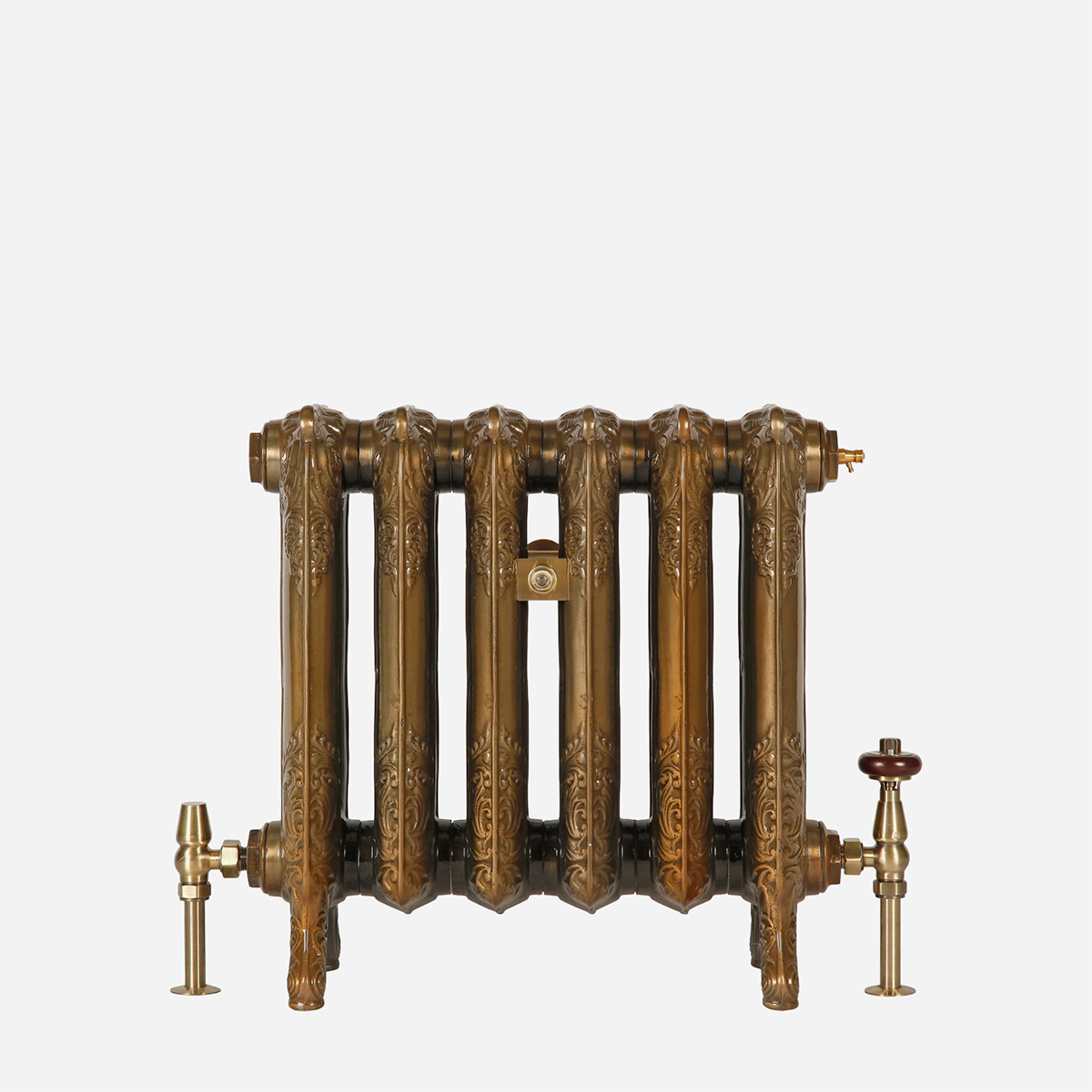

• Rococo II 510mm Castrads bay window radiator in aged gold finish

Rococo II 510mm

From: £324.00

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in

Model Specifications

Label Attribute Value
A Height With Legs (mm) 510
B Bottom Inlet To Floor (mm) 114
C Max Section Depth (mm) 220
- Output (ΔT50, W) 77.5
- Output (ΔT30, W) 40.7
D Interaxis Distance (mm) 350
E Height Without Legs (mm) 451
F Section Length (mm) 80
G Mid Section Depth (mm) 179
- Internal Volume (L) 1.8
- Empty Leg Section Weight (kg) 7.9
- Empty Mid Section Weight (kg) 6.2
- Factor, Km 0.5592
- Exponent, n 1.2608
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Rococo II 510mm - Single Section Technical Drawing - SVG

Sizes Available

83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
83755
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-RC2-510-3 3 270 232 122 1 £324.00
CI-RC2-510-4 4 350 310 162 1 £378.00
CI-RC2-510-5 5 430 387 203 1 £432.00
CI-RC2-510-6 6 510 465 244 1 £486.00
CI-RC2-510-7 7 590 542 284 1 £540.00
CI-RC2-510-8 8 670 620 325 1 £594.00
CI-RC2-510-9 9 750 697 366 1 £648.00
CI-RC2-510-10 10 830 775 407 1 £702.00
CI-RC2-510-11 11 910 852 447 1 £756.00
CI-RC2-510-12 12 990 930 488 1 £810.00
CI-RC2-510-13 13 1070 1007 529 1 £864.00
CI-RC2-510-14 14 1150 1085 569 1 £918.00
CI-RC2-510-15 15 1230 1162 610 2 £1,056.00
CI-RC2-510-16 16 1310 1240 651 2 £1,110.00
CI-RC2-510-17 17 1390 1317 691 2 £1,164.00
CI-RC2-510-18 18 1470 1395 732 2 £1,218.00
CI-RC2-510-19 19 1550 1472 773 2 £1,272.00
CI-RC2-510-20 20 1630 1550 814 2 £1,326.00
CI-RC2-510-21 21 1710 1627 854 2 £1,380.00
CI-RC2-510-22 22 1790 1705 895 3 £1,434.00
CI-RC2-510-23 23 1870 1782 936 3 £1,488.00
CI-RC2-510-24 24 1950 1860 976 3 £1,542.00
CI-RC2-510-25 25 2030 1937 1017 3 £1,596.00
CI-RC2-510-26 26 2110 2015 1058 3 £1,650.00
CI-RC2-510-27 27 2190 2092 1098 3 £1,704.00
CI-RC2-510-28 28 2270 2170 1139 3 £1,758.00
CI-RC2-510-29 29 2350 2247 1180 3 £1,812.00
CI-RC2-510-30 30 2430 2325 1221 3 £1,866.00
CI-RC2-510-31 31 2510 2402 1261 3 £1,920.00
CI-RC2-510-32 32 2590 2480 1302 3 £1,974.00
CI-RC2-510-33 33 2670 2557 1343 3 £2,028.00
CI-RC2-510-34 34 2750 2635 1383 3 £2,082.00
CI-RC2-510-35 35 2830 2712 1424 4 £2,136.00
CI-RC2-510-36 36 2910 2790 1465 4 £2,190.00
CI-RC2-510-37 37 2990 2867 1505 4 £2,244.00
CI-RC2-510-38 38 3070 2945 1546 4 £2,298.00
CI-RC2-510-39 39 3150 3022 1587 4 £2,352.00
CI-RC2-510-40 40 3230 3100 1628 4 £2,406.00
Rococo II 510mm - 10 Section Battery Technical Drawing - SVG
