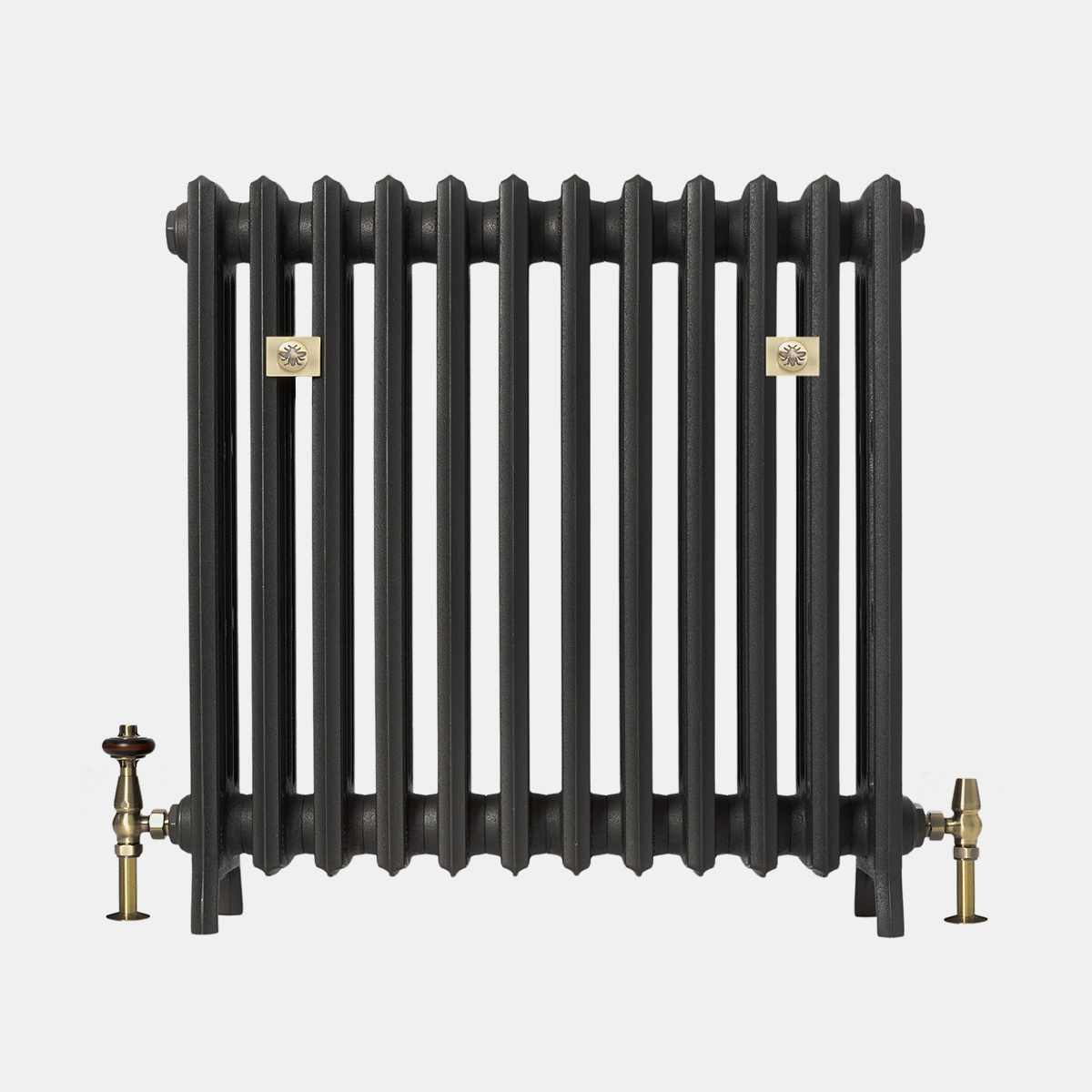

• Grace 4 column 760mm Castrads radiator in matt black finish

Grace 4 Column 760mm

From: £316.80

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-G4C-760

Model Specifications

Label Attribute Value
A Height With Legs (mm) 750
B Bottom Inlet To Floor (mm) 105
C Max Section Depth (mm) 175
- Output (ΔT50, W) 102.4
- Output (ΔT30, W) 52.9
D Interaxis Distance (mm) 600
E Height Without Legs (mm) 700
F Section Length (mm) 60.5
G Mid Section Depth (mm) 144
- Internal Volume (L) 1
- Empty Leg Section Weight (kg) 6.9
- Empty Mid Section Weight (kg) 6.8
- Factor, Km 0.6492
- Exponent, n 1.2937
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Grace 4 Column 760mm - Single Section Technical Drawing - SVG

Sizes Available

83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
83729
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-G4C-760-3 3 211 307 158 1 £316.80
CI-G4C-760-4 4 272 409 211 1 £368.40
CI-G4C-760-5 5 332 512 264 1 £420.00
CI-G4C-760-6 6 393 614 317 1 £471.60
CI-G4C-760-7 7 453 716 370 1 £523.20
CI-G4C-760-8 8 514 819 423 1 £574.80
CI-G4C-760-9 9 574 921 476 1 £626.40
CI-G4C-760-10 10 635 1024 529 1 £678.00
CI-G4C-760-11 11 695 1126 581 1 £729.60
CI-G4C-760-12 12 756 1228 634 1 £781.20
CI-G4C-760-13 13 816 1331 687 1 £832.80
CI-G4C-760-14 14 877 1433 740 1 £884.40
CI-G4C-760-15 15 937 1536 793 1 £936.00
CI-G4C-760-16 16 998 1638 846 1 £987.60
CI-G4C-760-17 17 1058 1740 899 2 £1,123.20
CI-G4C-760-18 18 1119 1843 952 2 £1,174.80
CI-G4C-760-19 19 1179 1945 1005 2 £1,226.40
CI-G4C-760-20 20 1240 2048 1058 2 £1,278.00
CI-G4C-760-21 21 1300 2150 1110 2 £1,329.60
CI-G4C-760-22 22 1361 2252 1163 2 £1,381.20
CI-G4C-760-23 23 1421 2355 1216 3 £1,432.80
CI-G4C-760-24 24 1482 2457 1269 3 £1,484.40
CI-G4C-760-25 25 1542 2560 1322 3 £1,536.00
CI-G4C-760-26 26 1603 2662 1375 3 £1,587.60
CI-G4C-760-27 27 1663 2764 1428 3 £1,639.20
CI-G4C-760-28 28 1724 2867 1481 3 £1,690.80
CI-G4C-760-29 29 1784 2969 1534 3 £1,742.40
CI-G4C-760-30 30 1845 3072 1587 3 £1,794.00
CI-G4C-760-31 31 1905 3174 1639 3 £1,845.60
CI-G4C-760-32 32 1966 3276 1692 3 £1,897.20
CI-G4C-760-33 33 2026 3379 1745 3 £1,948.80
CI-G4C-760-34 34 2087 3481 1798 3 £2,000.40
CI-G4C-760-35 35 2147 3584 1851 3 £2,052.00
CI-G4C-760-36 36 2208 3686 1904 3 £2,103.60
CI-G4C-760-37 37 2268 3788 1957 3 £2,155.20
CI-G4C-760-38 38 2329 3891 2010 3 £2,206.80
CI-G4C-760-39 39 2389 3993 2063 3 £2,258.40
CI-G4C-760-40 40 2450 4096 2116 3 £2,310.00
Grace 4 Column 760mm - 10 Section Battery Technical Drawing - SVG
