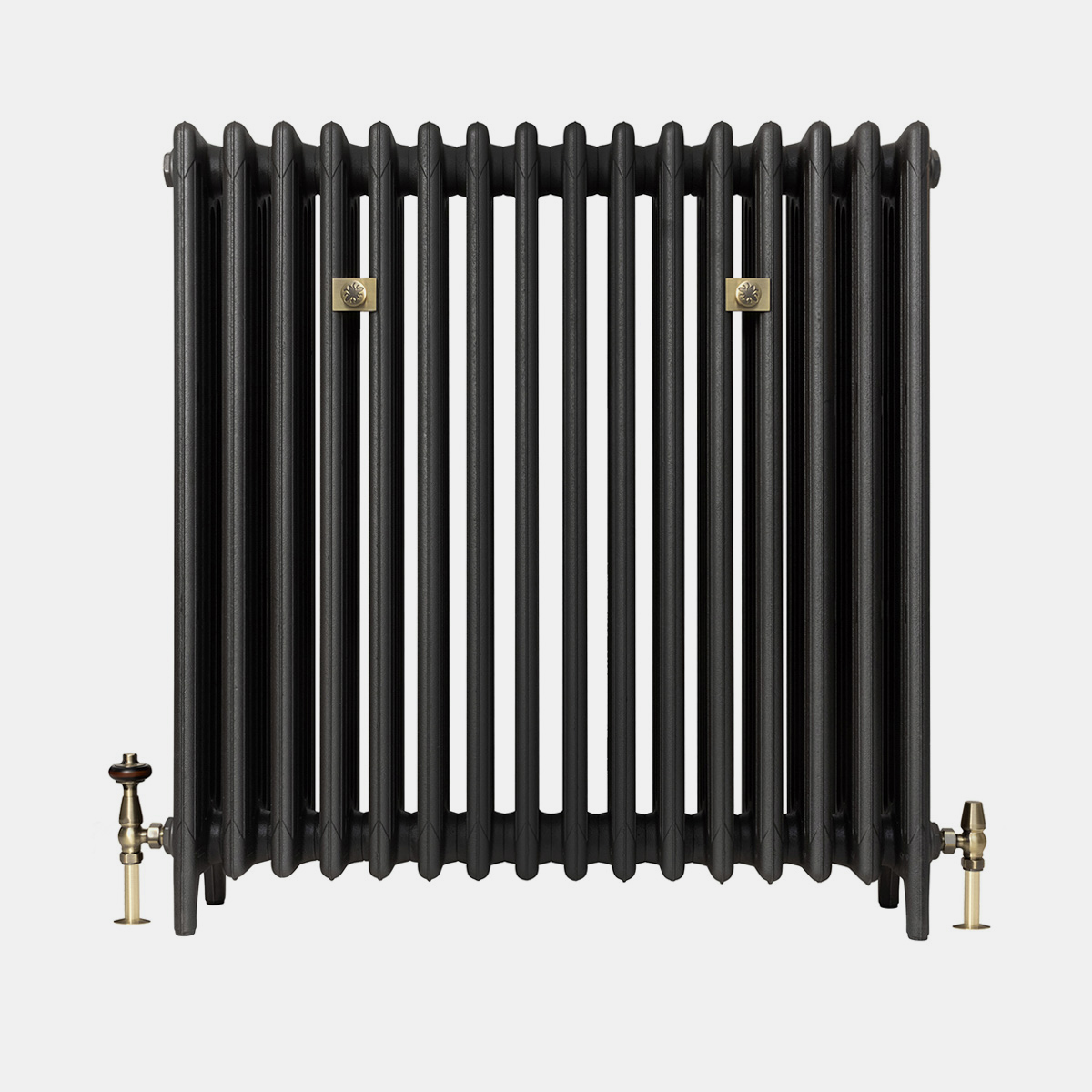

• Mercury 6 column 960mm Castrads radiator in Matt Black finish

Mercury 6 Column 960mm

From: £453.60

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-M6C-960

Model Specifications

Label Attribute Value
A Height With Legs (mm) 960
B Bottom Inlet To Floor (mm) 100
C Max Section Depth (mm) 215
- Output (ΔT50, W) 170.7
- Output (ΔT30, W) 84.6
D Interaxis Distance (mm) 823
E Height Without Legs (mm) 898
F Section Length (mm) 58.3
G Mid Section Depth (mm) 215
- Internal Volume (L) 1.5
- Empty Leg Section Weight (kg) 12.6
- Empty Mid Section Weight (kg) 11.9
- Factor, Km 0.789
- Exponent, n 1.3745
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Mercury 6 Column 960mm - Single Section Technical Drawing - SVG

Sizes Available

83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
83749
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-M6C-960-3 3 204 512 253 1 £453.60
CI-M6C-960-4 4 263 682 338 1 £550.80
CI-M6C-960-5 5 321 853 423 1 £648.00
CI-M6C-960-6 6 379 1024 507 1 £745.20
CI-M6C-960-7 7 438 1194 592 1 £842.40
CI-M6C-960-8 8 496 1365 676 1 £939.60
CI-M6C-960-9 9 554 1536 761 2 £1,120.80
CI-M6C-960-10 10 613 1707 846 2 £1,218.00
CI-M6C-960-11 11 671 1877 930 2 £1,315.20
CI-M6C-960-12 12 729 2048 1015 2 £1,412.40
CI-M6C-960-13 13 787 2219 1099 2 £1,509.60
CI-M6C-960-14 14 846 2389 1184 2 £1,606.80
CI-M6C-960-15 15 904 2560 1269 2 £1,704.00
CI-M6C-960-16 16 962 2731 1353 2 £1,801.20
CI-M6C-960-17 17 1021 2901 1438 2 £1,898.40
CI-M6C-960-18 18 1079 3072 1522 2 £1,995.60
CI-M6C-960-19 19 1137 3243 1607 3 £2,092.80
CI-M6C-960-20 20 1196 3414 1692 3 £2,190.00
CI-M6C-960-21 21 1254 3584 1776 3 £2,287.20
CI-M6C-960-22 22 1312 3755 1861 3 £2,384.40
CI-M6C-960-23 23 1370 3926 1945 3 £2,481.60
CI-M6C-960-24 24 1429 4096 2030 3 £2,578.80
CI-M6C-960-25 25 1487 4267 2115 3 £2,676.00
CI-M6C-960-26 26 1545 4438 2199 4 £2,773.20
CI-M6C-960-27 27 1604 4608 2284 3 £2,870.40
CI-M6C-960-28 28 1662 4779 2368 4 £2,967.60
CI-M6C-960-29 29 1720 4950 2453 4 £3,064.80
CI-M6C-960-30 30 1779 5121 2538 4 £3,162.00
CI-M6C-960-31 31 1837 5291 2622 4 £3,259.20
CI-M6C-960-32 32 1895 5462 2707 4 £3,356.40
CI-M6C-960-33 33 1953 5633 2791 4 £3,453.60
CI-M6C-960-34 34 2012 5803 2876 4 £3,550.80
CI-M6C-960-35 35 2070 5974 2961 4 £3,648.00
CI-M6C-960-36 36 2128 6145 3045 4 £3,745.20
CI-M6C-960-37 37 2187 6315 3130 5 £3,842.40
CI-M6C-960-38 38 2245 6486 3214 5 £3,939.60
CI-M6C-960-39 39 2303 6657 3299 5 £4,036.80
CI-M6C-960-40 40 2362 6828 3384 5 £4,134.00
Mercury 6 Column 960mm - 10 Section Battery Technical Drawing - SVG
