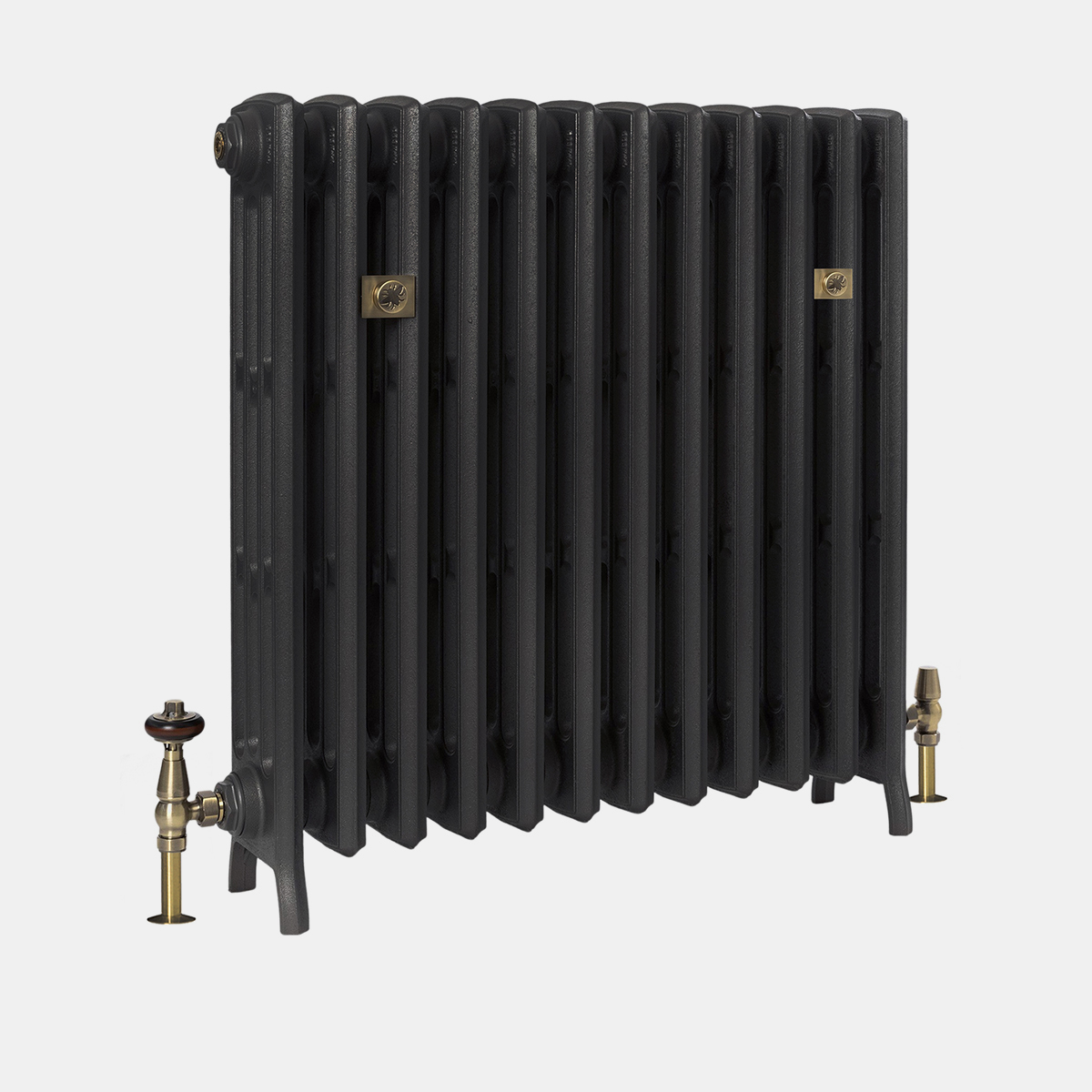

• Grace 4 column 760mm cast iron radiator in matt black finish

Grace 4 Column 30in

From: $783.00

Product Description
SKU: CI-G4C-760

Model Specifications

Label Attribute Value
A Height With Legs 29.5 in
B Bottom Inlet To Floor 4.1 in
C Max Section Depth 6.9 in
D Interaxis Distance 23.6 in
E Height Without Legs 27.6 in
F Section Length 2.4 in
G Mid Section Depth 5.7 in
- Internal Volume 0.26 gal
- Empty Leg Section Weight 15.21 lb
- Empty Mid Section Weight 14.99 lb
- EDR Per Section 2.74 ft²
- Hydronic Output (170ºF) 411 BTUs
- Steam Output (215ºF) 658 BTUs
Grace 4 Column 760mm - Single Section Technical Drawing - SVG

Sizes Available

SKU N
Secs
Length
(L, mm)
Output
(Hydronic, 170ºF)
Output
(Steam, 215ºF)
EDR Delivery
pieces
Price
from
CI-G4C-760-3 3 8.3 in 1233 BTUs 1974 BTUs 8.2 ft² 1 $783.00
CI-G4C-760-4 4 10.7 in 1644 BTUs 2632 BTUs 11.0 ft² 1 $879.00
CI-G4C-760-5 5 13.1 in 2055 BTUs 3290 BTUs 13.7 ft² 1 $975.00
CI-G4C-760-6 6 15.5 in 2466 BTUs 3948 BTUs 16.4 ft² 1 $1,071.00
CI-G4C-760-7 7 17.8 in 2877 BTUs 4606 BTUs 19.2 ft² 1 $1,167.00
CI-G4C-760-8 8 20.2 in 3288 BTUs 5264 BTUs 21.9 ft² 1 $1,263.00
CI-G4C-760-9 9 22.6 in 3699 BTUs 5922 BTUs 24.7 ft² 1 $1,359.00
CI-G4C-760-10 10 25.0 in 4110 BTUs 6580 BTUs 27.4 ft² 1 $1,455.00
CI-G4C-760-11 11 27.4 in 4521 BTUs 7238 BTUs 30.1 ft² 1 $1,551.00
CI-G4C-760-12 12 29.8 in 4932 BTUs 7896 BTUs 32.9 ft² 1 $1,647.00
CI-G4C-760-13 13 32.1 in 5343 BTUs 8554 BTUs 35.6 ft² 1 $1,743.00
CI-G4C-760-14 14 34.5 in 5754 BTUs 9212 BTUs 38.4 ft² 1 $1,839.00
CI-G4C-760-15 15 36.9 in 6165 BTUs 9870 BTUs 41.1 ft² 2 $2,015.00
CI-G4C-760-16 16 39.3 in 6576 BTUs 10528 BTUs 43.8 ft² 2 $2,111.00
CI-G4C-760-17 17 41.7 in 6987 BTUs 11186 BTUs 46.6 ft² 2 $2,207.00
CI-G4C-760-18 18 44.1 in 7398 BTUs 11844 BTUs 49.3 ft² 2 $2,303.00
CI-G4C-760-19 19 46.4 in 7809 BTUs 12502 BTUs 52.1 ft² 2 $2,399.00
CI-G4C-760-20 20 48.8 in 8220 BTUs 13160 BTUs 54.8 ft² 2 $2,495.00
CI-G4C-760-21 21 51.2 in 8631 BTUs 13818 BTUs 57.5 ft² 2 $2,591.00
CI-G4C-760-22 22 53.6 in 9042 BTUs 14476 BTUs 60.3 ft² 2 $2,687.00
CI-G4C-760-23 23 55.9 in 9453 BTUs 15134 BTUs 63.0 ft² 3 $2,783.00
CI-G4C-760-24 24 58.3 in 9864 BTUs 15792 BTUs 65.8 ft² 3 $2,879.00
CI-G4C-760-25 25 60.7 in 10275 BTUs 16450 BTUs 68.5 ft² 3 $2,975.00
CI-G4C-760-26 26 63.1 in 10686 BTUs 17108 BTUs 71.2 ft² 3 $3,071.00
CI-G4C-760-27 27 65.5 in 11097 BTUs 17766 BTUs 74.0 ft² 3 $3,167.00
CI-G4C-760-28 28 67.9 in 11508 BTUs 18424 BTUs 76.7 ft² 3 $3,263.00
CI-G4C-760-29 29 70.2 in 11919 BTUs 19082 BTUs 79.5 ft² 3 $3,359.00
CI-G4C-760-30 30 72.6 in 12330 BTUs 19740 BTUs 82.2 ft² 3 $3,455.00
CI-G4C-760-31 31 75.0 in 12741 BTUs 20398 BTUs 84.9 ft² 3 $3,551.00
CI-G4C-760-32 32 77.4 in 13152 BTUs 21056 BTUs 87.7 ft² 3 $3,647.00
CI-G4C-760-33 33 79.8 in 13563 BTUs 21714 BTUs 90.4 ft² 3 $3,743.00
CI-G4C-760-34 34 82.2 in 13974 BTUs 22372 BTUs 93.2 ft² 3 $3,839.00
CI-G4C-760-35 35 84.5 in 14385 BTUs 23030 BTUs 95.9 ft² 3 $3,935.00
CI-G4C-760-36 36 86.9 in 14796 BTUs 23688 BTUs 98.6 ft² 3 $4,031.00
CI-G4C-760-37 37 89.3 in 15207 BTUs 24346 BTUs 101.4 ft² 3 $4,127.00
CI-G4C-760-38 38 91.7 in 15618 BTUs 25004 BTUs 104.1 ft² 3 $4,223.00
CI-G4C-760-39 39 94.1 in 16029 BTUs 25662 BTUs 106.9 ft² 3 $4,319.00
CI-G4C-760-40 40 96.5 in 16440 BTUs 26320 BTUs 109.6 ft² 3 $4,415.00
Grace 4 Column 760mm - 10 Section Battery Technical Drawing - SVG
