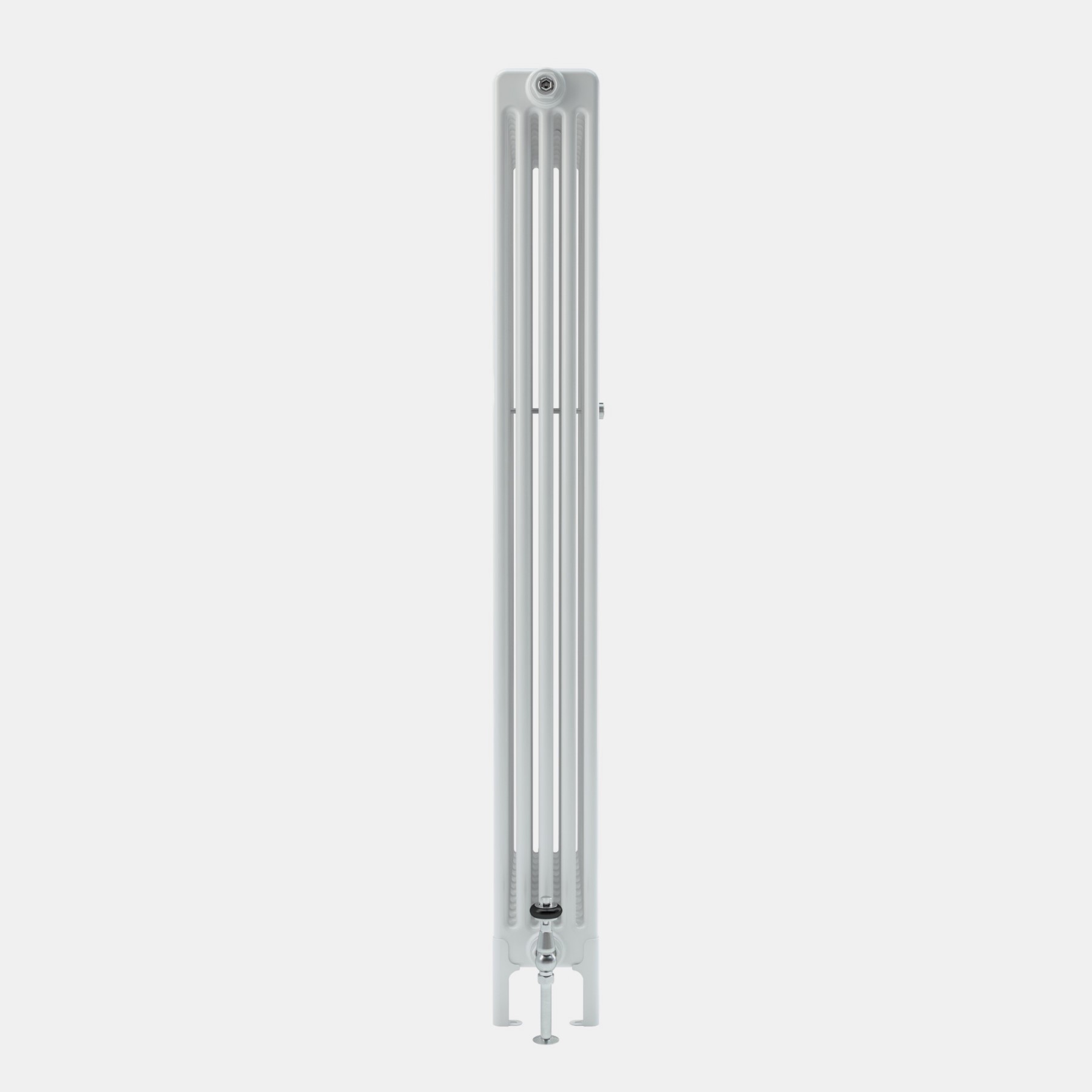

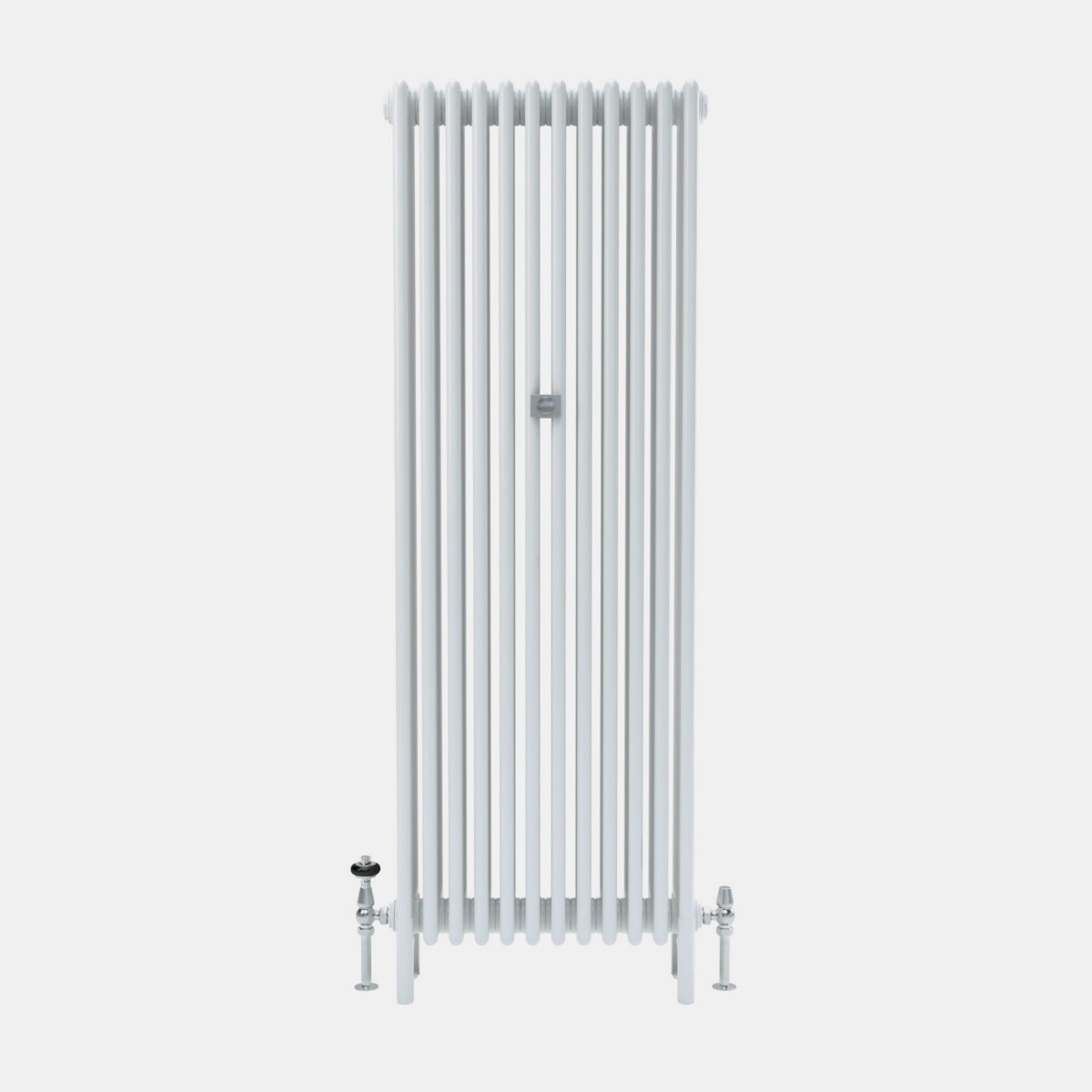

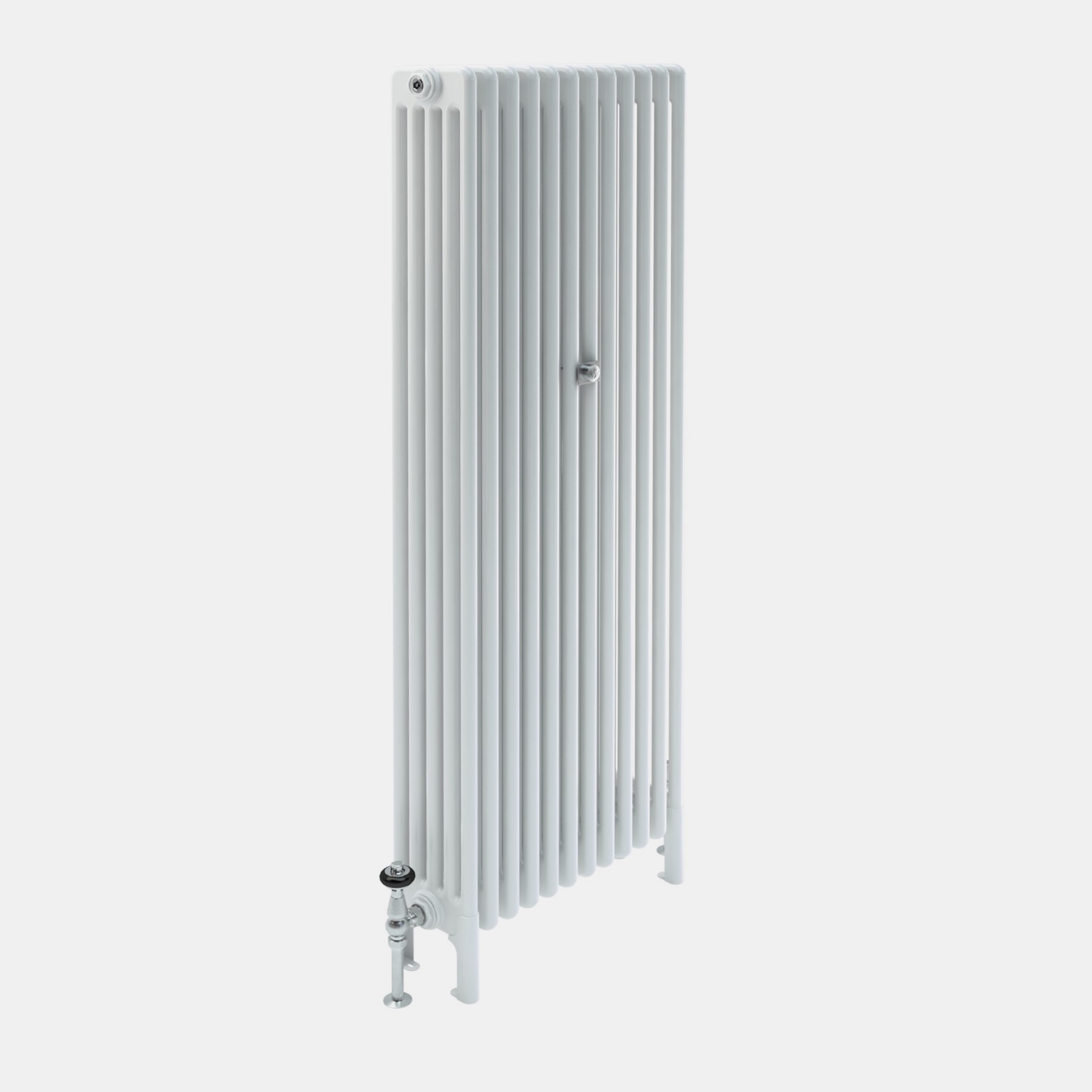

Florence 5 Column 1500mm

From: £507.00

Product Description
  • Available from 3 to 40 sections long (see below for technical specs)
  • Delivered ready to install
  • Heat pump compatible
  • 10 year warranty
  • Not suitable for steam
  • Welded joins with powder coat finish
  • Made in Italy
SKU: SMC-F5C-1502

Model Specifications

Label Attribute Value
A Height With Legs (mm) 1602
B Bottom Inlet To Floor (mm) 134
C Max Section Depth (mm) 179
D Interaxis Distance (mm) 1435
E Height Without Legs (mm) 1502
- Output (ΔT50, W) 220.9
F Section Length (mm) 45
- Output (ΔT30, W) 111.6
G Mid Section Depth (mm) 177
- Internal Volume (L) 3.4
- Empty Leg Section Weight (kg) 5.4
- Empty Mid Section Weight (kg) 5.1
- Factor, Km 1.1834
- Exponent, n 1.33667
Florence 5 Column 1500mm - Single Section Technical Drawing - SVG

Sizes Available

83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
83830
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
SMC-F5C-1502-3 3 165 662 334 1 £507.00
SMC-F5C-1502-4 4 210 883 446 1 £630.00
SMC-F5C-1502-5 5 255 1104 558 1 £753.00
SMC-F5C-1502-6 6 300 1325 669 1 £876.00
SMC-F5C-1502-7 7 345 1546 781 1 £999.00
SMC-F5C-1502-8 8 390 1767 892 1 £1,122.00
SMC-F5C-1502-9 9 435 1988 1004 1 £1,245.00
SMC-F5C-1502-10 10 480 2209 1116 1 £1,368.00
SMC-F5C-1502-11 11 525 2429 1227 1 £1,491.00
SMC-F5C-1502-12 12 570 2650 1339 1 £1,614.00
SMC-F5C-1502-13 13 615 2871 1450 1 £1,737.00
SMC-F5C-1502-14 14 660 3092 1562 1 £1,860.00
SMC-F5C-1502-15 15 705 3313 1674 1 £1,983.00
SMC-F5C-1502-16 16 750 3534 1785 1 £2,106.00
SMC-F5C-1502-17 17 795 3755 1897 1 £2,229.00
SMC-F5C-1502-18 18 840 3976 2008 1 £2,352.00
SMC-F5C-1502-19 19 885 4197 2120 1 £2,475.00
SMC-F5C-1502-20 20 930 4418 2232 1 £2,598.00
SMC-F5C-1502-21 21 975 4638 2343 1 £2,721.00
SMC-F5C-1502-22 22 1020 4859 2455 1 £2,844.00
SMC-F5C-1502-23 23 1065 5080 2566 1 £2,967.00
SMC-F5C-1502-24 24 1110 5301 2678 1 £3,090.00
SMC-F5C-1502-25 25 1155 5522 2790 1 £3,213.00
SMC-F5C-1502-26 26 1200 5743 2901 1 £3,336.00
SMC-F5C-1502-27 27 1245 5964 3013 1 £3,459.00
SMC-F5C-1502-28 28 1290 6185 3124 1 £3,582.00
SMC-F5C-1502-29 29 1335 6406 3236 1 £3,705.00
SMC-F5C-1502-30 30 1380 6627 3348 1 £3,828.00
SMC-F5C-1502-31 31 1425 6847 3459 1 £3,951.00
SMC-F5C-1502-32 32 1470 7068 3571 1 £4,074.00
SMC-F5C-1502-33 33 1515 7289 3682 1 £4,197.00
SMC-F5C-1502-34 34 1560 7510 3794 1 £4,320.00
SMC-F5C-1502-35 35 1605 7731 3906 1 £4,443.00
SMC-F5C-1502-36 36 1650 7952 4017 1 £4,566.00
SMC-F5C-1502-37 37 1695 8173 4129 1 £4,689.00
SMC-F5C-1502-38 38 1740 8394 4240 1 £4,812.00
SMC-F5C-1502-39 39 1785 8615 4352 1 £4,935.00
SMC-F5C-1502-40 40 1830 8836 4464 1 £5,058.00
Florence 5 Column 1500mm - 10 Section Battery Technical Drawing - SVG
