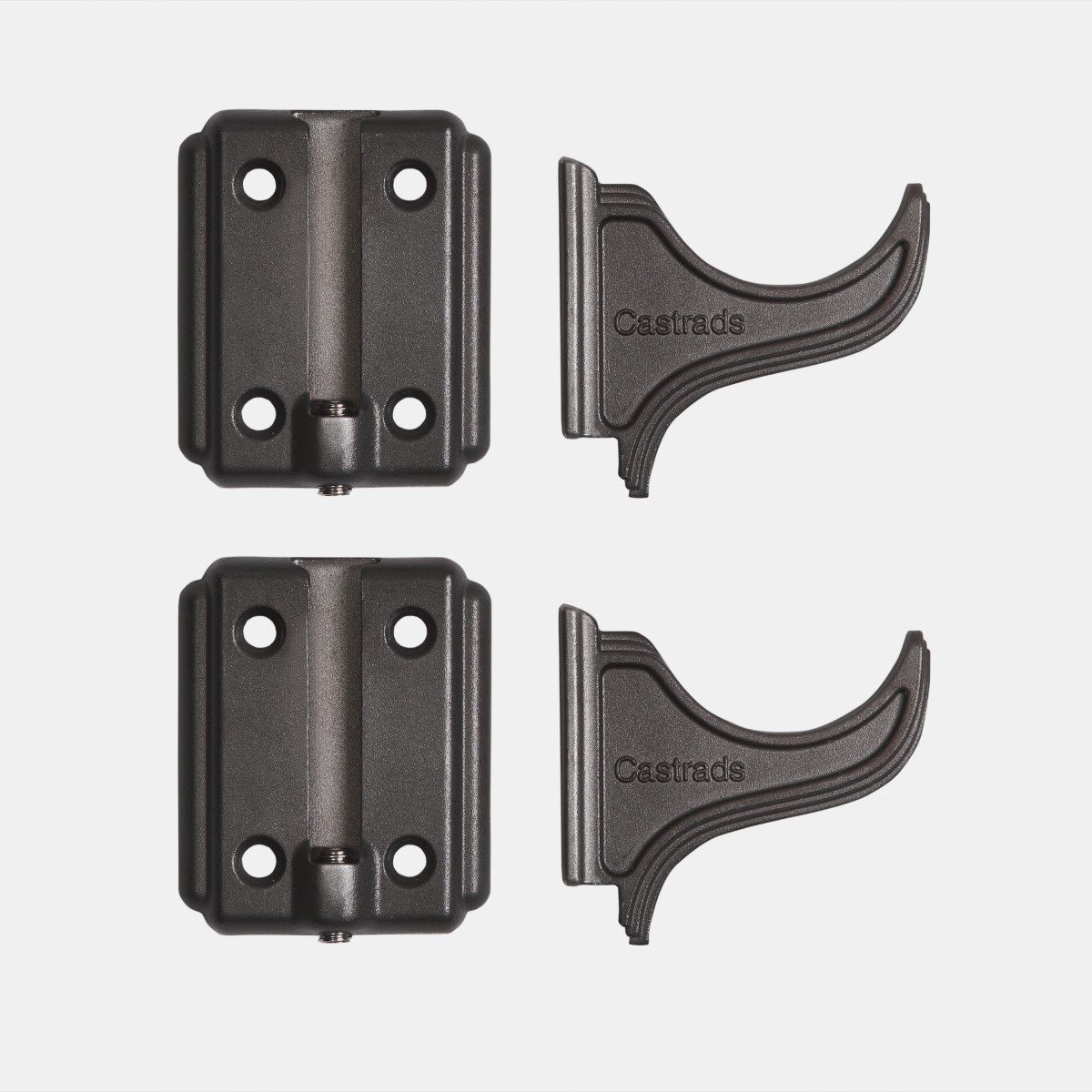

  • 49mm Atlas Wall Bracket

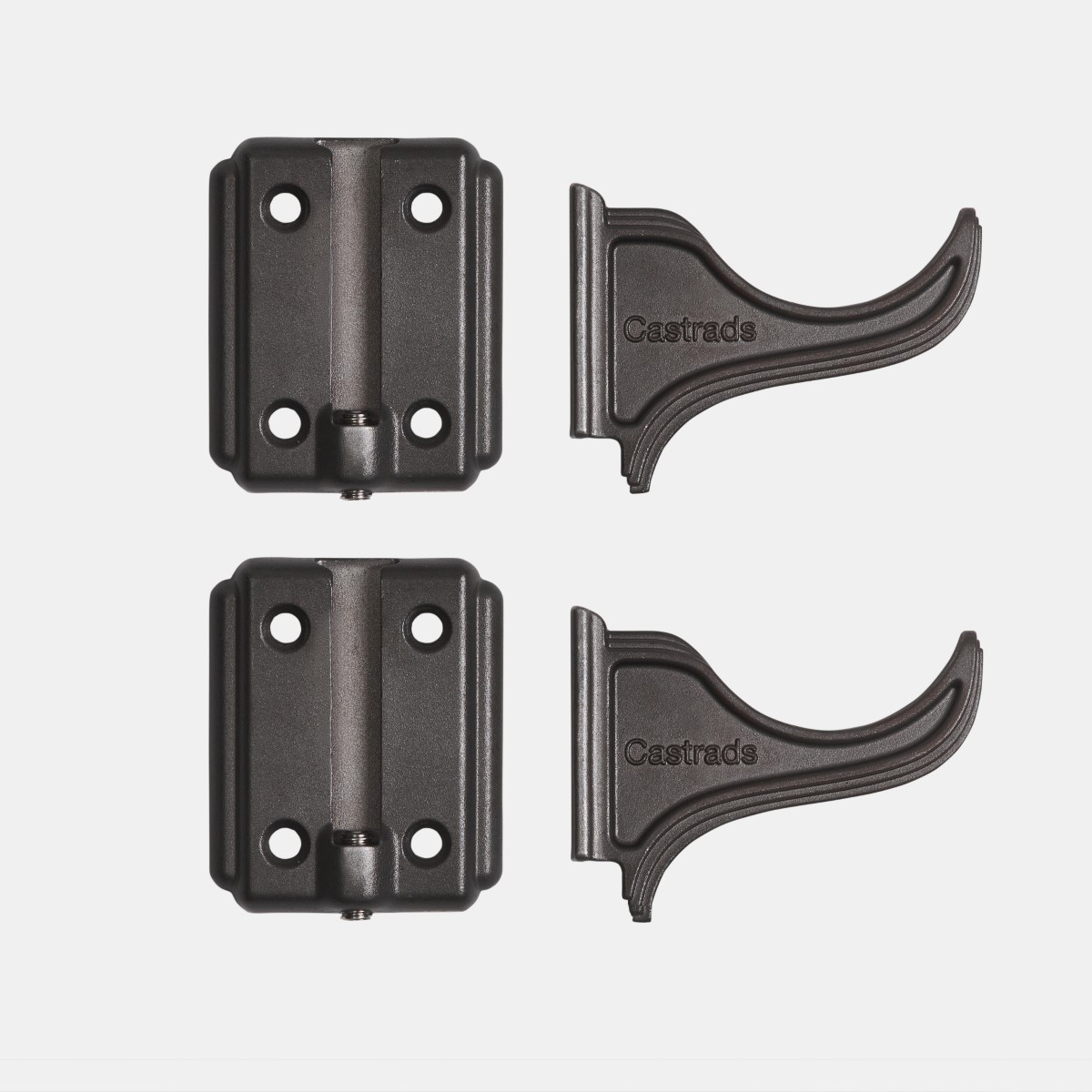

  • 63mm Atlas Wall Bracket
  • 93mm Atlas Wall Bracket

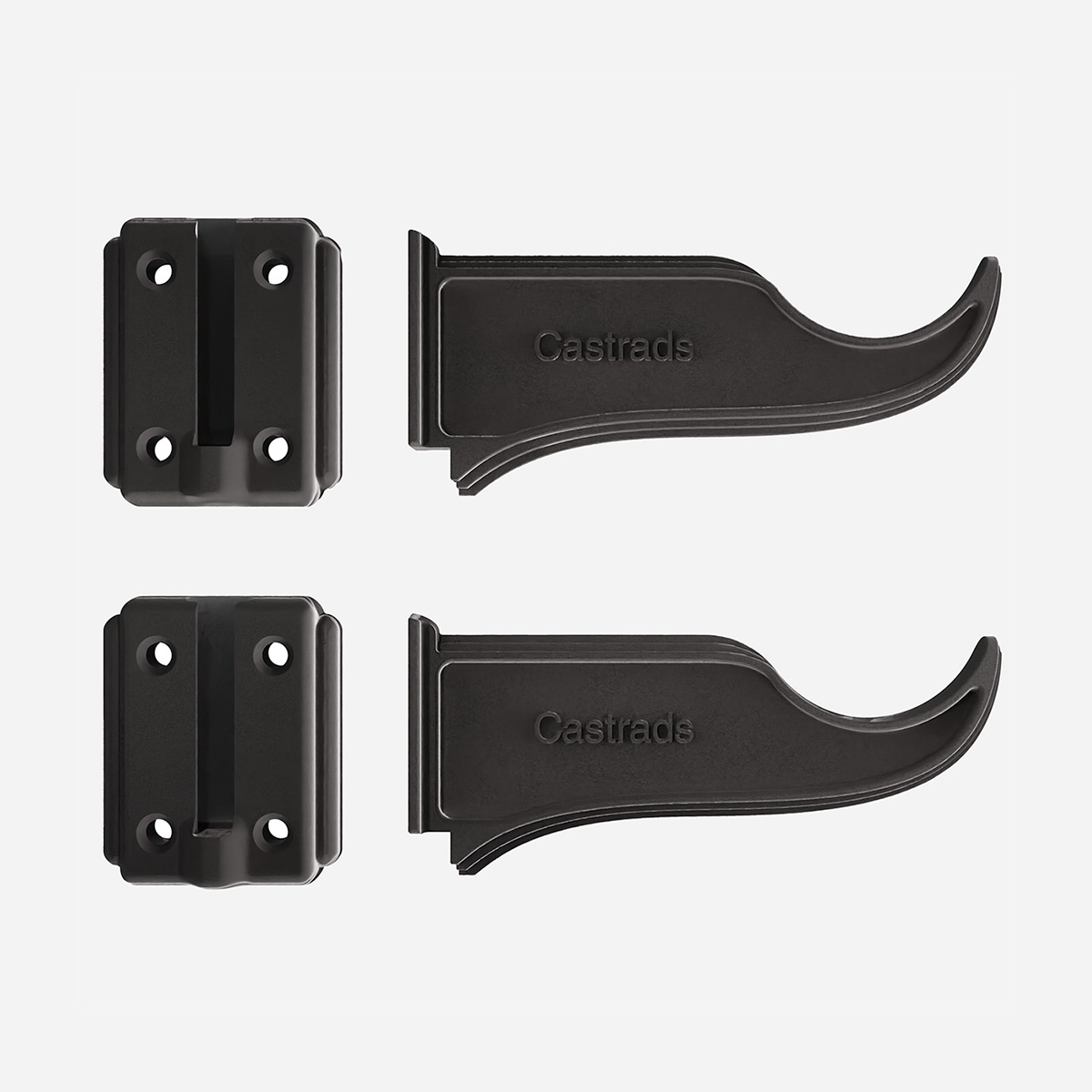

  • 130mm Atlas Wall Bracket

Atlas Wall Bracket

£49.56

Additional information

Weight 1.1 kg
Dimensions 200 × 125 × 33 mm
Bracket Length (mm)

130, 49, 63, 93

Product Description
  • Two-piece brackets for wall-mounting sectional radiators
  • Strong, secure fixing with four screw holes
  • Vertically adjustable for accurate installation
  • Recommended minimum of four brackets per radiator
  • Maximum load 100kg per pair
  • Four sizes for various radiator depths
SKU: ATL-WBP

Atlas Wall Bracket

Exclusive to Castrads

Designed by our in-house product team, Atlas Wall Brackets are small but mighty.

Wall mounted cast iron radiator with adjustable brackets

Technical Data

Nominal Size SKU Suitable Radiators A B C D
63mm ATL-WBP-63 Mercury 2 Col, Grace 2 Col, Emmeline I 63mm 99mm 84mm 51mm
93mm ATL-WBP-93 Mercury 3 & 4 Col, Grace 4 Col, Emmeline II 93mm 129mm 84mm 51mm
130mm ATL-WBP-130 Mercury 6 Col, Grace 6 Col, Emmeline III 130mm 166mm 84mm 51mm
Atlas Wall Bracket - ABC Technical Drawing - SVG

Colour matching available

Atlas brackets are supplied in black iron as standard for radiators in Bare Metal, and Signature Dark finishes, but for custom painted radiators we are able to spray the brackets alongside the radiators for a perfect colour match.
