Rococo III 970mm
Cast Iron · by Castrads
From: £624.00
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |

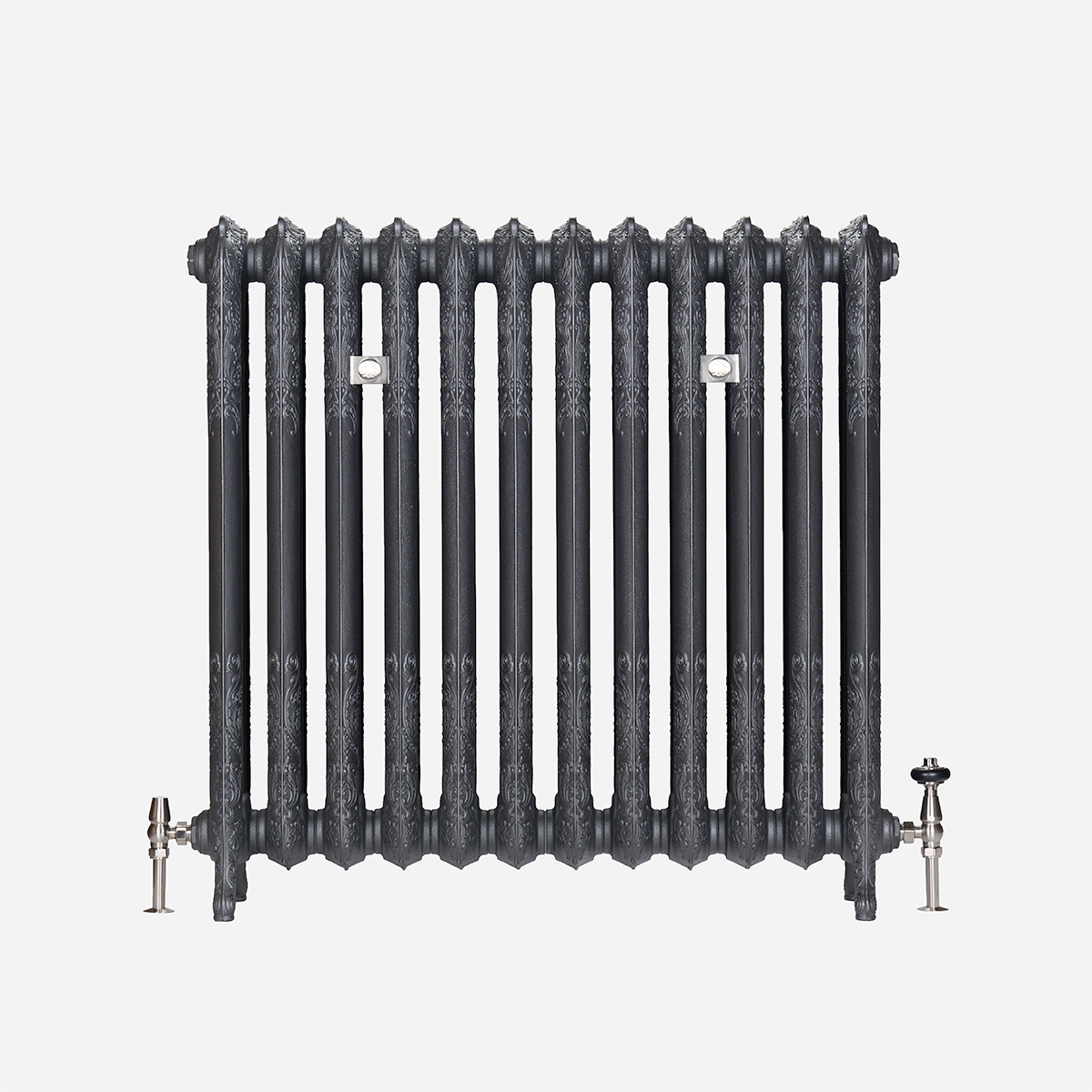

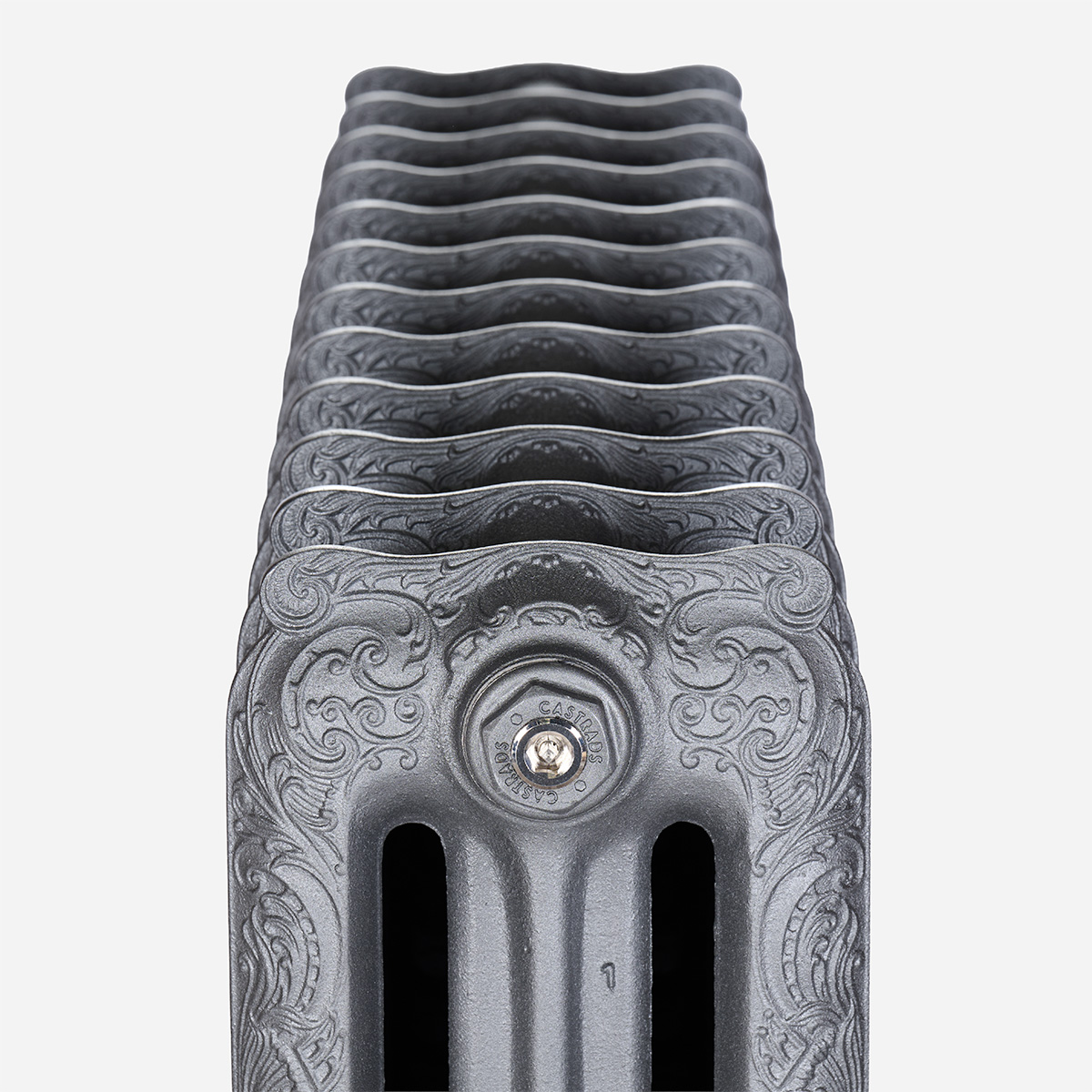

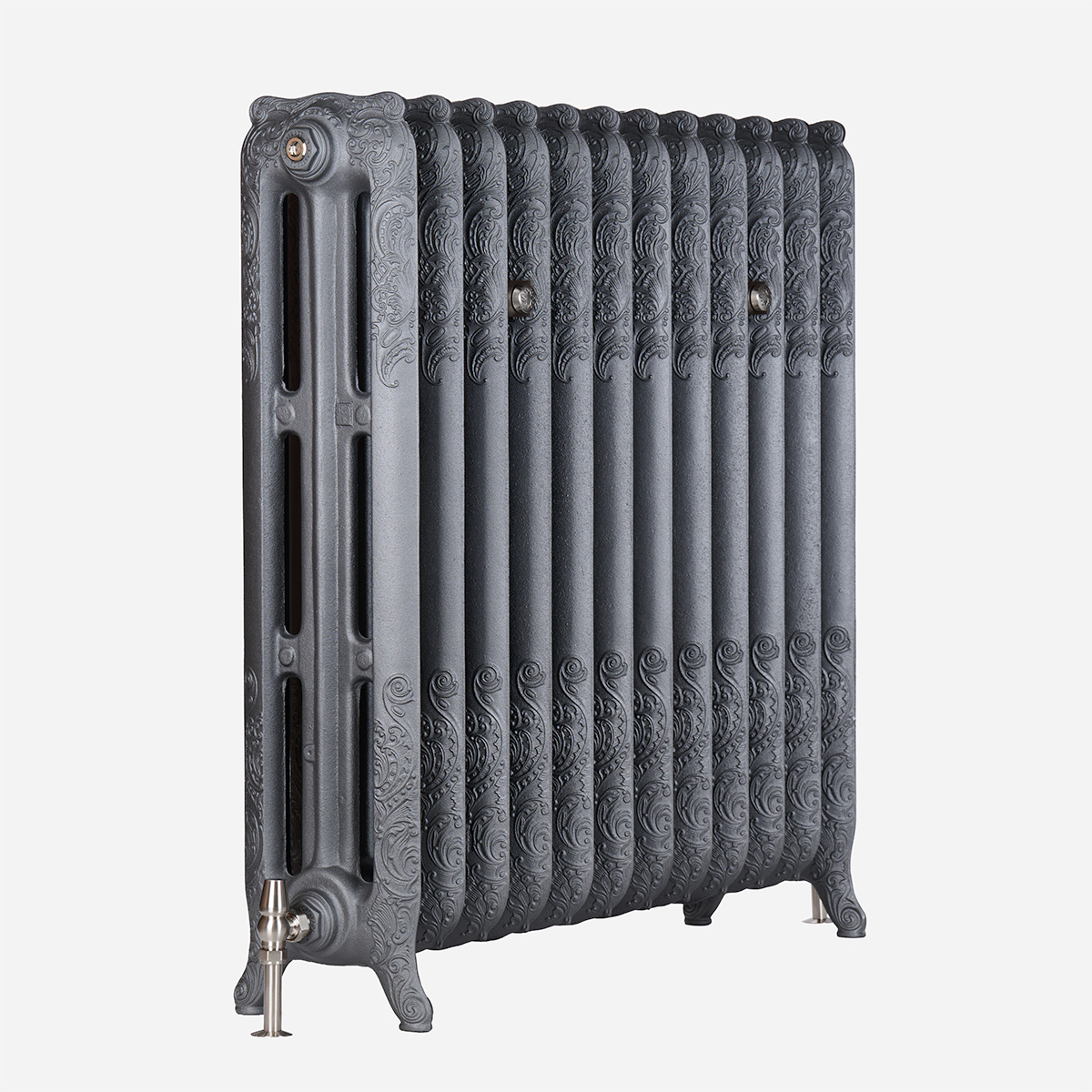

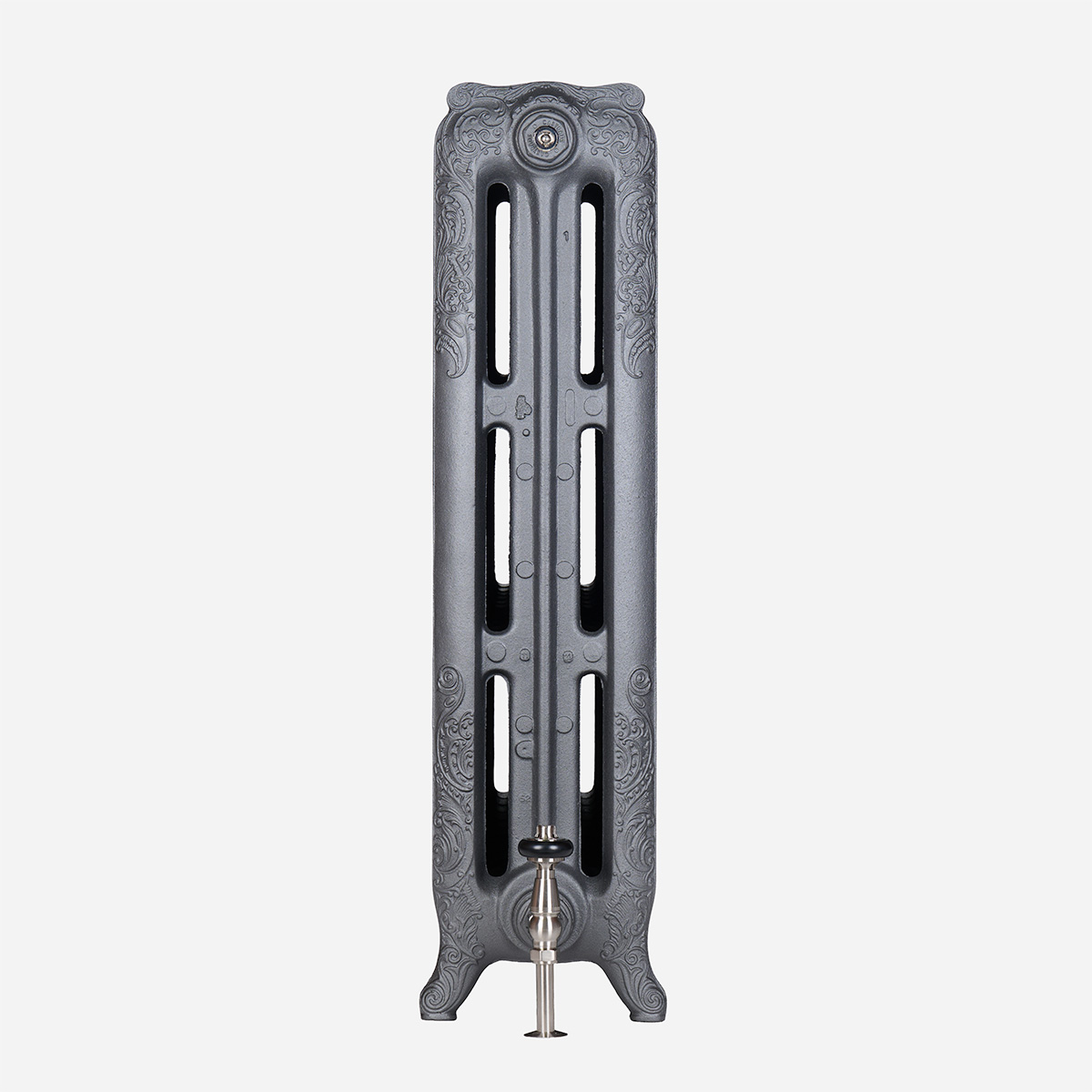

An ornate cast iron radiator, faithfully reproduced from an American Radiator Company original.
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 7 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 970 |
| E | Height Without Legs (mm) | 895 |
| - | Empty Leg Section Weight (kg) | 17.3 |
| - | Empty Mid Section Weight (kg) | 15.7 |
| B | Bottom Inlet To Floor (mm) | 105 |
| C | Max Section Depth (mm) | 256 |
| G | Mid Section Depth (mm) | 224 |
| D | Interaxis Distance (mm) | 800 |
| F | Section Length (mm) | 77 |
| - | Output (ΔT50, W) | 174 |
| - | Output (ΔT30, W) | 94 |
| - | Internal Volume (L) | 3.5 |
| - | Exponent, n | 1.2091 |
| - | Factor, Km | 1.5333 |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-RC3-970-3 | 3 | 261 | 521 | 281 | 1 | £624.00 |
| CI-RC3-970-4 | 4 | 338 | 695 | 375 | 1 | £763.20 |
| CI-RC3-970-5 | 5 | 415 | 869 | 468 | 1 | £902.40 |
| CI-RC3-970-6 | 6 | 492 | 1042 | 562 | 1 | £1,041.60 |
| CI-RC3-970-7 | 7 | 569 | 1216 | 656 | 1 | £1,180.80 |
| CI-RC3-970-8 | 8 | 646 | 1390 | 749 | 2 | £1,407.60 |
| CI-RC3-970-9 | 9 | 723 | 1563 | 843 | 2 | £1,546.80 |
| CI-RC3-970-10 | 10 | 800 | 1737 | 937 | 2 | £1,686.00 |
| CI-RC3-970-11 | 11 | 877 | 1911 | 1030 | 2 | £1,825.20 |
| CI-RC3-970-12 | 12 | 954 | 2085 | 1124 | 2 | £1,964.40 |
| CI-RC3-970-13 | 13 | 1031 | 2258 | 1218 | 2 | £2,103.60 |
| CI-RC3-970-14 | 14 | 1108 | 2432 | 1311 | 2 | £2,242.80 |
| CI-RC3-970-15 | 15 | 1185 | 2606 | 1405 | 3 | £2,382.00 |
| CI-RC3-970-16 | 16 | 1262 | 2780 | 1499 | 3 | £2,521.20 |
| CI-RC3-970-17 | 17 | 1339 | 2953 | 1592 | 3 | £2,660.40 |
| CI-RC3-970-18 | 18 | 1416 | 3127 | 1686 | 3 | £2,799.60 |
| CI-RC3-970-19 | 19 | 1493 | 3301 | 1780 | 3 | £2,938.80 |
| CI-RC3-970-20 | 20 | 1570 | 3474 | 1873 | 3 | £3,078.00 |
| CI-RC3-970-21 | 21 | 1647 | 3648 | 1967 | 3 | £3,217.20 |
| CI-RC3-970-22 | 22 | 1724 | 3822 | 2061 | 4 | £3,356.40 |
| CI-RC3-970-23 | 23 | 1801 | 3996 | 2154 | 4 | £3,495.60 |
| CI-RC3-970-24 | 24 | 1878 | 4169 | 2248 | 4 | £3,634.80 |
| CI-RC3-970-25 | 25 | 1955 | 4343 | 2342 | 5 | £3,774.00 |
| CI-RC3-970-26 | 26 | 2032 | 4517 | 2435 | 5 | £3,913.20 |
| CI-RC3-970-27 | 27 | 2109 | 4690 | 2529 | 5 | £4,052.40 |
| CI-RC3-970-28 | 28 | 2186 | 4864 | 2623 | 5 | £4,191.60 |
| CI-RC3-970-29 | 29 | 2263 | 5038 | 2717 | 5 | £4,330.80 |
| CI-RC3-970-30 | 30 | 2340 | 5212 | 2810 | 5 | £4,470.00 |
| CI-RC3-970-31 | 31 | 2417 | 5385 | 2904 | 6 | £4,609.20 |
| CI-RC3-970-32 | 32 | 2494 | 5559 | 2998 | 5 | £4,748.40 |
| CI-RC3-970-33 | 33 | 2571 | 5733 | 3091 | 6 | £4,887.60 |
| CI-RC3-970-34 | 34 | 2648 | 5907 | 3185 | 6 | £5,026.80 |
| CI-RC3-970-35 | 35 | 2725 | 6080 | 3279 | 6 | £5,166.00 |
| CI-RC3-970-36 | 36 | 2802 | 6254 | 3372 | 6 | £5,305.20 |
| CI-RC3-970-37 | 37 | 2879 | 6428 | 3466 | 7 | £5,444.40 |
| CI-RC3-970-38 | 38 | 2956 | 6601 | 3560 | 7 | £5,583.60 |
| CI-RC3-970-39 | 39 | 3033 | 6775 | 3653 | 7 | £5,722.80 |
| CI-RC3-970-40 | 40 | 3110 | 6949 | 3747 | 7 | £5,862.00 |
