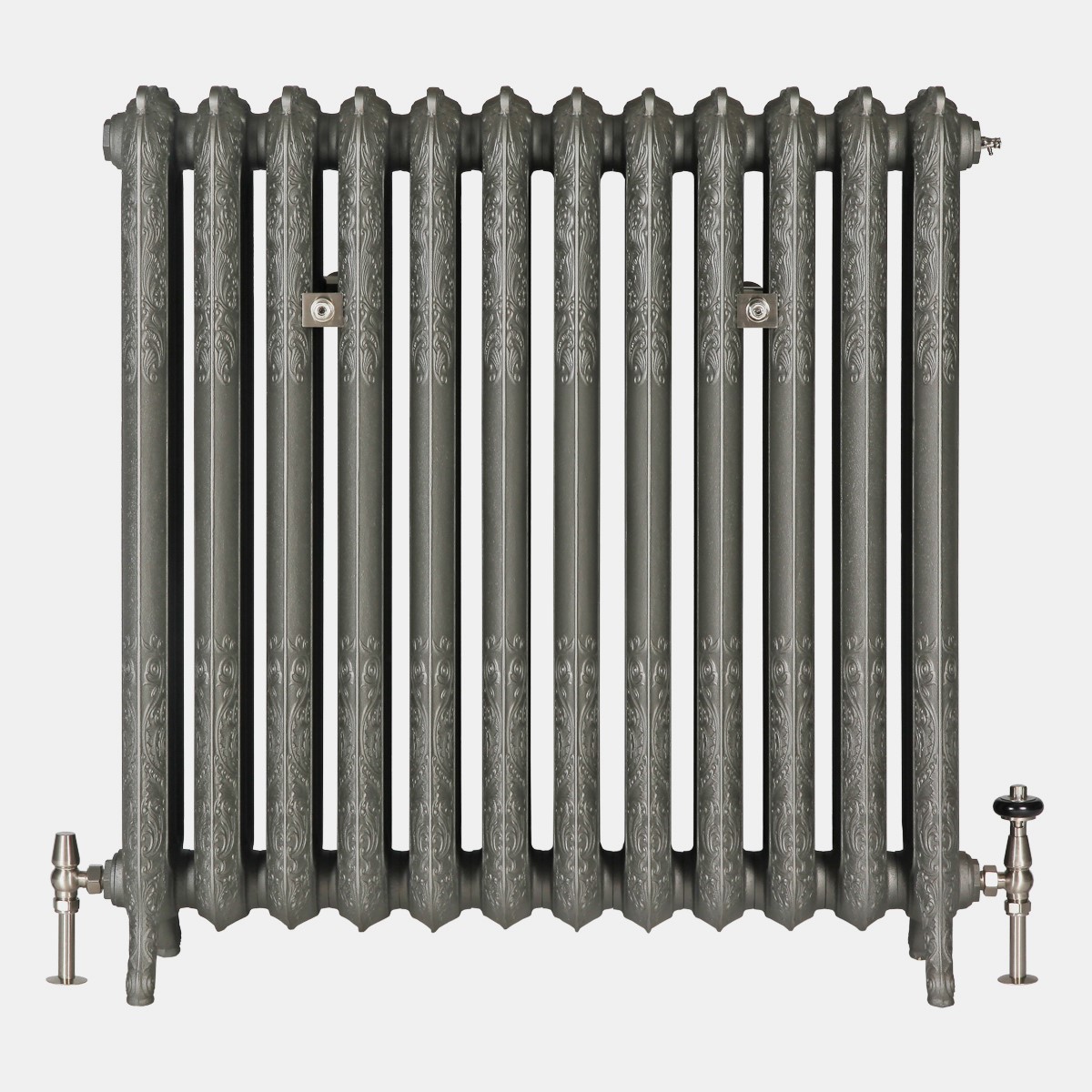

• Rococo 3 column 970mm cast iron radiator in soft pewter finish

Rococo III 970mm

From: £561.60

Product Description
SKU: CI-RC3-970

Model Specifications

Label Attribute Value
A Height With Legs (mm) 970
B Bottom Inlet To Floor (mm) 105
C Max Section Depth (mm) 256
- Output (ΔT50, W) 173.8
- Output (ΔT30, W) 93.7
D Interaxis Distance (mm) 800
E Height Without Legs (mm) 895
F Section Length (mm) 77
G Mid Section Depth (mm) 224
- Internal Volume (L) 3.5
- Empty Leg Section Weight (kg) 17.5
- Empty Mid Section Weight (kg) 15.5
- Factor, Km 1.5333
- Exponent, n 1.2091
Rococo III 970mm - Single Section Technical Drawing - SVG

Sizes Available

83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
83761
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-RC3-970-3 3 261 521 281 1 £561.60
CI-RC3-970-4 4 338 695 374 1 £694.80
CI-RC3-970-5 5 415 869 468 1 £828.00
CI-RC3-970-6 6 492 1042 562 1 £961.20
CI-RC3-970-7 7 569 1216 655 1 £1,094.40
CI-RC3-970-8 8 646 1390 749 2 £1,311.60
CI-RC3-970-9 9 723 1564 843 2 £1,444.80
CI-RC3-970-10 10 800 1738 937 2 £1,578.00
CI-RC3-970-11 11 877 1911 1030 2 £1,711.20
CI-RC3-970-12 12 954 2085 1124 2 £1,844.40
CI-RC3-970-13 13 1031 2259 1218 2 £1,977.60
CI-RC3-970-14 14 1108 2433 1311 2 £2,110.80
CI-RC3-970-15 15 1185 2607 1405 3 £2,244.00
CI-RC3-970-16 16 1262 2780 1499 3 £2,377.20
CI-RC3-970-17 17 1339 2954 1592 3 £2,510.40
CI-RC3-970-18 18 1416 3128 1686 3 £2,643.60
CI-RC3-970-19 19 1493 3302 1780 3 £2,776.80
CI-RC3-970-20 20 1570 3476 1874 3 £2,910.00
CI-RC3-970-21 21 1647 3649 1967 3 £3,043.20
CI-RC3-970-22 22 1724 3823 2061 4 £3,176.40
CI-RC3-970-23 23 1801 3997 2155 4 £3,309.60
CI-RC3-970-24 24 1878 4171 2248 4 £3,442.80
CI-RC3-970-25 25 1955 4345 2342 5 £3,576.00
CI-RC3-970-26 26 2032 4518 2436 5 £3,709.20
CI-RC3-970-27 27 2109 4692 2529 5 £3,842.40
CI-RC3-970-28 28 2186 4866 2623 5 £3,975.60
CI-RC3-970-29 29 2263 5040 2717 5 £4,108.80
CI-RC3-970-30 30 2340 5214 2811 5 £4,242.00
CI-RC3-970-31 31 2417 5387 2904 6 £4,375.20
CI-RC3-970-32 32 2494 5561 2998 5 £4,508.40
CI-RC3-970-33 33 2571 5735 3092 6 £4,641.60
CI-RC3-970-34 34 2648 5909 3185 6 £4,774.80
CI-RC3-970-35 35 2725 6083 3279 6 £4,908.00
CI-RC3-970-36 36 2802 6256 3373 6 £5,041.20
CI-RC3-970-37 37 2879 6430 3466 7 £5,174.40
CI-RC3-970-38 38 2956 6604 3560 7 £5,307.60
CI-RC3-970-39 39 3033 6778 3654 7 £5,440.80
CI-RC3-970-40 40 3110 6952 3748 7 £5,574.00
Rococo III 970mm - 10 Section Battery Technical Drawing - SVG
