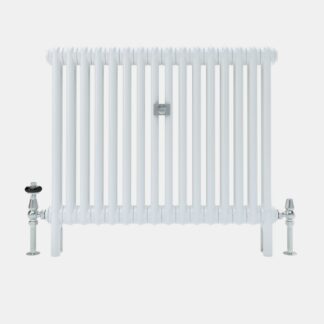

• Florence 4 column 685mm curved steel column radiator

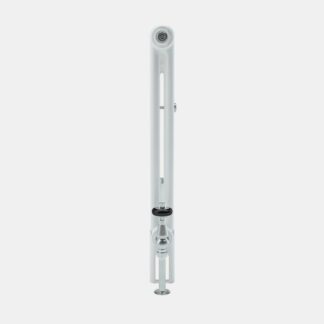

  • Florence 4 Column 685mm - side view

Curved Florence 4 Column 685mm

From: £437.40

This product is currently unavailable for online purchase. Please contact our sales team to assist you with your purchase.

Product Description
  • Available from 3 to 40 sections long (see below for technical specs)
  • Delivered ready to install
  • Heat pump compatible
  • 10 year warranty
  • Not suitable for steam
  • Welded joins with powder coat finish
  • Made in Italy
SKU: CUR-F4C-687

Model Specifications

Label Attribute Value
A Height With Legs (mm) 787
B Bottom Inlet To Floor (mm) 134
C Max Section Depth (mm) 141
D Interaxis Distance (mm) 620
E Height Without Legs (mm) 687
- Output (ΔT50, W) 89.1
F Section Length (mm) 45
- Output (ΔT30, W) 45.6
G Mid Section Depth (mm) 139
- Internal Volume (L) 1.42
- Empty Leg Section Weight (kg) 2
- Empty Mid Section Weight (kg) 1.7
- Factor, Km 0.525
- Exponent, n 1.31243
Florence 4 Column 685mm - Single Section Technical Drawing - SVG

Sizes Available

83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
83781
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CUR-F4C-687-3 3 165 267 136 1 £437.40
CUR-F4C-687-4 4 210 356 182 1 £517.20
CUR-F4C-687-5 5 255 445 228 1 £597.00
CUR-F4C-687-6 6 300 534 273 1 £676.80
CUR-F4C-687-7 7 345 623 319 1 £756.60
CUR-F4C-687-8 8 390 712 364 1 £836.40
CUR-F4C-687-9 9 435 801 410 1 £916.20
CUR-F4C-687-10 10 480 891 456 1 £996.00
CUR-F4C-687-11 11 525 980 501 1 £1,075.80
CUR-F4C-687-12 12 570 1069 547 1 £1,155.60
CUR-F4C-687-13 13 615 1158 592 1 £1,235.40
CUR-F4C-687-14 14 660 1247 638 1 £1,315.20
CUR-F4C-687-15 15 705 1336 684 1 £1,395.00
CUR-F4C-687-16 16 750 1425 729 1 £1,474.80
CUR-F4C-687-17 17 795 1514 775 1 £1,554.60
CUR-F4C-687-18 18 840 1603 820 1 £1,634.40
CUR-F4C-687-19 19 885 1692 866 1 £1,714.20
CUR-F4C-687-20 20 930 1782 912 1 £1,794.00
CUR-F4C-687-21 21 975 1871 957 1 £1,873.80
CUR-F4C-687-22 22 1020 1960 1003 1 £1,953.60
CUR-F4C-687-23 23 1065 2049 1048 1 £2,033.40
CUR-F4C-687-24 24 1110 2138 1094 1 £2,113.20
CUR-F4C-687-25 25 1155 2227 1140 1 £2,193.00
CUR-F4C-687-26 26 1200 2316 1185 1 £2,272.80
CUR-F4C-687-27 27 1245 2405 1231 1 £2,352.60
CUR-F4C-687-28 28 1290 2494 1276 1 £2,432.40
CUR-F4C-687-29 29 1335 2583 1322 1 £2,512.20
CUR-F4C-687-30 30 1380 2673 1368 1 £2,592.00
CUR-F4C-687-31 31 1425 2762 1413 1 £2,671.80
CUR-F4C-687-32 32 1470 2851 1459 1 £2,751.60
CUR-F4C-687-33 33 1515 2940 1504 1 £2,831.40
CUR-F4C-687-34 34 1560 3029 1550 1 £2,911.20
CUR-F4C-687-35 35 1605 3118 1596 1 £2,991.00
CUR-F4C-687-36 36 1650 3207 1641 1 £3,070.80
CUR-F4C-687-37 37 1695 3296 1687 1 £3,150.60
CUR-F4C-687-38 38 1740 3385 1732 1 £3,230.40
CUR-F4C-687-39 39 1785 3474 1778 1 £3,310.20
CUR-F4C-687-40 40 1830 3564 1824 1 £3,390.00
Florence 4 Column 685mm - 10 Section Battery Technical Drawing - SVG
