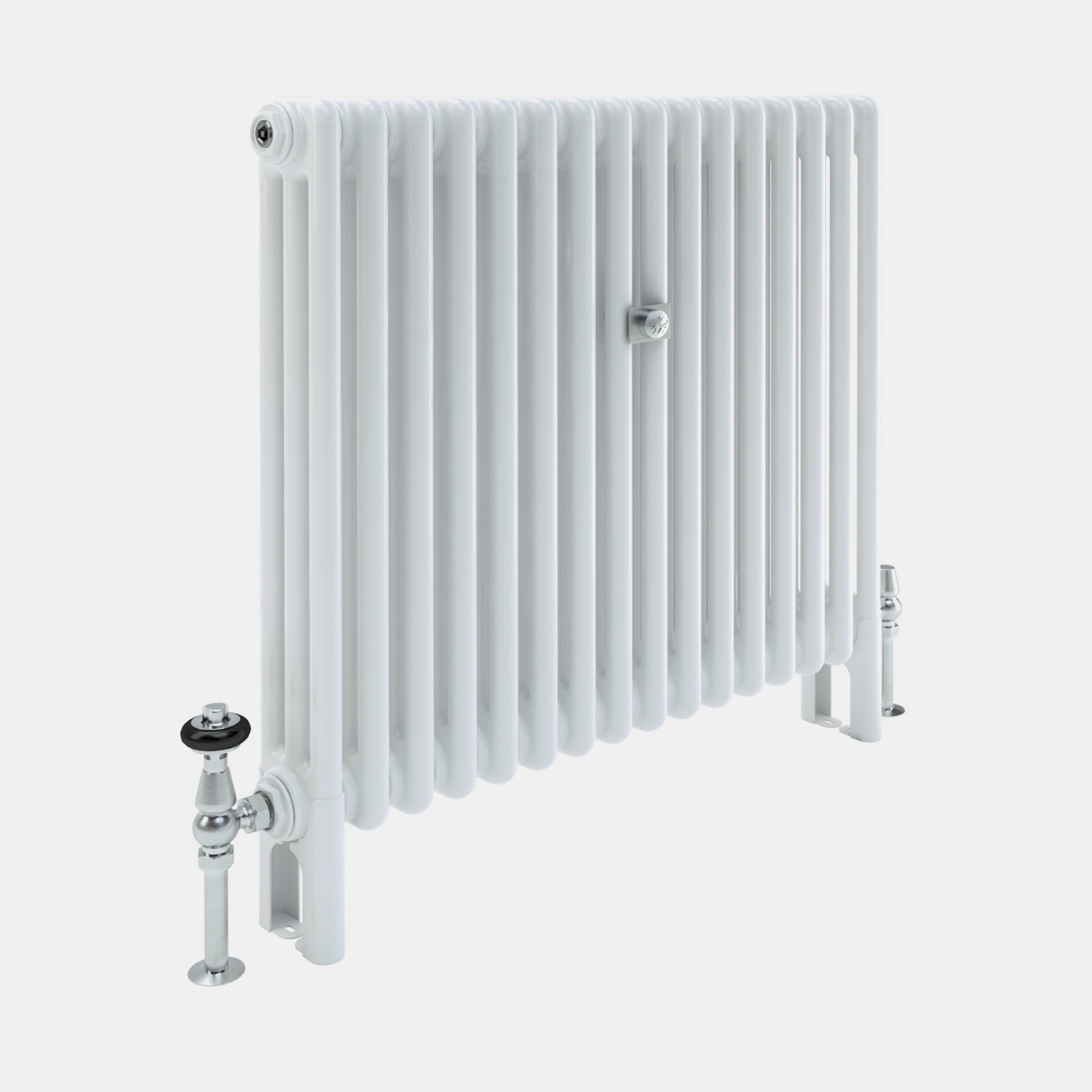

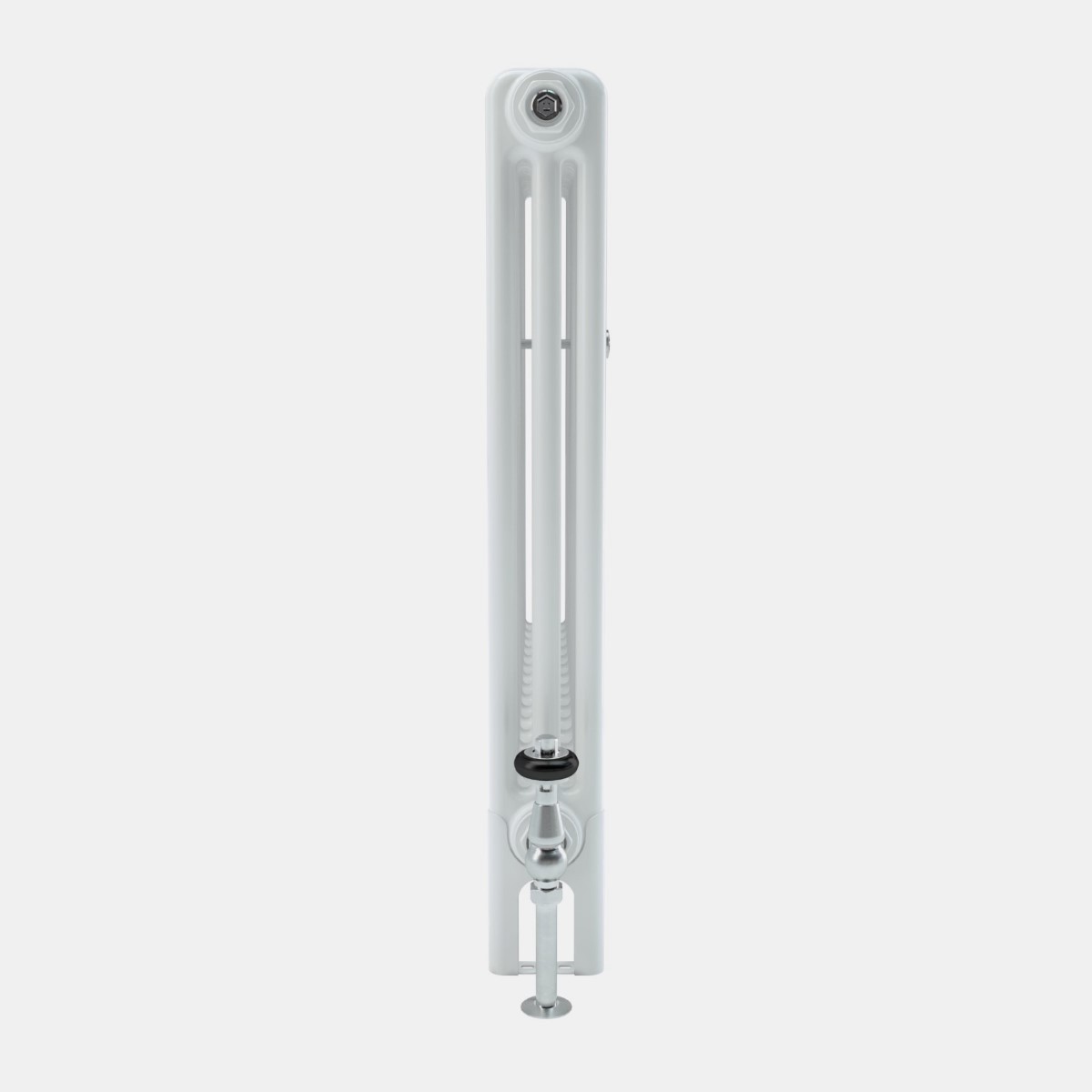

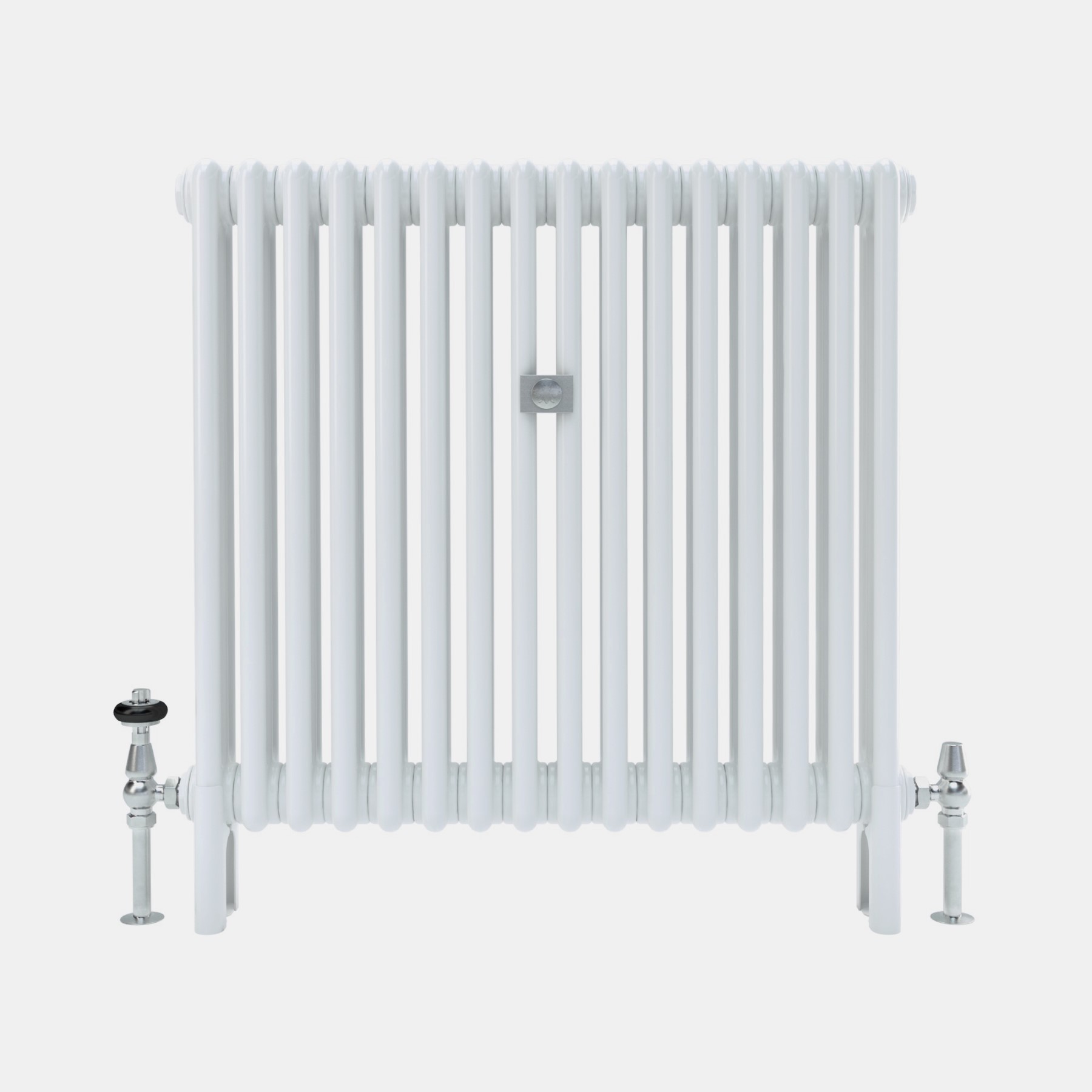

• Florence 3 column 685mm curved steel column radiator

Curved Florence 3 Column 685mm

From: £408.60

This product is currently unavailable for online purchase. Please contact our sales team to assist you with your purchase.

  • Available from 3 to 40 sections long (see below for technical specs)
  • Delivered ready to install
  • Heat pump compatible
  • 10 year warranty
  • Not suitable for steam
  • Welded joins with powder coat finish
  • Made in Italy
SKU: CUR-F3C-687

Model Specifications

Label Attribute Value
A Height With Legs (mm) 787
B Bottom Inlet To Floor (mm) 134
C Max Section Depth (mm) 103
D Interaxis Distance (mm) 620
E Height Without Legs (mm) 687
- Output (ΔT50, W) 68.3
F Section Length (mm) 45
- Output (ΔT30, W) 35.4
G Mid Section Depth (mm) 101
- Internal Volume (L) 1.1
- Empty Leg Section Weight (kg) 1.6
- Empty Mid Section Weight (kg) 1.3
- Factor, Km 0.4391
- Exponent, n 1.29027
Florence 3 Column 685mm - Single Section Technical Drawing - SVG

Sizes Available

83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
83775
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CUR-F3C-687-3 3 165 204 106 1 £408.60
CUR-F3C-687-4 4 210 273 141 1 £478.80
CUR-F3C-687-5 5 255 341 177 1 £549.00
CUR-F3C-687-6 6 300 409 212 1 £619.20
CUR-F3C-687-7 7 345 478 247 1 £689.40
CUR-F3C-687-8 8 390 546 283 1 £759.60
CUR-F3C-687-9 9 435 614 318 1 £829.80
CUR-F3C-687-10 10 480 683 354 1 £900.00
CUR-F3C-687-11 11 525 751 389 1 £970.20
CUR-F3C-687-12 12 570 819 424 1 £1,040.40
CUR-F3C-687-13 13 615 887 460 1 £1,110.60
CUR-F3C-687-14 14 660 956 495 1 £1,180.80
CUR-F3C-687-15 15 705 1024 531 1 £1,251.00
CUR-F3C-687-16 16 750 1092 566 1 £1,321.20
CUR-F3C-687-17 17 795 1161 601 1 £1,391.40
CUR-F3C-687-18 18 840 1229 637 1 £1,461.60
CUR-F3C-687-19 19 885 1297 672 1 £1,531.80
CUR-F3C-687-20 20 930 1366 708 1 £1,602.00
CUR-F3C-687-21 21 975 1434 743 1 £1,672.20
CUR-F3C-687-22 22 1020 1502 778 1 £1,742.40
CUR-F3C-687-23 23 1065 1570 814 1 £1,812.60
CUR-F3C-687-24 24 1110 1639 849 1 £1,882.80
CUR-F3C-687-25 25 1155 1707 885 1 £1,953.00
CUR-F3C-687-26 26 1200 1775 920 1 £2,023.20
CUR-F3C-687-27 27 1245 1844 955 1 £2,093.40
CUR-F3C-687-28 28 1290 1912 991 1 £2,163.60
CUR-F3C-687-29 29 1335 1980 1026 1 £2,233.80
CUR-F3C-687-30 30 1380 2049 1062 1 £2,304.00
CUR-F3C-687-31 31 1425 2117 1097 1 £2,374.20
CUR-F3C-687-32 32 1470 2185 1132 1 £2,444.40
CUR-F3C-687-33 33 1515 2253 1168 1 £2,514.60
CUR-F3C-687-34 34 1560 2322 1203 1 £2,584.80
CUR-F3C-687-35 35 1605 2390 1239 1 £2,655.00
CUR-F3C-687-36 36 1650 2458 1274 1 £2,725.20
CUR-F3C-687-37 37 1695 2527 1309 1 £2,795.40
CUR-F3C-687-38 38 1740 2595 1345 1 £2,865.60
CUR-F3C-687-39 39 1785 2663 1380 1 £2,935.80
CUR-F3C-687-40 40 1830 2732 1416 1 £3,006.00
Florence 3 Column 685mm - 10 Section Battery Technical Drawing - SVG
