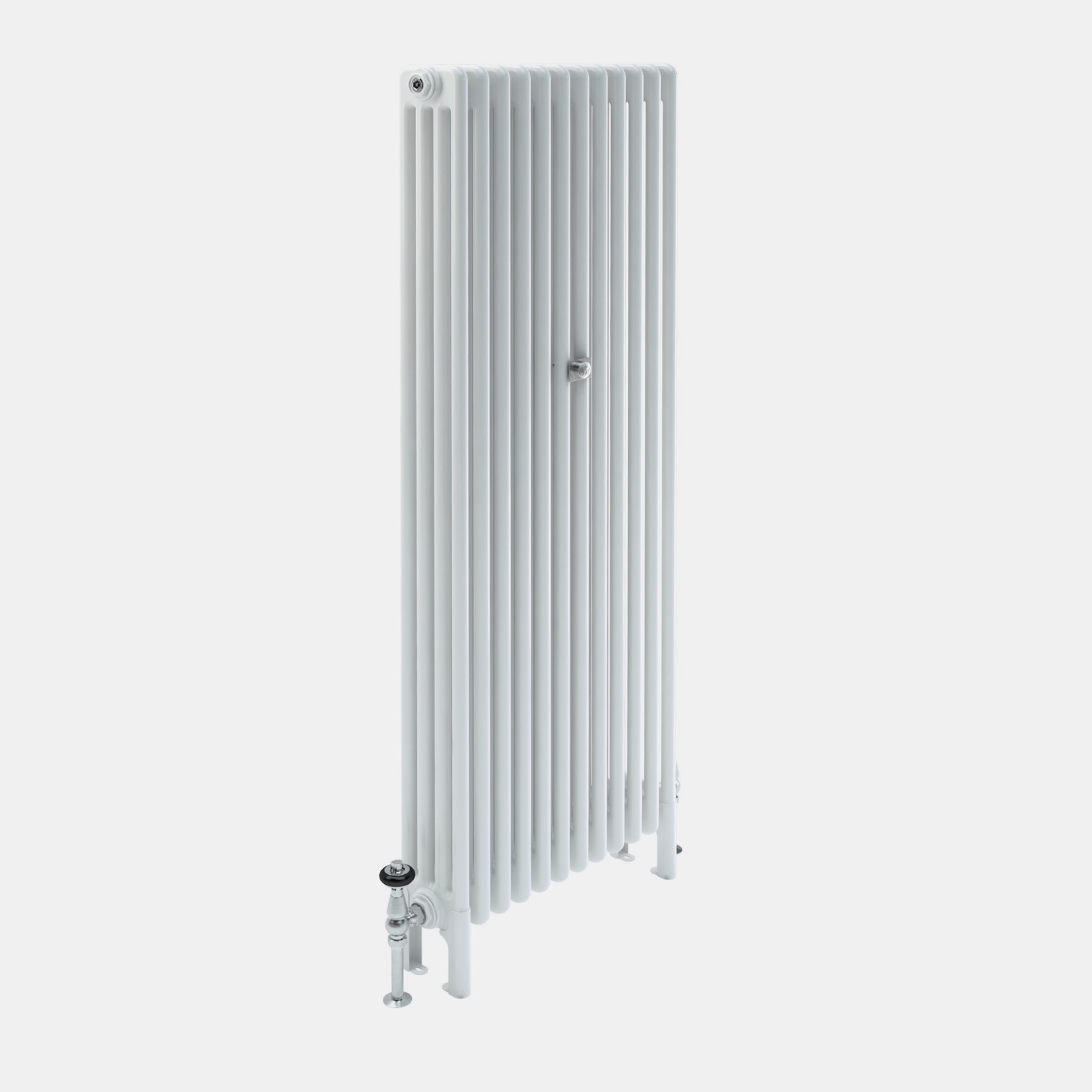

Mercury 4 Column 960mm, 18 sections

From: £1,681.73

  • 960mm tall, 1078mm long, 140mm deep.
  • Heat output (ΔT50): 2178 Watts
  • Heat output (ΔT50): 7431 BTUs
  • Weight: 144 kg
  • Guarantee: 10 years
  • Delivered in: 6 weeks
  • Delivered in 2 pieces for partial home assembly. You will need to hire an Assembly Toolkit with purchase of this radiator.

Configure Radiator

Mercury 4 Column 960mm, 18 sections

Description
Additional information
Product files

Our signature range, Mercury, combines sleek lines and blended curves to create the perfect statement piece in both contemporary and classic properties.

This modern classic is available in two, three, four and six column variants, making it our most versatile range.

Radiator drawing
(H) Height 960mm
(D) Depth 140mm
(L) Length 1078mm
(PC) Pipe centres 1168mm
(TS) Total space required 1258mm
Open pipe centre measurements document for more information.
Heat output (ΔT50) 2178 Watts
Empty weight 146kg
Internal volume 21.60 L
Delivery 1 piece
Maximum operating pressure 8 bar
Weight 146 kg
Dimensions 1078 × 140 × 960 mm
Number of sections

18

Internal volume

21.6

Length (mm)

1078

Internal volume

21.60

Certification

EN442

Height (mm)

960

Maximum operating pressure

8 bar

Construction material

Cast iron

Depth (mm)

140

Made in

England

Heat output (ΔT50) Watts

2178

Heat output (ΔT50) BTUs

7431

Maximum operating temperature

95°C for hot water systems

Maximum operating pressure

8 bar

Bleed valve included

Brass or Nickel

Connections

½" BSP as standard

Pipe centres Open document
Declaration of Performance -
