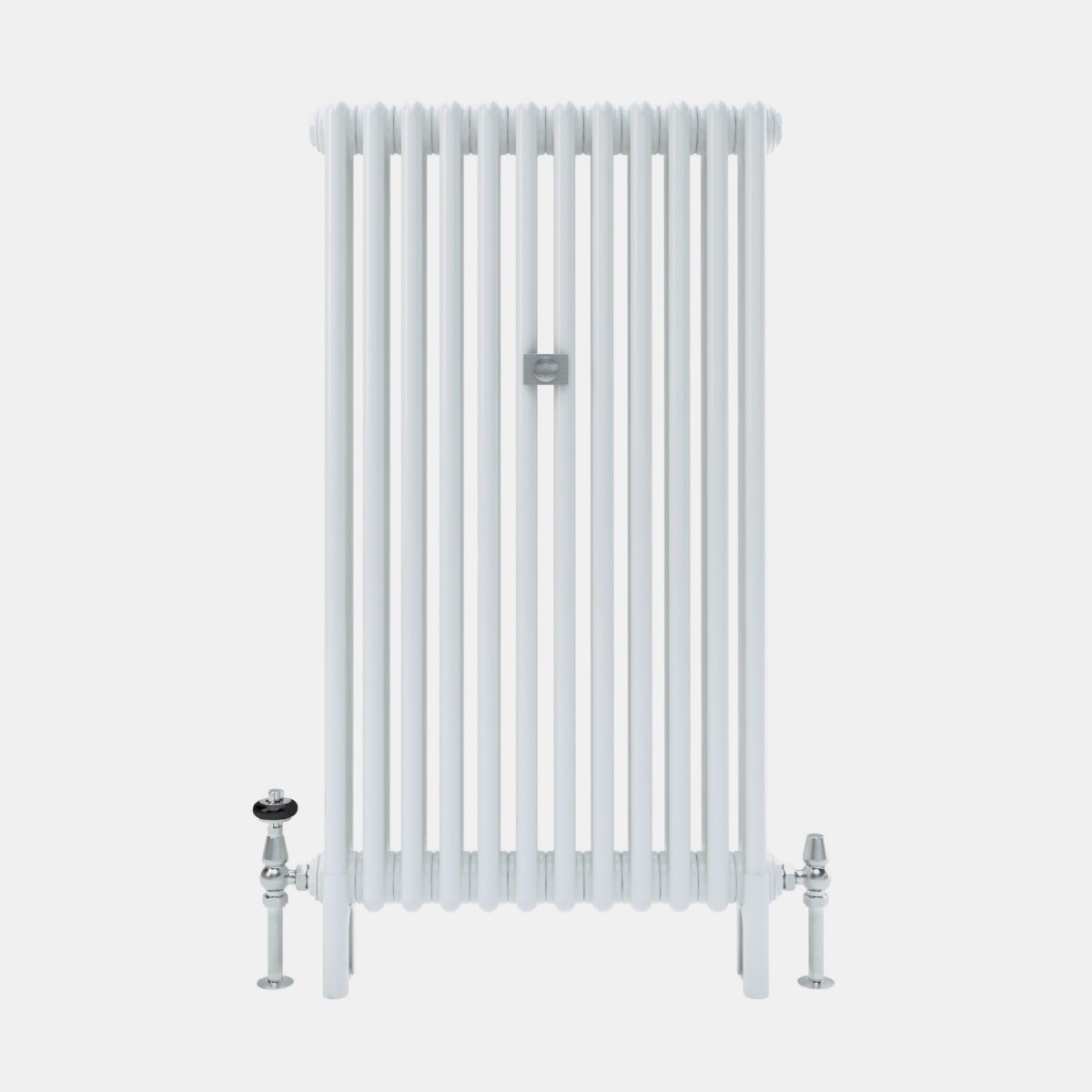

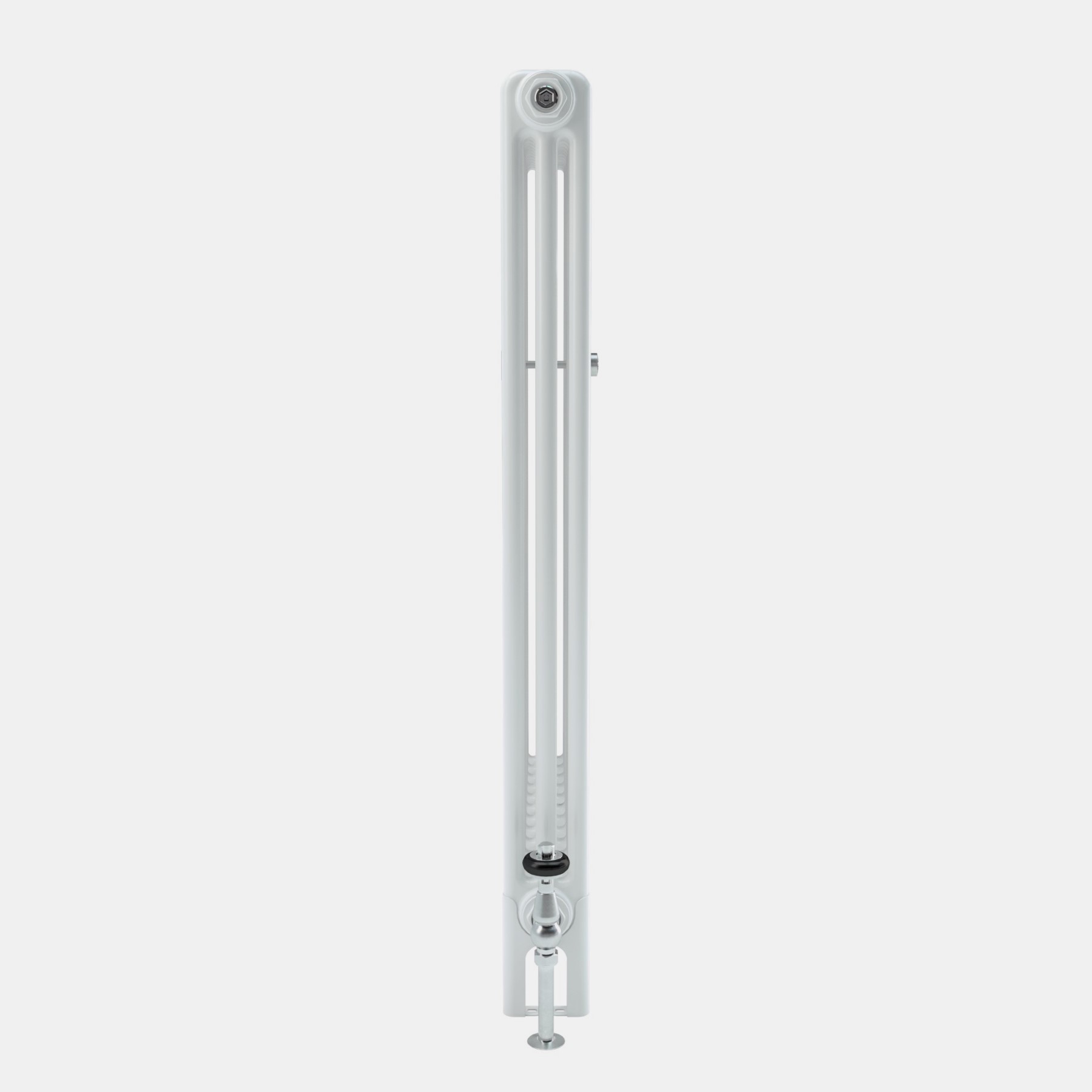

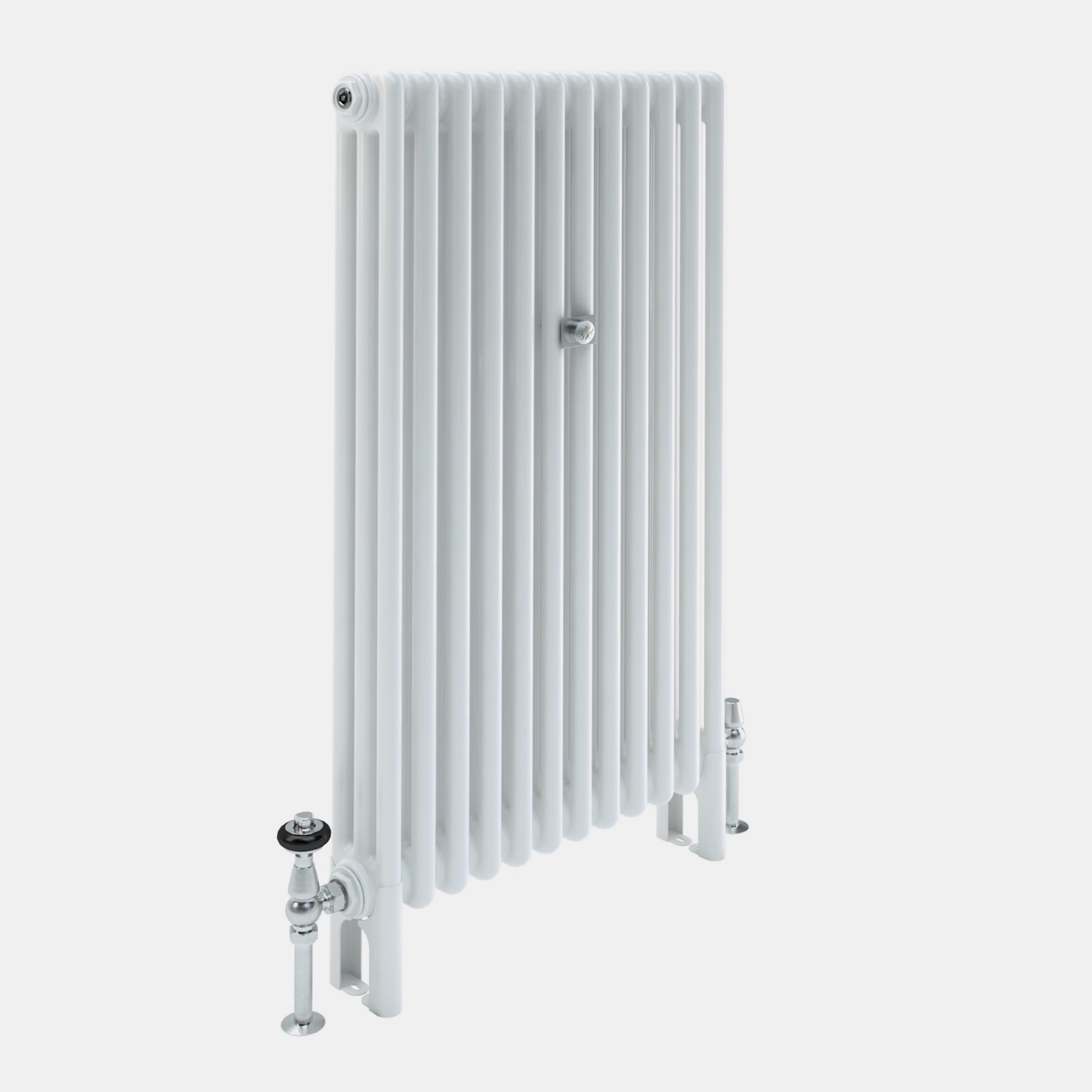

Florence 3 Column 1000mm
From: £280.80
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 1102 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 103 |
| D | Interaxis Distance (mm) | 935 |
| E | Height Without Legs (mm) | 1002 |
| - | Output (ΔT50, W) | 96.8 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT30, W) | 49.4 |
| G | Mid Section Depth (mm) | 101 |
| - | Internal Volume (L) | 1.5 |
| - | Empty Leg Section Weight (kg) | 2.3 |
| - | Empty Mid Section Weight (kg) | 2 |
| - | Factor, Km | 0.5612 |
| - | Exponent, n | 1.31651 |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F3C-1002-3 | 3 | 161 | 290 | 148 | 1 | £280.80 |
| SMC-F3C-1002-4 | 4 | 206 | 387 | 197 | 1 | £326.40 |
| SMC-F3C-1002-5 | 5 | 251 | 484 | 247 | 1 | £372.00 |
| SMC-F3C-1002-6 | 6 | 296 | 580 | 296 | 1 | £417.60 |
| SMC-F3C-1002-7 | 7 | 341 | 677 | 345 | 1 | £463.20 |
| SMC-F3C-1002-8 | 8 | 386 | 774 | 395 | 1 | £508.80 |
| SMC-F3C-1002-9 | 9 | 431 | 871 | 444 | 1 | £554.40 |
| SMC-F3C-1002-10 | 10 | 476 | 968 | 494 | 1 | £600.00 |
| SMC-F3C-1002-11 | 11 | 521 | 1064 | 543 | 1 | £645.60 |
| SMC-F3C-1002-12 | 12 | 566 | 1161 | 592 | 1 | £691.20 |
| SMC-F3C-1002-13 | 13 | 611 | 1258 | 642 | 1 | £736.80 |
| SMC-F3C-1002-14 | 14 | 656 | 1355 | 691 | 1 | £782.40 |
| SMC-F3C-1002-15 | 15 | 701 | 1452 | 741 | 1 | £828.00 |
| SMC-F3C-1002-16 | 16 | 746 | 1548 | 790 | 1 | £873.60 |
| SMC-F3C-1002-17 | 17 | 791 | 1645 | 839 | 1 | £919.20 |
| SMC-F3C-1002-18 | 18 | 836 | 1742 | 889 | 1 | £964.80 |
| SMC-F3C-1002-19 | 19 | 881 | 1839 | 938 | 1 | £1,010.40 |
| SMC-F3C-1002-20 | 20 | 926 | 1936 | 988 | 1 | £1,056.00 |
| SMC-F3C-1002-21 | 21 | 971 | 2032 | 1037 | 1 | £1,101.60 |
| SMC-F3C-1002-22 | 22 | 1016 | 2129 | 1086 | 1 | £1,147.20 |
| SMC-F3C-1002-23 | 23 | 1061 | 2226 | 1136 | 1 | £1,192.80 |
| SMC-F3C-1002-24 | 24 | 1106 | 2323 | 1185 | 1 | £1,238.40 |
| SMC-F3C-1002-25 | 25 | 1151 | 2420 | 1235 | 1 | £1,284.00 |
| SMC-F3C-1002-26 | 26 | 1196 | 2516 | 1284 | 1 | £1,329.60 |
| SMC-F3C-1002-27 | 27 | 1241 | 2613 | 1333 | 1 | £1,375.20 |
| SMC-F3C-1002-28 | 28 | 1286 | 2710 | 1383 | 1 | £1,420.80 |
| SMC-F3C-1002-29 | 29 | 1331 | 2807 | 1432 | 1 | £1,466.40 |
| SMC-F3C-1002-30 | 30 | 1376 | 2904 | 1482 | 1 | £1,512.00 |
| SMC-F3C-1002-31 | 31 | 1421 | 3000 | 1531 | 1 | £1,557.60 |
| SMC-F3C-1002-32 | 32 | 1466 | 3097 | 1580 | 1 | £1,603.20 |
| SMC-F3C-1002-33 | 33 | 1511 | 3194 | 1630 | 1 | £1,648.80 |
| SMC-F3C-1002-34 | 34 | 1556 | 3291 | 1679 | 1 | £1,694.40 |
| SMC-F3C-1002-35 | 35 | 1601 | 3388 | 1729 | 1 | £1,740.00 |
| SMC-F3C-1002-36 | 36 | 1646 | 3484 | 1778 | 1 | £1,785.60 |
| SMC-F3C-1002-37 | 37 | 1691 | 3581 | 1827 | 1 | £1,831.20 |
| SMC-F3C-1002-38 | 38 | 1736 | 3678 | 1877 | 1 | £1,876.80 |
| SMC-F3C-1002-39 | 39 | 1781 | 3775 | 1926 | 1 | £1,922.40 |
| SMC-F3C-1002-40 | 40 | 1826 | 3872 | 1976 | 1 | £1,968.00 |
