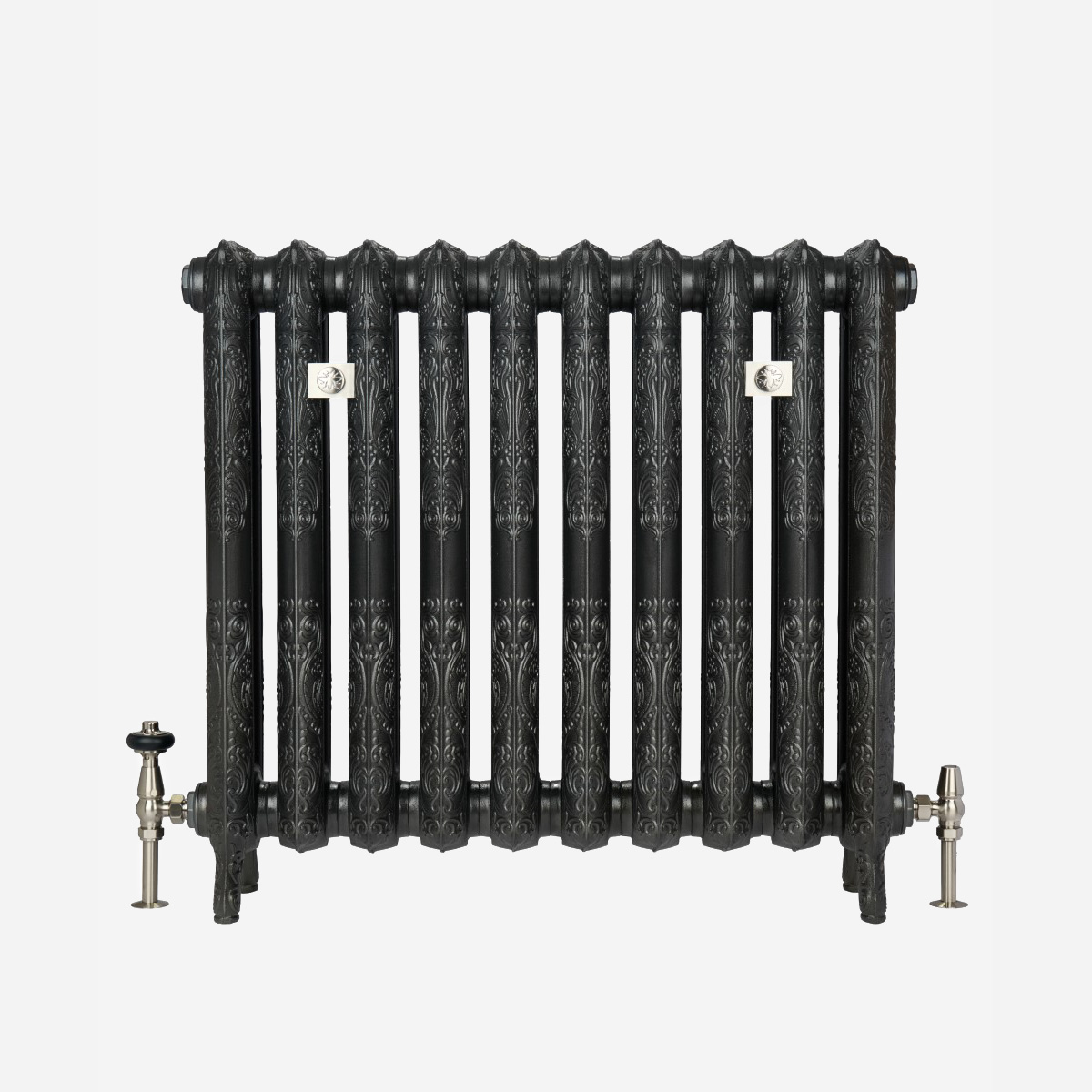

• Rococo II cast iron radiator in Black Iron with Satin Nickel accessories
  • Rococo II cast iron radiator in Black Iron with Satin Nickel accessories - angled view
  • Rococo II cast iron radiator in Black Iron with Satin Nickel accessories - valve side view
  • Rococo II cast iron radiator in Black Iron with Satin Nickel accessories - blanking plug view

Rococo II 760mm

From: £378.00

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-RC2-760

Model Specifications

Label Attribute Value
A Height With Legs (mm) 760
B Bottom Inlet To Floor (mm) 110
C Max Section Depth (mm) 215
- Output (ΔT50, W) 114.9
- Output (ΔT30, W) 60.7
D Interaxis Distance (mm) 600
E Height Without Legs (mm) 695
F Section Length (mm) 79
G Mid Section Depth (mm) 186
- Internal Volume (L) 3.1
- Empty Leg Section Weight (kg) 12.3
- Empty Mid Section Weight (kg) 11
- Factor, Km 0.8611
- Exponent, n 1.2509
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Rococo II 760mm - Single Section Technical Drawing - SVG

Sizes Available

83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
83757
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-RC2-760-3 3 267 344 182 1 £378.00
CI-RC2-760-4 4 346 459 242 1 £450.00
CI-RC2-760-5 5 425 574 303 1 £522.00
CI-RC2-760-6 6 504 689 364 1 £594.00
CI-RC2-760-7 7 583 804 424 1 £666.00
CI-RC2-760-8 8 662 919 485 1 £738.00
CI-RC2-760-9 9 741 1034 546 1 £810.00
CI-RC2-760-10 10 820 1149 607 1 £882.00
CI-RC2-760-11 11 899 1263 667 2 £1,038.00
CI-RC2-760-12 12 978 1378 728 2 £1,110.00
CI-RC2-760-13 13 1057 1493 789 2 £1,182.00
CI-RC2-760-14 14 1136 1608 849 2 £1,254.00
CI-RC2-760-15 15 1215 1723 910 2 £1,326.00
CI-RC2-760-16 16 1294 1838 971 2 £1,398.00
CI-RC2-760-17 17 1373 1953 1031 2 £1,470.00
CI-RC2-760-18 18 1452 2068 1092 2 £1,542.00
CI-RC2-760-19 19 1531 2183 1153 2 £1,614.00
CI-RC2-760-20 20 1610 2298 1214 3 £1,686.00
CI-RC2-760-21 21 1689 2412 1274 3 £1,758.00
CI-RC2-760-22 22 1768 2527 1335 3 £1,830.00
CI-RC2-760-23 23 1847 2642 1396 3 £1,902.00
CI-RC2-760-24 24 1926 2757 1456 3 £1,974.00
CI-RC2-760-25 25 2005 2872 1517 3 £2,046.00
CI-RC2-760-26 26 2084 2987 1578 3 £2,118.00
CI-RC2-760-27 27 2163 3102 1638 3 £2,190.00
CI-RC2-760-28 28 2242 3217 1699 3 £2,262.00
CI-RC2-760-29 29 2321 3332 1760 4 £2,334.00
CI-RC2-760-30 30 2400 3447 1821 4 £2,406.00
CI-RC2-760-31 31 2479 3561 1881 4 £2,478.00
CI-RC2-760-32 32 2558 3676 1942 4 £2,550.00
CI-RC2-760-33 33 2637 3791 2003 4 £2,622.00
CI-RC2-760-34 34 2716 3906 2063 4 £2,694.00
CI-RC2-760-35 35 2795 4021 2124 4 £2,766.00
CI-RC2-760-36 36 2874 4136 2185 4 £2,838.00
CI-RC2-760-37 37 2953 4251 2245 5 £2,910.00
CI-RC2-760-38 38 3032 4366 2306 5 £2,982.00
CI-RC2-760-39 39 3111 4481 2367 5 £3,054.00
CI-RC2-760-40 40 3190 4596 2428 5 £3,126.00
Rococo II 760mm - 10 Section Battery Technical Drawing - SVG
