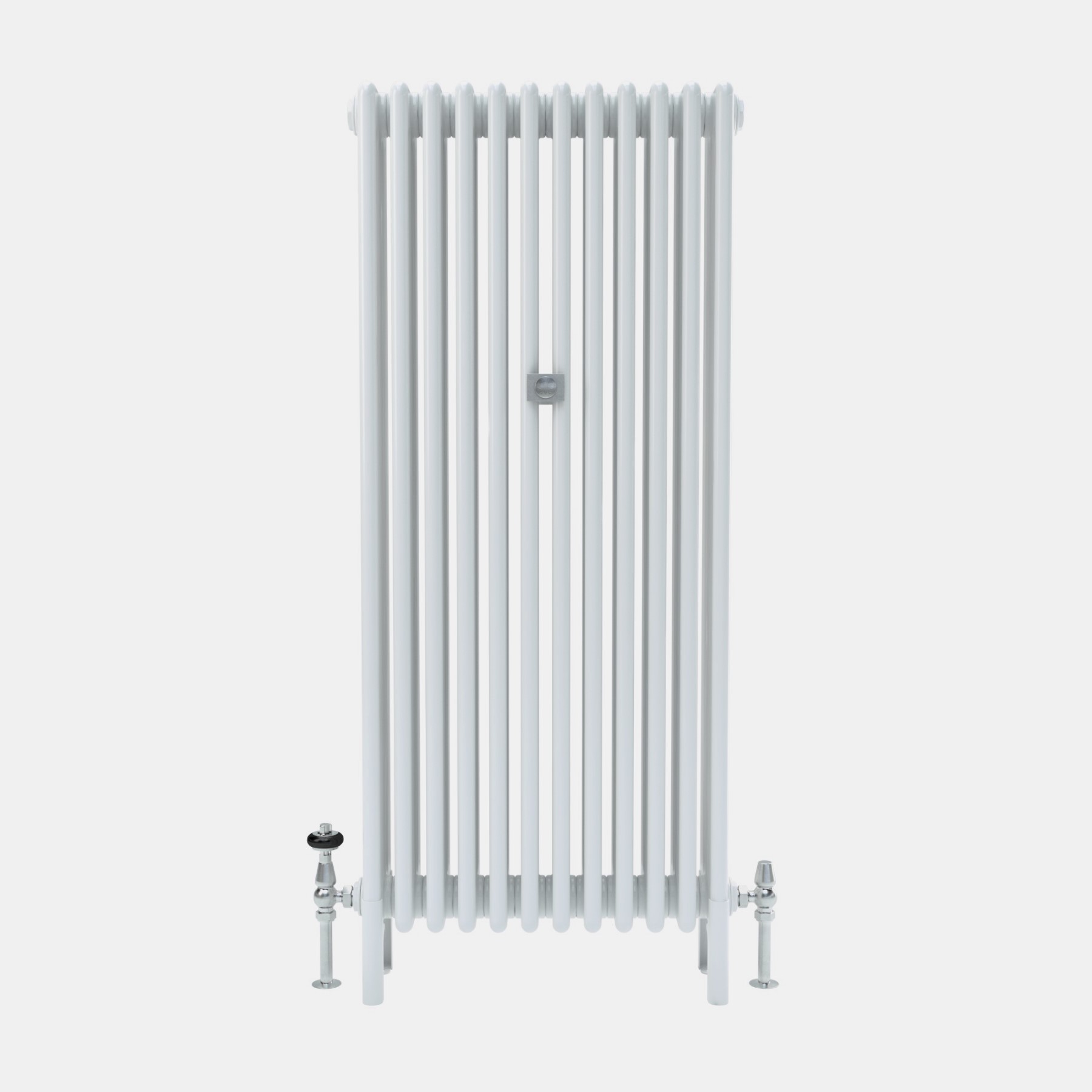

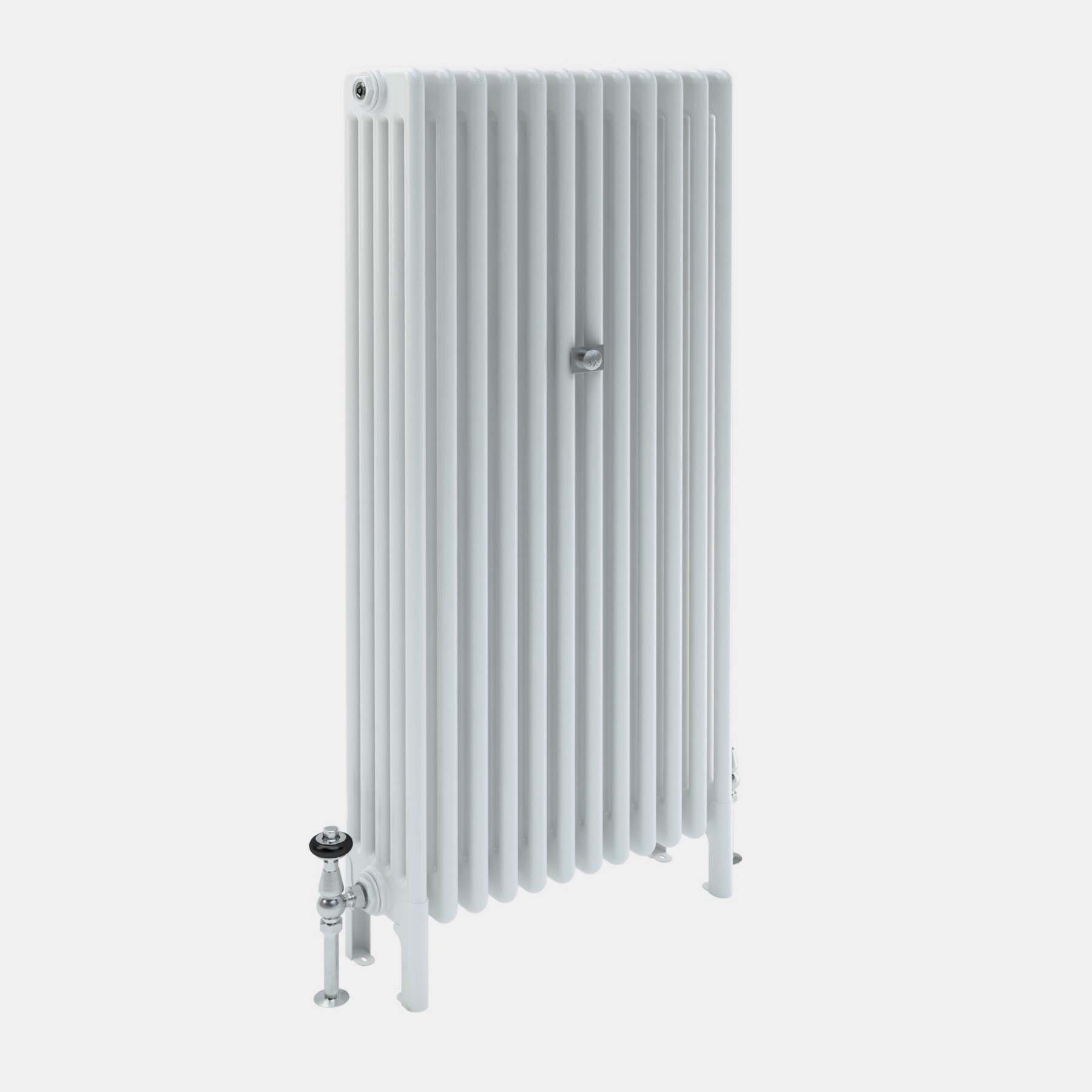

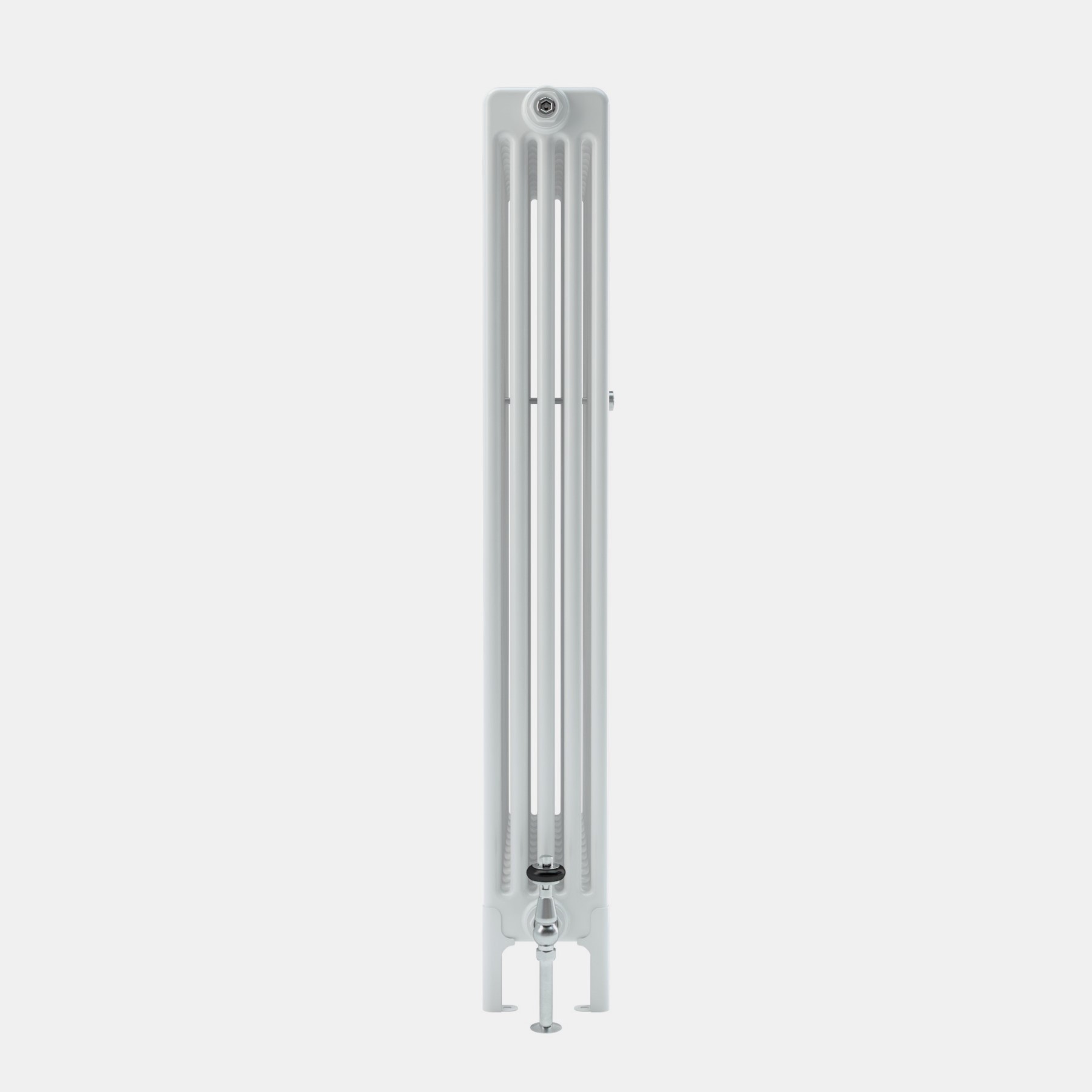

Florence 5 Column 1200mm
Steel · by Castrads
From: £470.40
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 1302 |
| E | Height Without Legs (mm) | 1202 |
| - | Empty Leg Section Weight (kg) | 4.4 |
| - | Empty Mid Section Weight (kg) | 4.1 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 179 |
| G | Mid Section Depth (mm) | 177 |
| D | Interaxis Distance (mm) | 1135 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT50, W) | 180 |
| - | Output (ΔT30, W) | 90.2 |
| - | Internal Volume (L) | 2.78 |
| - | Exponent, n | 1.35305 |
| - | Factor, Km | 0.9046 |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F5C-1202-3 | 3 | 161 | 540 | 271 | 1 | £470.40 |
| SMC-F5C-1202-4 | 4 | 206 | 720 | 361 | 1 | £566.40 |
| SMC-F5C-1202-5 | 5 | 251 | 900 | 451 | 1 | £662.40 |
| SMC-F5C-1202-6 | 6 | 296 | 1080 | 541 | 1 | £758.40 |
| SMC-F5C-1202-7 | 7 | 341 | 1260 | 631 | 1 | £854.40 |
| SMC-F5C-1202-8 | 8 | 386 | 1440 | 721 | 1 | £950.40 |
| SMC-F5C-1202-9 | 9 | 431 | 1620 | 812 | 1 | £1,046.40 |
| SMC-F5C-1202-10 | 10 | 476 | 1800 | 902 | 1 | £1,142.40 |
| SMC-F5C-1202-11 | 11 | 521 | 1980 | 992 | 1 | £1,238.40 |
| SMC-F5C-1202-12 | 12 | 566 | 2160 | 1082 | 1 | £1,334.40 |
| SMC-F5C-1202-13 | 13 | 611 | 2340 | 1172 | 1 | £1,430.40 |
| SMC-F5C-1202-14 | 14 | 656 | 2520 | 1262 | 1 | £1,526.40 |
| SMC-F5C-1202-15 | 15 | 701 | 2700 | 1353 | 1 | £1,622.40 |
| SMC-F5C-1202-16 | 16 | 746 | 2880 | 1443 | 1 | £1,718.40 |
| SMC-F5C-1202-17 | 17 | 791 | 3060 | 1533 | 1 | £1,814.40 |
| SMC-F5C-1202-18 | 18 | 836 | 3240 | 1623 | 1 | £1,910.40 |
| SMC-F5C-1202-19 | 19 | 881 | 3420 | 1713 | 1 | £2,006.40 |
| SMC-F5C-1202-20 | 20 | 926 | 3600 | 1803 | 1 | £2,102.40 |
| SMC-F5C-1202-21 | 21 | 971 | 3780 | 1894 | 1 | £2,198.40 |
| SMC-F5C-1202-22 | 22 | 1016 | 3960 | 1984 | 1 | £2,294.40 |
| SMC-F5C-1202-23 | 23 | 1061 | 4140 | 2074 | 1 | £2,390.40 |
| SMC-F5C-1202-24 | 24 | 1106 | 4320 | 2164 | 1 | £2,486.40 |
| SMC-F5C-1202-25 | 25 | 1151 | 4500 | 2254 | 1 | £2,582.40 |
| SMC-F5C-1202-26 | 26 | 1196 | 4680 | 2344 | 1 | £2,678.40 |
| SMC-F5C-1202-27 | 27 | 1241 | 4860 | 2435 | 1 | £2,774.40 |
| SMC-F5C-1202-28 | 28 | 1286 | 5040 | 2525 | 1 | £2,870.40 |
| SMC-F5C-1202-29 | 29 | 1331 | 5220 | 2615 | 1 | £2,966.40 |
| SMC-F5C-1202-30 | 30 | 1376 | 5400 | 2705 | 1 | £3,062.40 |
| SMC-F5C-1202-31 | 31 | 1421 | 5580 | 2795 | 1 | £3,158.40 |
| SMC-F5C-1202-32 | 32 | 1466 | 5760 | 2886 | 1 | £3,254.40 |
| SMC-F5C-1202-33 | 33 | 1511 | 5940 | 2976 | 1 | £3,350.40 |
| SMC-F5C-1202-34 | 34 | 1556 | 6120 | 3066 | 1 | £3,446.40 |
| SMC-F5C-1202-35 | 35 | 1601 | 6300 | 3156 | 1 | £3,542.40 |
| SMC-F5C-1202-36 | 36 | 1646 | 6480 | 3246 | 1 | £3,638.40 |
| SMC-F5C-1202-37 | 37 | 1691 | 6660 | 3336 | 1 | £3,734.40 |
| SMC-F5C-1202-38 | 38 | 1736 | 6840 | 3427 | 1 | £3,830.40 |
| SMC-F5C-1202-39 | 39 | 1781 | 7020 | 3517 | 1 | £3,926.40 |
| SMC-F5C-1202-40 | 40 | 1826 | 7200 | 3607 | 1 | £4,022.40 |
