Emmeline III 870mm
From: £578.40
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |

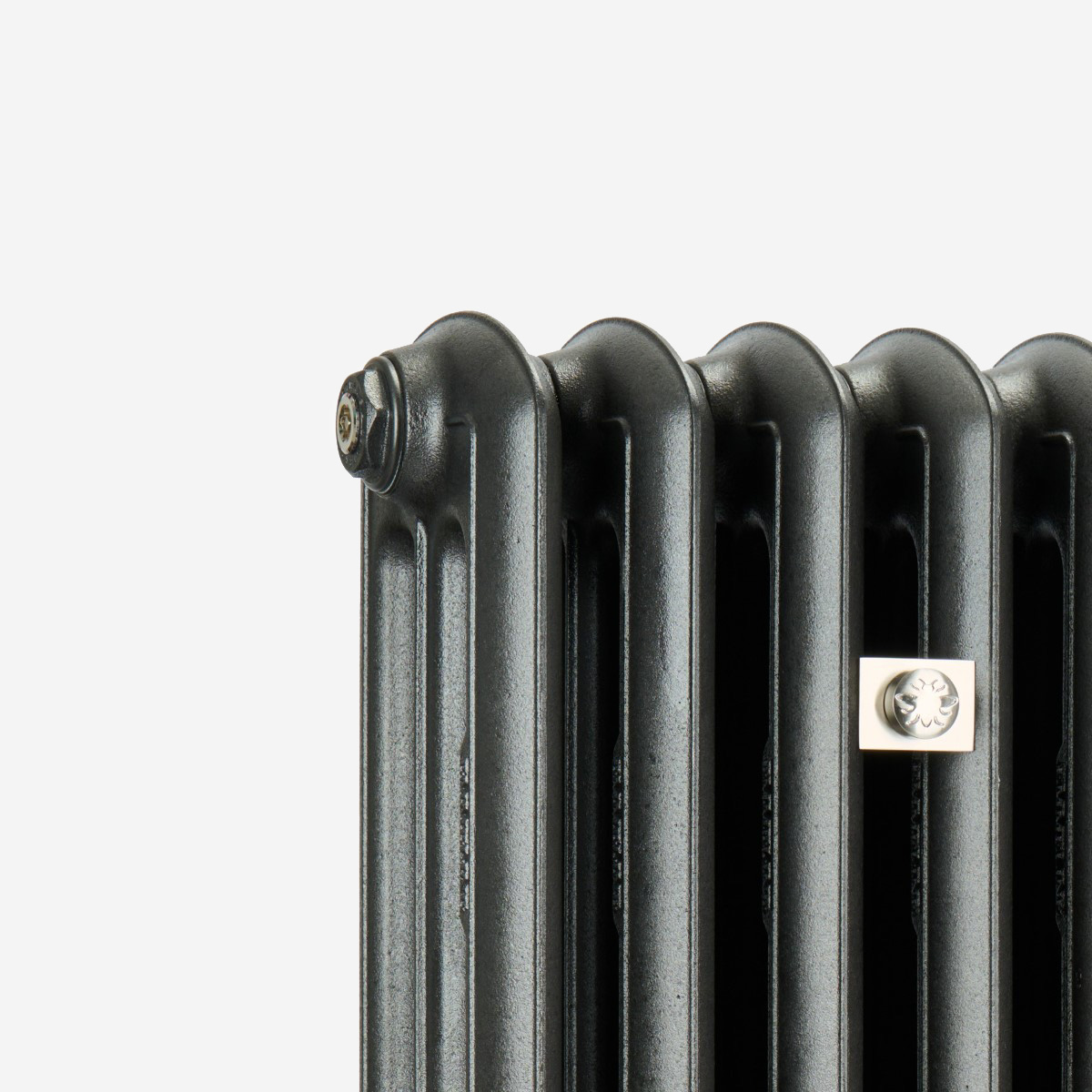

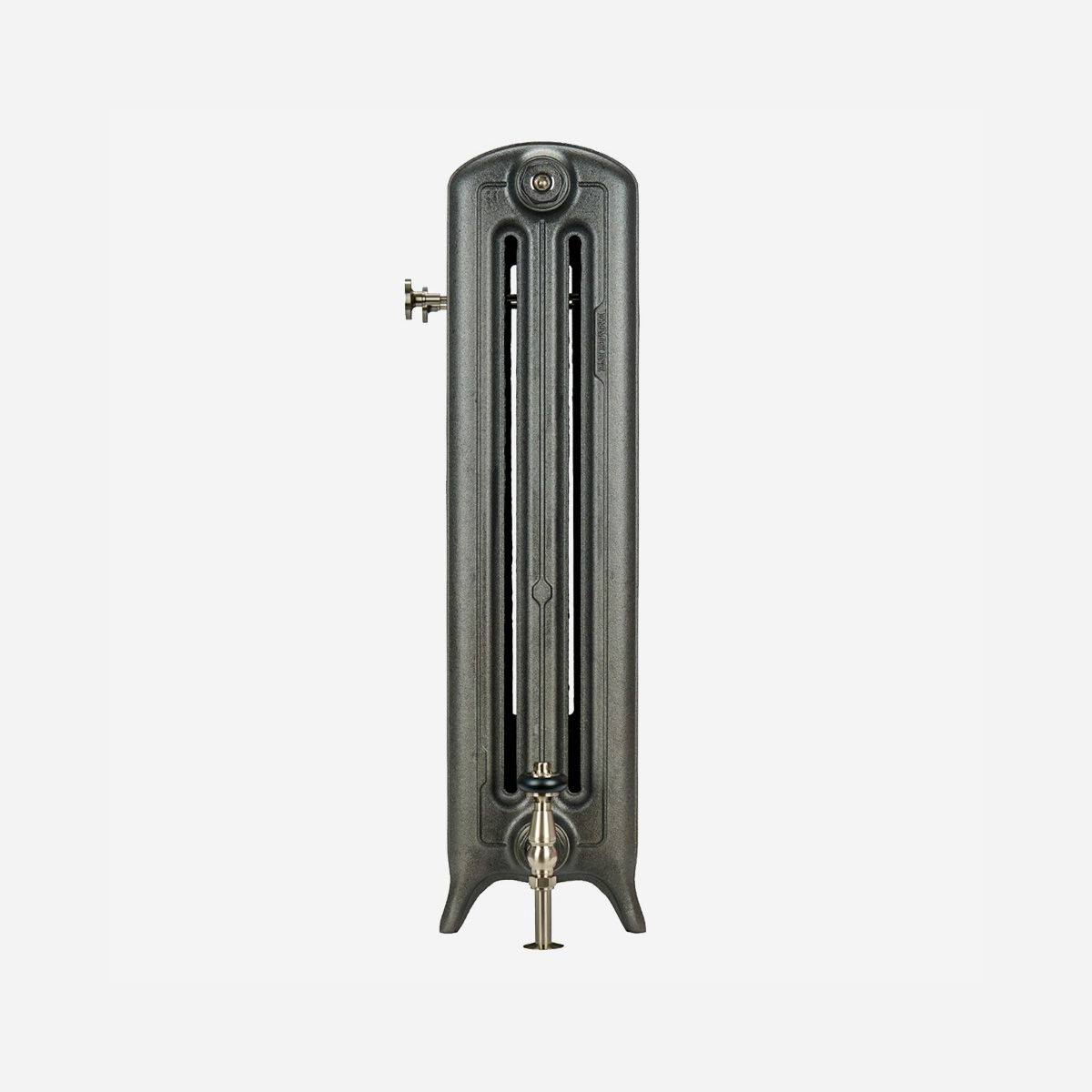

A traditional cast iron radiator, exclusive to Castrads, with a smooth surface and curved top inspired by early 20th-century school radiators.
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 8 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 870 |
| E | Height Without Legs (mm) | 816 |
| - | Empty Leg Section Weight (kg) | 13.6 |
| - | Empty Mid Section Weight (kg) | 12.5 |
| B | Bottom Inlet To Floor (mm) | 100 |
| G | Mid Section Depth (mm) | 210 |
| C | Max Section Depth (mm) | 230 |
| - | Output (ΔT50, W) | 148 |
| - | Output (ΔT30, W) | 76 |
| D | Interaxis Distance (mm) | 722.5 |
| F | Section Length (mm) | 66.5 |
| - | Internal Volume (L) | 2.5 |
| - | Factor, Km | 0.9376 |
| - | Exponent, n | 1.293 |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-EML3-870-3 | 3 | 229 | 444 | 228 | 1 | £578.40 |
| CI-EML3-870-4 | 4 | 296 | 592 | 304 | 1 | £715.20 |
| CI-EML3-870-5 | 5 | 362 | 740 | 380 | 1 | £852.00 |
| CI-EML3-870-6 | 6 | 429 | 888 | 456 | 1 | £988.80 |
| CI-EML3-870-7 | 7 | 495 | 1036 | 532 | 1 | £1,125.60 |
| CI-EML3-870-8 | 8 | 562 | 1184 | 608 | 1 | £1,262.40 |
| CI-EML3-870-9 | 9 | 628 | 1332 | 684 | 2 | £1,486.80 |
| CI-EML3-870-10 | 10 | 695 | 1480 | 760 | 2 | £1,623.60 |
| CI-EML3-870-11 | 11 | 761 | 1628 | 836 | 2 | £1,760.40 |
| CI-EML3-870-12 | 12 | 828 | 1776 | 912 | 2 | £1,897.20 |
| CI-EML3-870-13 | 13 | 894 | 1924 | 988 | 2 | £2,034.00 |
| CI-EML3-870-14 | 14 | 961 | 2072 | 1064 | 2 | £2,170.80 |
| CI-EML3-870-15 | 15 | 1027 | 2220 | 1140 | 2 | £2,307.60 |
| CI-EML3-870-16 | 16 | 1094 | 2368 | 1216 | 2 | £2,444.40 |
| CI-EML3-870-17 | 17 | 1160 | 2516 | 1292 | 3 | £2,581.20 |
| CI-EML3-870-18 | 18 | 1227 | 2664 | 1368 | 3 | £2,718.00 |
| CI-EML3-870-19 | 19 | 1293 | 2812 | 1444 | 3 | £2,854.80 |
| CI-EML3-870-20 | 20 | 1360 | 2960 | 1520 | 3 | £2,991.60 |
| CI-EML3-870-21 | 21 | 1426 | 3108 | 1596 | 3 | £3,128.40 |
| CI-EML3-870-22 | 22 | 1493 | 3256 | 1672 | 3 | £3,265.20 |
| CI-EML3-870-23 | 23 | 1559 | 3404 | 1748 | 3 | £3,402.00 |
| CI-EML3-870-24 | 24 | 1626 | 3552 | 1824 | 3 | £3,538.80 |
| CI-EML3-870-25 | 25 | 1692 | 3700 | 1900 | 4 | £3,675.60 |
| CI-EML3-870-26 | 26 | 1759 | 3848 | 1976 | 4 | £3,812.40 |
| CI-EML3-870-27 | 27 | 1825 | 3996 | 2052 | 4 | £3,949.20 |
| CI-EML3-870-28 | 28 | 1892 | 4144 | 2128 | 4 | £4,086.00 |
| CI-EML3-870-29 | 29 | 1958 | 4292 | 2204 | 4 | £4,222.80 |
| CI-EML3-870-30 | 30 | 2025 | 4440 | 2280 | 4 | £4,359.60 |
| CI-EML3-870-31 | 31 | 2091 | 4588 | 2356 | 4 | £4,496.40 |
| CI-EML3-870-32 | 32 | 2158 | 4736 | 2432 | 4 | £4,633.20 |
| CI-EML3-870-33 | 33 | 2224 | 4884 | 2508 | 5 | £4,770.00 |
| CI-EML3-870-34 | 34 | 2291 | 5032 | 2584 | 5 | £4,906.80 |
| CI-EML3-870-35 | 35 | 2357 | 5180 | 2660 | 5 | £5,043.60 |
| CI-EML3-870-36 | 36 | 2424 | 5328 | 2736 | 5 | £5,180.40 |
| CI-EML3-870-37 | 37 | 2490 | 5476 | 2812 | 5 | £5,317.20 |
| CI-EML3-870-38 | 38 | 2557 | 5624 | 2888 | 5 | £5,454.00 |
| CI-EML3-870-39 | 39 | 2623 | 5772 | 2964 | 5 | £5,590.80 |
| CI-EML3-870-40 | 40 | 2690 | 5920 | 3040 | 5 | £5,727.60 |
