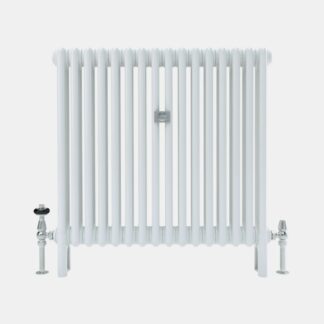

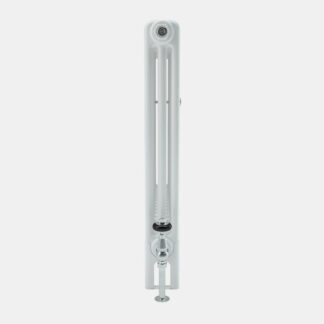

• Florence 3 column 600mm curved steel column radiator

Curved Florence 3 Column 600mm

From: £405.00

This product is currently unavailable for online purchase. Please contact our sales team to assist you with your purchase.

  • Available from 3 to 40 sections long (see below for technical specs)
  • Delivered ready to install
  • Heat pump compatible
  • 10 year warranty
  • Not suitable for steam
  • Welded joins with powder coat finish
  • Made in Italy
SKU: CUR-F3C-602

Model Specifications

Label Attribute Value
A Height With Legs (mm) 702
B Bottom Inlet To Floor (mm) 134
C Max Section Depth (mm) 103
D Interaxis Distance (mm) 535
E Height Without Legs (mm) 602
- Output (ΔT50, W) 60.6
F Section Length (mm) 45
- Output (ΔT30, W) 31.3
G Mid Section Depth (mm) 101
- Internal Volume (L) 1
- Empty Leg Section Weight (kg) 1.4
- Empty Mid Section Weight (kg) 1.1
- Factor, Km 0.4037
- Exponent, n 1.28095
Florence 3 Column 600mm - Single Section Technical Drawing - SVG

Sizes Available

83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
83774
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CUR-F3C-602-3 3 165 181 93 1 £405.00
CUR-F3C-602-4 4 210 242 125 1 £474.00
CUR-F3C-602-5 5 255 303 156 1 £543.00
CUR-F3C-602-6 6 300 363 187 1 £612.00
CUR-F3C-602-7 7 345 424 219 1 £681.00
CUR-F3C-602-8 8 390 484 250 1 £750.00
CUR-F3C-602-9 9 435 545 281 1 £819.00
CUR-F3C-602-10 10 480 606 313 1 £888.00
CUR-F3C-602-11 11 525 666 344 1 £957.00
CUR-F3C-602-12 12 570 727 375 1 £1,026.00
CUR-F3C-602-13 13 615 787 406 1 £1,095.00
CUR-F3C-602-14 14 660 848 438 1 £1,164.00
CUR-F3C-602-15 15 705 909 469 1 £1,233.00
CUR-F3C-602-16 16 750 969 500 1 £1,302.00
CUR-F3C-602-17 17 795 1030 532 1 £1,371.00
CUR-F3C-602-18 18 840 1090 563 1 £1,440.00
CUR-F3C-602-19 19 885 1151 594 1 £1,509.00
CUR-F3C-602-20 20 930 1212 626 1 £1,578.00
CUR-F3C-602-21 21 975 1272 657 1 £1,647.00
CUR-F3C-602-22 22 1020 1333 688 1 £1,716.00
CUR-F3C-602-23 23 1065 1393 719 1 £1,785.00
CUR-F3C-602-24 24 1110 1454 751 1 £1,854.00
CUR-F3C-602-25 25 1155 1515 782 1 £1,923.00
CUR-F3C-602-26 26 1200 1575 813 1 £1,992.00
CUR-F3C-602-27 27 1245 1636 845 1 £2,061.00
CUR-F3C-602-28 28 1290 1696 876 1 £2,130.00
CUR-F3C-602-29 29 1335 1757 907 1 £2,199.00
CUR-F3C-602-30 30 1380 1818 939 1 £2,268.00
CUR-F3C-602-31 31 1425 1878 970 1 £2,337.00
CUR-F3C-602-32 32 1470 1939 1001 1 £2,406.00
CUR-F3C-602-33 33 1515 1999 1032 1 £2,475.00
CUR-F3C-602-34 34 1560 2060 1064 1 £2,544.00
CUR-F3C-602-35 35 1605 2121 1095 1 £2,613.00
CUR-F3C-602-36 36 1650 2181 1126 1 £2,682.00
CUR-F3C-602-37 37 1695 2242 1158 1 £2,751.00
CUR-F3C-602-38 38 1740 2302 1189 1 £2,820.00
CUR-F3C-602-39 39 1785 2363 1220 1 £2,889.00
CUR-F3C-602-40 40 1830 2424 1252 1 £2,958.00
Florence 3 Column 600mm - 10 Section Battery Technical Drawing - SVG
