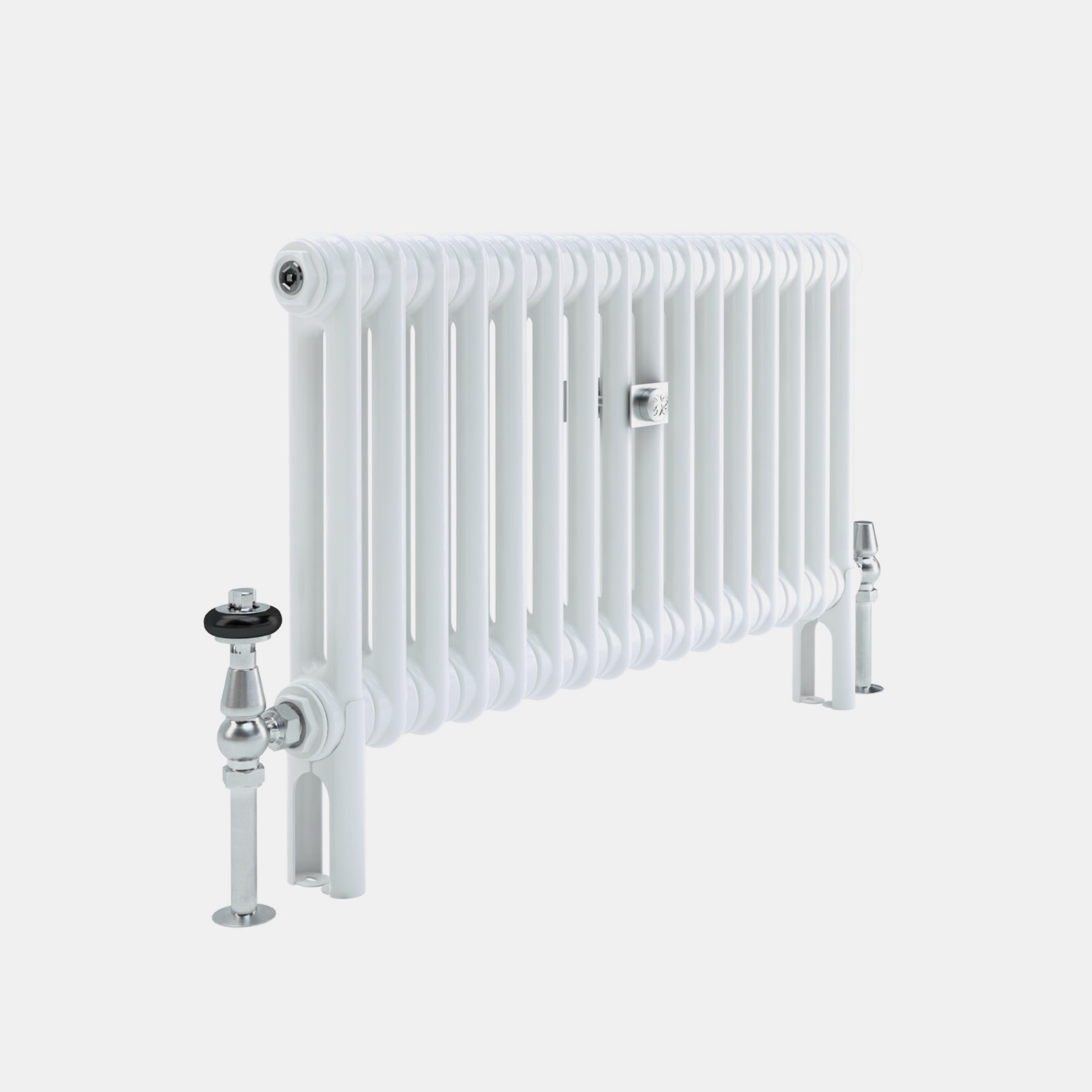

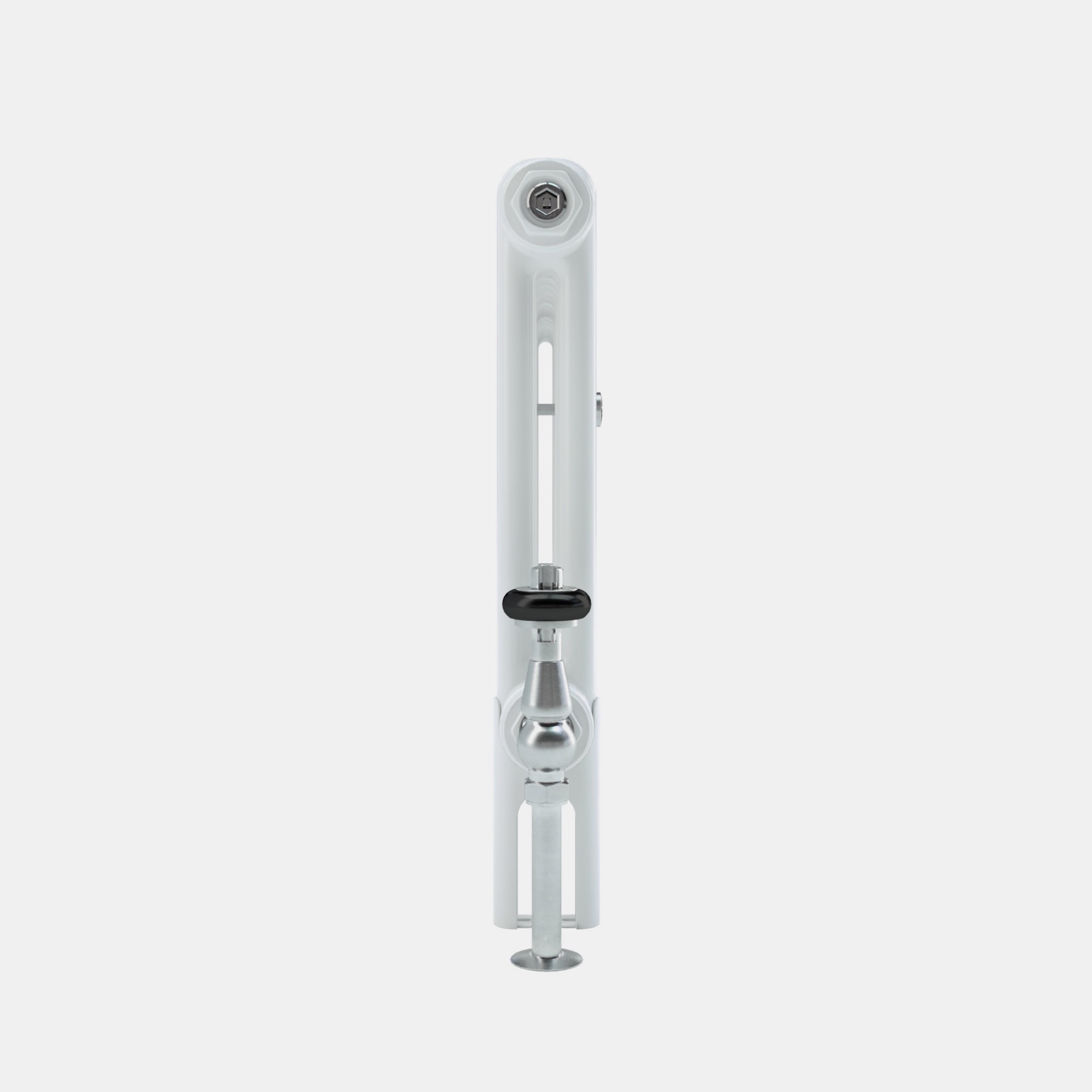

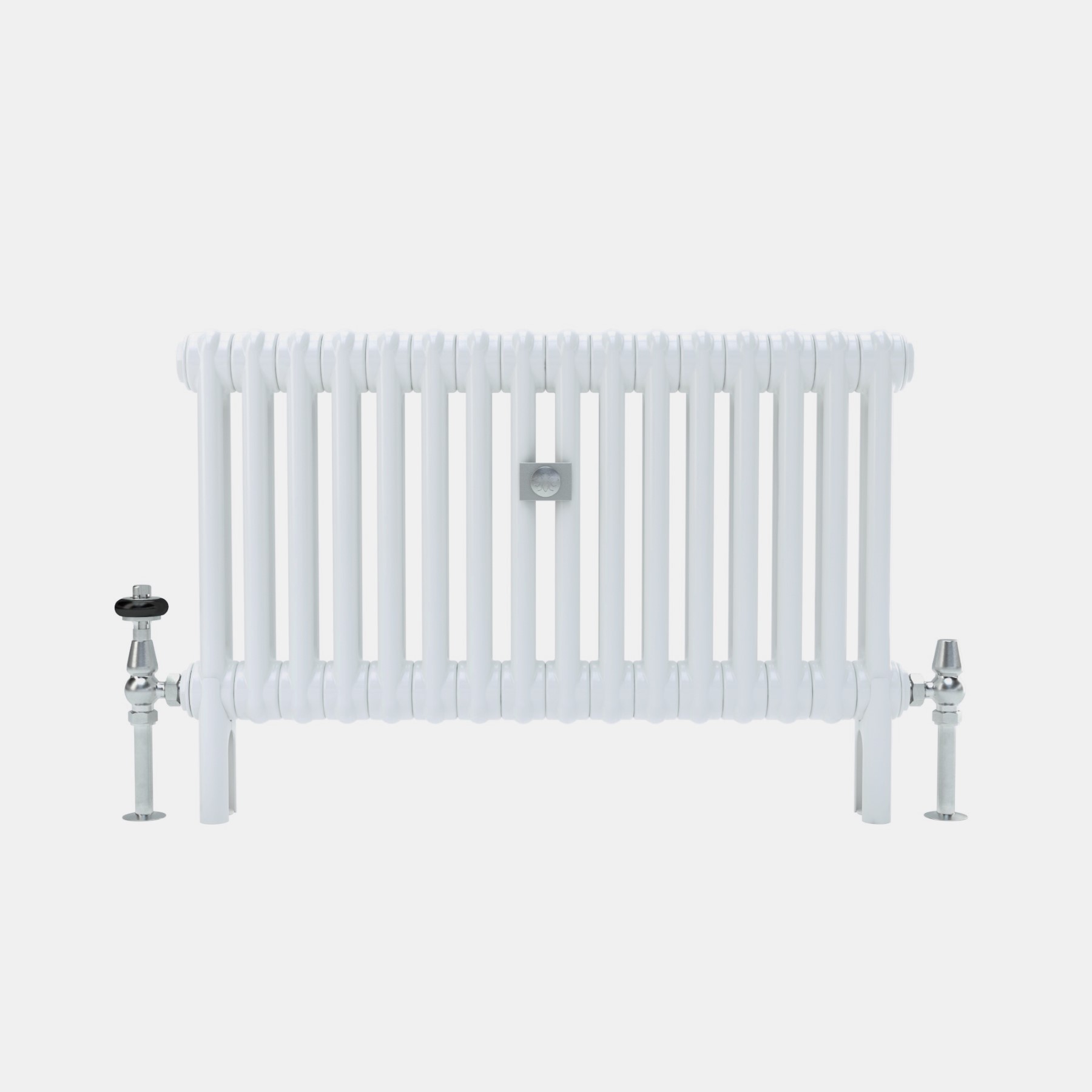

Florence 2 Column 400mm, 20 sections

From: £655.92

    n

  • 502mm tall, 930mm long, 65mm deep.

    • n

  • Heat output (ΔT50): 602 Watts

    • n

  • Heat output (ΔT50): 2054 BTUs

    • n

  • Wall- or floor-mounted options

    • n

  • Available in many finishes

    • n

  • Weight: 12 kg

    • n

  • Guarantee: 10 years

    • n

  • Delivered in: 5 weeks

    • n

  • Delivered ready for installation

    • n

SKU: SMC-F2C-402-20
Build your radiator

Configure Radiator

Florence 2 Column 400mm, 20 sections

Description
Additional information
Product files
Radiator drawing
(PH) Panel Height 402mm
(HF) Height On Feet 502mm
(D) Depth 65mm
(L) Length 930mm
(PC) Pipe centres 1020mm
(TS) Total space required 1110mm
Open pipe centre measurements document for more information.
Heat output (ΔT50) 602 Watts
Empty weight 13kg
Internal volume 0 L
Delivery 1 piece
Maximum operating pressure 8 bar
Weight 13 kg
Dimensions 930 × 65 × 502 mm
Number of sections

20
Length (mm)

930
Maximum operating temperature

95°C
Height (mm)

502
Maximum operating pressure

8 bar
Depth (mm)

65
Heat output (ΔT50) Watts

602
Bleed valve included

Chrome
Heat Output (ΔT50) BTUs

2054
Connections

½" BSP as standard
Declaration of Performance DOP-202009-1015_FL2_400-17.pdf
