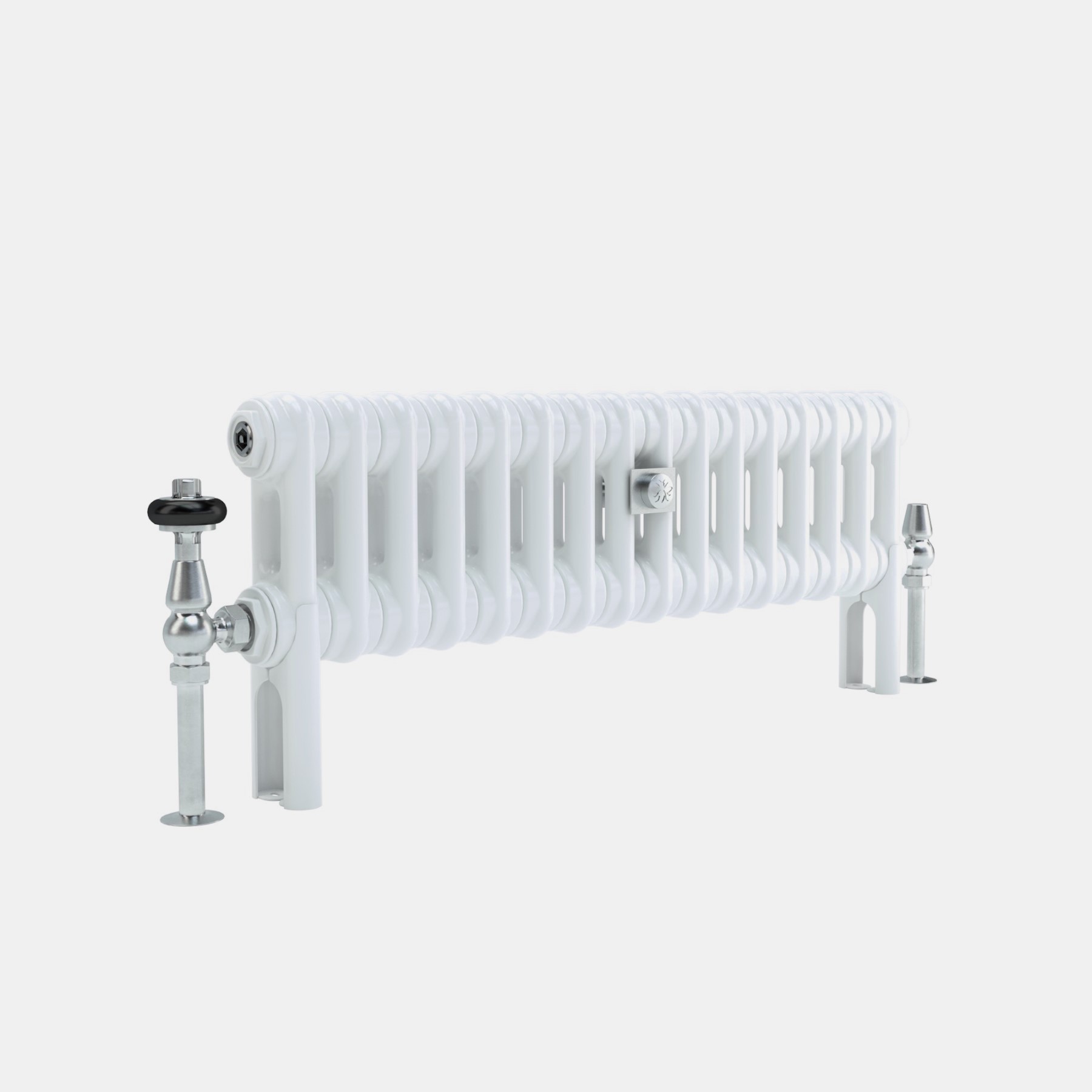

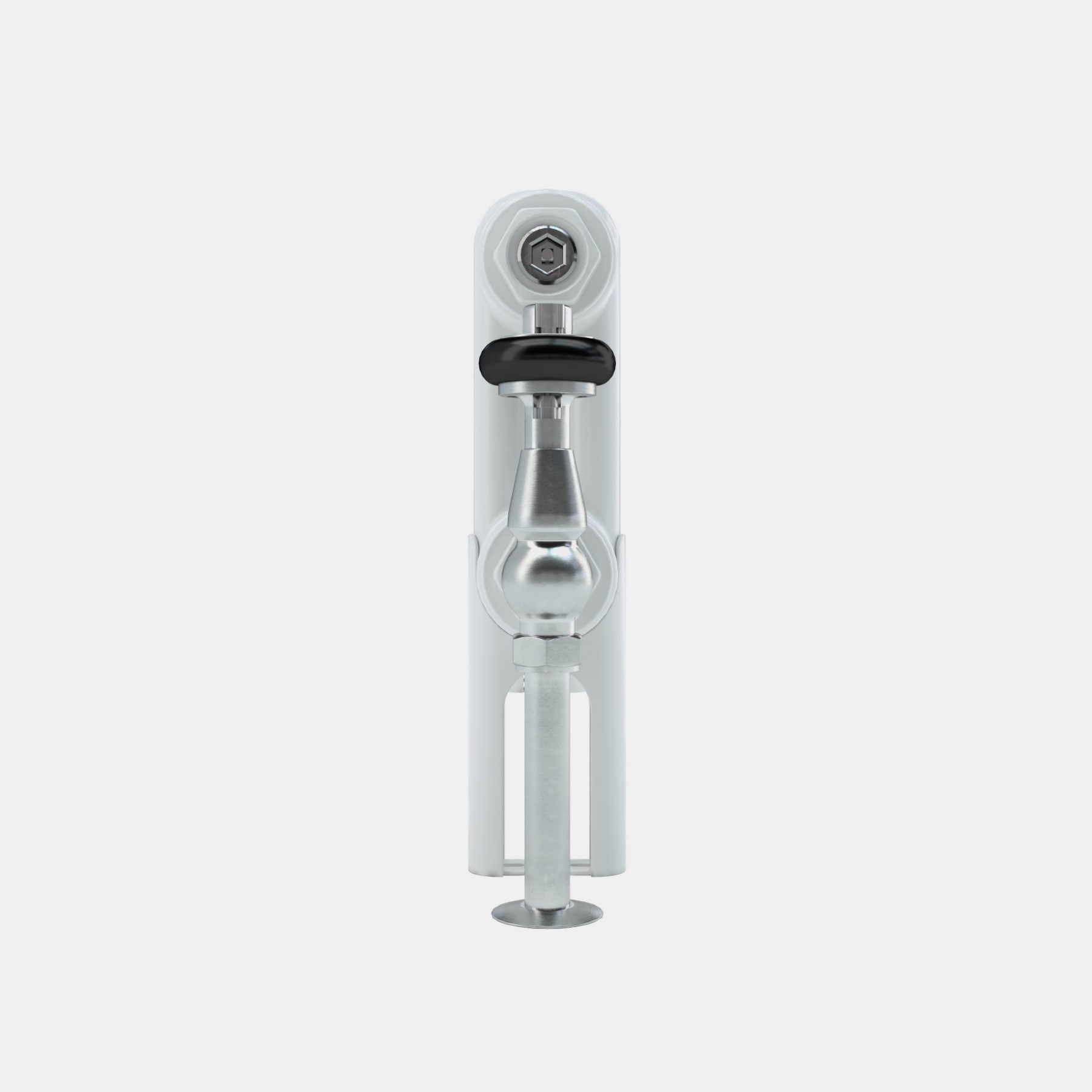

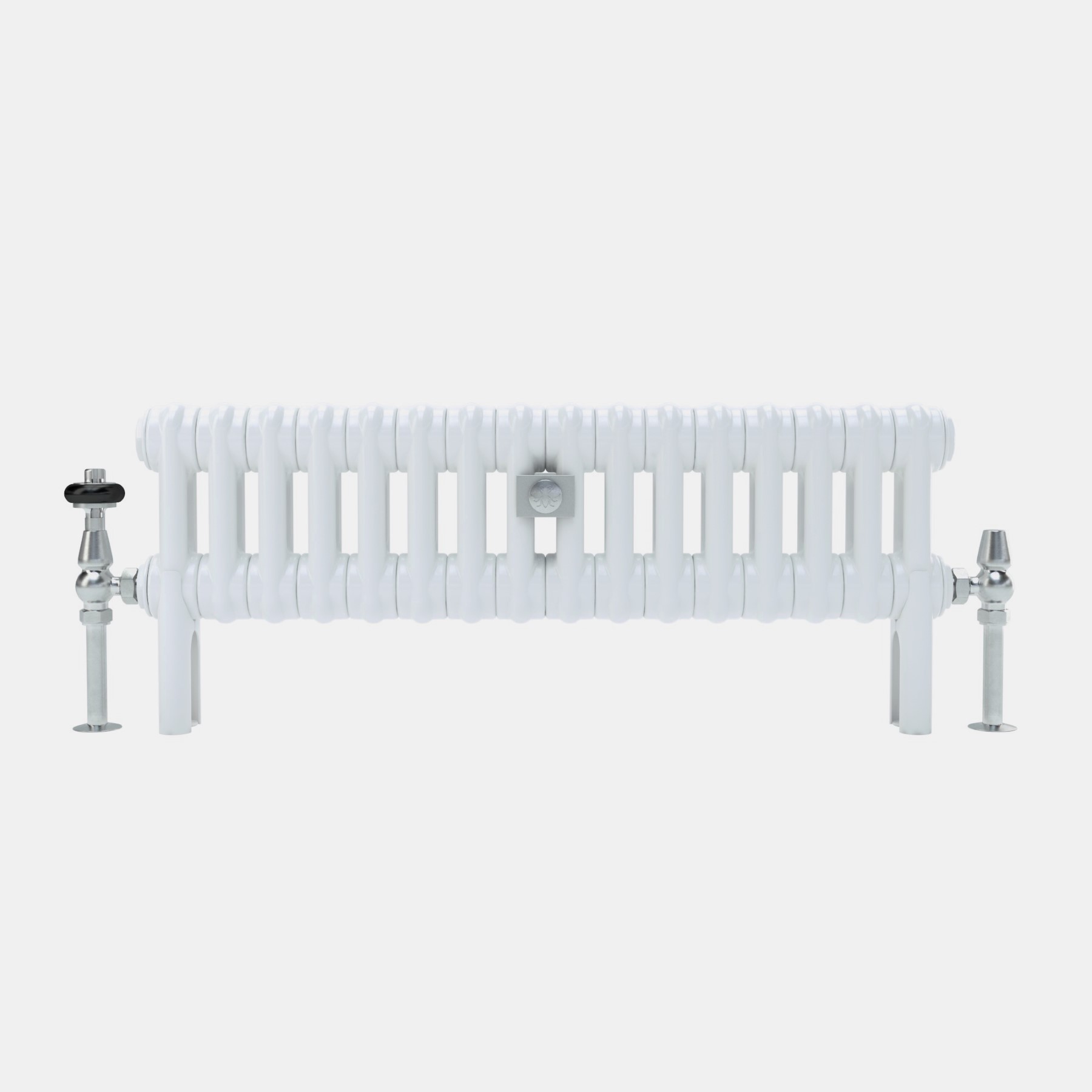

Florence 2 Column 200mm
From: £222.60
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 294 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 67 |
| D | Interaxis Distance (mm) | 1935 |
| E | Height Without Legs (mm) | 194 |
| - | Output (ΔT50, W) | 14.9 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT30, W) | 7.9 |
| G | Mid Section Depth (mm) | 65 |
| - | Internal Volume (L) | 0.3 |
| - | Empty Leg Section Weight (kg) | 0.6 |
| - | Empty Mid Section Weight (kg) | 0.3 |
| - | Factor, Km | 0.1112 |
| - | Exponent, n | 1.25221 |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F2C-194-3 | 3 | 165 | 44 | 23 | 1 | £222.60 |
| SMC-F2C-194-4 | 4 | 210 | 59 | 31 | 1 | £250.80 |
| SMC-F2C-194-5 | 5 | 255 | 74 | 39 | 1 | £279.00 |
| SMC-F2C-194-6 | 6 | 300 | 89 | 47 | 1 | £307.20 |
| SMC-F2C-194-7 | 7 | 345 | 104 | 55 | 1 | £335.40 |
| SMC-F2C-194-8 | 8 | 390 | 119 | 63 | 1 | £363.60 |
| SMC-F2C-194-9 | 9 | 435 | 134 | 71 | 1 | £391.80 |
| SMC-F2C-194-10 | 10 | 480 | 149 | 79 | 1 | £420.00 |
| SMC-F2C-194-11 | 11 | 525 | 163 | 86 | 1 | £448.20 |
| SMC-F2C-194-12 | 12 | 570 | 178 | 94 | 1 | £476.40 |
| SMC-F2C-194-13 | 13 | 615 | 193 | 102 | 1 | £504.60 |
| SMC-F2C-194-14 | 14 | 660 | 208 | 110 | 1 | £532.80 |
| SMC-F2C-194-15 | 15 | 705 | 223 | 118 | 1 | £561.00 |
| SMC-F2C-194-16 | 16 | 750 | 238 | 126 | 1 | £589.20 |
| SMC-F2C-194-17 | 17 | 795 | 253 | 134 | 1 | £617.40 |
| SMC-F2C-194-18 | 18 | 840 | 268 | 142 | 1 | £645.60 |
| SMC-F2C-194-19 | 19 | 885 | 283 | 150 | 1 | £673.80 |
| SMC-F2C-194-20 | 20 | 930 | 298 | 158 | 1 | £702.00 |
| SMC-F2C-194-21 | 21 | 975 | 312 | 165 | 1 | £730.20 |
| SMC-F2C-194-22 | 22 | 1020 | 327 | 173 | 1 | £758.40 |
| SMC-F2C-194-23 | 23 | 1065 | 342 | 181 | 1 | £786.60 |
| SMC-F2C-194-24 | 24 | 1110 | 357 | 189 | 1 | £814.80 |
| SMC-F2C-194-25 | 25 | 1155 | 372 | 197 | 1 | £843.00 |
| SMC-F2C-194-26 | 26 | 1200 | 387 | 205 | 1 | £871.20 |
| SMC-F2C-194-27 | 27 | 1245 | 402 | 213 | 1 | £899.40 |
| SMC-F2C-194-28 | 28 | 1290 | 417 | 221 | 1 | £927.60 |
| SMC-F2C-194-29 | 29 | 1335 | 432 | 229 | 1 | £955.80 |
| SMC-F2C-194-30 | 30 | 1380 | 447 | 237 | 1 | £984.00 |
| SMC-F2C-194-31 | 31 | 1425 | 461 | 244 | 1 | £1,012.20 |
| SMC-F2C-194-32 | 32 | 1470 | 476 | 252 | 1 | £1,040.40 |
| SMC-F2C-194-33 | 33 | 1515 | 491 | 260 | 1 | £1,068.60 |
| SMC-F2C-194-34 | 34 | 1560 | 506 | 268 | 1 | £1,096.80 |
| SMC-F2C-194-35 | 35 | 1605 | 521 | 276 | 1 | £1,125.00 |
| SMC-F2C-194-36 | 36 | 1650 | 536 | 284 | 1 | £1,153.20 |
| SMC-F2C-194-37 | 37 | 1695 | 551 | 292 | 1 | £1,181.40 |
| SMC-F2C-194-38 | 38 | 1740 | 566 | 300 | 1 | £1,209.60 |
| SMC-F2C-194-39 | 39 | 1785 | 581 | 308 | 1 | £1,237.80 |
| SMC-F2C-194-40 | 40 | 1830 | 596 | 316 | 1 | £1,266.00 |
