Radiator Assembly Toolkit ATK2 (Rental)
£252.00
Additional information
| Weight | 26.5 kg |
|---|---|
| Dimensions | 915 × 185 × 107 mm |
The ultimate cast iron radiator assembly toolkit. Comprises scratchless socket, assembly toolheads for either 1-¼” or 1-½” steel joining nipples and two lengths of extension to assemble oversize cast iron radiators of various sizes.
Designed only by Castrads. Made only for Castrads.
[gdlr_core_row]
[gdlr_core_column size=”1/2″]
ASSEMBLY TOOLKIT FOR HIRE
£200 refundable deposit on return
Cast Iron Radiator Assembly Made Easy

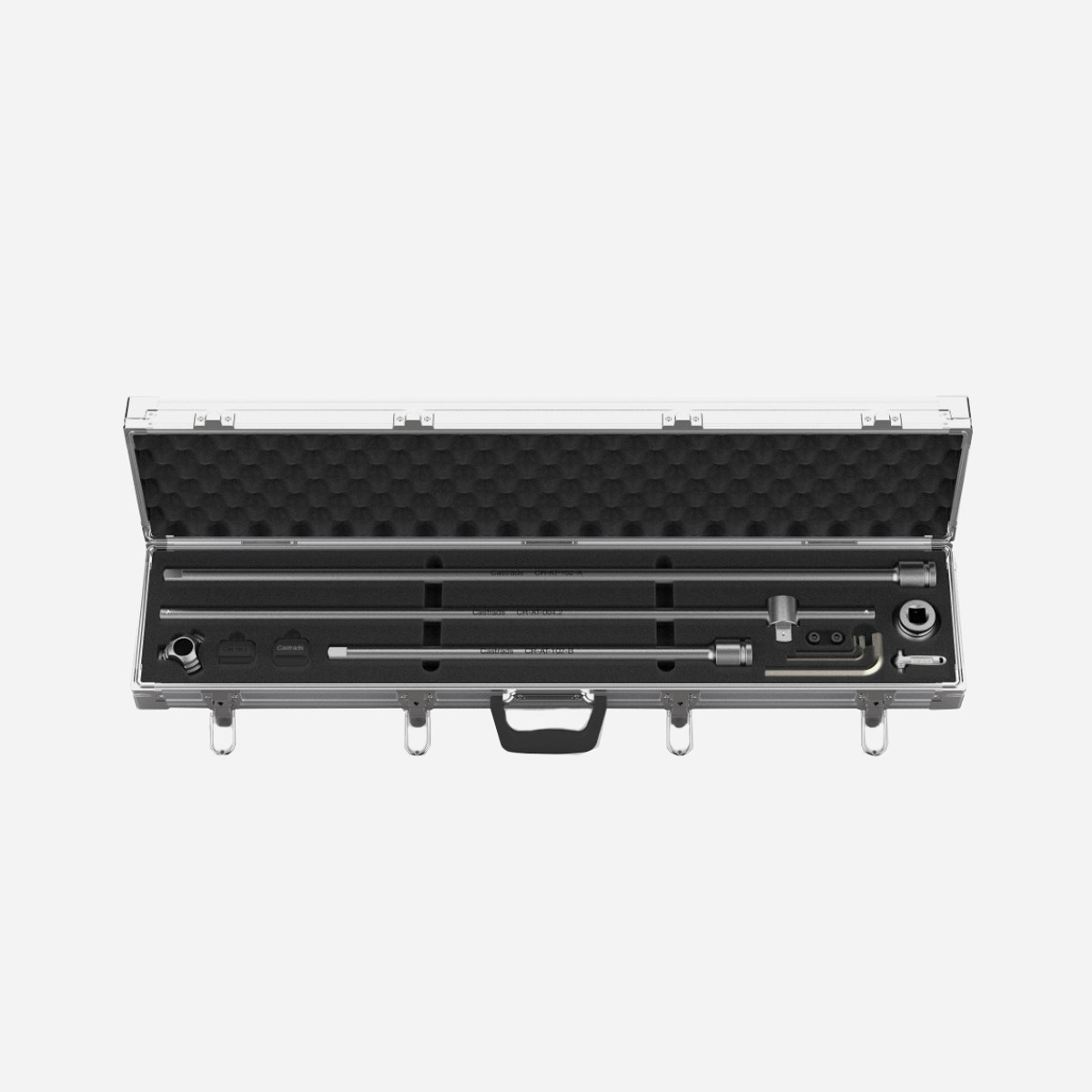

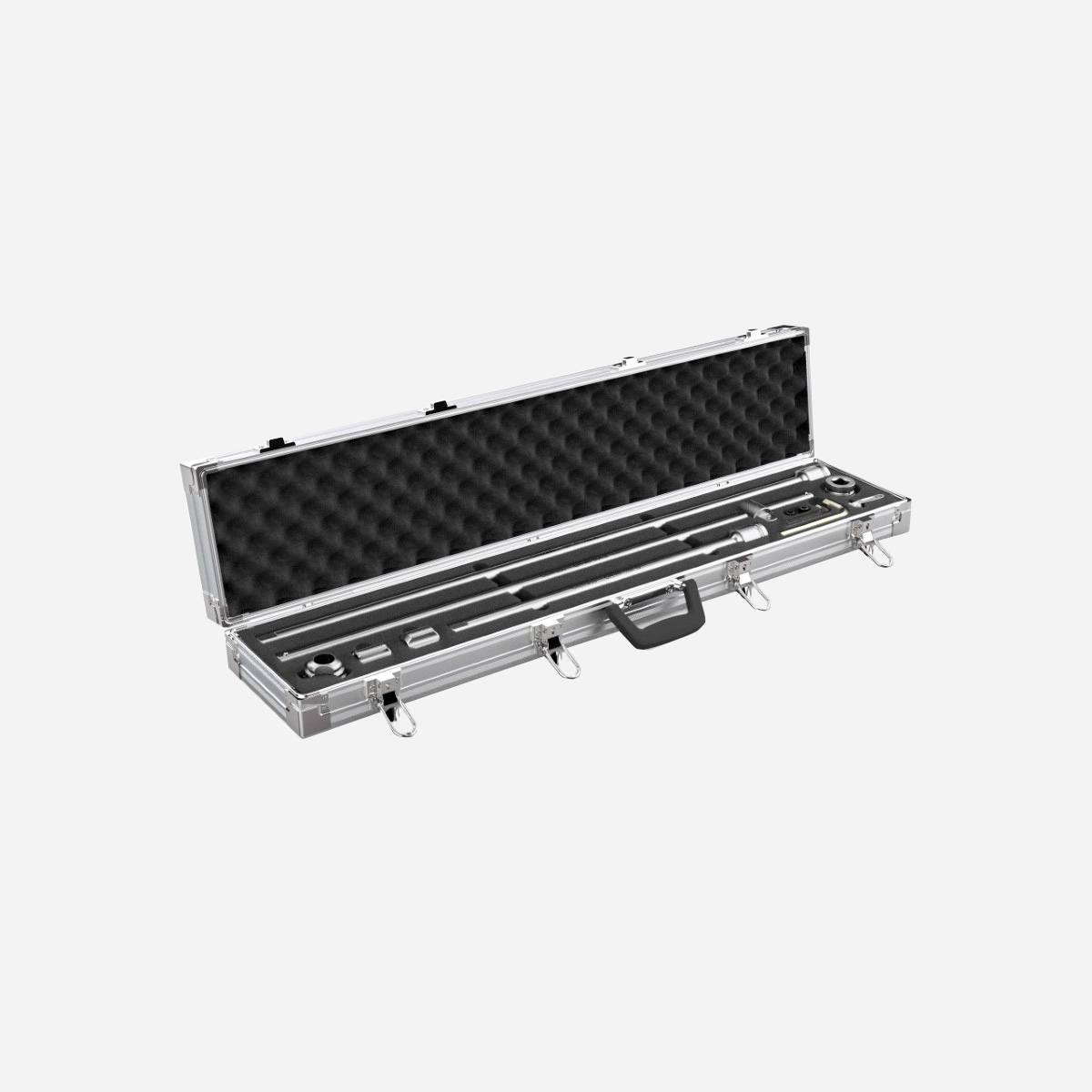

The only toolkit you’ll ever need for assembling Castrads cast iron radiators on site. Aluminium flightcase contains non-marking sockets, three lengths of extension bar and assembly toolheads for both 1-¼” IPS and 1-½” IPS threaded joining nipples. They’re also very handy for equivalent sized valve spuds.
Also included are a depth stop to make finding the join easier and a Unilock Bleed Key, perfect for bleeding hydronic radiators.
The Professional’s Toolkit
At 3’3″ long, 10″ wide and 3-½” deep, this large toolbox weighs a little over 11.8kg. Components are held securely in high density foam. Instructions are included in the box. Metal parts are made of high quality heat-treated steel (EN24T).
Usage Guide
Download the Assembly Toolkit Quick Start Guide.
Download the Cast Iron Radiator Assembly Guide.
[/gdlr_core_column]
[gdlr_core_column size=”1/2″]
Toolkit Contents
| # | Part name | Qty | Description |
|---|---|---|---|
| 1 | CR-AT-001-A | 1 | 1-½” assembly tool head |
| 2 | CR-AT-001-B | 1 | 1-¼” assembly tool head |
| 3 | CR-AT-002-A | 1 |
3″ assembly tool shaft
|
| 4 | CR-AT-002-B | 1 | 2″ assembly tool shaft |
| 5 | CR-AT-002-C | 1 | 1″ assembly tool shaft |
| 6 | CR-AT-004.1 | 1 | Breaker bar for ¾” square drive |
| 7 | CR-AT-004.2 | 1 | ¾” square drive |
| 8 | CR-AT-003-A | 1 | ¾” female to ¾” female drive adapter |
| 9 | CR-AT-005-A | 1 | 1-½” socket for 44mm protective insert |
| 10 | CR-AT-005-B | 1 | 1-¼” socket for 41mm protective insert |
| 11 | CR-AT-006-A | 1 | 1-½” protective insert for 44mm hex |
| 12 | CR-AT-006-B | 1 | 1-¼” protective insert for 41mm hex |
| 13 | CR-AT-DS | 1 | Depth stop |
| 14 | M8 Bolt | 3 | M8 bolt |
| 15 | #6 ALLEN KEY | 1 | 6mm Allen key for M8 bolt |
| 16 | BLK_HEX | 1 | Unilock Bleed Key |
