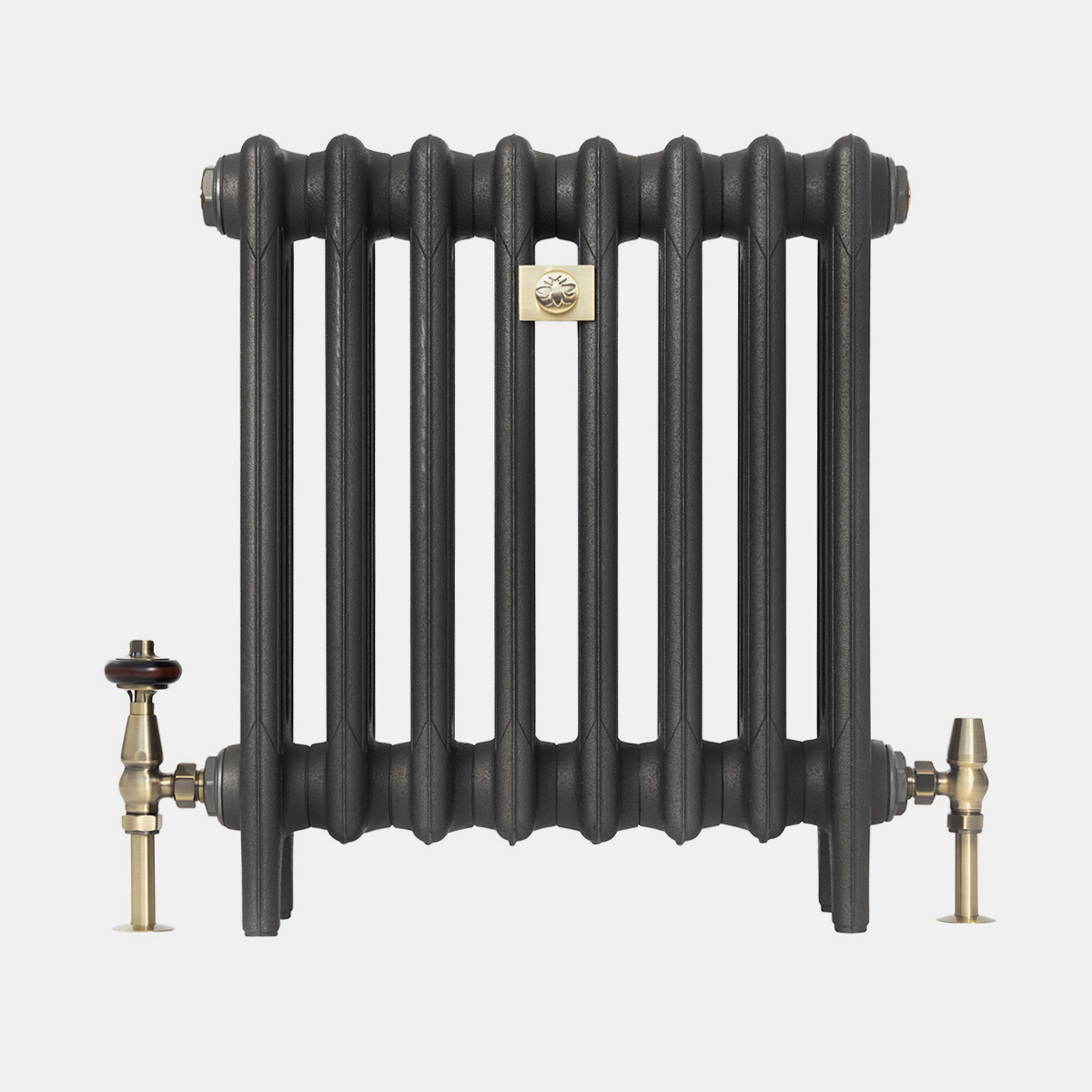

• Mercury 4 column 560mm Castrads bay window radiator

Mercury 4 Column 22in

From: $833.00

Technical specs at 3 sections long:

Length
Heat output (Hydronic)
Height
Heat output (Steam)
Depth
Delivered in
SKU: CI-M4C-560

Model Specifications

Label Attribute Value
A Height With Legs 22.0 in
B Bottom Inlet To Floor 3.9 in
C Max Section Depth 5.5 in
D Interaxis Distance 16.7 in
E Height Without Legs 19.6 in
F Section Length 2.3 in
G Mid Section Depth 5.5 in
- Internal Volume 0.04 gal
- Empty Leg Section Weight 11.90 lb
- Empty Mid Section Weight 9.92 lb
- EDR Per Section 1.86 ft²
- Hydronic Output (170ºF) 279 BTUs
- Steam Output (215ºF) 446 BTUs
Mercury 4 Column 560mm - Single Section Technical Drawing - SVG

Sizes Available

SKU N
Secs
Length
(L, mm)
Output
(Hydronic, 170ºF)
Output
(Steam, 215ºF)
EDR Delivery
pieces
Price
from
CI-M4C-560-3 3 8.0 in 837 BTUs 1338 BTUs 5.6 ft² 3 $833.00
CI-M4C-560-4 4 10.4 in 1116 BTUs 1784 BTUs 7.4 ft² 1 $839.00
CI-M4C-560-5 5 12.6 in 1395 BTUs 2230 BTUs 9.3 ft² 1 $925.00
CI-M4C-560-6 6 14.9 in 1674 BTUs 2676 BTUs 11.2 ft² 2 $1,091.00
CI-M4C-560-7 7 17.2 in 1953 BTUs 3122 BTUs 13.0 ft² 3 $1,177.00
CI-M4C-560-8 8 19.5 in 2232 BTUs 3568 BTUs 14.9 ft² 3 $1,263.00
CI-M4C-560-9 9 21.8 in 2511 BTUs 4014 BTUs 16.7 ft² 3 $1,349.00
CI-M4C-560-10 10 24.1 in 2790 BTUs 4460 BTUs 18.6 ft² 3 $1,435.00
CI-M4C-560-11 11 26.4 in 3069 BTUs 4906 BTUs 20.5 ft² 3 $1,521.00
CI-M4C-560-12 12 28.7 in 3348 BTUs 5352 BTUs 22.3 ft² 1 $1,527.00
CI-M4C-560-13 13 31.0 in 3627 BTUs 5798 BTUs 24.2 ft² 1 $1,613.00
CI-M4C-560-14 14 33.3 in 3906 BTUs 6244 BTUs 26.0 ft² 1 $1,699.00
CI-M4C-560-15 15 35.6 in 4185 BTUs 6690 BTUs 27.9 ft² 3 $1,865.00
CI-M4C-560-16 16 37.9 in 4464 BTUs 7136 BTUs 29.8 ft² 2 $1,951.00
CI-M4C-560-17 17 40.2 in 4743 BTUs 7582 BTUs 31.6 ft² 1 $1,957.00
CI-M4C-560-18 18 42.5 in 5022 BTUs 8028 BTUs 33.5 ft² 2 $2,123.00
CI-M4C-560-19 19 44.8 in 5301 BTUs 8474 BTUs 35.3 ft² 1 $2,129.00
CI-M4C-560-20 20 47.1 in 5580 BTUs 8920 BTUs 37.2 ft² 3 $2,295.00
CI-M4C-560-21 21 49.4 in 5859 BTUs 9366 BTUs 39.1 ft² 1 $2,301.00
CI-M4C-560-22 22 51.7 in 6138 BTUs 9812 BTUs 40.9 ft² 3 $2,467.00
CI-M4C-560-23 23 53.9 in 6417 BTUs 10258 BTUs 42.8 ft² 1 $2,473.00
CI-M4C-560-24 24 56.3 in 6696 BTUs 10704 BTUs 44.6 ft² 3 $2,639.00
CI-M4C-560-25 25 58.5 in 6975 BTUs 11150 BTUs 46.5 ft² 1 $2,645.00
CI-M4C-560-26 26 60.8 in 7254 BTUs 11596 BTUs 48.4 ft² 2 $2,811.00
CI-M4C-560-27 27 63.1 in 7533 BTUs 12042 BTUs 50.2 ft² 2 $2,897.00
CI-M4C-560-28 28 65.4 in 7812 BTUs 12488 BTUs 52.1 ft² 3 $2,983.00
CI-M4C-560-29 29 67.7 in 8091 BTUs 12934 BTUs 53.9 ft² 3 $3,069.00
CI-M4C-560-30 30 70.0 in 8370 BTUs 13380 BTUs 55.8 ft² 3 $3,155.00
CI-M4C-560-31 31 72.3 in 8649 BTUs 13826 BTUs 57.7 ft² 3 $3,241.00
CI-M4C-560-32 32 74.6 in 8928 BTUs 14272 BTUs 59.5 ft² 3 $3,327.00
CI-M4C-560-33 33 76.9 in 9207 BTUs 14718 BTUs 61.4 ft² 1 $3,333.00
CI-M4C-560-34 34 79.2 in 9486 BTUs 15164 BTUs 63.2 ft² 3 $3,499.00
CI-M4C-560-35 35 81.5 in 9765 BTUs 15610 BTUs 65.1 ft² 1 $3,505.00
CI-M4C-560-36 36 83.8 in 10044 BTUs 16056 BTUs 67.0 ft² 1 $3,591.00
CI-M4C-560-37 37 86.1 in 10323 BTUs 16502 BTUs 68.8 ft² 1 $3,677.00
CI-M4C-560-38 38 88.4 in 10602 BTUs 16948 BTUs 70.7 ft² 1 $3,763.00
CI-M4C-560-39 39 90.7 in 10881 BTUs 17394 BTUs 72.5 ft² 1 $3,849.00
CI-M4C-560-40 40 93.0 in 11160 BTUs 17840 BTUs 74.4 ft² 3 $4,015.00
Mercury 4 Column 560mm - 10 Section Battery Technical Drawing - SVG
