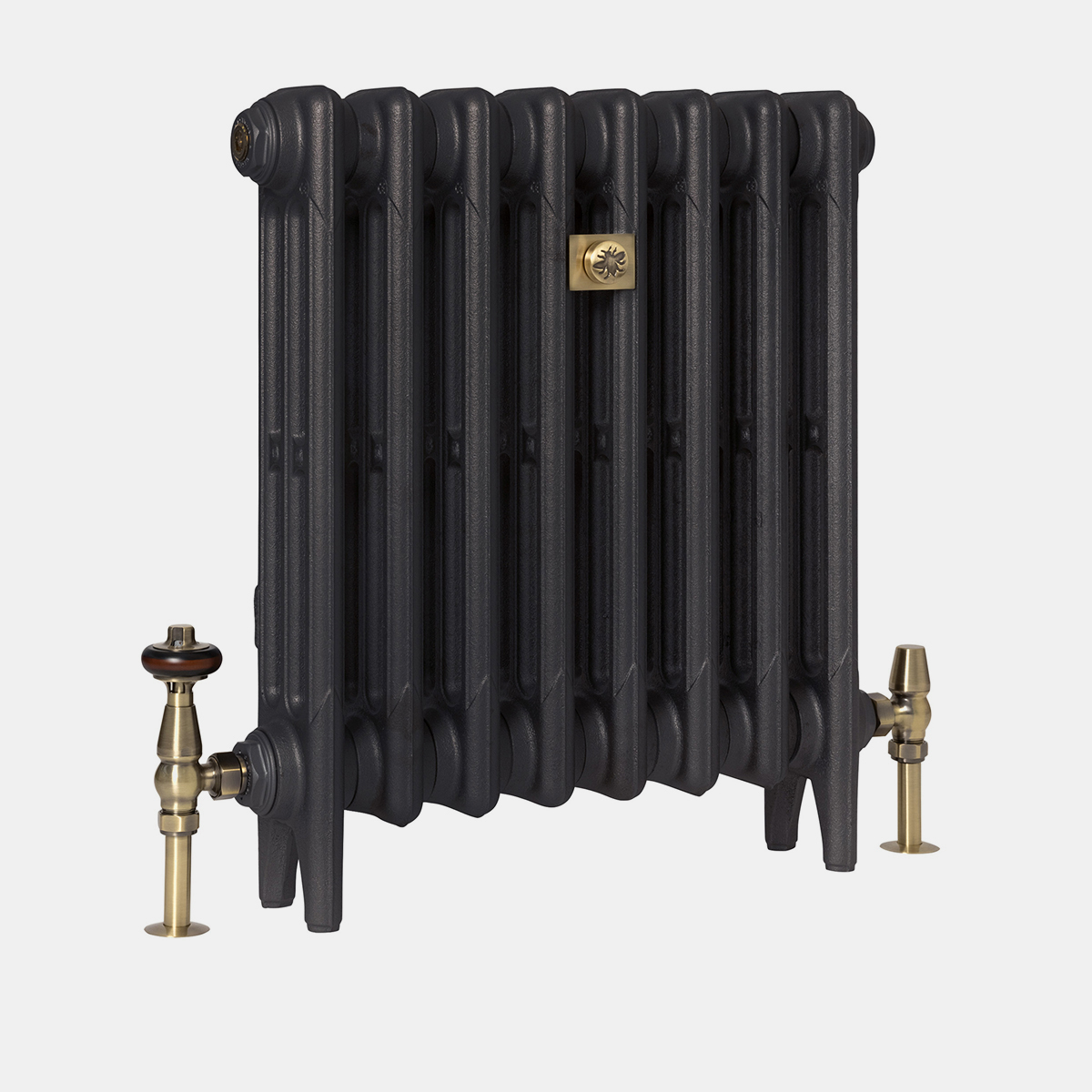

• Mercury 3 column 560mm slimline Castrads bay window radiator in matt black finish

Mercury 3 Column 22in

From: $1,016.00

Technical specs at 3 sections long:

Length
Heat output (Hydronic)
Height
Heat output (Steam)
Depth
Delivered in

Model Specifications

Label Attribute Value
A Height With Legs 22.0 in
B Bottom Inlet To Floor 3.9 in
C Max Section Depth 4.0 in
D Interaxis Distance 16.7 in
E Height Without Legs 19.6 in
F Section Length 2.3 in
G Mid Section Depth 4.0 in
- Internal Volume 0.02 gal
- Empty Leg Section Weight 9.70 lb
- Empty Mid Section Weight 8.16 lb
- EDR Per Section 1.43 ft²
- Hydronic Output (170ºF) 215 BTUs
- Steam Output (215ºF) 344 BTUs
Mercury 3 Column 560mm - Single Section Technical Drawing - SVG

Sizes Available

SKU N
Secs
Length
(L, mm)
Output
(Hydronic, 170ºF)
Output
(Steam, 215ºF)
EDR Delivery
pieces
Price
from
CI-M3C-560-3 3 8.0 in 645 BTUs 1032 BTUs 4.3 ft² 3 $1,016.00
CI-M3C-560-4 4 10.4 in 860 BTUs 1376 BTUs 5.7 ft² 3 $1,163.00
CI-M3C-560-5 5 12.6 in 1075 BTUs 1720 BTUs 7.2 ft² 3 $1,310.00
CI-M3C-560-6 6 14.9 in 1290 BTUs 2064 BTUs 8.6 ft² 2 $1,457.00
CI-M3C-560-7 7 17.2 in 1505 BTUs 2408 BTUs 10.0 ft² 1 $1,524.00
CI-M3C-560-8 8 19.5 in 1720 BTUs 2752 BTUs 11.4 ft² 1 $1,671.00
CI-M3C-560-9 9 21.8 in 1935 BTUs 3096 BTUs 12.9 ft² 2 $1,898.00
CI-M3C-560-10 10 24.1 in 2150 BTUs 3440 BTUs 14.3 ft² 1 $1,965.00
CI-M3C-560-11 11 26.4 in 2365 BTUs 3784 BTUs 15.7 ft² 3 $2,192.00
CI-M3C-560-12 12 28.7 in 2580 BTUs 4128 BTUs 17.2 ft² 1 $2,259.00
CI-M3C-560-13 13 31.0 in 2795 BTUs 4472 BTUs 18.6 ft² 3 $2,486.00
CI-M3C-560-14 14 33.3 in 3010 BTUs 4816 BTUs 20.0 ft² 2 $2,633.00
CI-M3C-560-15 15 35.6 in 3225 BTUs 5160 BTUs 21.5 ft² 3 $2,780.00
CI-M3C-560-16 16 37.9 in 3440 BTUs 5504 BTUs 22.9 ft² 2 $2,927.00
CI-M3C-560-17 17 40.2 in 3655 BTUs 5848 BTUs 24.3 ft² 3 $3,074.00
CI-M3C-560-18 18 42.5 in 3870 BTUs 6192 BTUs 25.7 ft² 2 $3,221.00
CI-M3C-560-19 19 44.8 in 4085 BTUs 6536 BTUs 27.2 ft² 2 $3,368.00
CI-M3C-560-20 20 47.1 in 4300 BTUs 6880 BTUs 28.6 ft² 1 $3,435.00
CI-M3C-560-21 21 49.4 in 4515 BTUs 7224 BTUs 30.0 ft² 3 $3,662.00
CI-M3C-560-22 22 51.7 in 4730 BTUs 7568 BTUs 31.5 ft² 2 $3,809.00
CI-M3C-560-23 23 53.9 in 4945 BTUs 7912 BTUs 32.9 ft² 1 $3,876.00
CI-M3C-560-24 24 56.3 in 5160 BTUs 8256 BTUs 34.3 ft² 3 $4,103.00
CI-M3C-560-25 25 58.5 in 5375 BTUs 8600 BTUs 35.8 ft² 1 $4,170.00
CI-M3C-560-26 26 60.8 in 5590 BTUs 8944 BTUs 37.2 ft² 1 $4,317.00
CI-M3C-560-27 27 63.1 in 5805 BTUs 9288 BTUs 38.6 ft² 2 $4,544.00
CI-M3C-560-28 28 65.4 in 6020 BTUs 9632 BTUs 40.0 ft² 1 $4,611.00
CI-M3C-560-29 29 67.7 in 6235 BTUs 9976 BTUs 41.5 ft² 1 $4,758.00
CI-M3C-560-30 30 70.0 in 6450 BTUs 10320 BTUs 42.9 ft² 1 $4,905.00
CI-M3C-560-31 31 72.3 in 6665 BTUs 10664 BTUs 44.3 ft² 3 $5,132.00
CI-M3C-560-32 32 74.6 in 6880 BTUs 11008 BTUs 45.8 ft² 3 $5,279.00
CI-M3C-560-33 33 76.9 in 7095 BTUs 11352 BTUs 47.2 ft² 1 $5,346.00
CI-M3C-560-34 34 79.2 in 7310 BTUs 11696 BTUs 48.6 ft² 2 $5,573.00
CI-M3C-560-35 35 81.5 in 7525 BTUs 12040 BTUs 50.1 ft² 1 $5,640.00
CI-M3C-560-36 36 83.8 in 7740 BTUs 12384 BTUs 51.5 ft² 1 $5,787.00
CI-M3C-560-37 37 86.1 in 7955 BTUs 12728 BTUs 52.9 ft² 3 $6,014.00
CI-M3C-560-38 38 88.4 in 8170 BTUs 13072 BTUs 54.3 ft² 1 $6,081.00
CI-M3C-560-39 39 90.7 in 8385 BTUs 13416 BTUs 55.8 ft² 3 $6,308.00
CI-M3C-560-40 40 93.0 in 8600 BTUs 13760 BTUs 57.2 ft² 1 $6,375.00
Mercury 3 Column 560mm - 10 Section Battery Technical Drawing - SVG
