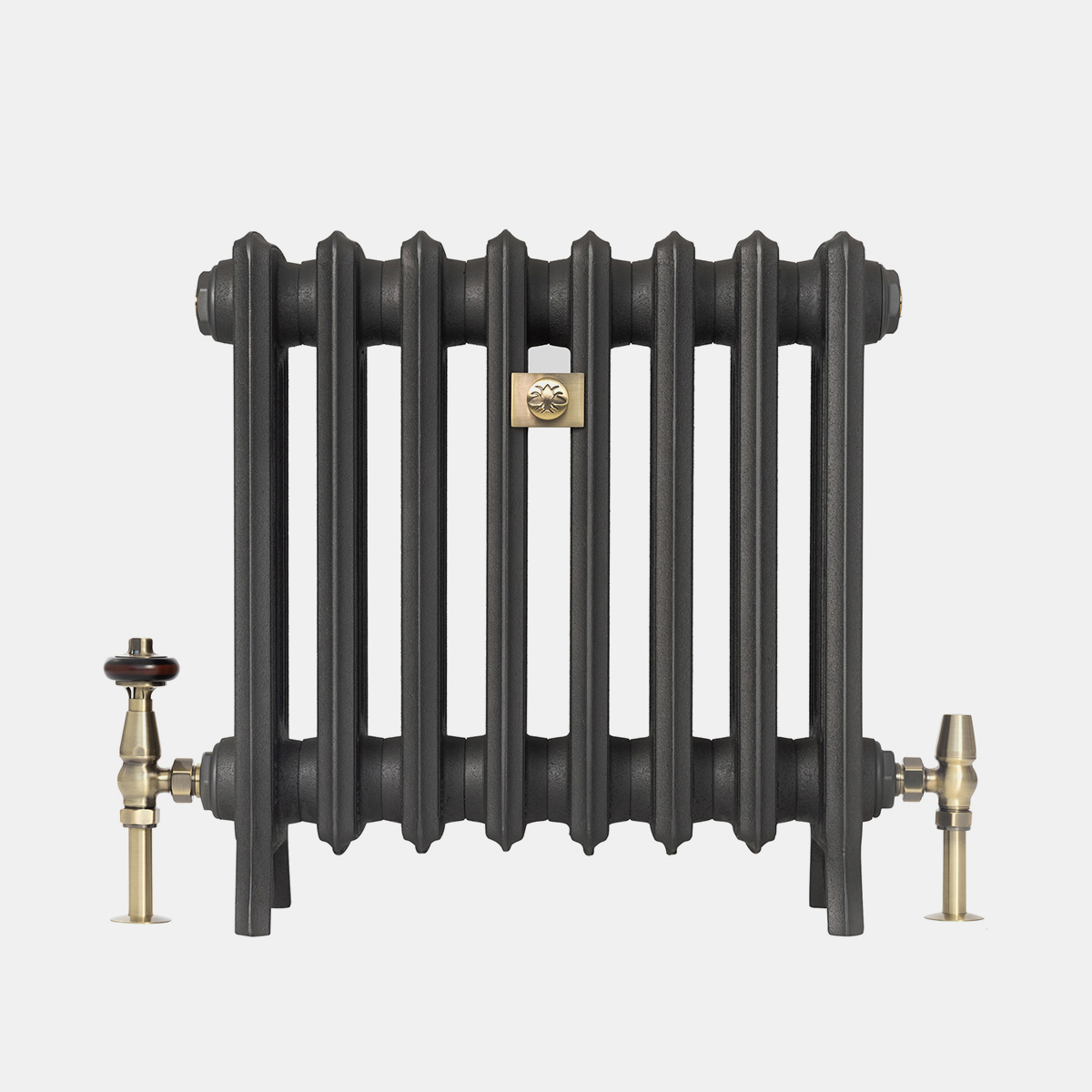

• Grace 4 column 360mm Castrads bay window radiator in matt black finish

Grace 4 Column 14in

From: $797.00

Technical specs at 3 sections long:

Length
Heat output (Hydronic)
Height
Heat output (Steam)
Depth
Delivered in
SKU: CI-G4C-360

Model Specifications

Label Attribute Value
A Height With Legs 13.8 in
B Bottom Inlet To Floor 4.1 in
C Max Section Depth 6.9 in
D Interaxis Distance 7.9 in
E Height Without Legs 11.8 in
F Section Length 2.4 in
G Mid Section Depth 5.7 in
- Internal Volume 0.03 gal
- Empty Leg Section Weight 8.16 lb
- Empty Mid Section Weight 7.05 lb
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
- EDR Per Section 1.16 ft²
- Hydronic Output (170ºF) 174 BTUs
- Steam Output (215ºF) 278 BTUs
Grace 4 Column 360mm - 10 Section Battery Technical Drawing - SVG

Sizes Available

SKU N
Secs
Length
(L, mm)
Output
(Hydronic, 170ºF)
Output
(Steam, 215ºF)
EDR Delivery
pieces
Price
from
CI-G4C-360-3 3 8.3 in 522 BTUs 834 BTUs 3.5 ft² 2 $797.00
CI-G4C-360-4 4 10.7 in 696 BTUs 1112 BTUs 4.6 ft² 2 $871.00
CI-G4C-360-5 5 13.1 in 870 BTUs 1390 BTUs 5.8 ft² 1 $865.00
CI-G4C-360-6 6 15.5 in 1044 BTUs 1668 BTUs 7.0 ft² 1 $939.00
CI-G4C-360-7 7 17.8 in 1218 BTUs 1946 BTUs 8.1 ft² 2 $1,093.00
CI-G4C-360-8 8 20.2 in 1392 BTUs 2224 BTUs 9.3 ft² 3 $1,167.00
CI-G4C-360-9 9 22.6 in 1566 BTUs 2502 BTUs 10.4 ft² 2 $1,241.00
CI-G4C-360-10 10 25.0 in 1740 BTUs 2780 BTUs 11.6 ft² 1 $1,235.00
CI-G4C-360-11 11 27.4 in 1914 BTUs 3058 BTUs 12.8 ft² 1 $1,309.00
CI-G4C-360-12 12 29.8 in 2088 BTUs 3336 BTUs 13.9 ft² 1 $1,383.00
CI-G4C-360-13 13 32.1 in 2262 BTUs 3614 BTUs 15.1 ft² 3 $1,537.00
CI-G4C-360-14 14 34.5 in 2436 BTUs 3892 BTUs 16.2 ft² 3 $1,611.00
CI-G4C-360-15 15 36.9 in 2610 BTUs 4170 BTUs 17.4 ft² 1 $1,605.00
CI-G4C-360-16 16 39.3 in 2784 BTUs 4448 BTUs 18.6 ft² 1 $1,679.00
CI-G4C-360-17 17 41.7 in 2958 BTUs 4726 BTUs 19.7 ft² 3 $1,833.00
CI-G4C-360-18 18 44.1 in 3132 BTUs 5004 BTUs 20.9 ft² 3 $1,907.00
CI-G4C-360-19 19 46.4 in 3306 BTUs 5282 BTUs 22.0 ft² 3 $1,981.00
CI-G4C-360-20 20 48.8 in 3480 BTUs 5560 BTUs 23.2 ft² 1 $1,975.00
CI-G4C-360-21 21 51.2 in 3654 BTUs 5838 BTUs 24.4 ft² 3 $2,129.00
CI-G4C-360-22 22 53.6 in 3828 BTUs 6116 BTUs 25.5 ft² 3 $2,203.00
CI-G4C-360-23 23 55.9 in 4002 BTUs 6394 BTUs 26.7 ft² 2 $2,277.00
CI-G4C-360-24 24 58.3 in 4176 BTUs 6672 BTUs 27.8 ft² 2 $2,351.00
CI-G4C-360-25 25 60.7 in 4350 BTUs 6950 BTUs 29.0 ft² 2 $2,425.00
CI-G4C-360-26 26 63.1 in 4524 BTUs 7228 BTUs 30.2 ft² 2 $2,499.00
CI-G4C-360-27 27 65.5 in 4698 BTUs 7506 BTUs 31.3 ft² 1 $2,493.00
CI-G4C-360-28 28 67.9 in 4872 BTUs 7784 BTUs 32.5 ft² 2 $2,647.00
CI-G4C-360-29 29 70.2 in 5046 BTUs 8062 BTUs 33.6 ft² 1 $2,641.00
CI-G4C-360-30 30 72.6 in 5220 BTUs 8340 BTUs 34.8 ft² 3 $2,795.00
CI-G4C-360-31 31 75.0 in 5394 BTUs 8618 BTUs 36.0 ft² 2 $2,869.00
CI-G4C-360-32 32 77.4 in 5568 BTUs 8896 BTUs 37.1 ft² 2 $2,943.00
CI-G4C-360-33 33 79.8 in 5742 BTUs 9174 BTUs 38.3 ft² 2 $3,017.00
CI-G4C-360-34 34 82.2 in 5916 BTUs 9452 BTUs 39.4 ft² 2 $3,091.00
CI-G4C-360-35 35 84.5 in 6090 BTUs 9730 BTUs 40.6 ft² 1 $3,085.00
CI-G4C-360-36 36 86.9 in 6264 BTUs 10008 BTUs 41.8 ft² 1 $3,159.00
CI-G4C-360-37 37 89.3 in 6438 BTUs 10286 BTUs 42.9 ft² 1 $3,233.00
CI-G4C-360-38 38 91.7 in 6612 BTUs 10564 BTUs 44.1 ft² 1 $3,307.00
CI-G4C-360-39 39 94.1 in 6786 BTUs 10842 BTUs 45.2 ft² 1 $3,381.00
CI-G4C-360-40 40 96.5 in 6960 BTUs 11120 BTUs 46.4 ft² 1 $3,455.00
Grace 4 Column 360mm - 10 Section Battery Technical Drawing - SVG
