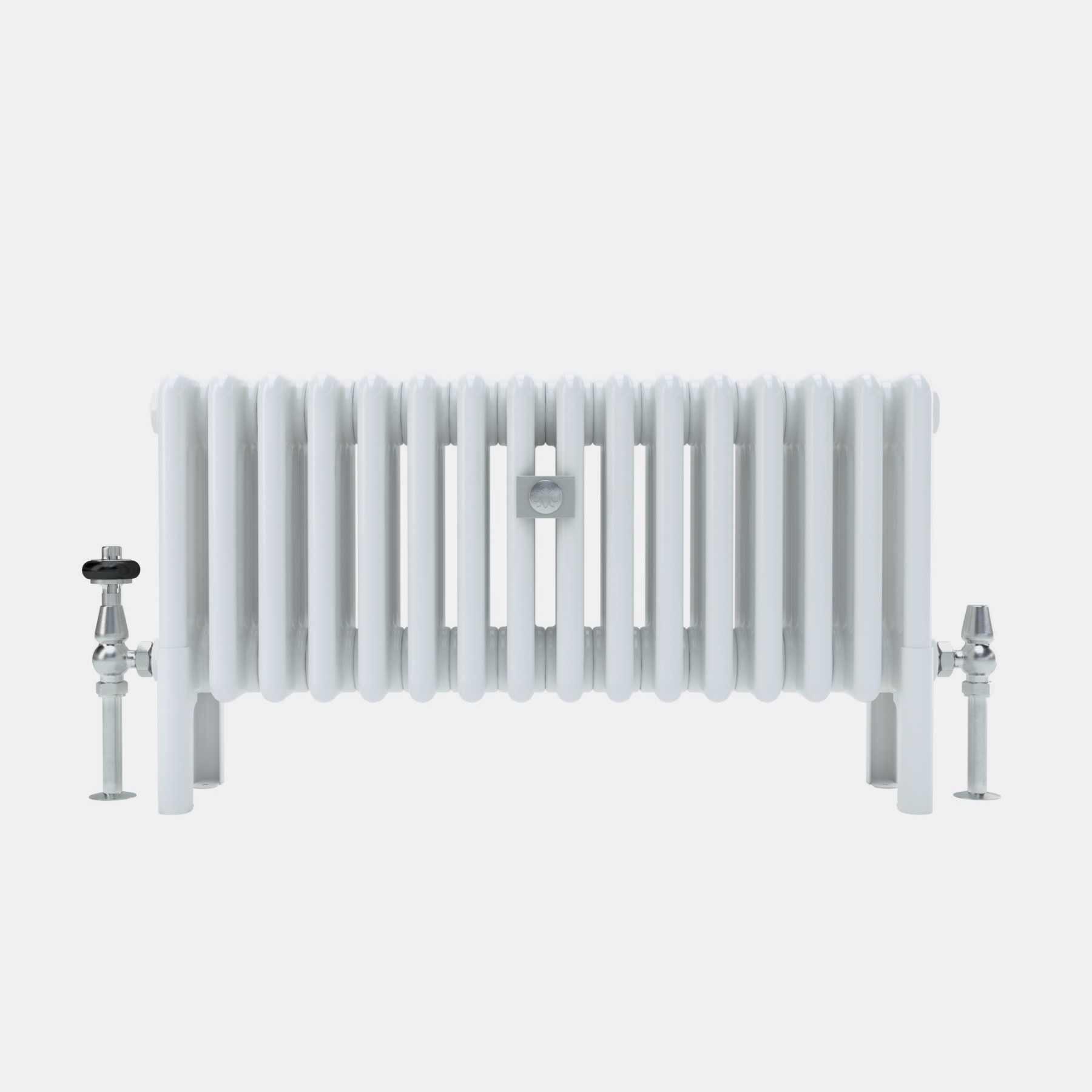

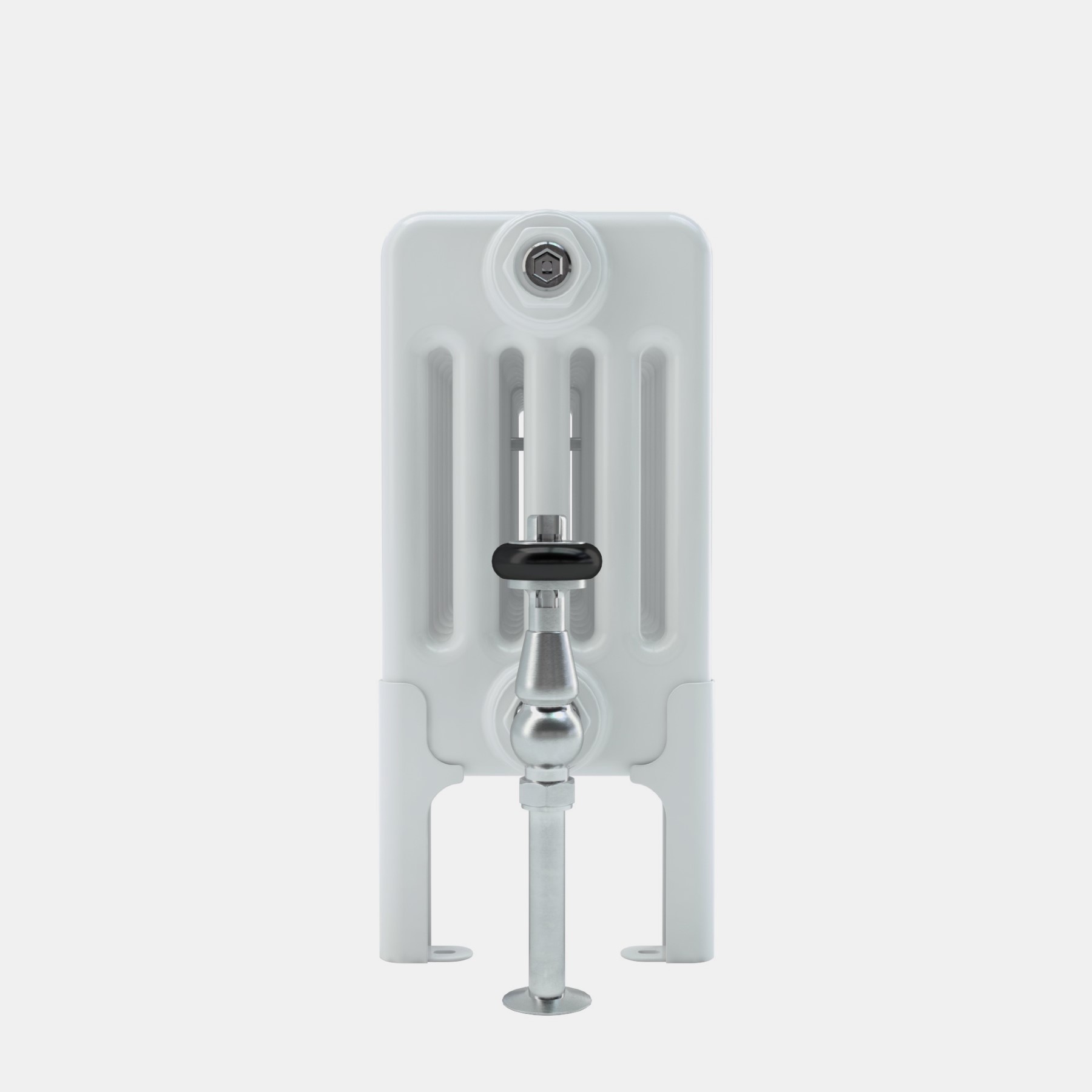

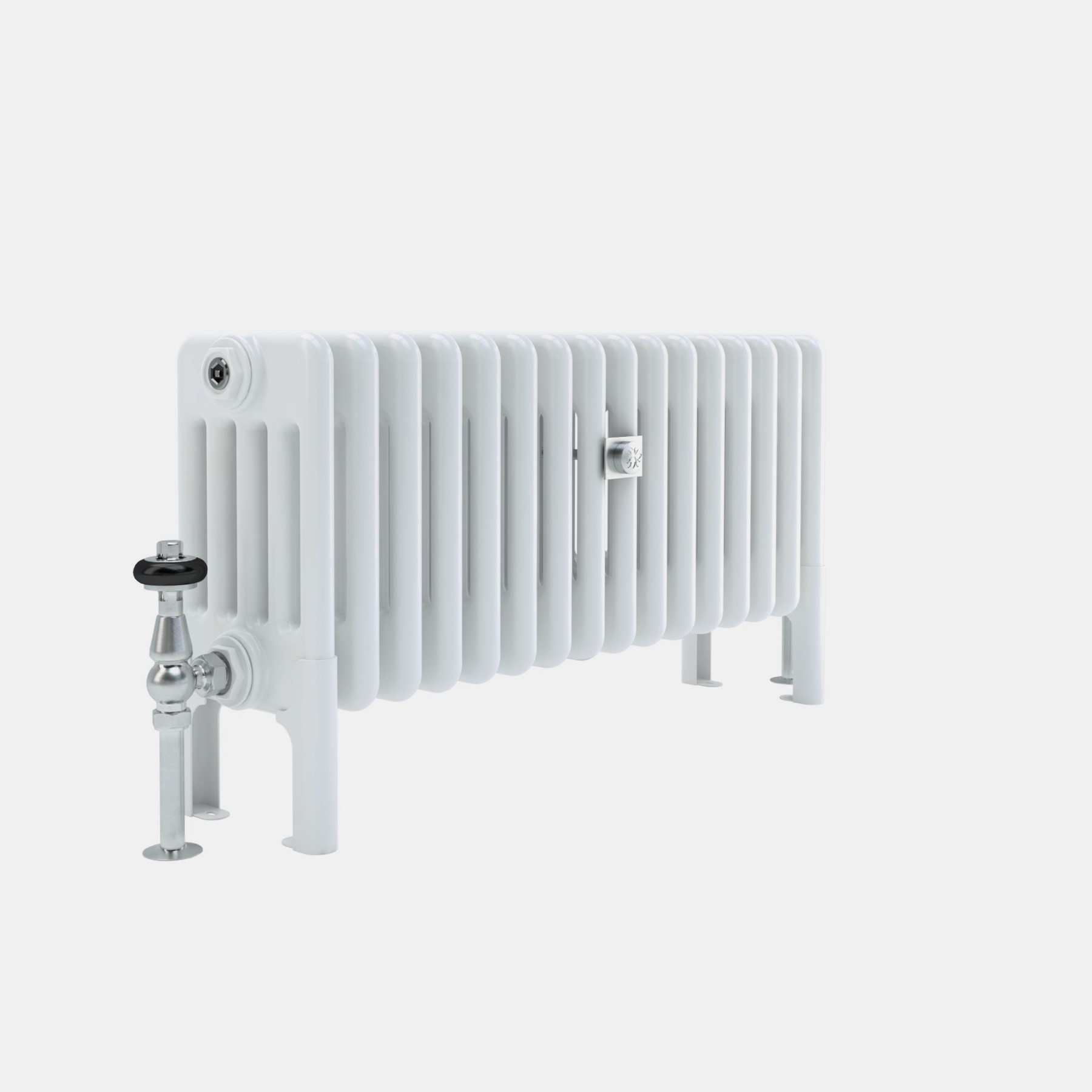

Florence 5 Column 300mm
Steel · by Castrads
From: £333.60
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 402 |
| E | Height Without Legs (mm) | 302 |
| - | Empty Leg Section Weight (kg) | 1.4 |
| - | Empty Mid Section Weight (kg) | 1.1 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 179 |
| G | Mid Section Depth (mm) | 177 |
| D | Interaxis Distance (mm) | 235 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT50, W) | 51.4 |
| - | Output (ΔT30, W) | 26.8 |
| - | Internal Volume (L) | 0.95 |
| - | Exponent, n | 1.27553 |
| - | Factor, Km | 0.3498 |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F5C-302-3 | 3 | 161 | 154 | 80 | 1 | £333.60 |
| SMC-F5C-302-4 | 4 | 206 | 206 | 107 | 1 | £384.00 |
| SMC-F5C-302-5 | 5 | 251 | 257 | 134 | 1 | £434.40 |
| SMC-F5C-302-6 | 6 | 296 | 308 | 161 | 1 | £484.80 |
| SMC-F5C-302-7 | 7 | 341 | 360 | 188 | 1 | £535.20 |
| SMC-F5C-302-8 | 8 | 386 | 411 | 214 | 1 | £585.60 |
| SMC-F5C-302-9 | 9 | 431 | 463 | 241 | 1 | £636.00 |
| SMC-F5C-302-10 | 10 | 476 | 514 | 268 | 1 | £686.40 |
| SMC-F5C-302-11 | 11 | 521 | 565 | 295 | 1 | £736.80 |
| SMC-F5C-302-12 | 12 | 566 | 617 | 321 | 1 | £787.20 |
| SMC-F5C-302-13 | 13 | 611 | 668 | 348 | 1 | £837.60 |
| SMC-F5C-302-14 | 14 | 656 | 720 | 375 | 1 | £888.00 |
| SMC-F5C-302-15 | 15 | 701 | 771 | 402 | 1 | £938.40 |
| SMC-F5C-302-16 | 16 | 746 | 822 | 429 | 1 | £988.80 |
| SMC-F5C-302-17 | 17 | 791 | 874 | 455 | 1 | £1,039.20 |
| SMC-F5C-302-18 | 18 | 836 | 925 | 482 | 1 | £1,089.60 |
| SMC-F5C-302-19 | 19 | 881 | 976 | 509 | 1 | £1,140.00 |
| SMC-F5C-302-20 | 20 | 926 | 1028 | 536 | 1 | £1,190.40 |
| SMC-F5C-302-21 | 21 | 971 | 1079 | 563 | 1 | £1,240.80 |
| SMC-F5C-302-22 | 22 | 1016 | 1131 | 589 | 1 | £1,291.20 |
| SMC-F5C-302-23 | 23 | 1061 | 1182 | 616 | 1 | £1,341.60 |
| SMC-F5C-302-24 | 24 | 1106 | 1233 | 643 | 1 | £1,392.00 |
| SMC-F5C-302-25 | 25 | 1151 | 1285 | 670 | 1 | £1,442.40 |
| SMC-F5C-302-26 | 26 | 1196 | 1336 | 696 | 1 | £1,492.80 |
| SMC-F5C-302-27 | 27 | 1241 | 1388 | 723 | 1 | £1,543.20 |
| SMC-F5C-302-28 | 28 | 1286 | 1439 | 750 | 1 | £1,593.60 |
| SMC-F5C-302-29 | 29 | 1331 | 1490 | 777 | 1 | £1,644.00 |
| SMC-F5C-302-30 | 30 | 1376 | 1542 | 804 | 1 | £1,694.40 |
| SMC-F5C-302-31 | 31 | 1421 | 1593 | 830 | 1 | £1,744.80 |
| SMC-F5C-302-32 | 32 | 1466 | 1645 | 857 | 1 | £1,795.20 |
| SMC-F5C-302-33 | 33 | 1511 | 1696 | 884 | 1 | £1,845.60 |
| SMC-F5C-302-34 | 34 | 1556 | 1747 | 911 | 1 | £1,896.00 |
| SMC-F5C-302-35 | 35 | 1601 | 1799 | 938 | 1 | £1,946.40 |
| SMC-F5C-302-36 | 36 | 1646 | 1850 | 964 | 1 | £1,996.80 |
| SMC-F5C-302-37 | 37 | 1691 | 1902 | 991 | 1 | £2,047.20 |
| SMC-F5C-302-38 | 38 | 1736 | 1953 | 1018 | 1 | £2,097.60 |
| SMC-F5C-302-39 | 39 | 1781 | 2004 | 1045 | 1 | £2,148.00 |
| SMC-F5C-302-40 | 40 | 1826 | 2056 | 1072 | 1 | £2,198.40 |
