Mercury 6 Column 38in
From: $395.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |

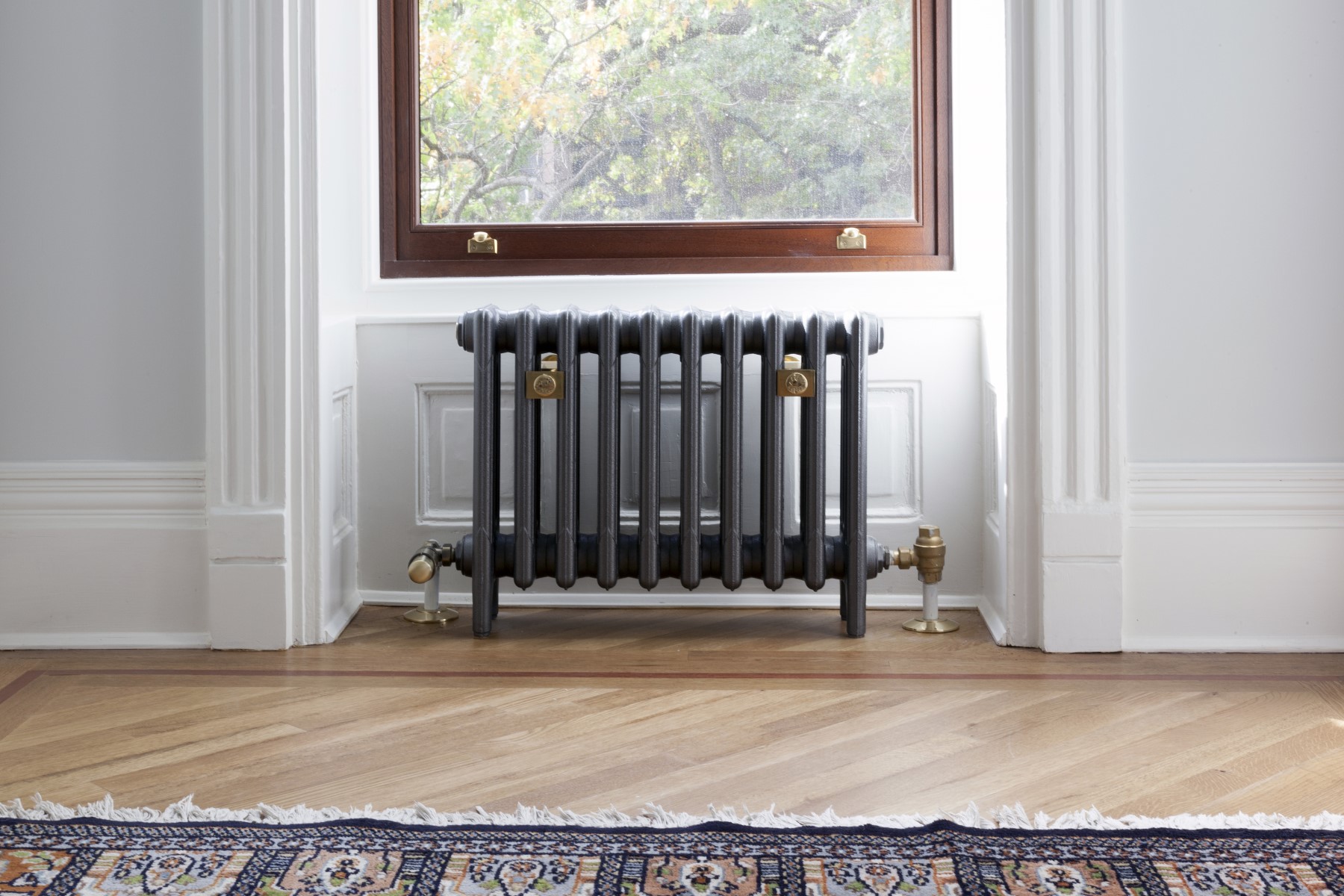

A cast iron column radiator, exclusive to Castrads, with a refined, symmetrical profile inspired by original designs from the 1920s.
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 9 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 37.8 in |
| - | Empty Leg Section Weight | 27.78 lb |
| - | Empty Mid Section Weight | 25.79 lb |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 8.5 in |
| D | Interaxis Distance | 32.4 in |
| E | Height Without Legs | 35.4 in |
| F | Section Length | 2.3 in |
| G | Mid Section Depth | 8.5 in |
| - | Internal Volume | 0.40 gal |
| - | EDR Per Section | 4.62 ft² |
| - | Hydronic Output (170ºF) | 692 BTUs |
| - | Steam Output (215ºF) | 1143 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-M6C-960-3 | 3 | 8.0 in | 2076 BTUs | 3430 BTUs | 13.9 ft² | 1 | $395.00 |
| CI-M6C-960-4 | 4 | 10.4 in | 2768 BTUs | 4574 BTUs | 18.5 ft² | 1 | $480.00 |
| CI-M6C-960-5 | 5 | 12.6 in | 3460 BTUs | 5717 BTUs | 23.1 ft² | 1 | $565.00 |
| CI-M6C-960-6 | 6 | 14.9 in | 4151 BTUs | 6861 BTUs | 27.7 ft² | 1 | $650.00 |
| CI-M6C-960-7 | 7 | 17.2 in | 4843 BTUs | 8004 BTUs | 32.3 ft² | 1 | $735.00 |
| CI-M6C-960-8 | 8 | 19.5 in | 5535 BTUs | 9147 BTUs | 37.0 ft² | 1 | $820.00 |
| CI-M6C-960-9 | 9 | 21.8 in | 6227 BTUs | 10291 BTUs | 41.6 ft² | 1 | $905.00 |
| CI-M6C-960-10 | 10 | 24.1 in | 6919 BTUs | 11434 BTUs | 46.2 ft² | 2 | $1,063.00 |
| CI-M6C-960-11 | 11 | 26.4 in | 7611 BTUs | 12578 BTUs | 50.8 ft² | 2 | $1,148.00 |
| CI-M6C-960-12 | 12 | 28.7 in | 8303 BTUs | 13721 BTUs | 55.4 ft² | 2 | $1,233.00 |
| CI-M6C-960-13 | 13 | 31.0 in | 8995 BTUs | 14865 BTUs | 60.1 ft² | 2 | $1,318.00 |
| CI-M6C-960-14 | 14 | 33.3 in | 9687 BTUs | 16008 BTUs | 64.7 ft² | 2 | $1,403.00 |
| CI-M6C-960-15 | 15 | 35.6 in | 10379 BTUs | 17151 BTUs | 69.3 ft² | 2 | $1,488.00 |
| CI-M6C-960-16 | 16 | 37.9 in | 11071 BTUs | 18295 BTUs | 73.9 ft² | 2 | $1,573.00 |
| CI-M6C-960-17 | 17 | 40.2 in | 11763 BTUs | 19438 BTUs | 78.5 ft² | 2 | $1,658.00 |
| CI-M6C-960-18 | 18 | 42.5 in | 12454 BTUs | 20582 BTUs | 83.2 ft² | 2 | $1,743.00 |
| CI-M6C-960-19 | 19 | 44.8 in | 13146 BTUs | 21725 BTUs | 87.8 ft² | 3 | $1,828.00 |
| CI-M6C-960-20 | 20 | 47.1 in | 13838 BTUs | 22869 BTUs | 92.4 ft² | 3 | $1,913.00 |
| CI-M6C-960-21 | 21 | 49.4 in | 14530 BTUs | 24012 BTUs | 97.0 ft² | 3 | $1,998.00 |
| CI-M6C-960-22 | 22 | 51.7 in | 15222 BTUs | 25155 BTUs | 101.6 ft² | 3 | $2,083.00 |
| CI-M6C-960-23 | 23 | 53.9 in | 15914 BTUs | 26299 BTUs | 106.3 ft² | 3 | $2,168.00 |
| CI-M6C-960-24 | 24 | 56.3 in | 16606 BTUs | 27442 BTUs | 110.9 ft² | 3 | $2,253.00 |
| CI-M6C-960-25 | 25 | 58.5 in | 17298 BTUs | 28586 BTUs | 115.5 ft² | 3 | $2,338.00 |
| CI-M6C-960-26 | 26 | 60.8 in | 17990 BTUs | 29729 BTUs | 120.1 ft² | 4 | $2,423.00 |
| CI-M6C-960-27 | 27 | 63.1 in | 18682 BTUs | 30873 BTUs | 124.7 ft² | 3 | $2,508.00 |
| CI-M6C-960-28 | 28 | 65.4 in | 19374 BTUs | 32016 BTUs | 129.4 ft² | 4 | $2,593.00 |
| CI-M6C-960-29 | 29 | 67.7 in | 20066 BTUs | 33159 BTUs | 134.0 ft² | 4 | $2,678.00 |
| CI-M6C-960-30 | 30 | 70.0 in | 20757 BTUs | 34303 BTUs | 138.6 ft² | 4 | $2,763.00 |
| CI-M6C-960-31 | 31 | 72.3 in | 21449 BTUs | 35446 BTUs | 143.2 ft² | 4 | $2,848.00 |
| CI-M6C-960-32 | 32 | 74.6 in | 22141 BTUs | 36590 BTUs | 147.8 ft² | 4 | $2,933.00 |
| CI-M6C-960-33 | 33 | 76.9 in | 22833 BTUs | 37733 BTUs | 152.5 ft² | 4 | $3,018.00 |
| CI-M6C-960-34 | 34 | 79.2 in | 23525 BTUs | 38877 BTUs | 157.1 ft² | 4 | $3,103.00 |
| CI-M6C-960-35 | 35 | 81.5 in | 24217 BTUs | 40020 BTUs | 161.7 ft² | 4 | $3,188.00 |
| CI-M6C-960-36 | 36 | 83.8 in | 24909 BTUs | 41163 BTUs | 166.3 ft² | 4 | $3,273.00 |
| CI-M6C-960-37 | 37 | 86.1 in | 25601 BTUs | 42307 BTUs | 170.9 ft² | 5 | $3,358.00 |
| CI-M6C-960-38 | 38 | 88.4 in | 26293 BTUs | 43450 BTUs | 175.6 ft² | 5 | $3,443.00 |
| CI-M6C-960-39 | 39 | 90.7 in | 26985 BTUs | 44594 BTUs | 180.2 ft² | 5 | $3,528.00 |
| CI-M6C-960-40 | 40 | 93.0 in | 27677 BTUs | 45737 BTUs | 184.8 ft² | 5 | $3,613.00 |
