Mercury 6 Column 14in
From: $803.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |

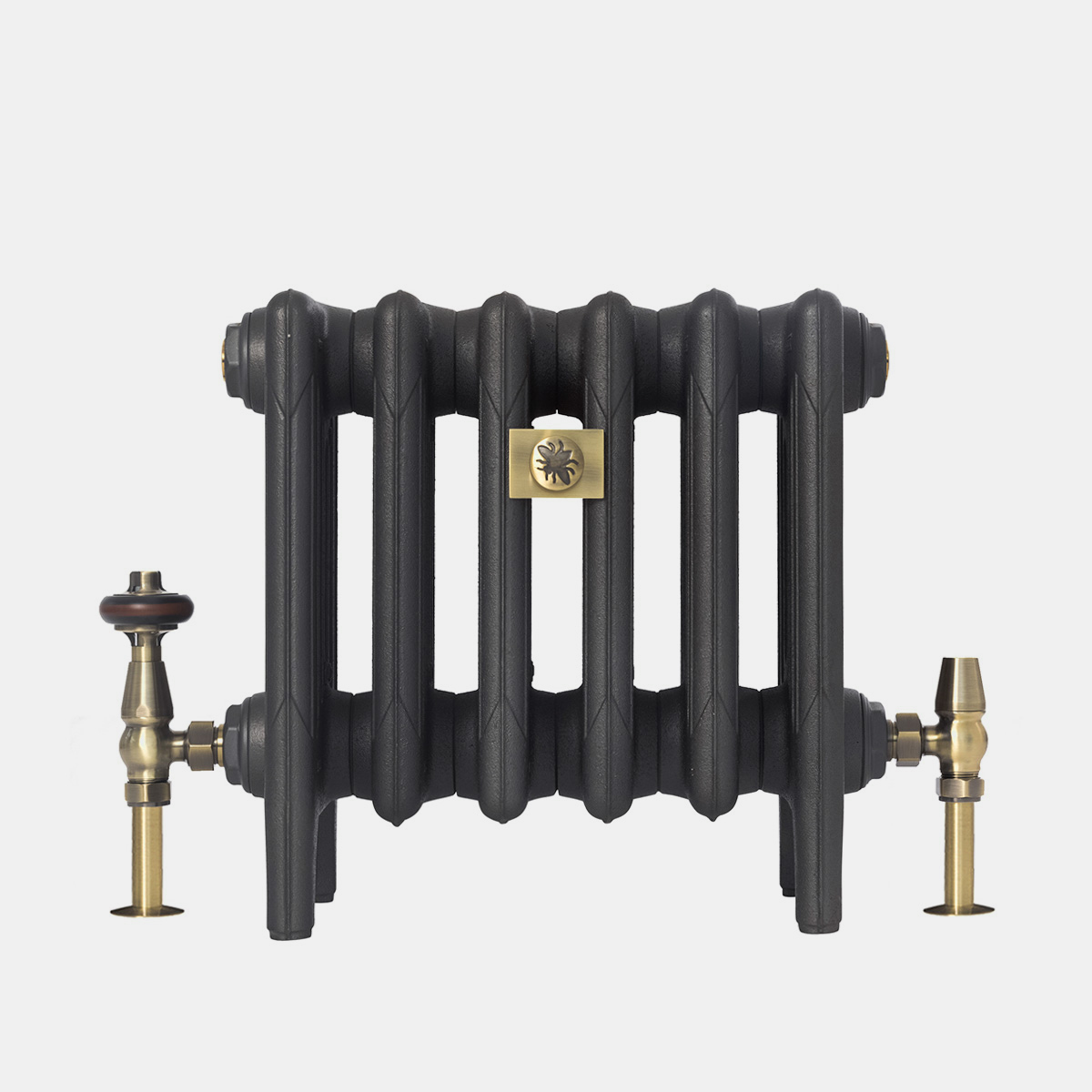

A cast iron column radiator, exclusive to Castrads, with a refined, symmetrical profile inspired by original designs from the 1920s.
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 18 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 14.2 in |
| - | Empty Leg Section Weight | 11.90 lb |
| - | Empty Mid Section Weight | 9.92 lb |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 8.5 in |
| D | Interaxis Distance | 8.8 in |
| E | Height Without Legs | 11.7 in |
| F | Section Length | 2.3 in |
| G | Mid Section Depth | 8.5 in |
| - | Internal Volume | 0.04 gal |
| - | EDR Per Section | 1.68 ft² |
| - | Hydronic Output (170ºF) | 251 BTUs |
| - | Steam Output (215ºF) | 394 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-M6C-360-3 | 3 | 8.0 in | 754 BTUs | 1181 BTUs | 5.0 ft² | 1 | $803.00 |
| CI-M6C-360-4 | 4 | 10.4 in | 1005 BTUs | 1575 BTUs | 6.7 ft² | 1 | $899.00 |
| CI-M6C-360-5 | 5 | 12.6 in | 1256 BTUs | 1969 BTUs | 8.4 ft² | 1 | $995.00 |
| CI-M6C-360-6 | 6 | 14.9 in | 1508 BTUs | 2362 BTUs | 10.1 ft² | 1 | $1,091.00 |
| CI-M6C-360-7 | 7 | 17.2 in | 1759 BTUs | 2756 BTUs | 11.8 ft² | 1 | $1,187.00 |
| CI-M6C-360-8 | 8 | 19.5 in | 2010 BTUs | 3150 BTUs | 13.4 ft² | 1 | $1,283.00 |
| CI-M6C-360-9 | 9 | 21.8 in | 2261 BTUs | 3544 BTUs | 15.1 ft² | 1 | $1,379.00 |
| CI-M6C-360-10 | 10 | 24.1 in | 2513 BTUs | 3937 BTUs | 16.8 ft² | 1 | $1,475.00 |
| CI-M6C-360-11 | 11 | 26.4 in | 2764 BTUs | 4331 BTUs | 18.5 ft² | 1 | $1,571.00 |
| CI-M6C-360-12 | 12 | 28.7 in | 3015 BTUs | 4725 BTUs | 20.2 ft² | 1 | $1,667.00 |
| CI-M6C-360-13 | 13 | 31.0 in | 3266 BTUs | 5119 BTUs | 21.8 ft² | 1 | $1,763.00 |
| CI-M6C-360-14 | 14 | 33.3 in | 3518 BTUs | 5512 BTUs | 23.5 ft² | 1 | $1,859.00 |
| CI-M6C-360-15 | 15 | 35.6 in | 3769 BTUs | 5906 BTUs | 25.2 ft² | 1 | $1,955.00 |
| CI-M6C-360-16 | 16 | 37.9 in | 4020 BTUs | 6300 BTUs | 26.9 ft² | 1 | $2,051.00 |
| CI-M6C-360-17 | 17 | 40.2 in | 4271 BTUs | 6693 BTUs | 28.6 ft² | 1 | $2,147.00 |
| CI-M6C-360-18 | 18 | 42.5 in | 4523 BTUs | 7087 BTUs | 30.2 ft² | 1 | $2,243.00 |
| CI-M6C-360-19 | 19 | 44.8 in | 4774 BTUs | 7481 BTUs | 31.9 ft² | 2 | $2,422.00 |
| CI-M6C-360-20 | 20 | 47.1 in | 5025 BTUs | 7875 BTUs | 33.6 ft² | 2 | $2,518.00 |
| CI-M6C-360-21 | 21 | 49.4 in | 5276 BTUs | 8268 BTUs | 35.3 ft² | 2 | $2,614.00 |
| CI-M6C-360-22 | 22 | 51.7 in | 5528 BTUs | 8662 BTUs | 37.0 ft² | 2 | $2,710.00 |
| CI-M6C-360-23 | 23 | 53.9 in | 5779 BTUs | 9056 BTUs | 38.6 ft² | 2 | $2,806.00 |
| CI-M6C-360-24 | 24 | 56.3 in | 6030 BTUs | 9450 BTUs | 40.3 ft² | 2 | $2,902.00 |
| CI-M6C-360-25 | 25 | 58.5 in | 6281 BTUs | 9843 BTUs | 42.0 ft² | 2 | $2,998.00 |
| CI-M6C-360-26 | 26 | 60.8 in | 6533 BTUs | 10237 BTUs | 43.7 ft² | 2 | $3,094.00 |
| CI-M6C-360-27 | 27 | 63.1 in | 6784 BTUs | 10631 BTUs | 45.4 ft² | 2 | $3,190.00 |
| CI-M6C-360-28 | 28 | 65.4 in | 7035 BTUs | 11025 BTUs | 47.0 ft² | 3 | $3,286.00 |
| CI-M6C-360-29 | 29 | 67.7 in | 7286 BTUs | 11418 BTUs | 48.7 ft² | 3 | $3,382.00 |
| CI-M6C-360-30 | 30 | 70.0 in | 7538 BTUs | 11812 BTUs | 50.4 ft² | 3 | $3,478.00 |
| CI-M6C-360-31 | 31 | 72.3 in | 7789 BTUs | 12206 BTUs | 52.1 ft² | 3 | $3,574.00 |
| CI-M6C-360-32 | 32 | 74.6 in | 8040 BTUs | 12600 BTUs | 53.8 ft² | 3 | $3,670.00 |
| CI-M6C-360-33 | 33 | 76.9 in | 8291 BTUs | 12993 BTUs | 55.4 ft² | 3 | $3,766.00 |
| CI-M6C-360-34 | 34 | 79.2 in | 8543 BTUs | 13387 BTUs | 57.1 ft² | 3 | $3,862.00 |
| CI-M6C-360-35 | 35 | 81.5 in | 8794 BTUs | 13781 BTUs | 58.8 ft² | 3 | $3,958.00 |
| CI-M6C-360-36 | 36 | 83.8 in | 9045 BTUs | 14174 BTUs | 60.5 ft² | 3 | $4,054.00 |
| CI-M6C-360-37 | 37 | 86.1 in | 9296 BTUs | 14568 BTUs | 62.2 ft² | 3 | $4,150.00 |
| CI-M6C-360-38 | 38 | 88.4 in | 9548 BTUs | 14962 BTUs | 63.8 ft² | 3 | $4,246.00 |
| CI-M6C-360-39 | 39 | 90.7 in | 9799 BTUs | 15356 BTUs | 65.5 ft² | 3 | $4,342.00 |
| CI-M6C-360-40 | 40 | 93.0 in | 10050 BTUs | 15749 BTUs | 67.2 ft² | 3 | $4,438.00 |
