Rococo III 19in
Cast Iron · by Castrads
From: $923.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |

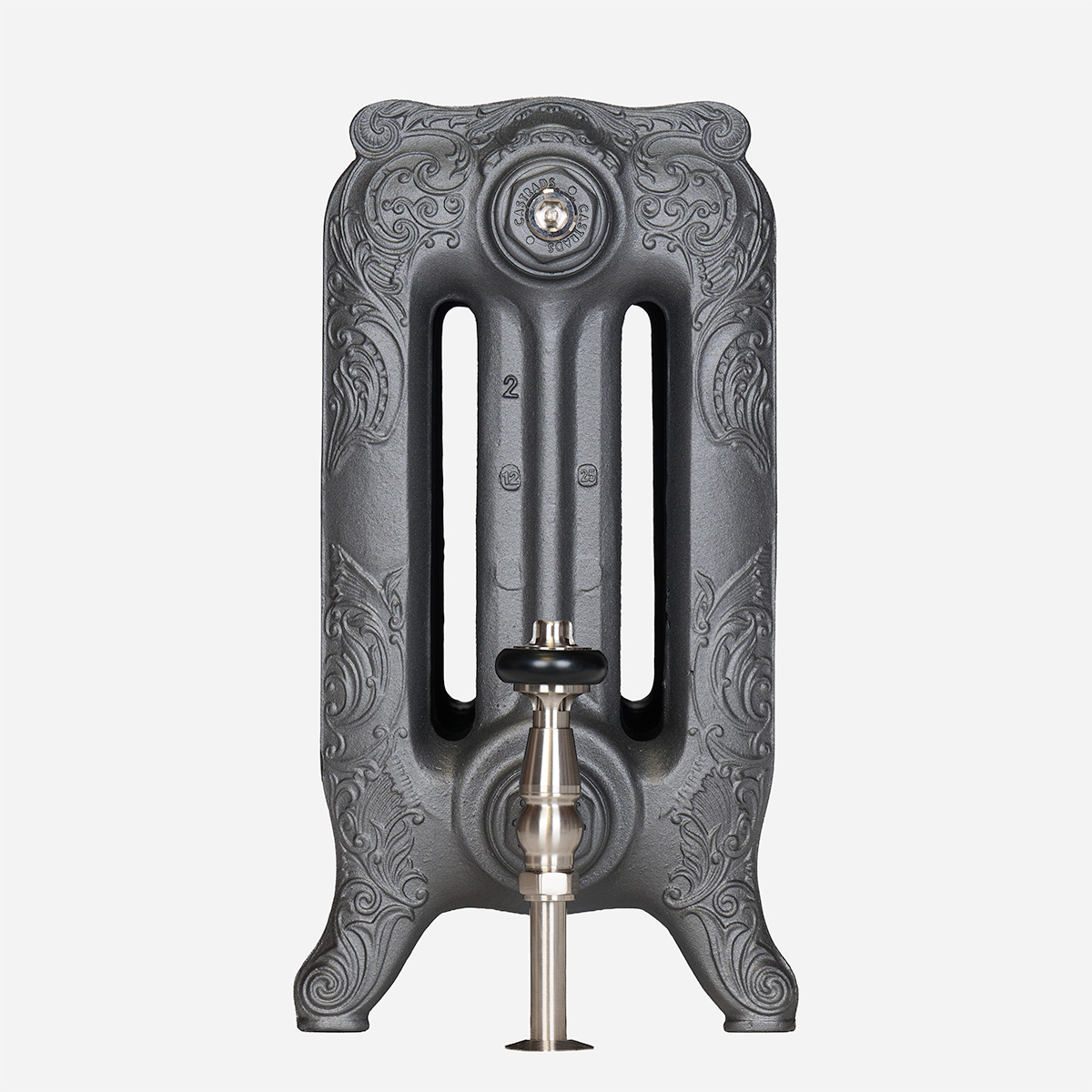

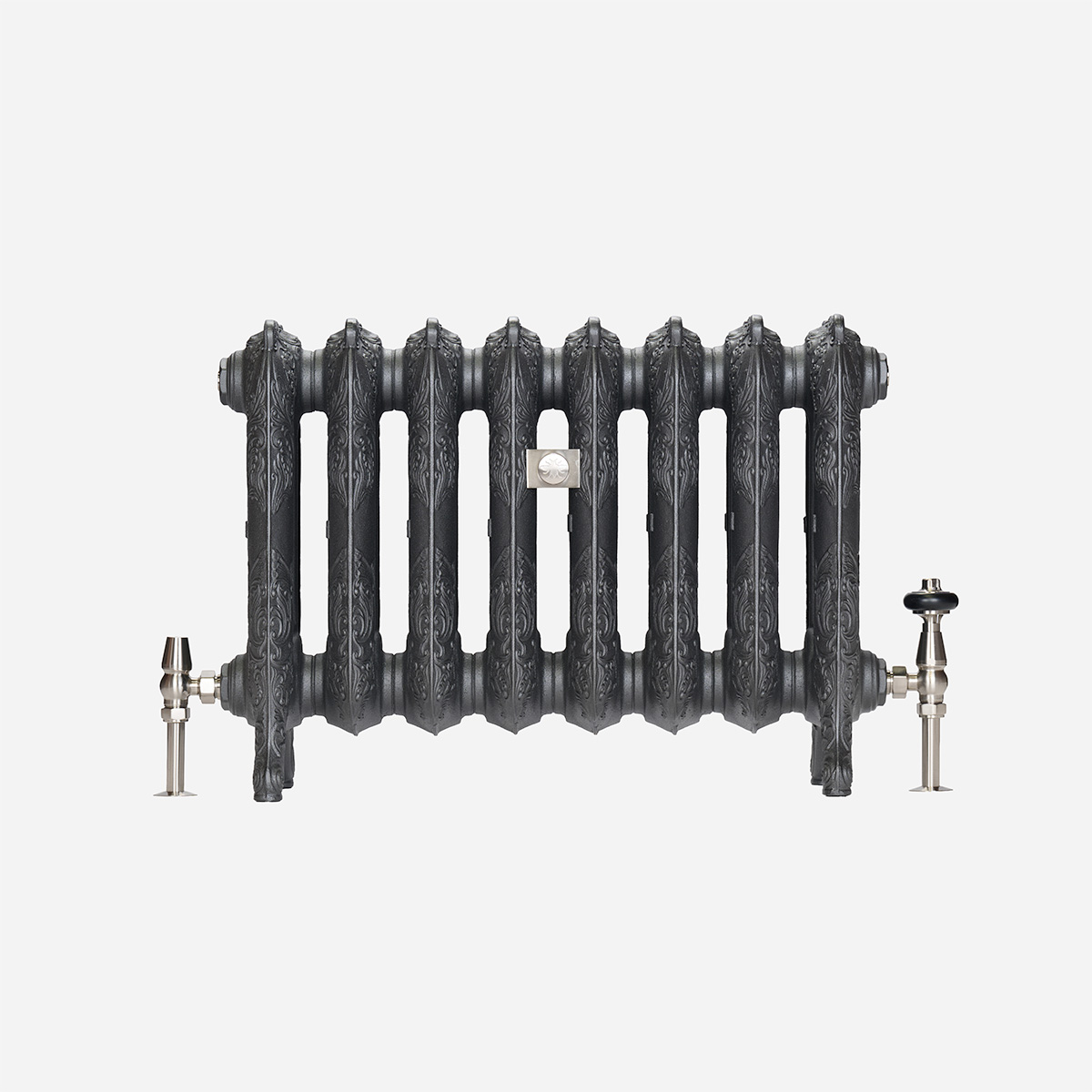

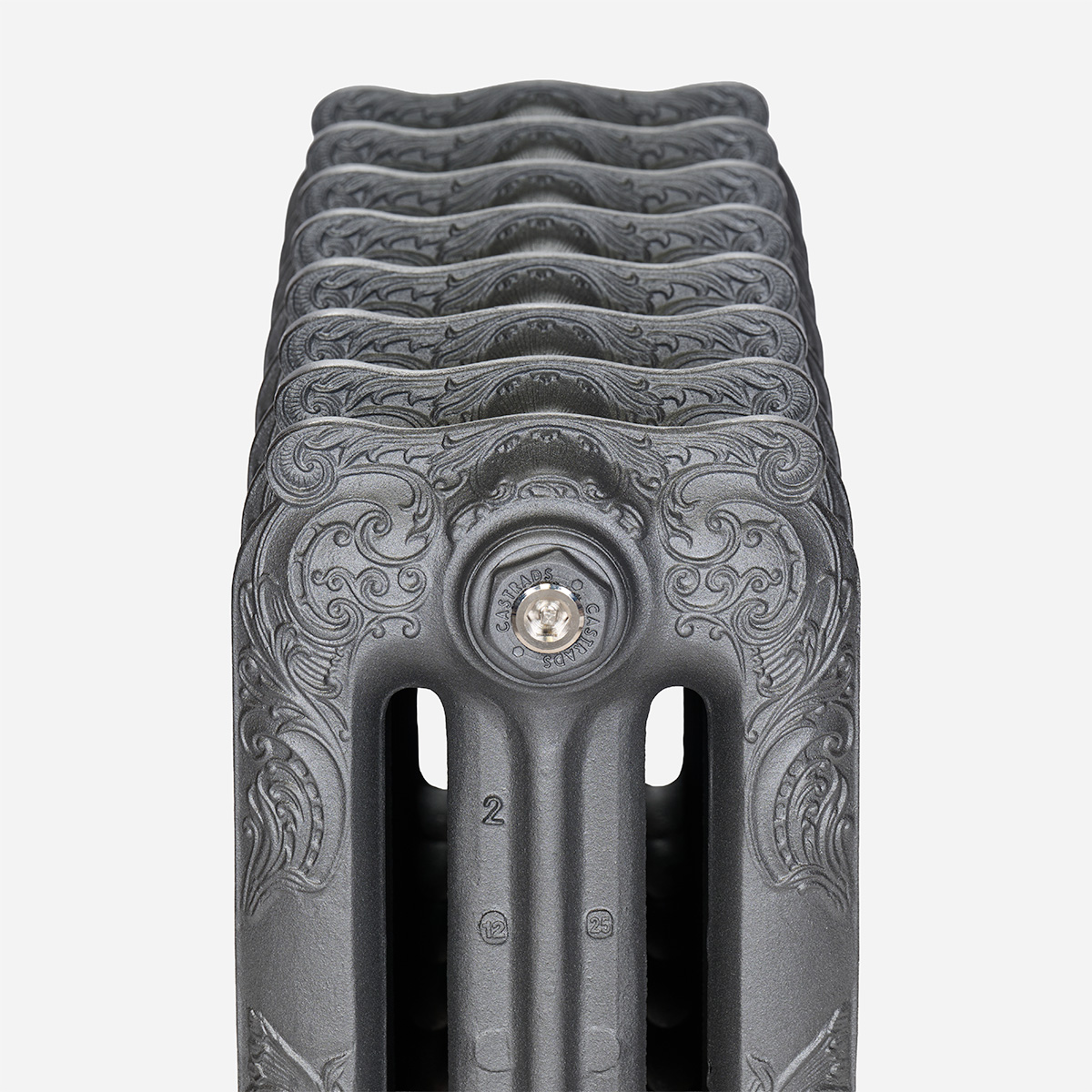

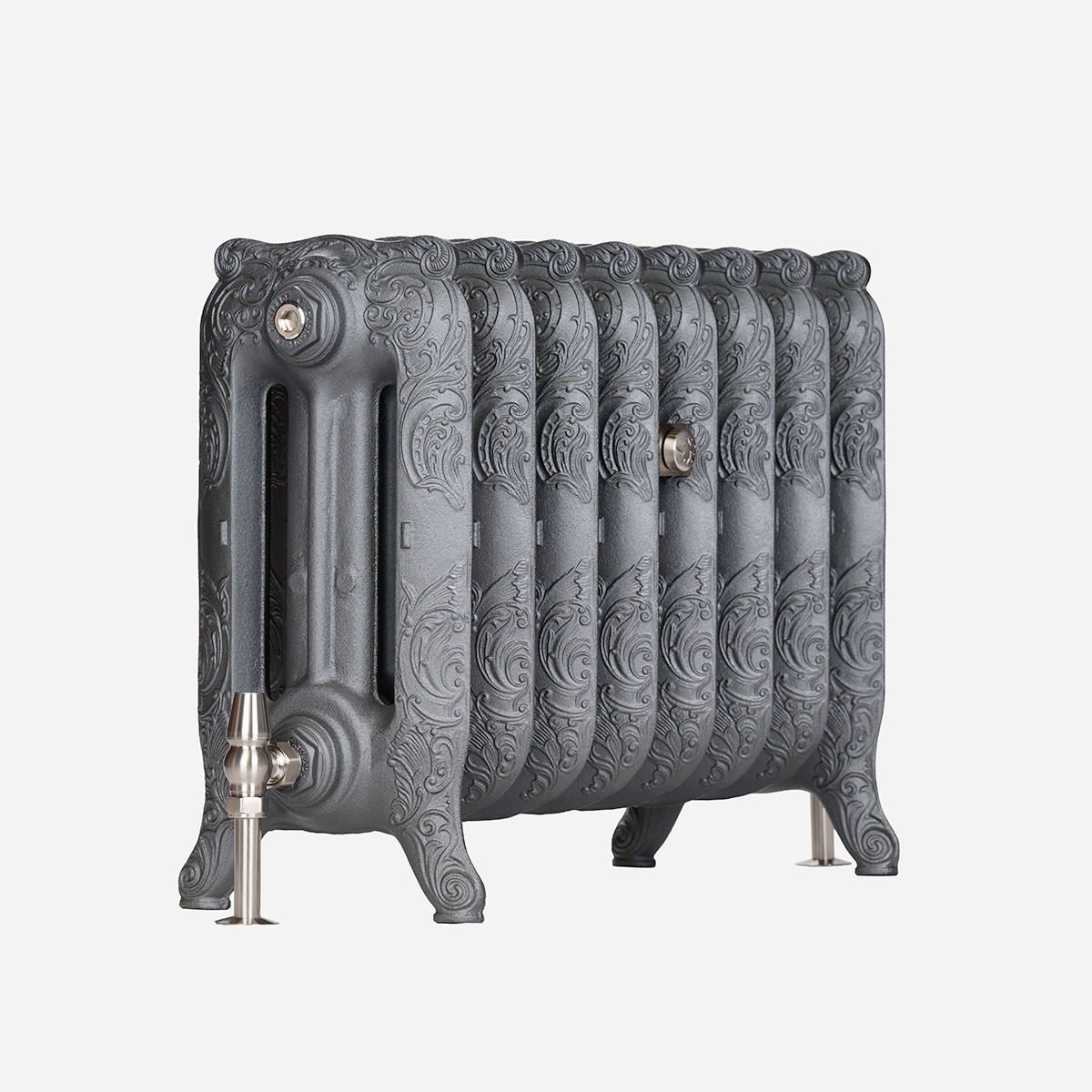

An ornate cast iron radiator, faithfully reproduced from an American Radiator Company original.
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 13 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 18.50 in |
| E | Height Without Legs | 16.14 in |
| - | Empty Leg Section Weight | 19.62 lb |
| - | Empty Mid Section Weight | 18.96 lb |
| B | Bottom Inlet To Floor | 4.13 in |
| C | Max Section Depth | 10.08 in |
| G | Mid Section Depth | 8.82 in |
| D | Interaxis Distance | 11.81 in |
| F | Section Length | 3.07 in |
| - | Internal Volume | 0.40 gal |
| - | EDR Per Section | 2.2 ft² |
| - | Hydronic Output (170ºF) | 330 BTUs |
| - | Steam Output (215ºF) | 512 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-RC3-470-3 | 3 | 10.39 in | 990 BTUs | 1535 BTUs | 6.6 ft² | 1 | $923.00 |
| CI-RC3-470-4 | 4 | 13.46 in | 1320 BTUs | 2046 BTUs | 8.8 ft² | 1 | $1,052.00 |
| CI-RC3-470-5 | 5 | 16.54 in | 1650 BTUs | 2558 BTUs | 11.0 ft² | 1 | $1,181.00 |
| CI-RC3-470-6 | 6 | 19.61 in | 1980 BTUs | 3070 BTUs | 13.2 ft² | 1 | $1,310.00 |
| CI-RC3-470-7 | 7 | 22.68 in | 2310 BTUs | 3581 BTUs | 15.4 ft² | 1 | $1,439.00 |
| CI-RC3-470-8 | 8 | 25.75 in | 2640 BTUs | 4093 BTUs | 17.6 ft² | 1 | $1,568.00 |
| CI-RC3-470-9 | 9 | 28.82 in | 2970 BTUs | 4604 BTUs | 19.8 ft² | 1 | $1,697.00 |
| CI-RC3-470-10 | 10 | 31.89 in | 3300 BTUs | 5116 BTUs | 22.0 ft² | 1 | $1,826.00 |
| CI-RC3-470-11 | 11 | 34.96 in | 3630 BTUs | 5628 BTUs | 24.2 ft² | 1 | $1,955.00 |
| CI-RC3-470-12 | 12 | 38.03 in | 3960 BTUs | 6139 BTUs | 26.4 ft² | 1 | $2,084.00 |
| CI-RC3-470-13 | 13 | 41.10 in | 4290 BTUs | 6651 BTUs | 28.6 ft² | 1 | $2,213.00 |
| CI-RC3-470-14 | 14 | 44.17 in | 4620 BTUs | 7162 BTUs | 30.8 ft² | 2 | $2,428.00 |
| CI-RC3-470-15 | 15 | 47.24 in | 4950 BTUs | 7674 BTUs | 33.0 ft² | 2 | $2,557.00 |
| CI-RC3-470-16 | 16 | 50.31 in | 5280 BTUs | 8185 BTUs | 35.2 ft² | 2 | $2,686.00 |
| CI-RC3-470-17 | 17 | 53.39 in | 5610 BTUs | 8697 BTUs | 37.4 ft² | 2 | $2,815.00 |
| CI-RC3-470-18 | 18 | 56.46 in | 5940 BTUs | 9209 BTUs | 39.6 ft² | 2 | $2,944.00 |
| CI-RC3-470-19 | 19 | 59.53 in | 6270 BTUs | 9720 BTUs | 41.8 ft² | 1 | $2,987.00 |
| CI-RC3-470-20 | 20 | 62.60 in | 6600 BTUs | 10232 BTUs | 44.0 ft² | 1 | $3,116.00 |
| CI-RC3-470-21 | 21 | 65.67 in | 6930 BTUs | 10743 BTUs | 46.2 ft² | 1 | $3,245.00 |
| CI-RC3-470-22 | 22 | 68.74 in | 7260 BTUs | 11255 BTUs | 48.4 ft² | 3 | $3,460.00 |
| CI-RC3-470-23 | 23 | 71.81 in | 7590 BTUs | 11767 BTUs | 50.6 ft² | 3 | $3,589.00 |
| CI-RC3-470-24 | 24 | 74.88 in | 7920 BTUs | 12278 BTUs | 52.8 ft² | 1 | $3,632.00 |
| CI-RC3-470-25 | 25 | 77.95 in | 8250 BTUs | 12790 BTUs | 55.0 ft² | 1 | $3,761.00 |
| CI-RC3-470-26 | 26 | 81.02 in | 8580 BTUs | 13301 BTUs | 57.2 ft² | 1 | $3,890.00 |
| CI-RC3-470-27 | 27 | 84.09 in | 8910 BTUs | 13813 BTUs | 59.4 ft² | 3 | $4,105.00 |
| CI-RC3-470-28 | 28 | 87.17 in | 9240 BTUs | 14325 BTUs | 61.6 ft² | 1 | $4,148.00 |
| CI-RC3-470-29 | 29 | 90.24 in | 9570 BTUs | 14836 BTUs | 63.8 ft² | 3 | $4,363.00 |
| CI-RC3-470-30 | 30 | 93.31 in | 9900 BTUs | 15348 BTUs | 66.0 ft² | 3 | $4,492.00 |
| CI-RC3-470-31 | 31 | 96.38 in | 10230 BTUs | 15859 BTUs | 68.2 ft² | 3 | $4,621.00 |
| CI-RC3-470-32 | 32 | 99.45 in | 10560 BTUs | 16371 BTUs | 70.4 ft² | 3 | $4,750.00 |
| CI-RC3-470-33 | 33 | 102.52 in | 10890 BTUs | 16883 BTUs | 72.6 ft² | 3 | $4,879.00 |
| CI-RC3-470-34 | 34 | 105.59 in | 11220 BTUs | 17394 BTUs | 74.8 ft² | 4 | $5,008.00 |
| CI-RC3-470-35 | 35 | 108.66 in | 11550 BTUs | 17906 BTUs | 77.0 ft² | 4 | $5,137.00 |
| CI-RC3-470-36 | 36 | 111.73 in | 11880 BTUs | 18417 BTUs | 79.2 ft² | 4 | $5,266.00 |
| CI-RC3-470-37 | 37 | 114.80 in | 12210 BTUs | 18929 BTUs | 81.4 ft² | 4 | $5,395.00 |
| CI-RC3-470-38 | 38 | 117.87 in | 12540 BTUs | 19441 BTUs | 83.6 ft² | 4 | $5,524.00 |
| CI-RC3-470-39 | 39 | 120.94 in | 12870 BTUs | 19952 BTUs | 85.8 ft² | 4 | $5,653.00 |
| CI-RC3-470-40 | 40 | 124.02 in | 13200 BTUs | 20464 BTUs | 88.0 ft² | 4 | $5,782.00 |
