Mercury 4 Column 18in
Cast Iron · by Castrads
From: $800.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |

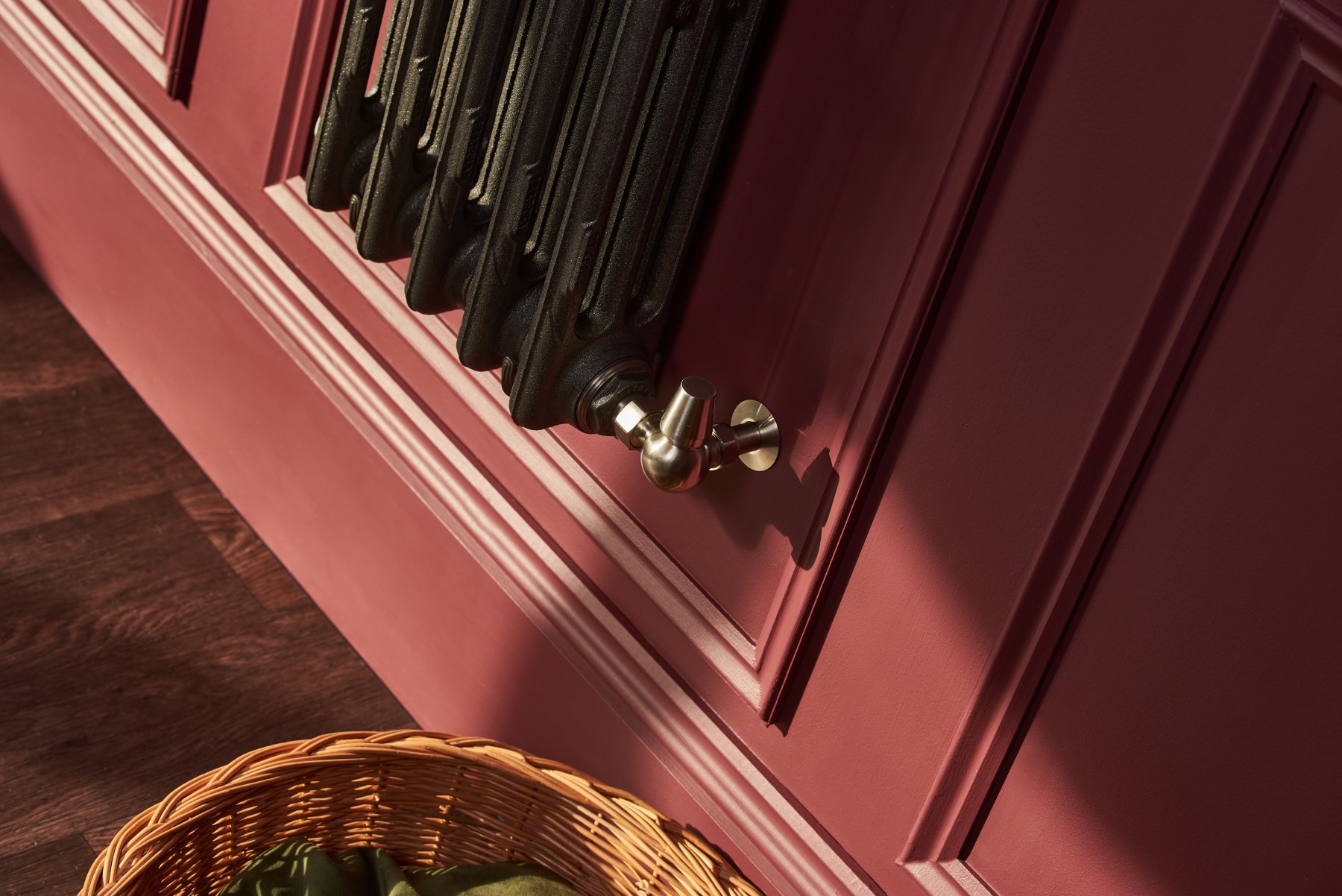

A cast iron column radiator, exclusive to Castrads, with a refined, symmetrical profile inspired by original designs from the 1920s.
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 18 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 18.11 in |
| E | Height Without Legs | 15.67 in |
| - | Empty Leg Section Weight | 9.70 lb |
| - | Empty Mid Section Weight | 8.82 lb |
| B | Bottom Inlet To Floor | 3.94 in |
| C | Max Section Depth | 5.51 in |
| G | Mid Section Depth | 5.51 in |
| D | Interaxis Distance | 12.72 in |
| F | Section Length | 2.30 in |
| - | Internal Volume | 0.03 gal |
| - | EDR Per Section | 1.54 ft² |
| - | Hydronic Output (170ºF) | 231 BTUs |
| - | Steam Output (215ºF) | 362 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-M4C-460-3 | 3 | 8.03 in | 693 BTUs | 1085 BTUs | 4.6 ft² | 1 | $800.00 |
| CI-M4C-460-4 | 4 | 10.35 in | 924 BTUs | 1446 BTUs | 6.2 ft² | 1 | $888.00 |
| CI-M4C-460-5 | 5 | 12.64 in | 1155 BTUs | 1808 BTUs | 7.7 ft² | 1 | $976.00 |
| CI-M4C-460-6 | 6 | 14.92 in | 1386 BTUs | 2169 BTUs | 9.2 ft² | 1 | $1,064.00 |
| CI-M4C-460-7 | 7 | 17.24 in | 1617 BTUs | 2531 BTUs | 10.8 ft² | 1 | $1,152.00 |
| CI-M4C-460-8 | 8 | 19.53 in | 1848 BTUs | 2893 BTUs | 12.3 ft² | 1 | $1,240.00 |
| CI-M4C-460-9 | 9 | 21.81 in | 2079 BTUs | 3254 BTUs | 13.9 ft² | 1 | $1,328.00 |
| CI-M4C-460-10 | 10 | 24.13 in | 2310 BTUs | 3616 BTUs | 15.4 ft² | 1 | $1,416.00 |
| CI-M4C-460-11 | 11 | 26.42 in | 2541 BTUs | 3977 BTUs | 16.9 ft² | 1 | $1,504.00 |
| CI-M4C-460-12 | 12 | 28.70 in | 2772 BTUs | 4339 BTUs | 18.5 ft² | 1 | $1,592.00 |
| CI-M4C-460-13 | 13 | 30.98 in | 3003 BTUs | 4700 BTUs | 20.0 ft² | 1 | $1,680.00 |
| CI-M4C-460-14 | 14 | 33.31 in | 3234 BTUs | 5062 BTUs | 21.6 ft² | 1 | $1,768.00 |
| CI-M4C-460-15 | 15 | 35.59 in | 3465 BTUs | 5423 BTUs | 23.1 ft² | 1 | $1,856.00 |
| CI-M4C-460-16 | 16 | 37.87 in | 3696 BTUs | 5785 BTUs | 24.6 ft² | 1 | $1,944.00 |
| CI-M4C-460-17 | 17 | 40.20 in | 3927 BTUs | 6147 BTUs | 26.2 ft² | 1 | $2,032.00 |
| CI-M4C-460-18 | 18 | 42.48 in | 4158 BTUs | 6508 BTUs | 27.7 ft² | 1 | $2,120.00 |
| CI-M4C-460-19 | 19 | 44.76 in | 4389 BTUs | 6870 BTUs | 29.3 ft² | 2 | $2,294.00 |
| CI-M4C-460-20 | 20 | 47.09 in | 4619 BTUs | 7231 BTUs | 30.8 ft² | 2 | $2,382.00 |
| CI-M4C-460-21 | 21 | 49.37 in | 4850 BTUs | 7593 BTUs | 32.3 ft² | 2 | $2,470.00 |
| CI-M4C-460-22 | 22 | 51.65 in | 5081 BTUs | 7954 BTUs | 33.9 ft² | 2 | $2,558.00 |
| CI-M4C-460-23 | 23 | 53.94 in | 5312 BTUs | 8316 BTUs | 35.4 ft² | 2 | $2,646.00 |
| CI-M4C-460-24 | 24 | 56.26 in | 5543 BTUs | 8678 BTUs | 37.0 ft² | 2 | $2,734.00 |
| CI-M4C-460-25 | 25 | 58.54 in | 5774 BTUs | 9039 BTUs | 38.5 ft² | 2 | $2,822.00 |
| CI-M4C-460-26 | 26 | 60.83 in | 6005 BTUs | 9401 BTUs | 40.0 ft² | 2 | $2,910.00 |
| CI-M4C-460-27 | 27 | 63.15 in | 6236 BTUs | 9762 BTUs | 41.6 ft² | 2 | $2,998.00 |
| CI-M4C-460-28 | 28 | 65.43 in | 6467 BTUs | 10124 BTUs | 43.1 ft² | 3 | $3,086.00 |
| CI-M4C-460-29 | 29 | 67.72 in | 6698 BTUs | 10485 BTUs | 44.7 ft² | 3 | $3,174.00 |
| CI-M4C-460-30 | 30 | 70.04 in | 6929 BTUs | 10847 BTUs | 46.2 ft² | 3 | $3,262.00 |
| CI-M4C-460-31 | 31 | 72.32 in | 7160 BTUs | 11208 BTUs | 47.7 ft² | 3 | $3,350.00 |
| CI-M4C-460-32 | 32 | 74.61 in | 7391 BTUs | 11570 BTUs | 49.3 ft² | 3 | $3,438.00 |
| CI-M4C-460-33 | 33 | 76.89 in | 7622 BTUs | 11932 BTUs | 50.8 ft² | 3 | $3,526.00 |
| CI-M4C-460-34 | 34 | 79.21 in | 7853 BTUs | 12293 BTUs | 52.4 ft² | 3 | $3,614.00 |
| CI-M4C-460-35 | 35 | 81.50 in | 8084 BTUs | 12655 BTUs | 53.9 ft² | 3 | $3,702.00 |
| CI-M4C-460-36 | 36 | 83.78 in | 8315 BTUs | 13016 BTUs | 55.4 ft² | 3 | $3,790.00 |
| CI-M4C-460-37 | 37 | 86.10 in | 8546 BTUs | 13378 BTUs | 57.0 ft² | 3 | $3,878.00 |
| CI-M4C-460-38 | 38 | 88.39 in | 8777 BTUs | 13739 BTUs | 58.5 ft² | 3 | $3,966.00 |
| CI-M4C-460-39 | 39 | 90.67 in | 9008 BTUs | 14101 BTUs | 60.1 ft² | 3 | $4,054.00 |
| CI-M4C-460-40 | 40 | 92.99 in | 9239 BTUs | 14463 BTUs | 61.6 ft² | 3 | $4,142.00 |
