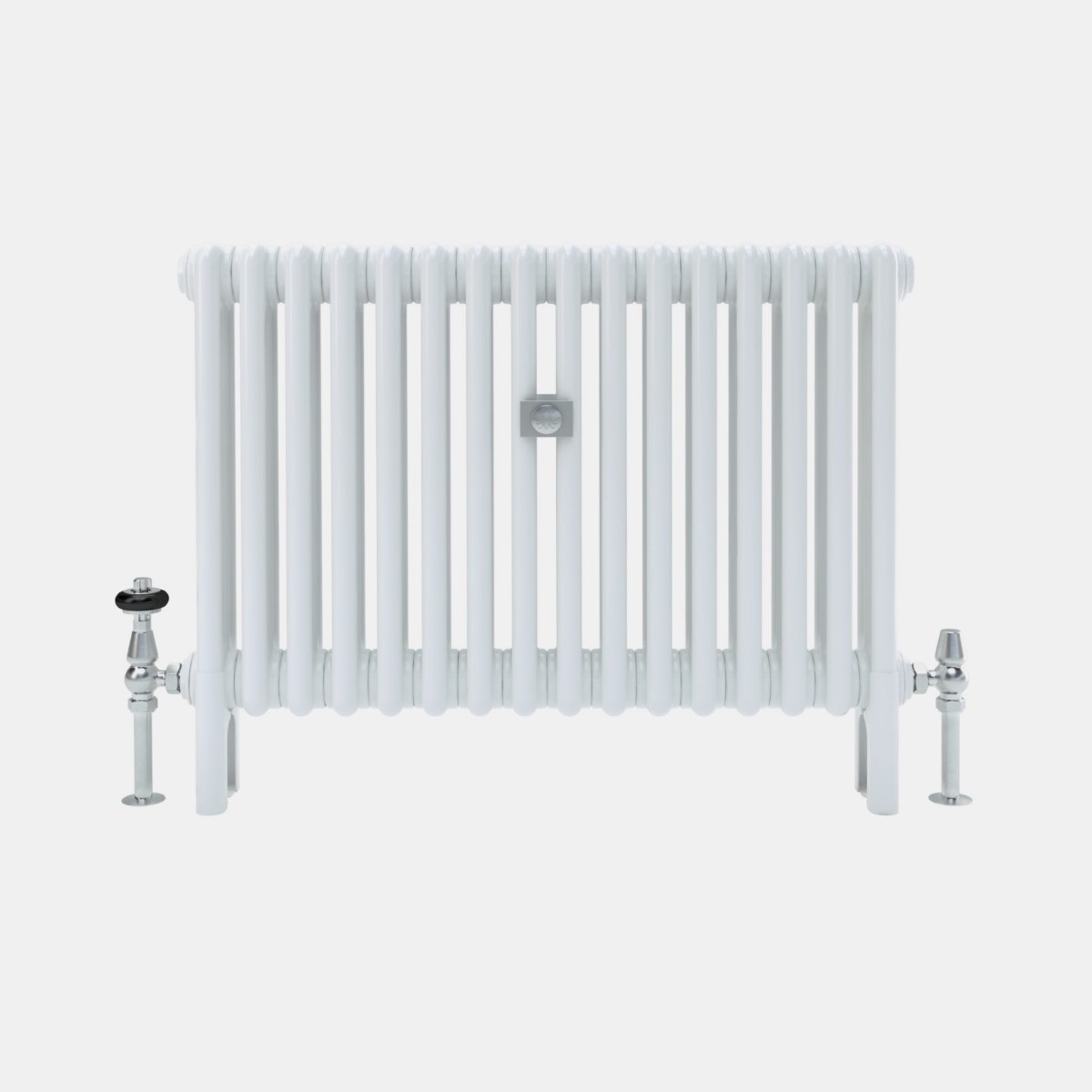

• Florence 3 column 600mm curved steel column radiator

Florence 3 Column 20in

From: $709.50

Technical specs at 3 sections long:

Length
Heat output (Hydronic)
Height
Heat output (Steam) Not suitable for use on steam systems
Depth
Delivered in
  • Available from 3 to 40 sections long (see below for technical specs)
  • Delivered ready to install
  • Heat pump compatible
  • 10 year warranty
  • Not suitable for steam
  • Welded joins with powder coat finish
  • Made in Italy
SKU: SMC-F3C-502

Model Specifications

Label Attribute Value
A Height With Legs 23.7 in
B Bottom Inlet To Floor 5.3 in
C Max Section Depth 4.1 in
D Interaxis Distance 17.1 in
E Height Without Legs 19.8 in
F Section Length 1.8 in
G Mid Section Depth 4.0 in
- Internal Volume 0.05 gal
- Empty Leg Section Weight 2.87 lb
- Empty Mid Section Weight 2.20 lb
- EDR Per Section 1.37 ft²
- Hydronic Output (170ºF) 206 BTUs
- Steam Output (215ºF) 329 BTUs
Florence 3 Column 500mm - Single Section Technical Drawing - SVG

Sizes Available

SKU N
Secs
Length
(L, mm)
Output
(Hydronic, 170ºF)
EDR Delivery
pieces
Price
from
SMC-F3C-502-3 3 6.5 in 618 BTUs 4.1 ft² 1 $709.50
SMC-F3C-502-4 4 8.3 in 824 BTUs 5.5 ft² 1 $781.00
SMC-F3C-502-5 5 10.0 in 1030 BTUs 6.9 ft² 1 $852.50
SMC-F3C-502-6 6 11.8 in 1236 BTUs 8.2 ft² 1 $924.00
SMC-F3C-502-7 7 13.6 in 1442 BTUs 9.6 ft² 1 $995.50
SMC-F3C-502-8 8 15.4 in 1648 BTUs 11.0 ft² 1 $1,067.00
SMC-F3C-502-9 9 17.1 in 1854 BTUs 12.3 ft² 1 $1,138.50
SMC-F3C-502-10 10 18.9 in 2060 BTUs 13.7 ft² 1 $1,210.00
SMC-F3C-502-11 11 20.7 in 2266 BTUs 15.1 ft² 1 $1,281.50
SMC-F3C-502-12 12 22.4 in 2472 BTUs 16.4 ft² 1 $1,353.00
SMC-F3C-502-13 13 24.2 in 2678 BTUs 17.8 ft² 1 $1,424.50
SMC-F3C-502-14 14 26.0 in 2884 BTUs 19.2 ft² 1 $1,496.00
SMC-F3C-502-15 15 27.8 in 3090 BTUs 20.6 ft² 1 $1,567.50
SMC-F3C-502-16 16 29.5 in 3296 BTUs 21.9 ft² 1 $1,639.00
SMC-F3C-502-17 17 31.3 in 3502 BTUs 23.3 ft² 1 $1,710.50
SMC-F3C-502-18 18 33.1 in 3708 BTUs 24.7 ft² 1 $1,782.00
SMC-F3C-502-19 19 34.8 in 3914 BTUs 26.0 ft² 1 $1,853.50
SMC-F3C-502-20 20 36.6 in 4120 BTUs 27.4 ft² 1 $1,925.00
SMC-F3C-502-21 21 38.4 in 4326 BTUs 28.8 ft² 1 $1,996.50
SMC-F3C-502-22 22 40.2 in 4532 BTUs 30.1 ft² 1 $2,068.00
SMC-F3C-502-23 23 41.9 in 4738 BTUs 31.5 ft² 1 $2,139.50
SMC-F3C-502-24 24 43.7 in 4944 BTUs 32.9 ft² 1 $2,211.00
SMC-F3C-502-25 25 45.5 in 5150 BTUs 34.3 ft² 1 $2,282.50
SMC-F3C-502-26 26 47.2 in 5356 BTUs 35.6 ft² 1 $2,354.00
SMC-F3C-502-27 27 49.0 in 5562 BTUs 37.0 ft² 1 $2,425.50
SMC-F3C-502-28 28 50.8 in 5768 BTUs 38.4 ft² 1 $2,497.00
SMC-F3C-502-29 29 52.6 in 5974 BTUs 39.7 ft² 1 $2,568.50
SMC-F3C-502-30 30 54.3 in 6180 BTUs 41.1 ft² 1 $2,640.00
SMC-F3C-502-31 31 56.1 in 6386 BTUs 42.5 ft² 1 $2,711.50
SMC-F3C-502-32 32 57.9 in 6592 BTUs 43.8 ft² 1 $2,783.00
SMC-F3C-502-33 33 59.6 in 6798 BTUs 45.2 ft² 1 $2,854.50
SMC-F3C-502-34 34 61.4 in 7004 BTUs 46.6 ft² 1 $2,926.00
SMC-F3C-502-35 35 63.2 in 7210 BTUs 48.0 ft² 1 $2,997.50
SMC-F3C-502-36 36 65.0 in 7416 BTUs 49.3 ft² 1 $3,069.00
SMC-F3C-502-37 37 66.7 in 7622 BTUs 50.7 ft² 1 $3,140.50
SMC-F3C-502-38 38 68.5 in 7828 BTUs 52.1 ft² 1 $3,212.00
SMC-F3C-502-39 39 70.3 in 8034 BTUs 53.4 ft² 1 $3,283.50
SMC-F3C-502-40 40 72.0 in 8240 BTUs 54.8 ft² 1 $3,355.00
Florence 3 Column 500mm - 10 Section Battery Technical Drawing - SVG
