Emmeline I 34in
From: $803.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |

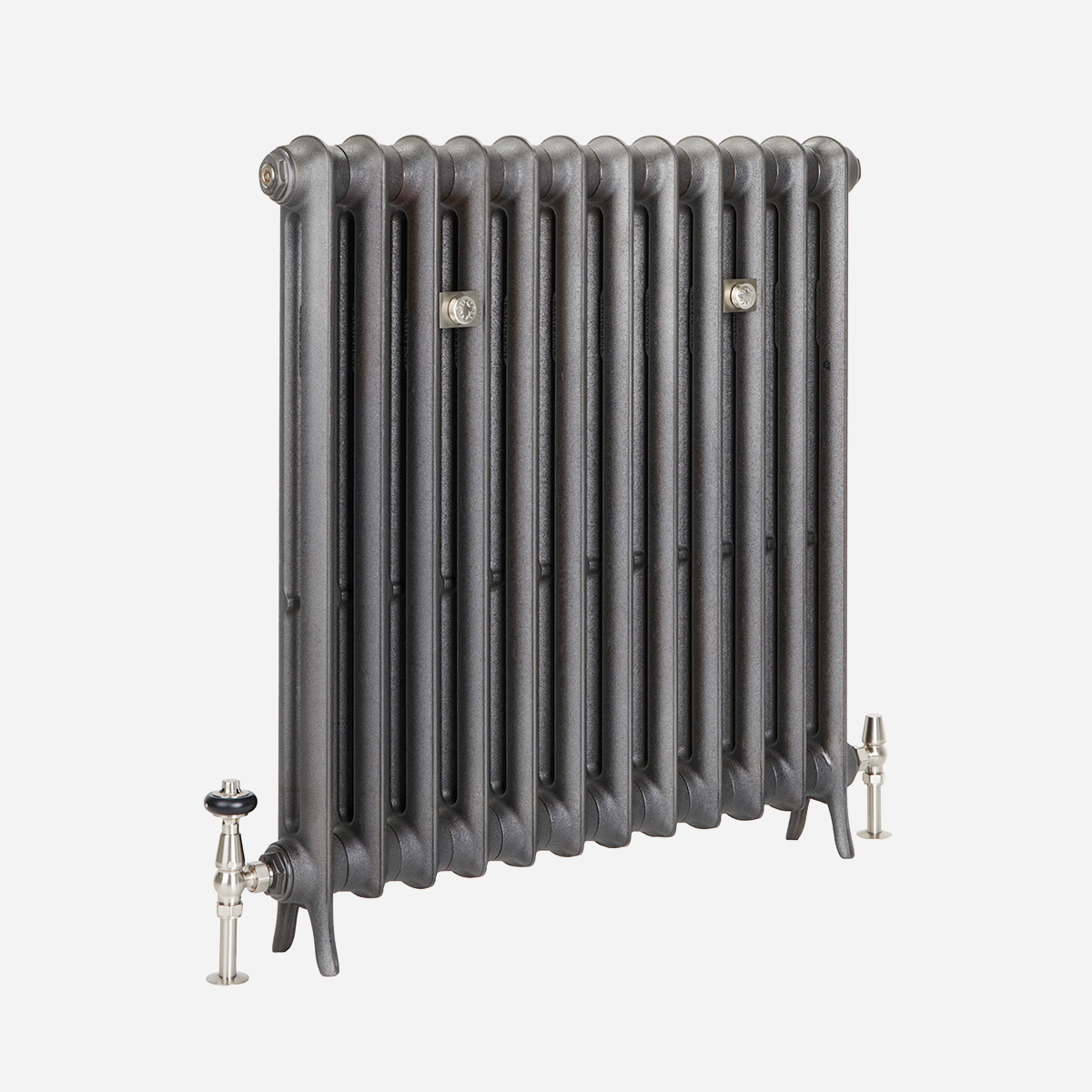

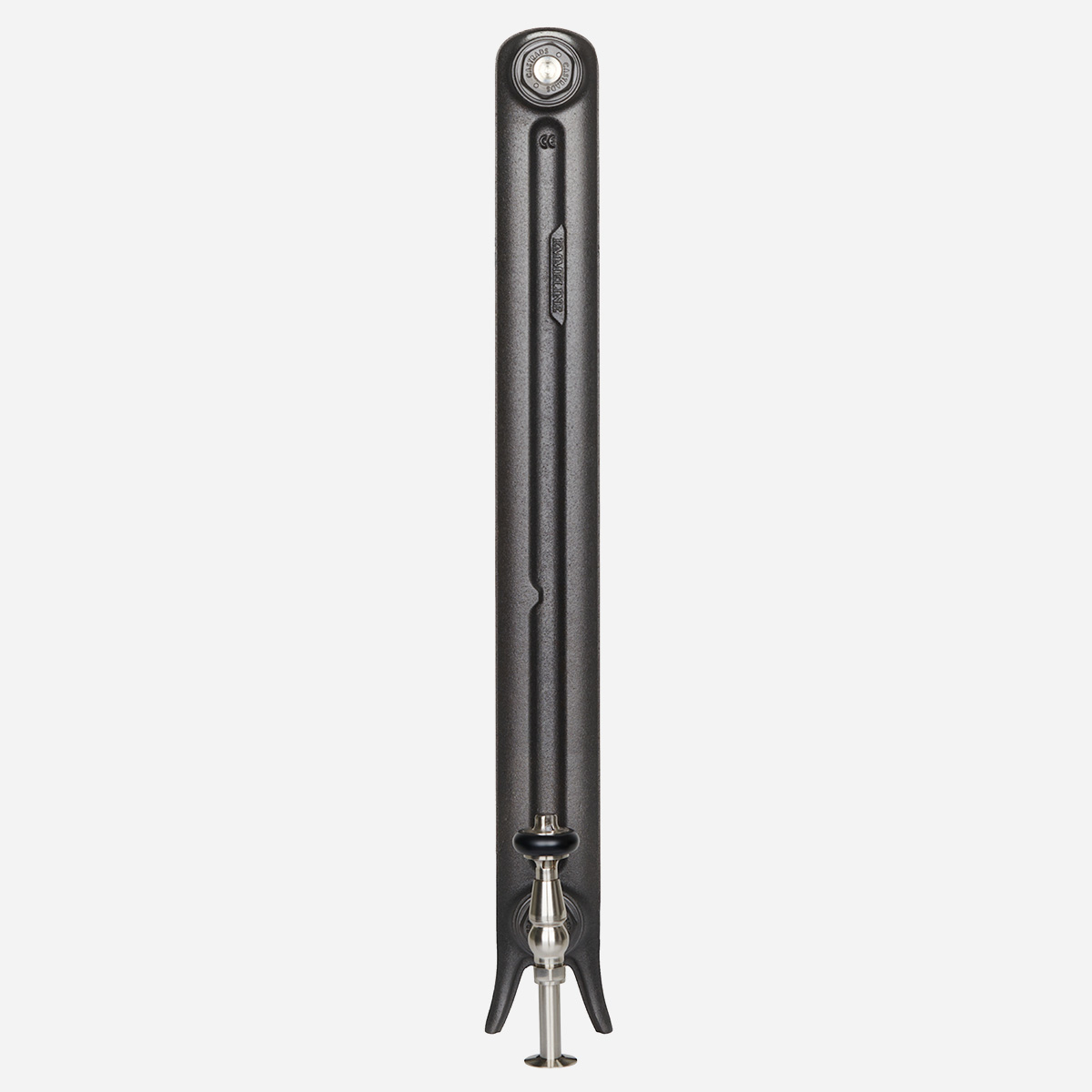

A traditional cast iron radiator, exclusive to Castrads, with a smooth surface and curved top inspired by early 20th-century school radiators.
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 16 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 34.1 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 4.3 in |
| D | Interaxis Distance | 28.5 in |
| E | Height Without Legs | 31.8 in |
| F | Section Length | 2.6 in |
| G | Mid Section Depth | 3.5 in |
| - | Internal Volume | 0.05 gal |
| - | Empty Leg Section Weight | 14.11 lb |
| - | Empty Mid Section Weight | 13.45 lb |
| - | EDR Per Section | 2.11 ft² |
| - | Hydronic Output (170ºF) | 317 BTUs |
| - | Steam Output (215ºF) | 504 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-EML1-865-3 | 3 | 9.0 in | 950 BTUs | 1512 BTUs | 6.3 ft² | 1 | $803.00 |
| CI-EML1-865-4 | 4 | 11.7 in | 1266 BTUs | 2017 BTUs | 8.4 ft² | 1 | $899.00 |
| CI-EML1-865-5 | 5 | 14.3 in | 1583 BTUs | 2521 BTUs | 10.6 ft² | 1 | $995.00 |
| CI-EML1-865-6 | 6 | 16.9 in | 1899 BTUs | 3025 BTUs | 12.7 ft² | 1 | $1,091.00 |
| CI-EML1-865-7 | 7 | 19.5 in | 2216 BTUs | 3529 BTUs | 14.8 ft² | 1 | $1,187.00 |
| CI-EML1-865-8 | 8 | 22.1 in | 2532 BTUs | 4033 BTUs | 16.9 ft² | 1 | $1,283.00 |
| CI-EML1-865-9 | 9 | 24.7 in | 2849 BTUs | 4537 BTUs | 19.0 ft² | 1 | $1,379.00 |
| CI-EML1-865-10 | 10 | 27.4 in | 3165 BTUs | 5041 BTUs | 21.1 ft² | 1 | $1,475.00 |
| CI-EML1-865-11 | 11 | 30.0 in | 3482 BTUs | 5546 BTUs | 23.2 ft² | 1 | $1,571.00 |
| CI-EML1-865-12 | 12 | 32.6 in | 3798 BTUs | 6050 BTUs | 25.3 ft² | 1 | $1,667.00 |
| CI-EML1-865-13 | 13 | 35.2 in | 4115 BTUs | 6554 BTUs | 27.4 ft² | 1 | $1,763.00 |
| CI-EML1-865-14 | 14 | 37.8 in | 4431 BTUs | 7058 BTUs | 29.5 ft² | 1 | $1,859.00 |
| CI-EML1-865-15 | 15 | 40.4 in | 4748 BTUs | 7562 BTUs | 31.7 ft² | 1 | $1,955.00 |
| CI-EML1-865-16 | 16 | 43.1 in | 5064 BTUs | 8066 BTUs | 33.8 ft² | 1 | $2,051.00 |
| CI-EML1-865-17 | 17 | 45.7 in | 5381 BTUs | 8571 BTUs | 35.9 ft² | 2 | $2,230.00 |
| CI-EML1-865-18 | 18 | 48.3 in | 5697 BTUs | 9075 BTUs | 38.0 ft² | 2 | $2,326.00 |
| CI-EML1-865-19 | 19 | 50.9 in | 6014 BTUs | 9579 BTUs | 40.1 ft² | 2 | $2,422.00 |
| CI-EML1-865-20 | 20 | 53.5 in | 6330 BTUs | 10083 BTUs | 42.2 ft² | 2 | $2,518.00 |
| CI-EML1-865-21 | 21 | 56.1 in | 6647 BTUs | 10587 BTUs | 44.3 ft² | 2 | $2,614.00 |
| CI-EML1-865-22 | 22 | 58.8 in | 6963 BTUs | 11091 BTUs | 46.4 ft² | 2 | $2,710.00 |
| CI-EML1-865-23 | 23 | 61.4 in | 7280 BTUs | 11595 BTUs | 48.5 ft² | 2 | $2,806.00 |
| CI-EML1-865-24 | 24 | 64.0 in | 7596 BTUs | 12100 BTUs | 50.6 ft² | 2 | $2,902.00 |
| CI-EML1-865-25 | 25 | 66.6 in | 7913 BTUs | 12604 BTUs | 52.8 ft² | 3 | $2,998.00 |
| CI-EML1-865-26 | 26 | 69.3 in | 8229 BTUs | 13108 BTUs | 54.9 ft² | 3 | $3,094.00 |
| CI-EML1-865-27 | 27 | 71.9 in | 8546 BTUs | 13612 BTUs | 57.0 ft² | 3 | $3,190.00 |
| CI-EML1-865-28 | 28 | 74.5 in | 8863 BTUs | 14116 BTUs | 59.1 ft² | 3 | $3,286.00 |
| CI-EML1-865-29 | 29 | 77.1 in | 9179 BTUs | 14620 BTUs | 61.2 ft² | 3 | $3,382.00 |
| CI-EML1-865-30 | 30 | 79.7 in | 9496 BTUs | 15124 BTUs | 63.3 ft² | 3 | $3,478.00 |
| CI-EML1-865-31 | 31 | 82.3 in | 9812 BTUs | 15629 BTUs | 65.4 ft² | 3 | $3,574.00 |
| CI-EML1-865-32 | 32 | 85.0 in | 10129 BTUs | 16133 BTUs | 67.5 ft² | 3 | $3,670.00 |
| CI-EML1-865-33 | 33 | 87.6 in | 10445 BTUs | 16637 BTUs | 69.6 ft² | 3 | $3,766.00 |
| CI-EML1-865-34 | 34 | 90.2 in | 10762 BTUs | 17141 BTUs | 71.7 ft² | 3 | $3,862.00 |
| CI-EML1-865-35 | 35 | 92.8 in | 11078 BTUs | 17645 BTUs | 73.9 ft² | 3 | $3,958.00 |
| CI-EML1-865-36 | 36 | 95.4 in | 11395 BTUs | 18149 BTUs | 76.0 ft² | 3 | $4,054.00 |
| CI-EML1-865-37 | 37 | 98.0 in | 11711 BTUs | 18653 BTUs | 78.1 ft² | 3 | $4,150.00 |
| CI-EML1-865-38 | 38 | 100.7 in | 12028 BTUs | 19158 BTUs | 80.2 ft² | 3 | $4,246.00 |
| CI-EML1-865-39 | 39 | 103.3 in | 12344 BTUs | 19662 BTUs | 82.3 ft² | 3 | $4,342.00 |
| CI-EML1-865-40 | 40 | 105.9 in | 12661 BTUs | 20166 BTUs | 84.4 ft² | 3 | $4,438.00 |
