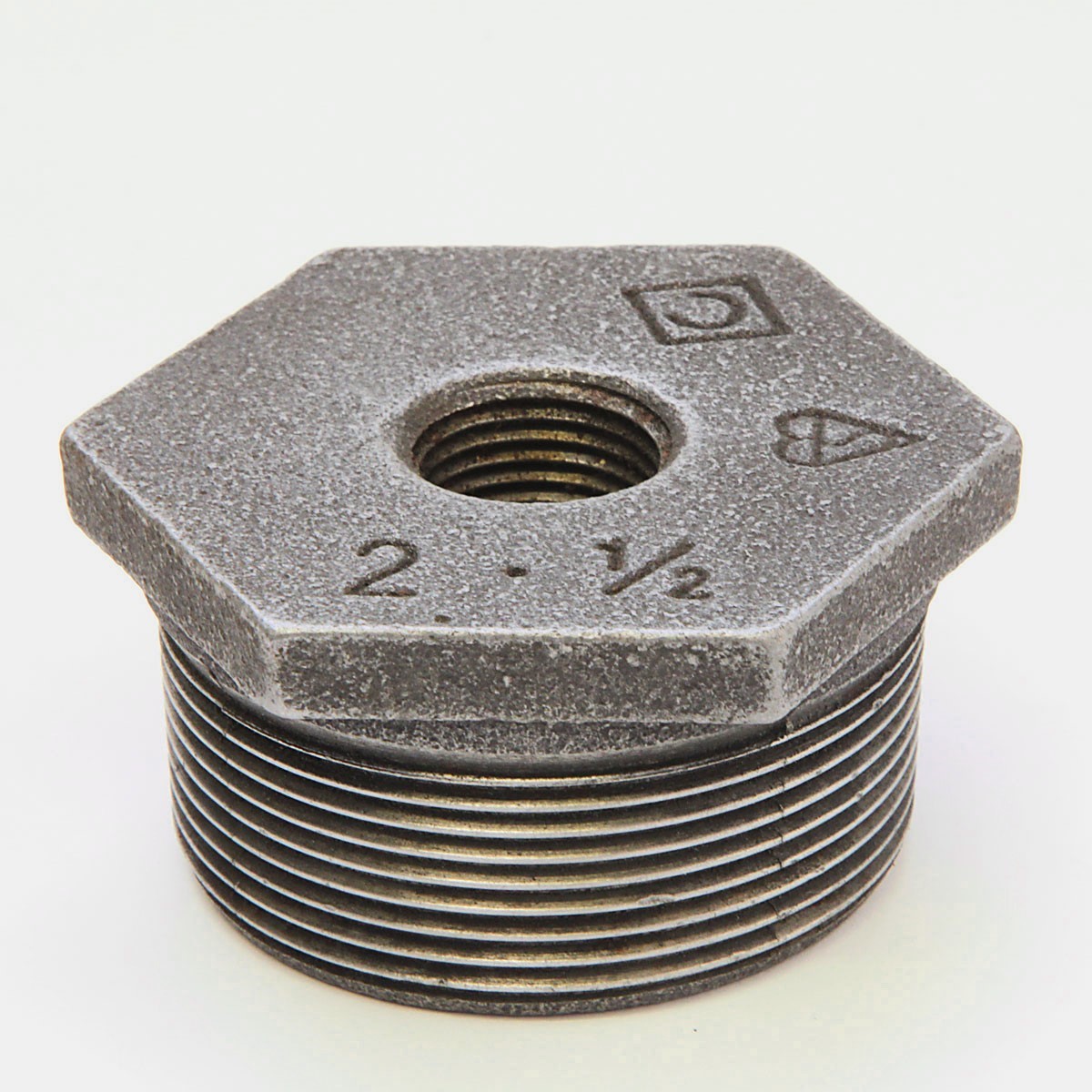

  • 2" to 0.5" BSP Black Iron Reducing Bush

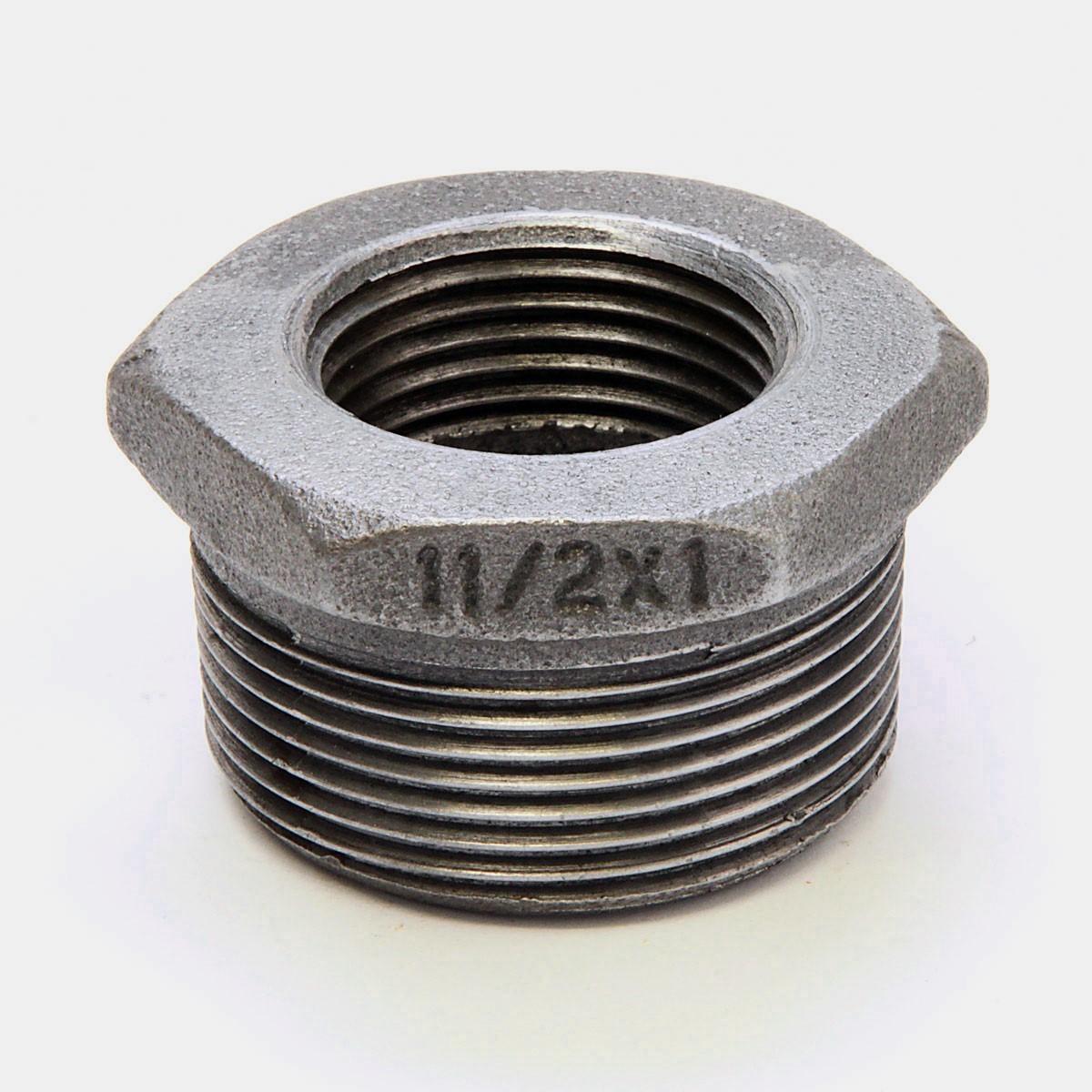

  • 1-½" to 1" BSP Black Iron Reducing Bush
  • 1-" to ¾" BSP Black Iron Reducing Bush

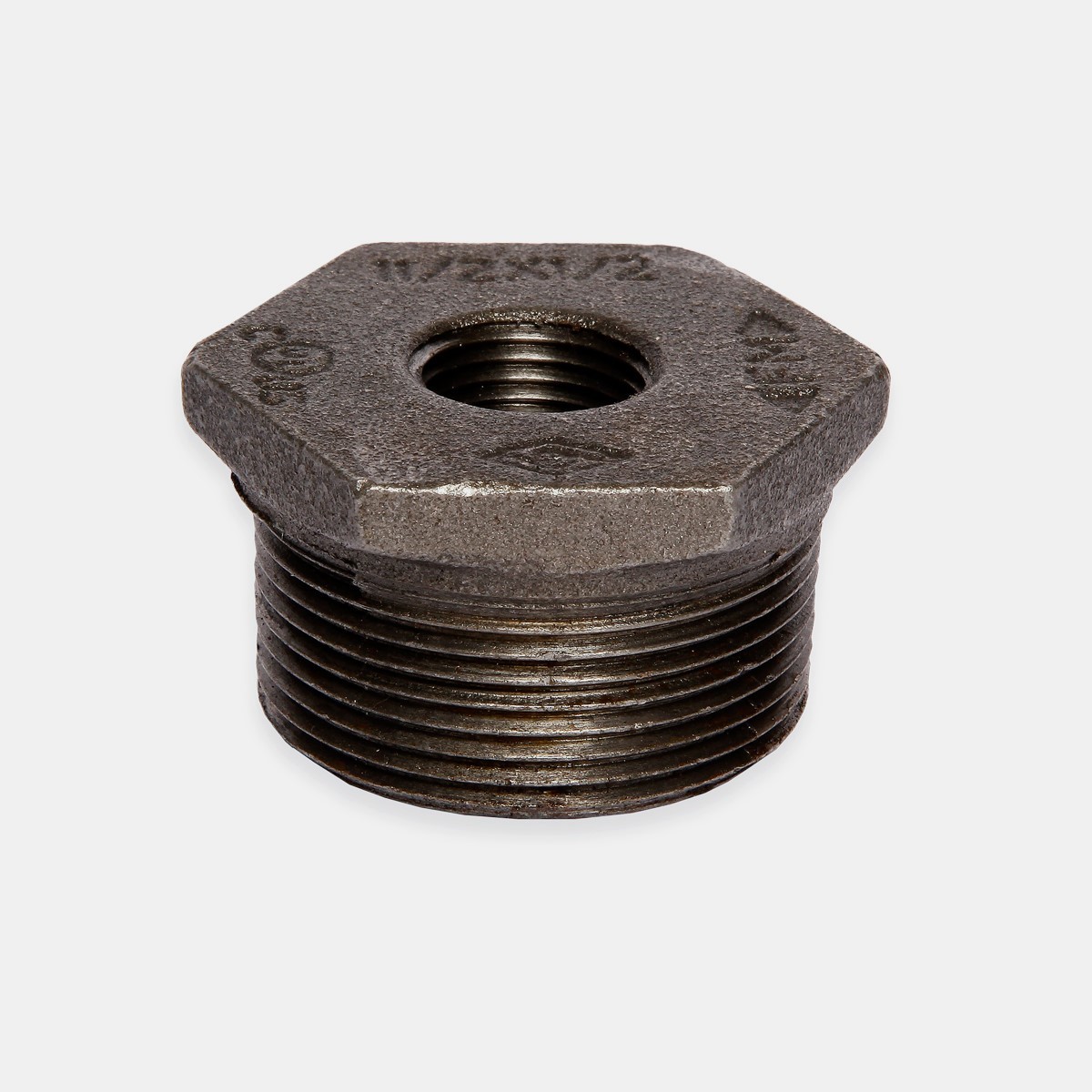

  • 1-½" to ½" BSP Black Iron Reducing Bush
  • 1-" to ¼" BSP Black Iron Reducing Bush

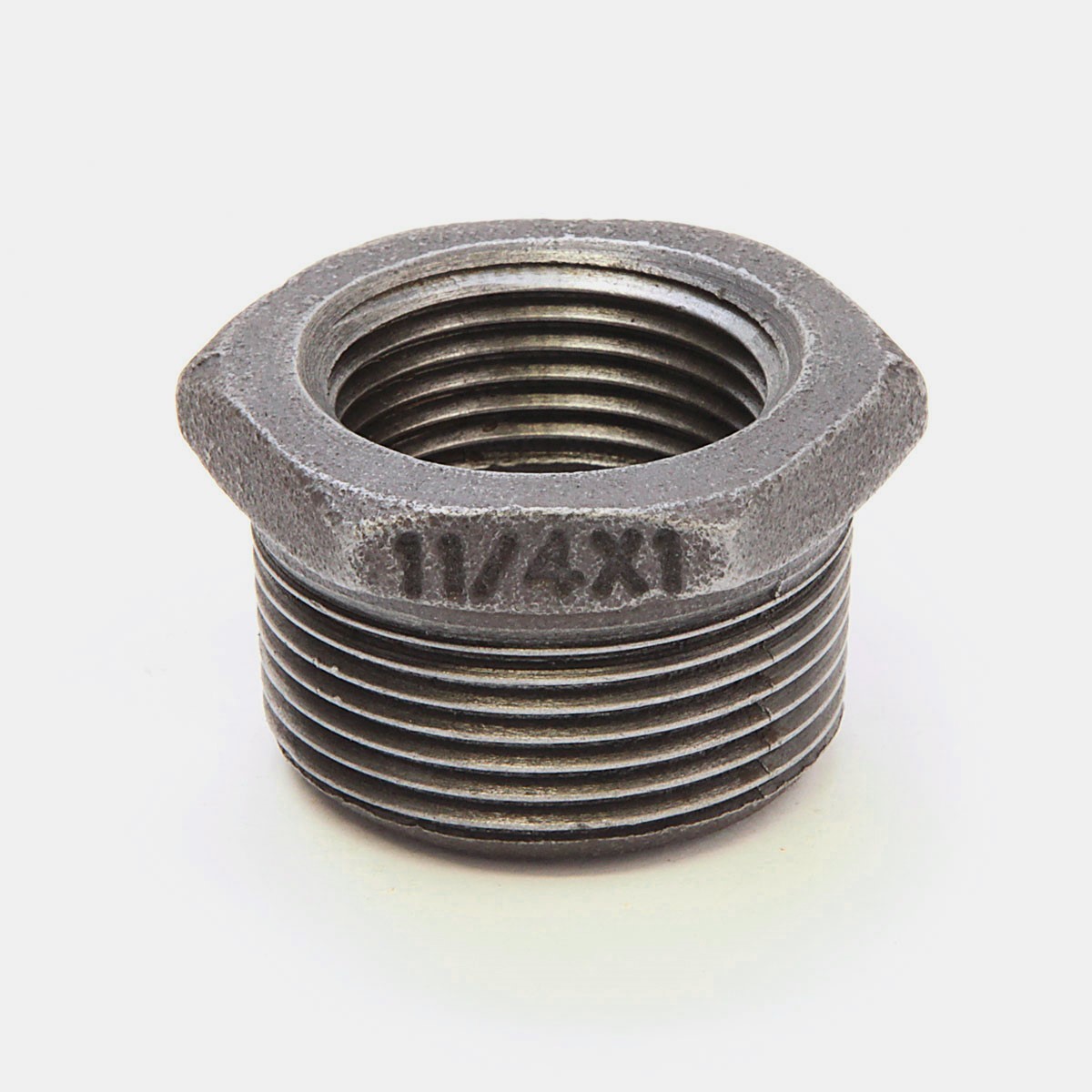

  • 1-¼" to 1" BSP Black Iron Reducing Bush

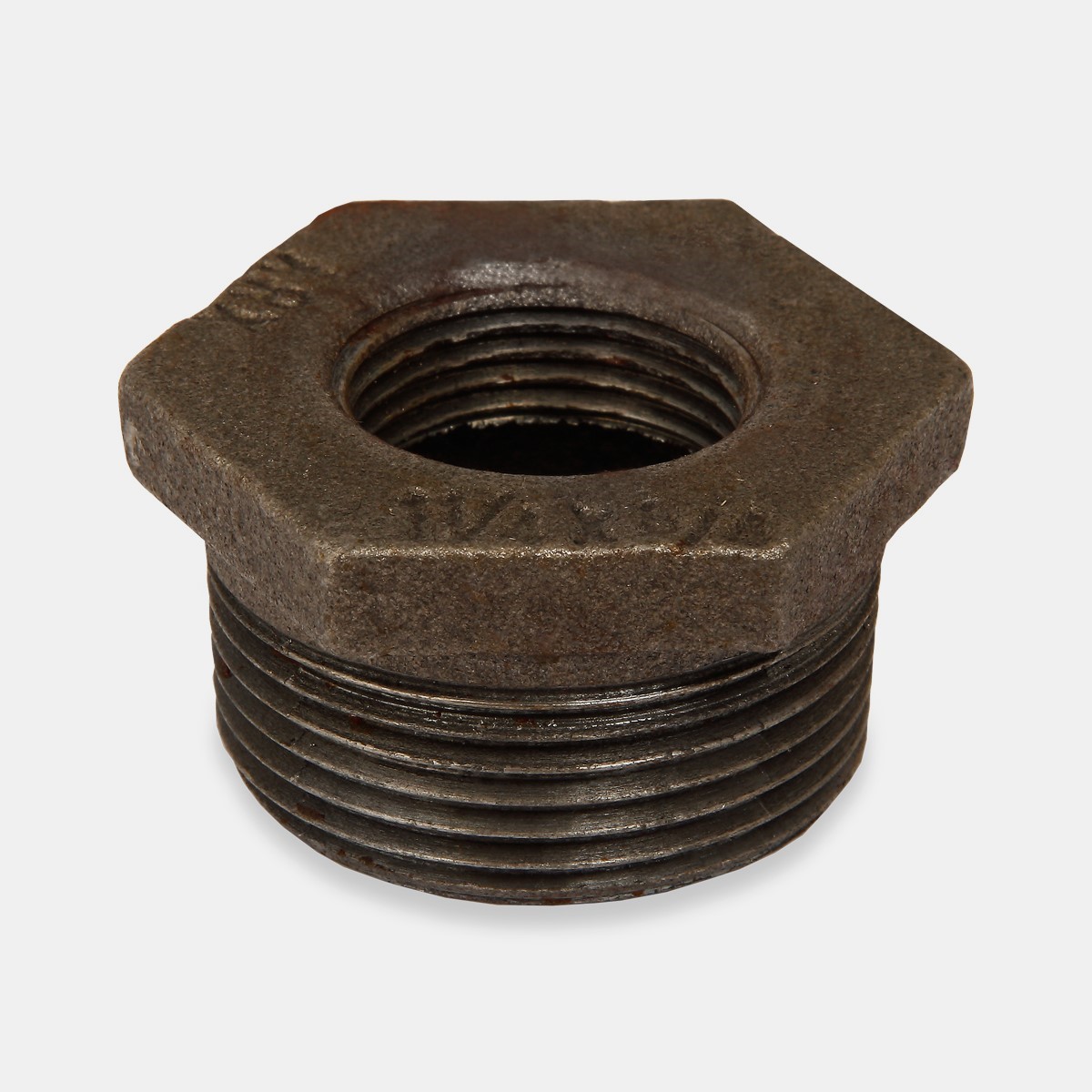

  • 1-" to ¾" BSP Black Iron Reducing Bush
  • 1-" to 1-½" BSP Black Iron Reducing Bush

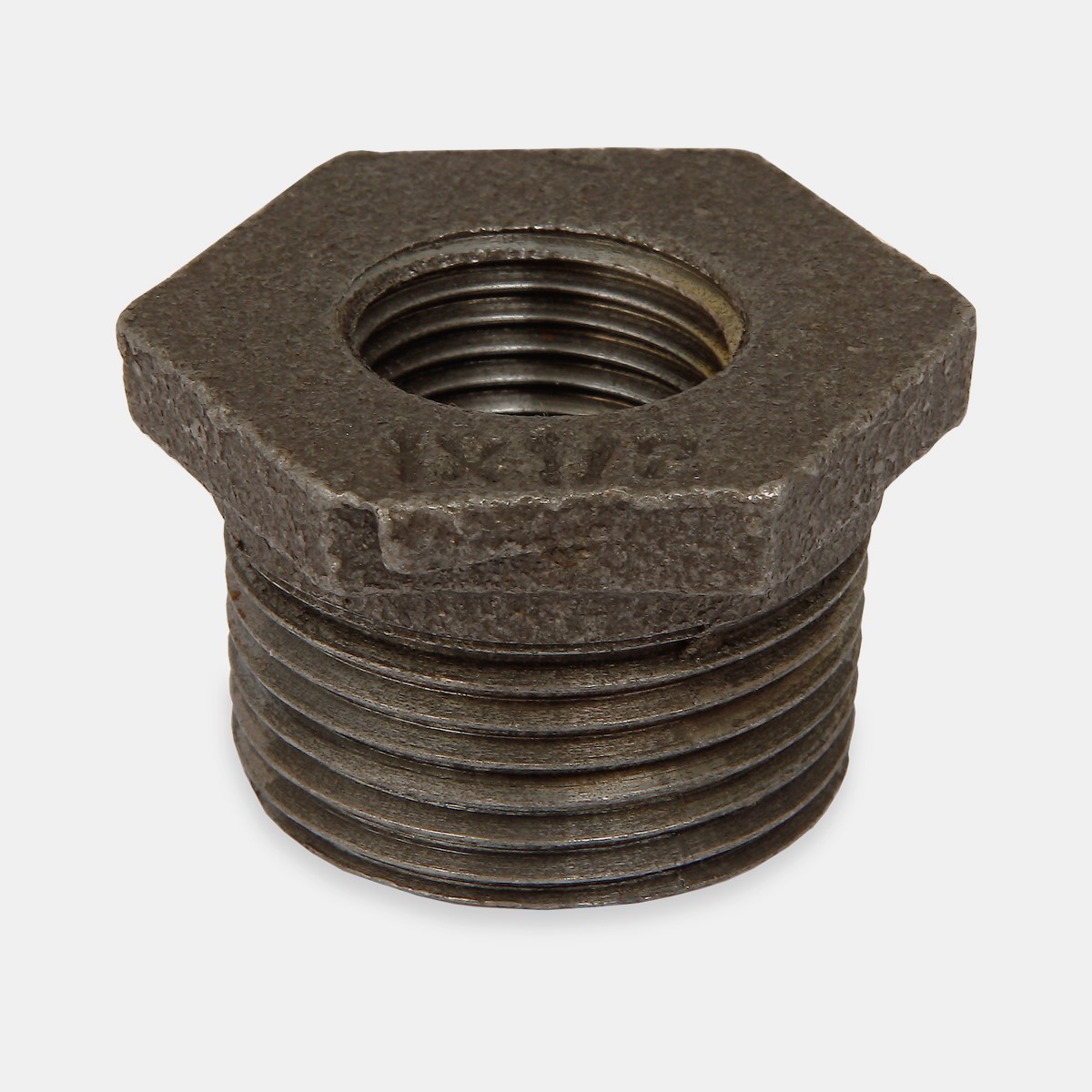

  • 1" to ½" BSP Black Iron Reducing Bush
  • 1" to ½" BSP Black Iron Reducing Bush
  • 1" to ½" BSP Black Iron Reducing Bush
  • 2" to 0.5" BSP Black Iron Reducing Bush
  • " to 1" BSP Black Iron Reducing Bush

Żeliwna Tuleja Redukcyjna

27,18 150,31

Informacje dodatkowe

Waga 0,4 kg
Wymiary 74 × 74 × 39 mm
Reducing Bush Size

½” BSP to ¼” BSP, ¼” BSP to ⅛” BSP, 1¼” BSP to ½” BSP, 1″ BSP to ¼” BSP, 1¼” BSP to ¾” BSP, 1½” BSP to ¼” BSP, 1½” BSP to 1″ BSP, 1½” BSP to ¾” BSP, 1″ BSP to ½” BSP, 1¼” BSP to 1″ BSP, 1½” BSP to ½” BSP, 1″ BSP to ¾” BSP, 2″ BSP to ¾” BSP, 2″ BSP to 1½” BSP, 2″ BSP to ½” BSP

Materiał Budowlany

Czarna Żelazo

Opis Produktu
  • For adapting radiators to run on differently sized pipework
  • Useful when repairing or restoring older radiators
  • Available in 15 sizes
  • All right-handed threads
SKU: BIT

Technical Data

SKU A – Male Thread (BSP Nominal) B – Female Thread (BSP Nominal) C – Hex Width (mm) L – Radiator Clearance (mm)

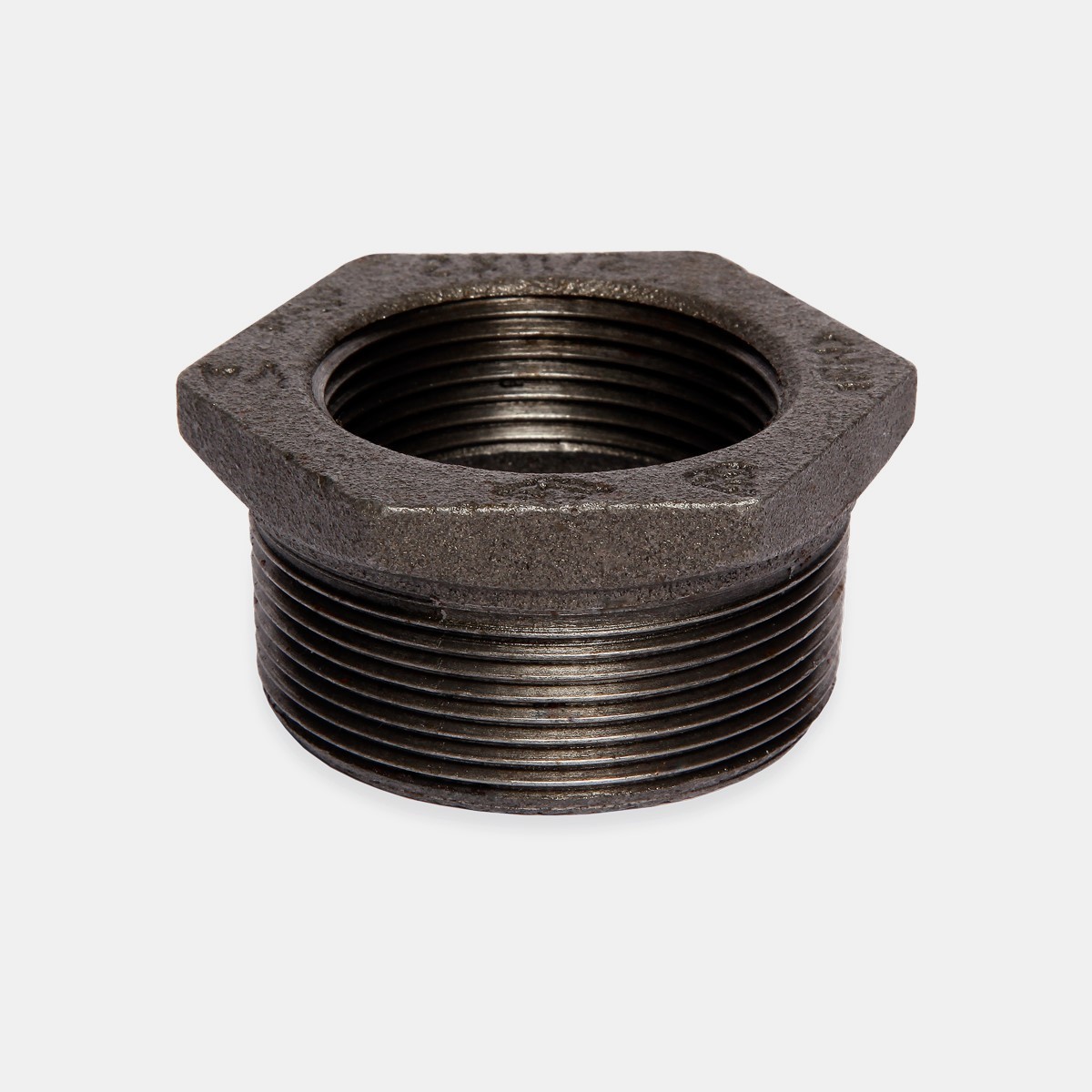

BIT-2Rx1.5R-RH 2 1.5 65 10

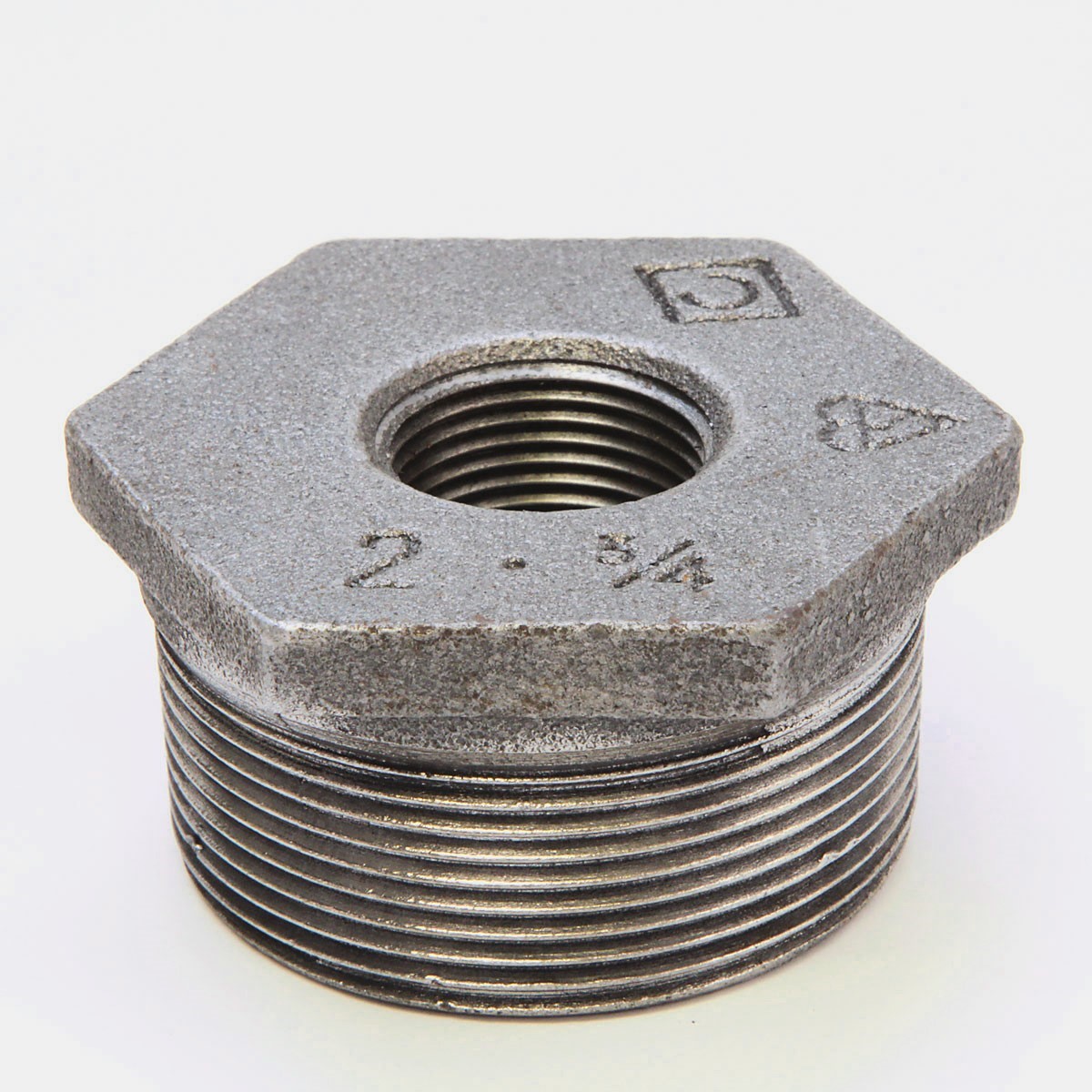

BIT-2Rx0.75R-RH 2 0.75 65 10
BIT-2Rx0.5R-RH 2 0.5 65 10
BIT-1.5Rx1R-RH 1.5 1 51 10

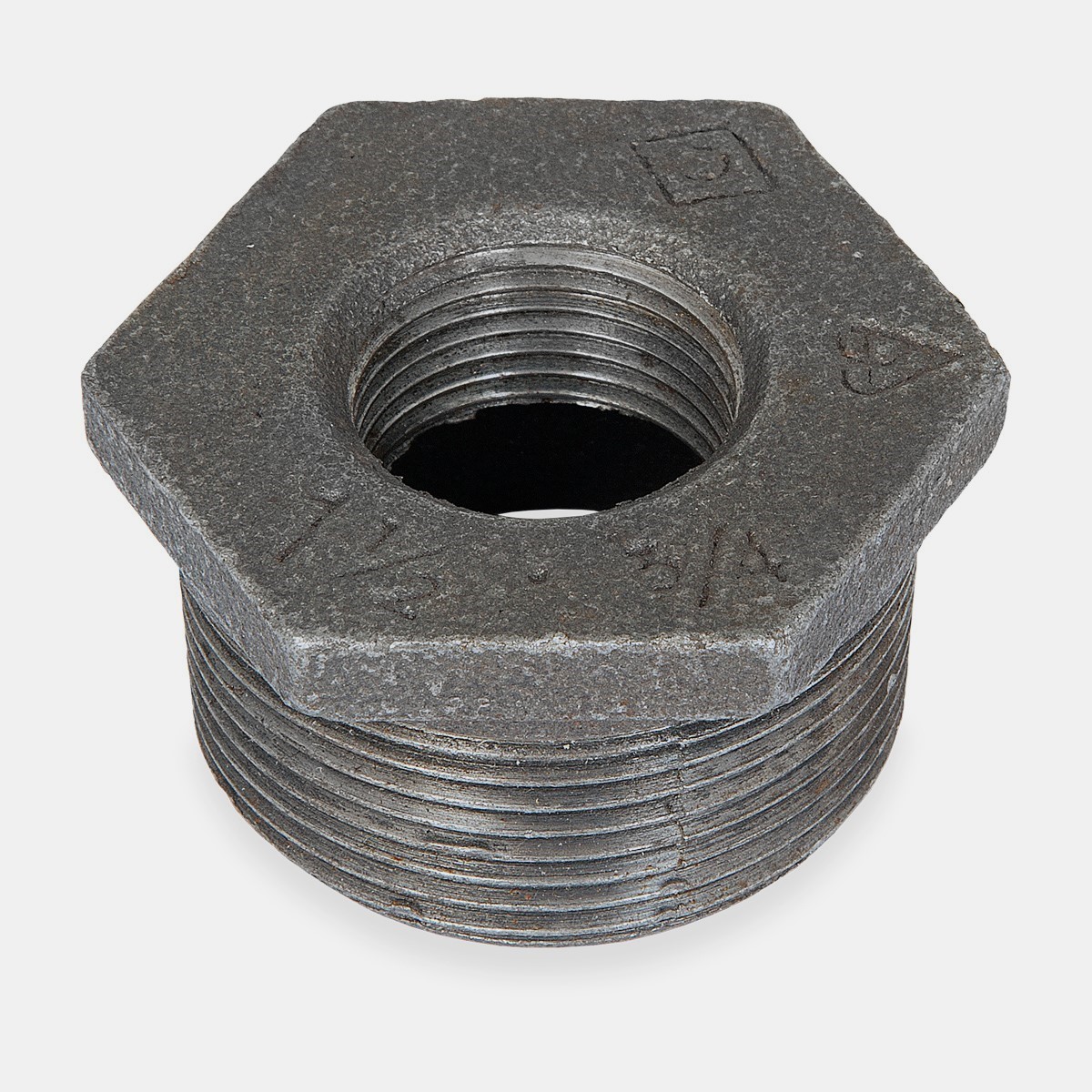

BIT-1.5Rx0.75R-RH 1.5 0.75 40 8
BIT-1.5Rx0.5R-RH 1.5 0.5 50 10
BIT-1.5Rx0.25R-RH 1.5 0.25 52 10
BIT-1.25Rx1R-RH 1.25 1 45 9
BIT-1.25Rx0.75R-RH 1.25 0.75 47 8.5

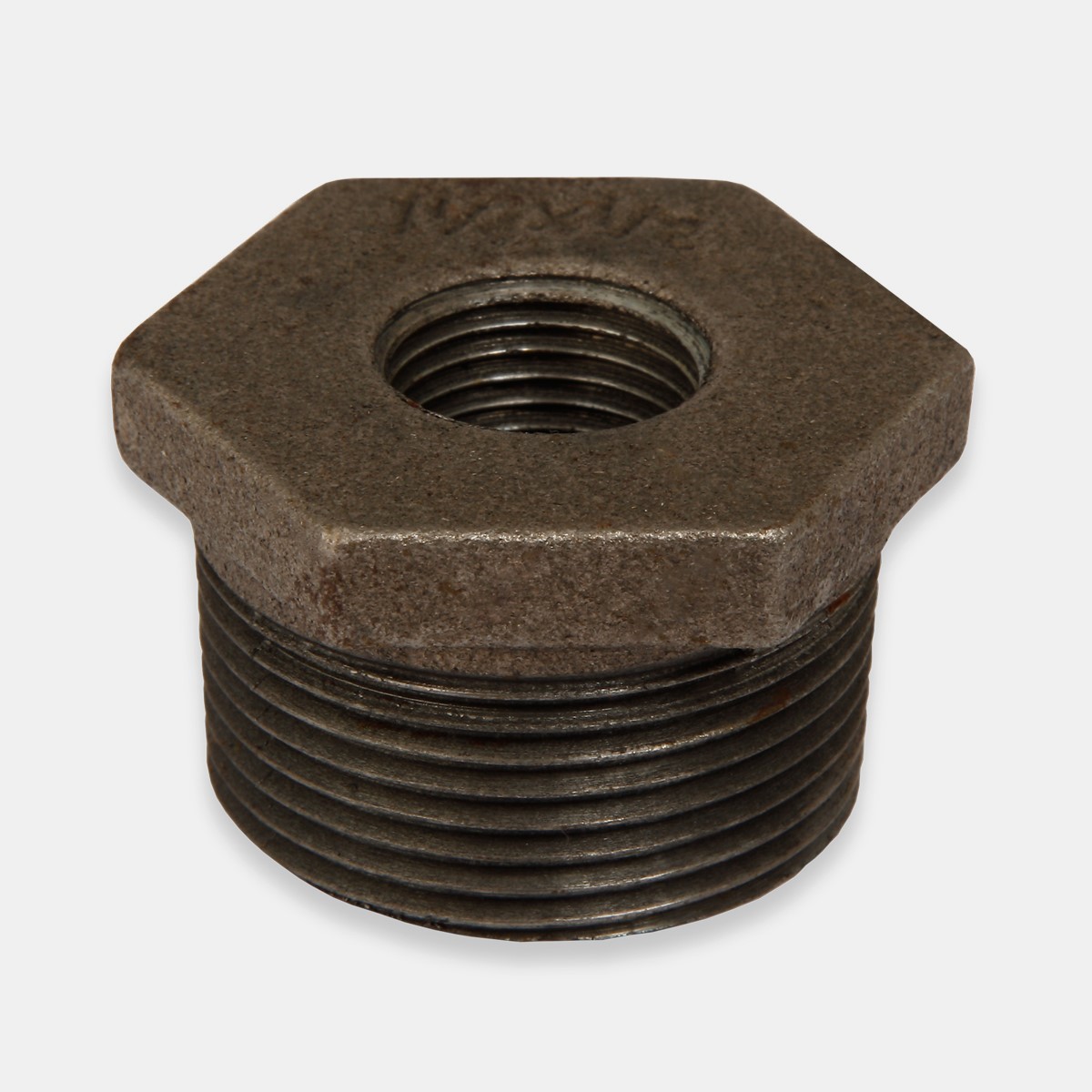

BIT-1.25Rx0.5R-RH 1.25 0.5 46 8.5

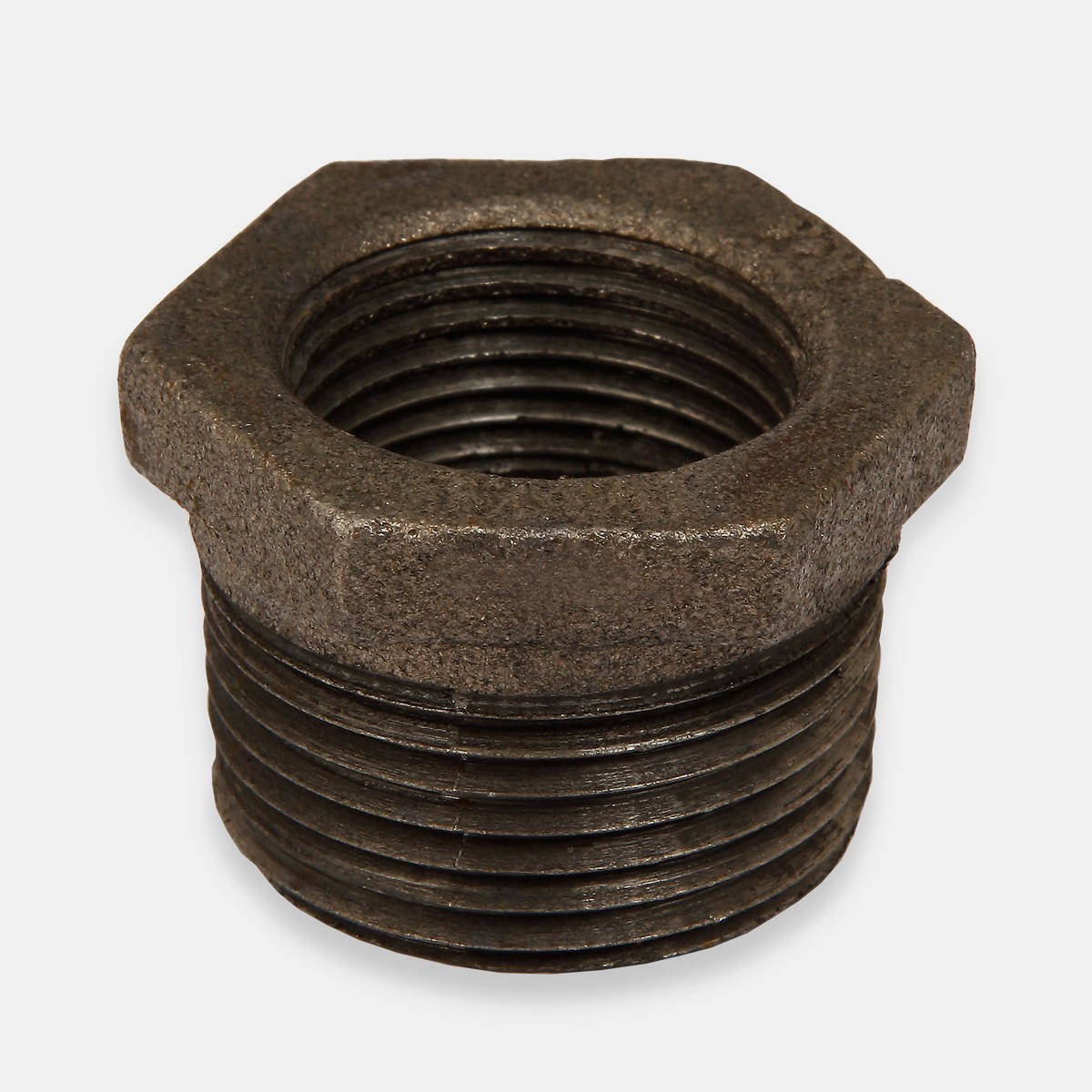

BIT-1Rx0.75R-RH 1 0.75 37 8
BIT-1Rx0.5R-RH 1 0.5 38 7

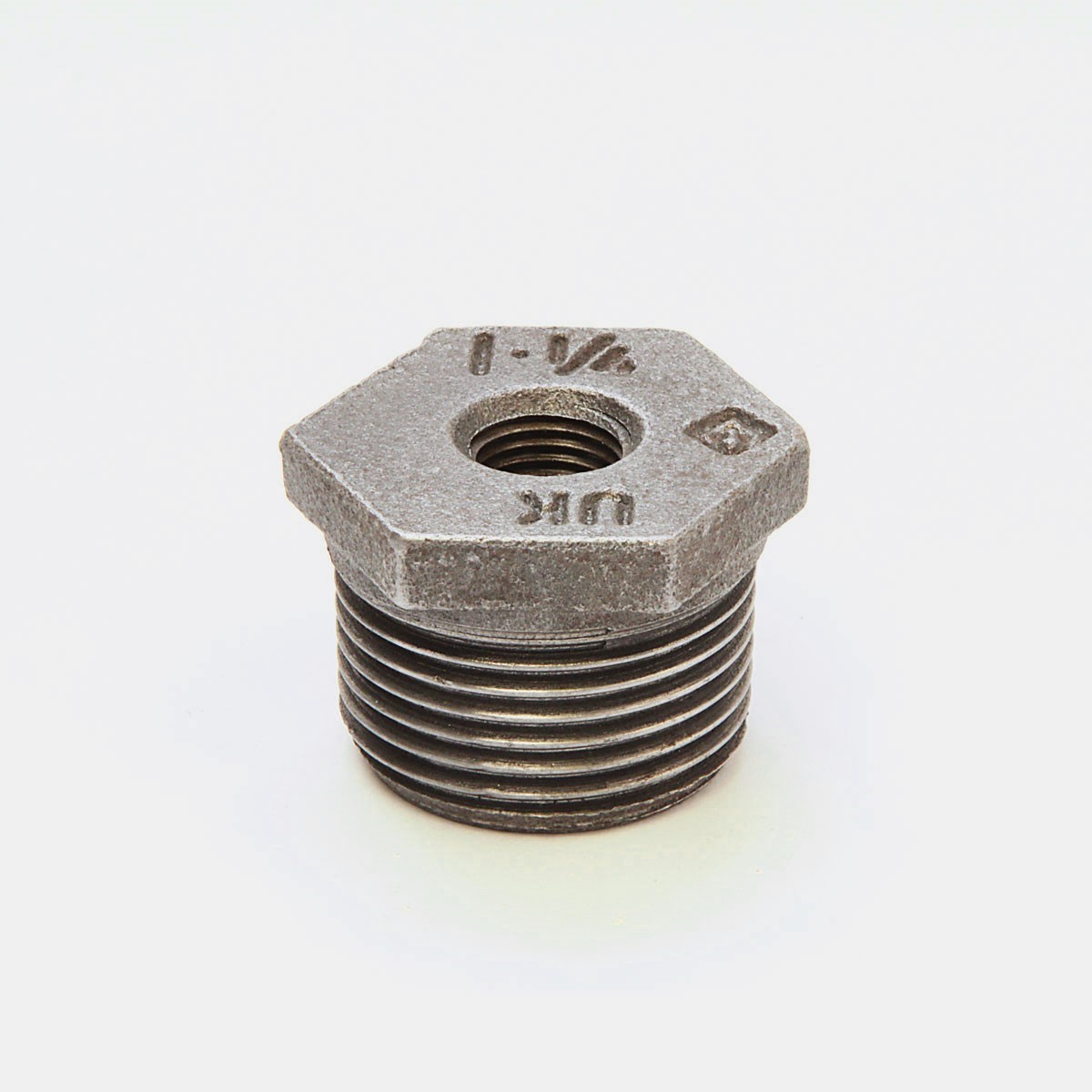

BIT-1Rx0.25R-RH 1 0.25 35 8

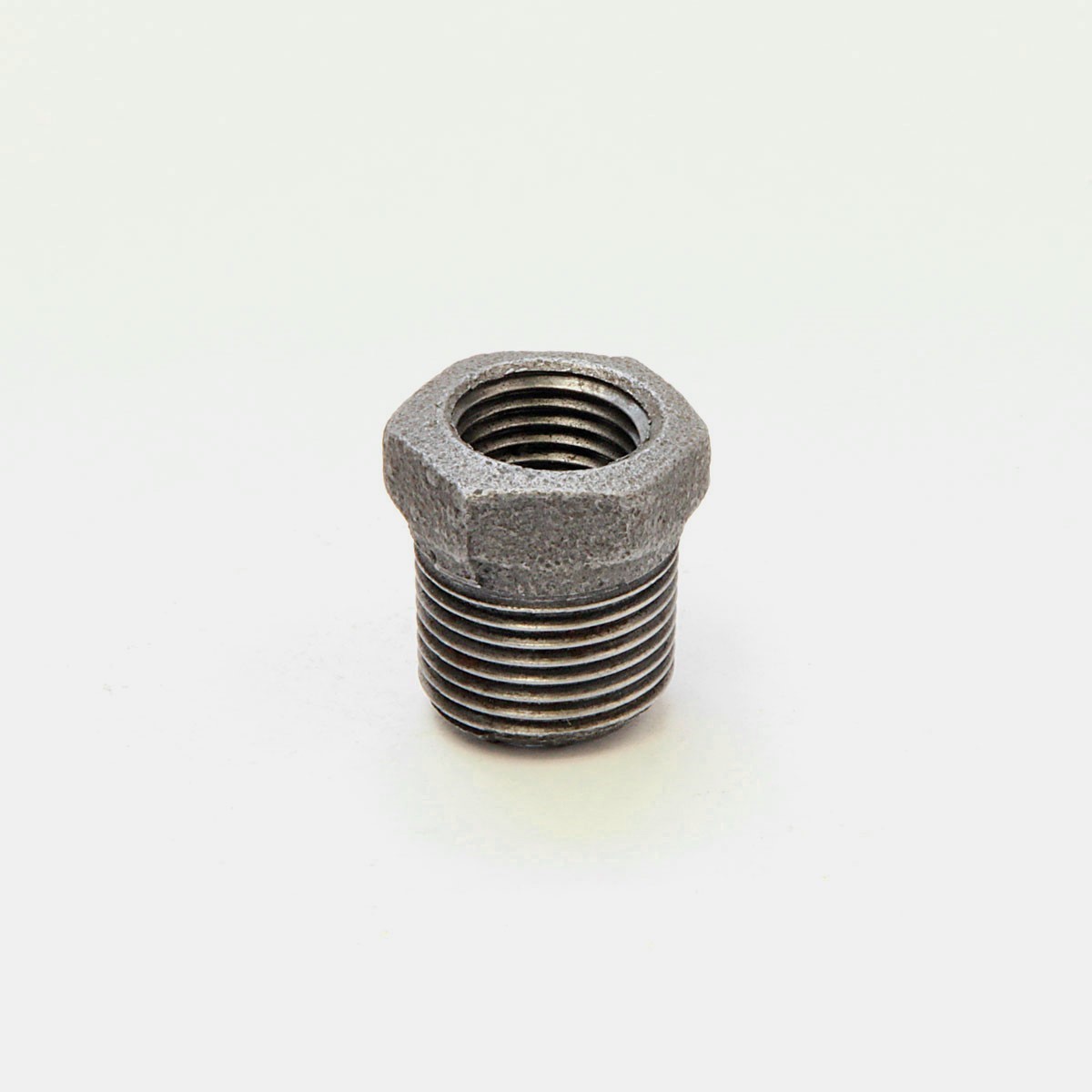

BIT-0.5Rx0.25R-RH 0.5 0.25 23 6

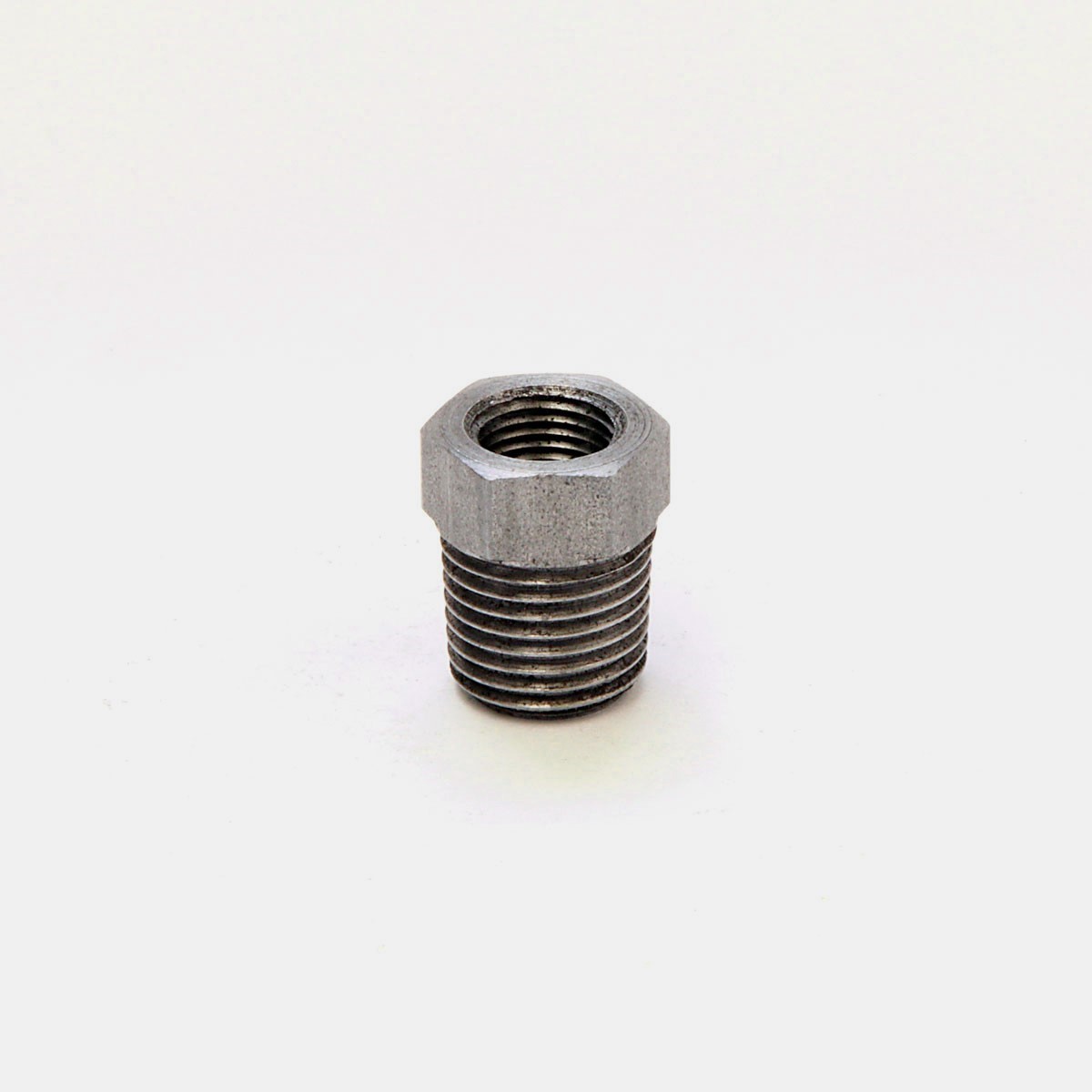

BIT-0.25Rx0.125R-RH 0.25 0.125 17 7
Black Iron Reducing Bush - ABC Technical Drawing - SVG
