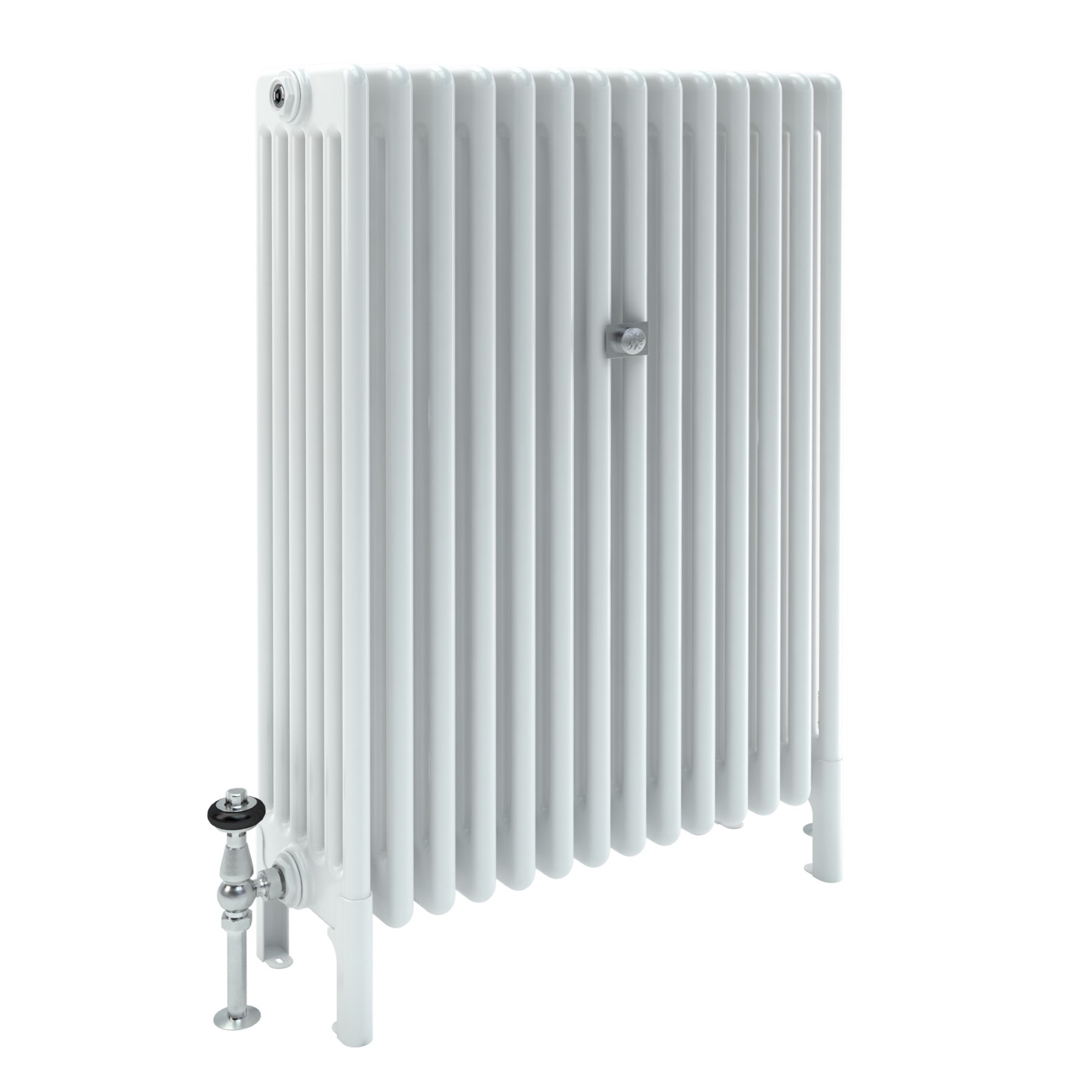

Rococo I 950mm, 16 sections

From: £1,631.66

  • 950mm tall, 1241.2mm long, 138mm deep.
  • Hydronic output (∆T50°C): 1669 Watts
  • Weight: 147.2kg
  • Warranty: 10 years
  • Delivered in: 8 weeks
  • Delivered in 2 pieces for partial home assembly. During checkout, you will need to hire an Assembly Toolkit with purchase of this radiator.
SKU: CI-RC1-950-16
Build your radiator

Configure Radiator

Rococo I 950mm, 16 sections

Description
Additional information
Product files

Radiator drawing
(H) Height 950mm
(D) Depth 138mm
(L) Length 1241mm
(PC) Pipe centres 1331mm
(TS) Total space required 1421mm
Open pipe centre measurements document for more information.
Heat output (ΔT50) 1669 Watts
Empty weight 147kg
Internal volume 20.8 L
Delivery 1 piece
Maximum operating pressure 8 bar
Weight 147 kg
Dimensions 1241 × 138 × 950 mm
Number of sections

16
Internal volume

20.8
Length (mm)

1241
Certification

EN442
Height (mm)

950
Construction material

Cast iron
Depth (mm)

135
Made in

England
Heat output (ΔT50) Watts

1669
Heat Output (ΔT50) BTUs

5694
Maximum operating temperature

95°C for hot water systems
Maximum operating pressure

8 bar
Bleed valve included

Brass or Nickel
Connections

½" BSP as standard
Pipe centres Open document
Declaration of Performance dop-202009-1131_rc1_950
