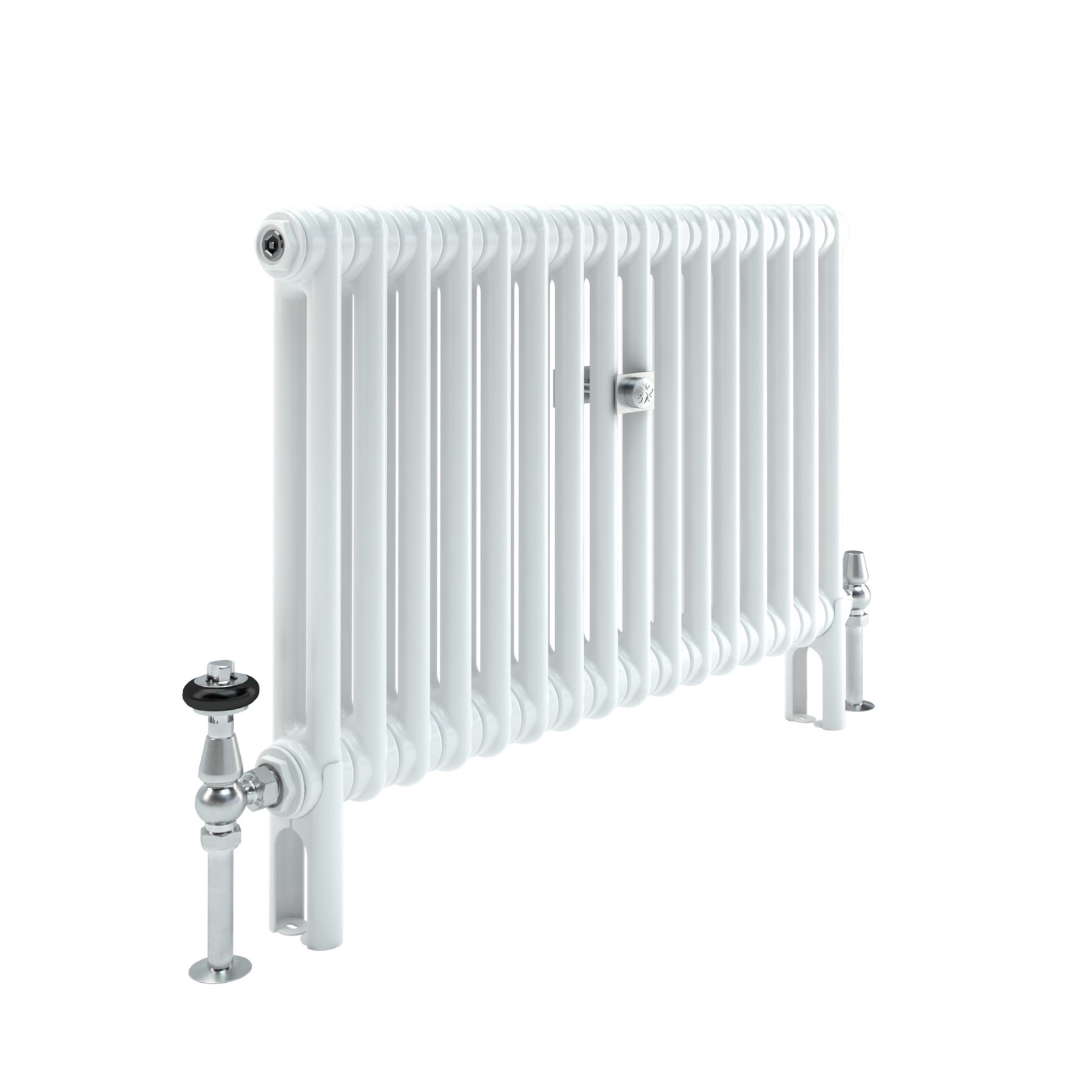

Rococo I 660mm, 17 sections

From: £1,366.03

  • 660mm tall, 1316.9mm long, 138mm deep.
  • Hydronic output (∆T50°C): 1173 Watts
  • Weight: 102.3kg
  • Warranty: 10 years
  • Delivered in: 8 weeks
  • Delivered in 2 pieces for partial home assembly. During checkout, you will need to hire an Assembly Toolkit with purchase of this radiator.
SKU: CI-RC1-660-17
Build your radiator

Configure Radiator

Rococo I 660mm, 17 sections

Description
Additional information
Product files

Radiator drawing
(H) Height 660mm
(D) Depth 138mm
(L) Length 1317mm
(PC) Pipe centres 1407mm
(TS) Total space required 1497mm
Open pipe centre measurements document for more information.
Heat output (ΔT50) 1173 Watts
Empty weight 102kg
Internal volume 17 L
Delivery 1 piece
Maximum operating pressure 8 bar
Weight 102 kg
Dimensions 1317 × 138 × 660 mm
Number of sections

17
Internal volume

17
Length (mm)

1320
Certification

EN442
Height (mm)

660
Construction material

Cast iron
Depth (mm)

140
Made in

England
Heat output (ΔT50) Watts

1173
Heat Output (ΔT50) BTUs

4002
Maximum operating temperature

95°C for hot water systems
Maximum operating pressure

8 bar
Bleed valve included

Brass or Nickel
Connections

½" BSP as standard
Pipe centres Open document
Declaration of Performance dop-202009-1130_rc1_660
