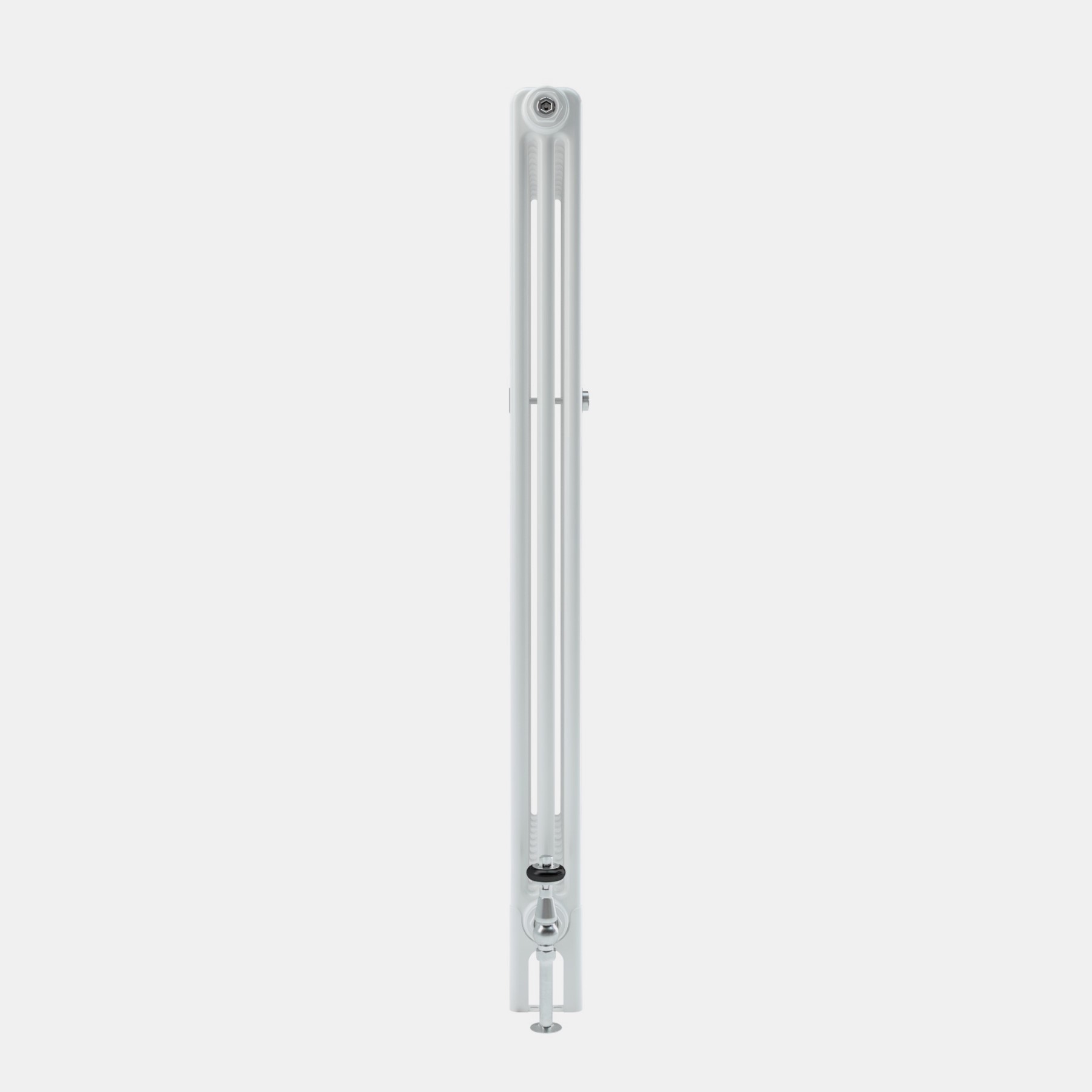

Mercury 4 Column 960mm, 16 sections

From: £1,519.54

  • 960mm tall, 961mm long, 140mm deep.
  • Heat output (ΔT50): 1936 Watts
  • Heat output (ΔT50): 6606 BTUs
  • Weight: 128 kg
  • Guarantee: 10 years
  • Delivered in: 6 weeks
  • Delivered ready for installation

Configure Radiator

Mercury 4 Column 960mm, 16 sections

Description
Additional information
Product files

Our signature range, Mercury, combines sleek lines and blended curves to create the perfect statement piece in both contemporary and classic properties.

This modern classic is available in two, three, four and six column variants, making it our most versatile range.

Radiator drawing
(H) Height 960mm
(D) Depth 140mm
(L) Length 961mm
(PC) Pipe centres 1051mm
(TS) Total space required 1141mm
Open pipe centre measurements document for more information.
Heat output (ΔT50) 1936 Watts
Empty weight 129kg
Internal volume 19.20 L
Delivery 1 piece
Maximum operating pressure 8 bar
Weight 129 kg
Dimensions 961 × 140 × 960 mm
Number of sections

16

Internal volume

19.2

Length (mm)

961

Internal volume

19.20

Certification

EN442

Height (mm)

960

Maximum operating pressure

8 bar

Construction material

Cast iron

Depth (mm)

140

Made in

England

Heat output (ΔT50) Watts

1936

Heat output (ΔT50) BTUs

6606

Maximum operating temperature

95°C for hot water systems

Maximum operating pressure

8 bar

Bleed valve included

Brass or Nickel

Connections

½" BSP as standard

Pipe centres Open document
Declaration of Performance -
