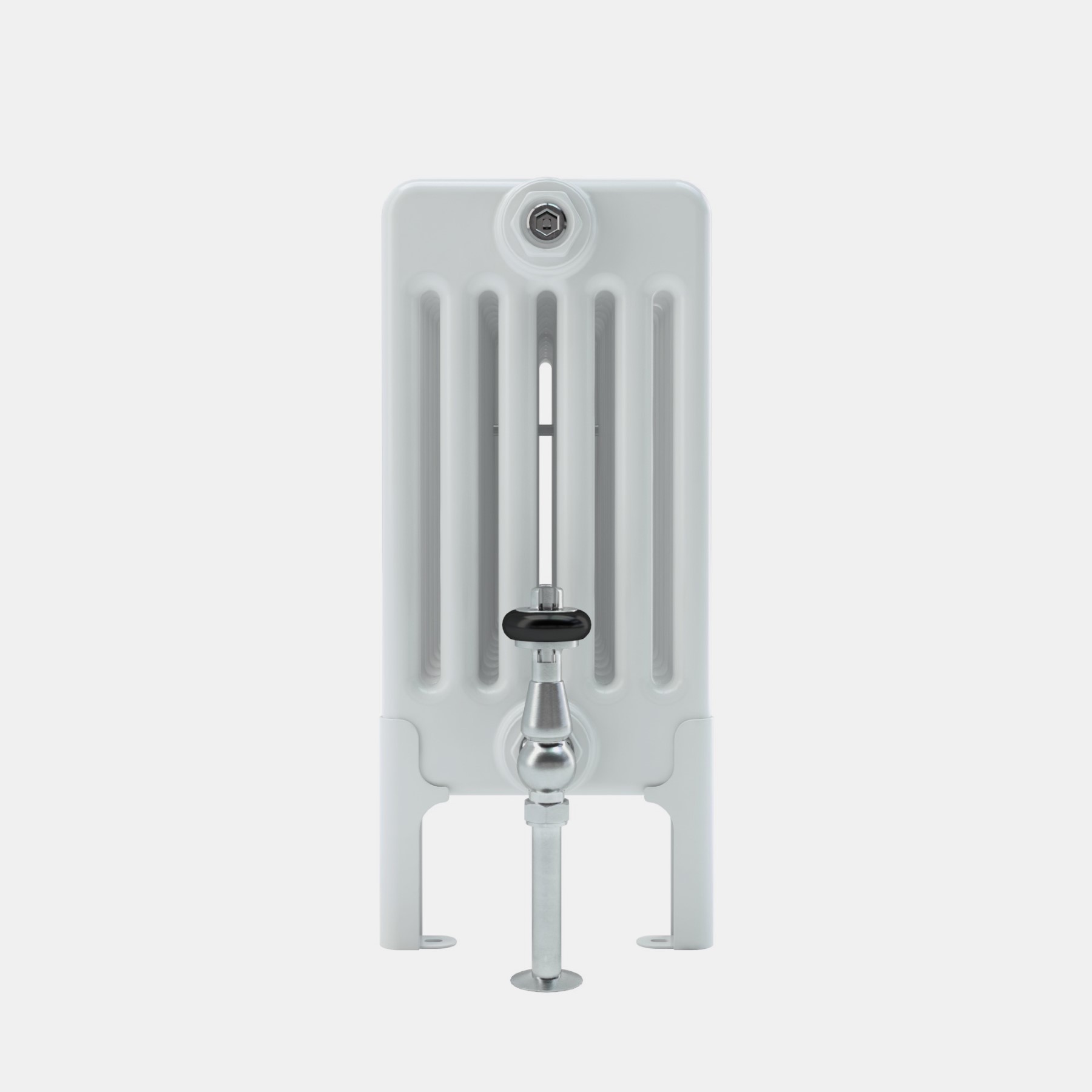

Mercury 4 Column 460mm
From: £313.20
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 18 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 460 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 140 |
| - | Output (ΔT50, W) | 58 |
| - | Output (ΔT30, W) | 31 |
| D | Interaxis Distance (mm) | 323 |
| E | Height Without Legs (mm) | 398 |
| F | Section Length (mm) | 58.3 |
| G | Mid Section Depth (mm) | 140 |
| - | Internal Volume (L) | 0.61 |
| - | Empty Leg Section Weight (kg) | 4.4 |
| - | Empty Mid Section Weight (kg) | 3.7 |
| - | Factor, Km | 0.4793 |
| - | Exponent, n | 1.2262 |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-M4C-460-3 | 3 | 204 | 174 | 93 | 1 | £313.20 |
| CI-M4C-460-4 | 4 | 263 | 232 | 124 | 1 | £363.60 |
| CI-M4C-460-5 | 5 | 321 | 290 | 155 | 1 | £414.00 |
| CI-M4C-460-6 | 6 | 379 | 348 | 186 | 1 | £464.40 |
| CI-M4C-460-7 | 7 | 438 | 406 | 217 | 1 | £514.80 |
| CI-M4C-460-8 | 8 | 496 | 464 | 248 | 1 | £565.20 |
| CI-M4C-460-9 | 9 | 554 | 522 | 279 | 1 | £615.60 |
| CI-M4C-460-10 | 10 | 613 | 580 | 310 | 1 | £666.00 |
| CI-M4C-460-11 | 11 | 671 | 638 | 341 | 1 | £716.40 |
| CI-M4C-460-12 | 12 | 729 | 696 | 372 | 1 | £766.80 |
| CI-M4C-460-13 | 13 | 787 | 754 | 403 | 1 | £817.20 |
| CI-M4C-460-14 | 14 | 846 | 812 | 434 | 1 | £867.60 |
| CI-M4C-460-15 | 15 | 904 | 870 | 465 | 1 | £918.00 |
| CI-M4C-460-16 | 16 | 962 | 928 | 496 | 1 | £968.40 |
| CI-M4C-460-17 | 17 | 1021 | 986 | 527 | 1 | £1,018.80 |
| CI-M4C-460-18 | 18 | 1079 | 1044 | 558 | 1 | £1,069.20 |
| CI-M4C-460-19 | 19 | 1137 | 1102 | 589 | 2 | £1,203.60 |
| CI-M4C-460-20 | 20 | 1196 | 1160 | 620 | 2 | £1,254.00 |
| CI-M4C-460-21 | 21 | 1254 | 1218 | 651 | 2 | £1,304.40 |
| CI-M4C-460-22 | 22 | 1312 | 1276 | 682 | 2 | £1,354.80 |
| CI-M4C-460-23 | 23 | 1370 | 1334 | 713 | 2 | £1,405.20 |
| CI-M4C-460-24 | 24 | 1429 | 1392 | 744 | 2 | £1,455.60 |
| CI-M4C-460-25 | 25 | 1487 | 1450 | 775 | 2 | £1,506.00 |
| CI-M4C-460-26 | 26 | 1545 | 1508 | 806 | 2 | £1,556.40 |
| CI-M4C-460-27 | 27 | 1604 | 1566 | 837 | 2 | £1,606.80 |
| CI-M4C-460-28 | 28 | 1662 | 1624 | 868 | 3 | £1,657.20 |
| CI-M4C-460-29 | 29 | 1720 | 1682 | 899 | 3 | £1,707.60 |
| CI-M4C-460-30 | 30 | 1779 | 1740 | 930 | 3 | £1,758.00 |
| CI-M4C-460-31 | 31 | 1837 | 1798 | 961 | 3 | £1,808.40 |
| CI-M4C-460-32 | 32 | 1895 | 1856 | 992 | 3 | £1,858.80 |
| CI-M4C-460-33 | 33 | 1953 | 1914 | 1023 | 3 | £1,909.20 |
| CI-M4C-460-34 | 34 | 2012 | 1972 | 1054 | 3 | £1,959.60 |
| CI-M4C-460-35 | 35 | 2070 | 2030 | 1085 | 3 | £2,010.00 |
| CI-M4C-460-36 | 36 | 2128 | 2088 | 1116 | 3 | £2,060.40 |
| CI-M4C-460-37 | 37 | 2187 | 2146 | 1147 | 3 | £2,110.80 |
| CI-M4C-460-38 | 38 | 2245 | 2204 | 1178 | 3 | £2,161.20 |
| CI-M4C-460-39 | 39 | 2303 | 2262 | 1209 | 3 | £2,211.60 |
| CI-M4C-460-40 | 40 | 2362 | 2320 | 1240 | 3 | £2,262.00 |
