From: £523.80

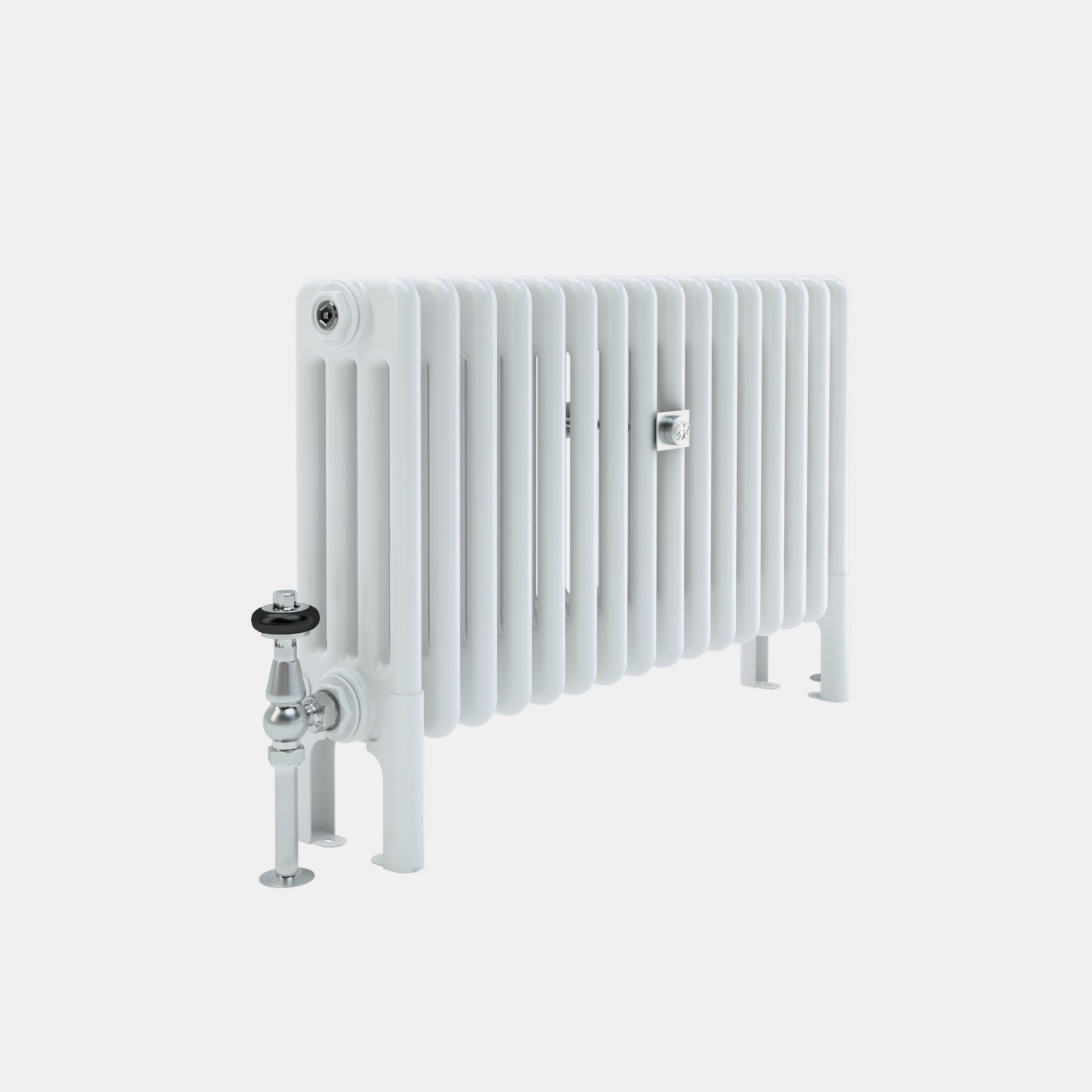

Our signature range, Mercury, combines sleek lines and blended curves to create the perfect statement piece in both contemporary and classic properties.
This modern classic is available in two, three, four and six column variants, making it our most versatile range.
| (H) | Height | 860mm |
| (D) | Depth | 101mm |
| (L) | Length | 437mm |
| (PC) | Pipe centres | 527mm |
| (TS) | Total space required | 617mm |
| Open pipe centre measurements document for more information. | ||
| Heat output (ΔT50) | 612 Watts |
| Empty weight | 37kg |
| Internal volume | 5.81 L |
| Delivery | 1 piece |
| Maximum operating pressure | 8 bar |
| Weight | 37 kg |
|---|---|
| Dimensions | 437 × 101 × 860 mm |
| Number of sections | 7 |
| Internal volume | 5.81 |
| Length (mm) | 437 |
| Certification | EN442 |
| Height (mm) | 860 |
| Construction material | Cast iron |
| Depth (mm) | 101 |
| Made in | England |
| Heat output (ΔT50) Watts | 612 |
| Heat Output (ΔT50) BTUs | 2087 |
| Maximum operating temperature | 95°C for hot water systems |
| Maximum operating pressure | 8 bar |
| Bleed valve included | Brass or Nickel |
| Connections | ½" BSP as standard |
| Pipe centres | Open document |
|---|
| Declaration of Performance | dop-202009-1100_m3c_860 |
