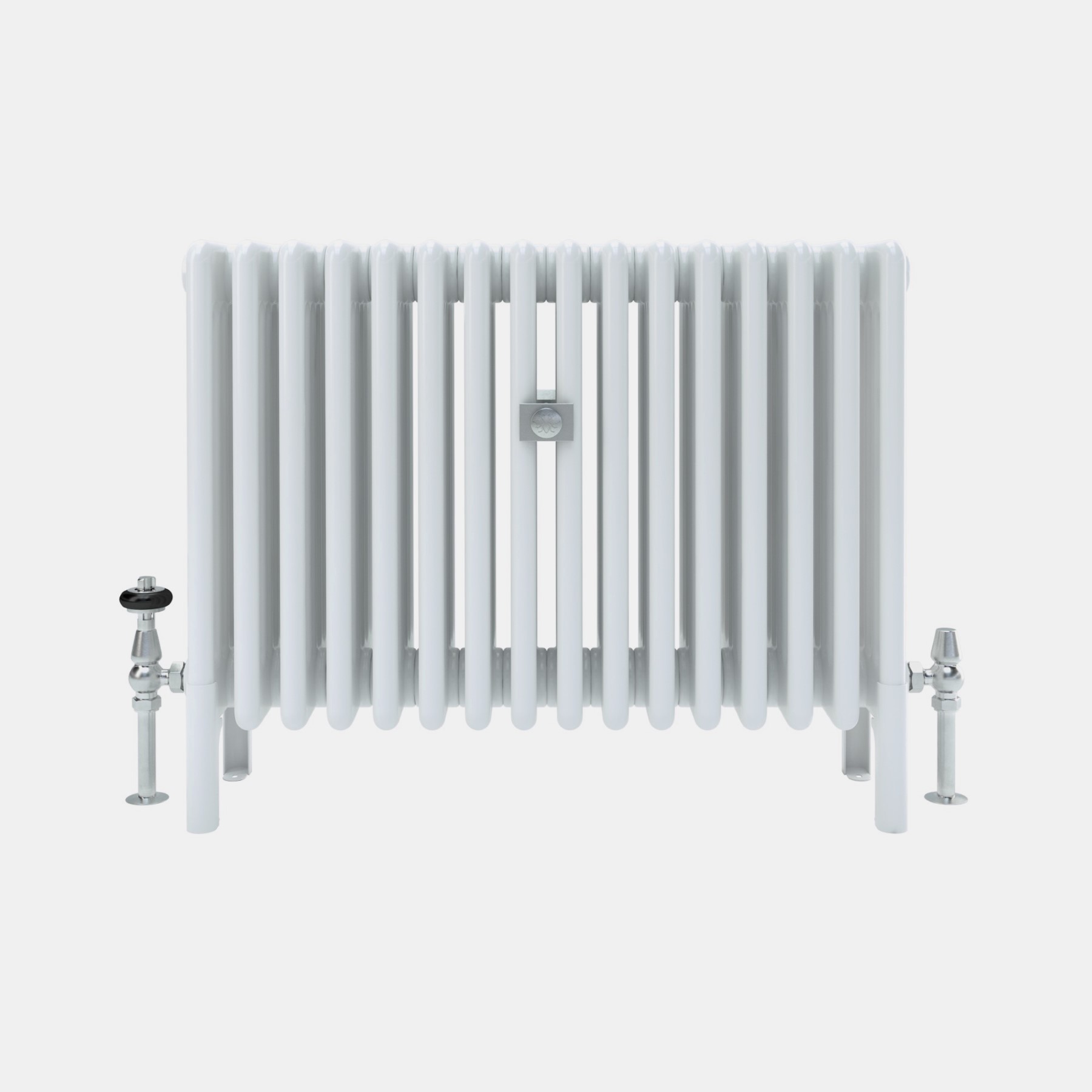

Mercury 3 Column 860mm, 18 sections

From: £1,111.20

  • 860mm tall, 1078mm long, 101mm deep.
  • Heat output (ΔT50): 1573 Watts
  • Heat output (ΔT50): 5368 BTUs
  • Weight: 91 kg
  • Guarantee: 10 years
  • Delivered in: 6 weeks
  • Delivered ready for installation

Configure Radiator

Mercury 3 Column 860mm, 18 sections

Description
Additional information
Product files

Our signature range, Mercury, combines sleek lines and blended curves to create the perfect statement piece in both contemporary and classic properties.

This modern classic is available in two, three, four and six column variants, making it our most versatile range.

Radiator drawing
(H) Height 860mm
(D) Depth 101mm
(L) Length 1078mm
(PC) Pipe centres 1168mm
(TS) Total space required 1258mm
Open pipe centre measurements document for more information.
Heat output (ΔT50) 1573 Watts
Empty weight 93kg
Internal volume 0 L
Delivery 1 piece
Maximum operating pressure 0
Weight 93 kg
Dimensions 1078 × 101 × 860 mm
Number of sections

18

Internal volume

14.94

Length (mm)

1078

Certification

EN442

Height (mm)

860

Construction material

Cast iron

Depth (mm)

101

Made in

England

Heat output (ΔT50) Watts

1573

Heat output (ΔT50) BTUs

5368

Maximum operating temperature

95°C for hot water systems

Maximum operating pressure

8 bar

Bleed valve included

Brass or Nickel

Connections

½" BSP as standard

Pipe centres Open document
Declaration of Performance dop-202009-1100_m3c_860
