From: £399.48
Grace striking design sits well in both modern and period properties. Its inclined feet and prominent outer ridge adds gravity to an industrial appearance, but is easily softened in an interior with the use of complementary colors.
| (H) | Height | 1040mm |
| (D) | Depth | 89mm |
| (L) | Length | 331mm |
| (PC) | Pipe centres | 421mm |
| (TS) | Total space required | 511mm |
| Open pipe centre measurements document for more information. | ||
| Heat output (ΔT50) | 412 Watts |
| Empty weight | 26kg |
| Internal volume | 4 L |
| Delivery | 1 piece |
| Maximum operating pressure | 8 bar |
| Weight | 26 kg |
|---|---|
| Dimensions | 331 × 89 × 1040 mm |
| Number of sections | 5 |
| Internal volume | 4 |
| Length (mm) | 331 |
| Certification | EN442 |
| Height (mm) | 1040 |
| Construction material | Cast iron |
| Depth (mm) | 89 |
| Made in | England |
| Heat output (ΔT50) Watts | 412 |
| Heat Output (ΔT50) BTUs | 1404 |
| Maximum operating temperature | 95°C for hot water systems |
| Maximum operating pressure | 8 bar |

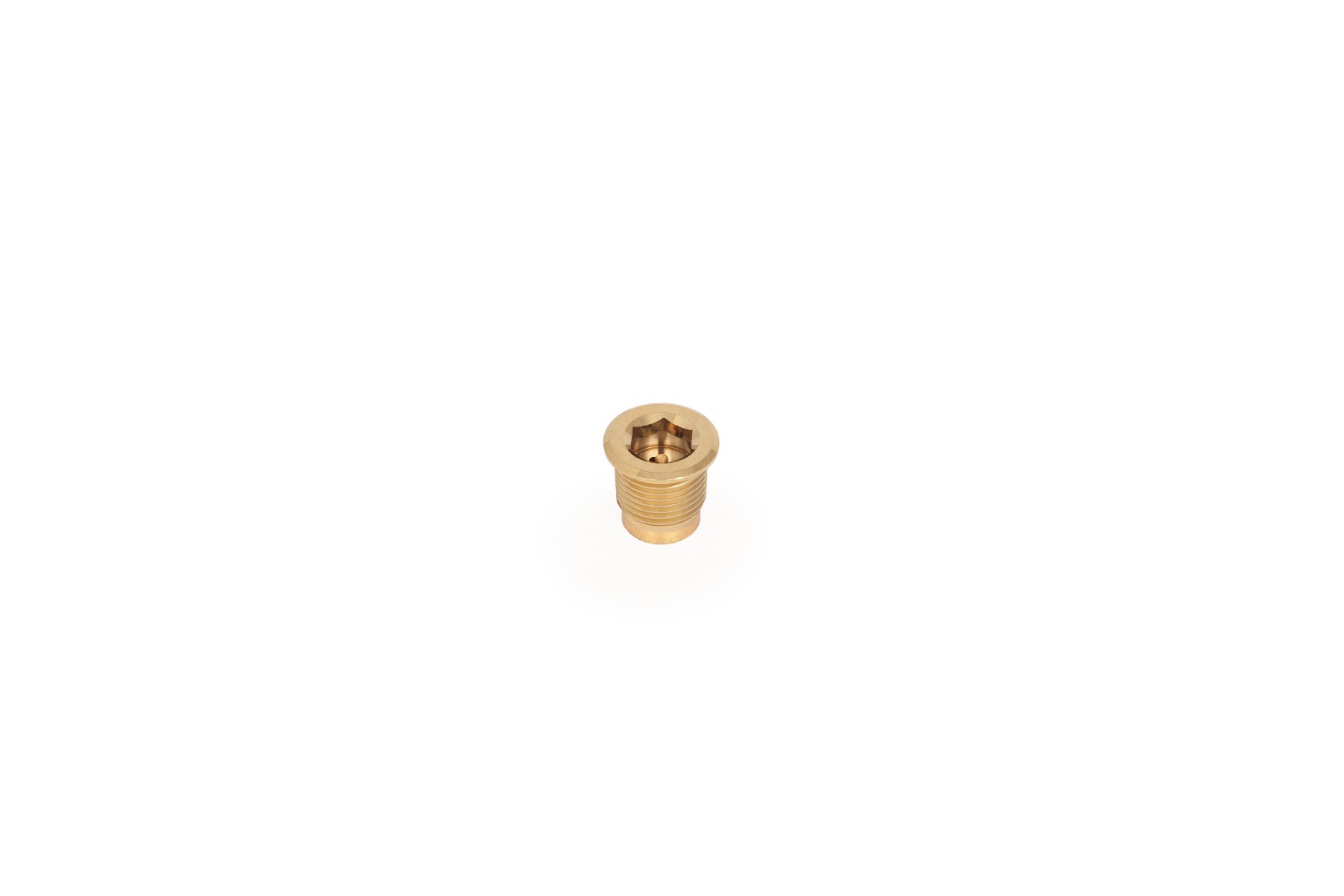

| Bleed valve included | Brass or Nickel |
| Connections | ½" BSP as standard |
| Pipe centres | Open document |
|---|
| Declaration of Performance | dop-202009-1081_g2c_1040 |
