Grace 2 Column 1040mm, 25 sections

From: £1,469.40

  • 1040mm tall, 1535mm long, 89mm deep.
  • Heat output (ΔT50): 2058 Watts
  • Heat output (ΔT50): 7020 BTUs
  • Weight: 125 kg
  • Guarantee: 10 years
  • Delivered in: 7-8 weeks
  • Delivered in 2 pieces for partial home assembly. You will need to hire an Assembly Toolkit with purchase of this radiator.

Configure Radiator

Grace 2 Column 1040mm, 25 sections

Description
Additional information
Product files

Grace striking design sits well in both modern and period properties. Its inclined feet and prominent outer ridge adds gravity to an industrial appearance, but is easily softened in an interior with the use of complementary colors.

Radiator drawing
(H) Height 1040mm
(D) Depth 89mm
(L) Length 1535mm
(PC) Pipe centres 1625mm
(TS) Total space required 1715mm
Open pipe centre measurements document for more information.
Heat output (ΔT50) 2058 Watts
Empty weight 127kg
Internal volume 0 L
Delivery 1 piece
Maximum operating pressure 0
Weight 127 kg
Dimensions 1535 × 89 × 1040 mm
Number of Sections

25

Internal volume

20

Length (mm)

1535

Certification

EN442

Height (mm)

1040

Construction material

Cast iron

Depth (mm)

89

Made in

England

Heat output (ΔT50) Watts

2058

Heat Output (ΔT50) BTUs

7020

Maximum operating temperature

95°C for hot water systems

Maximum operating pressure

8 bar

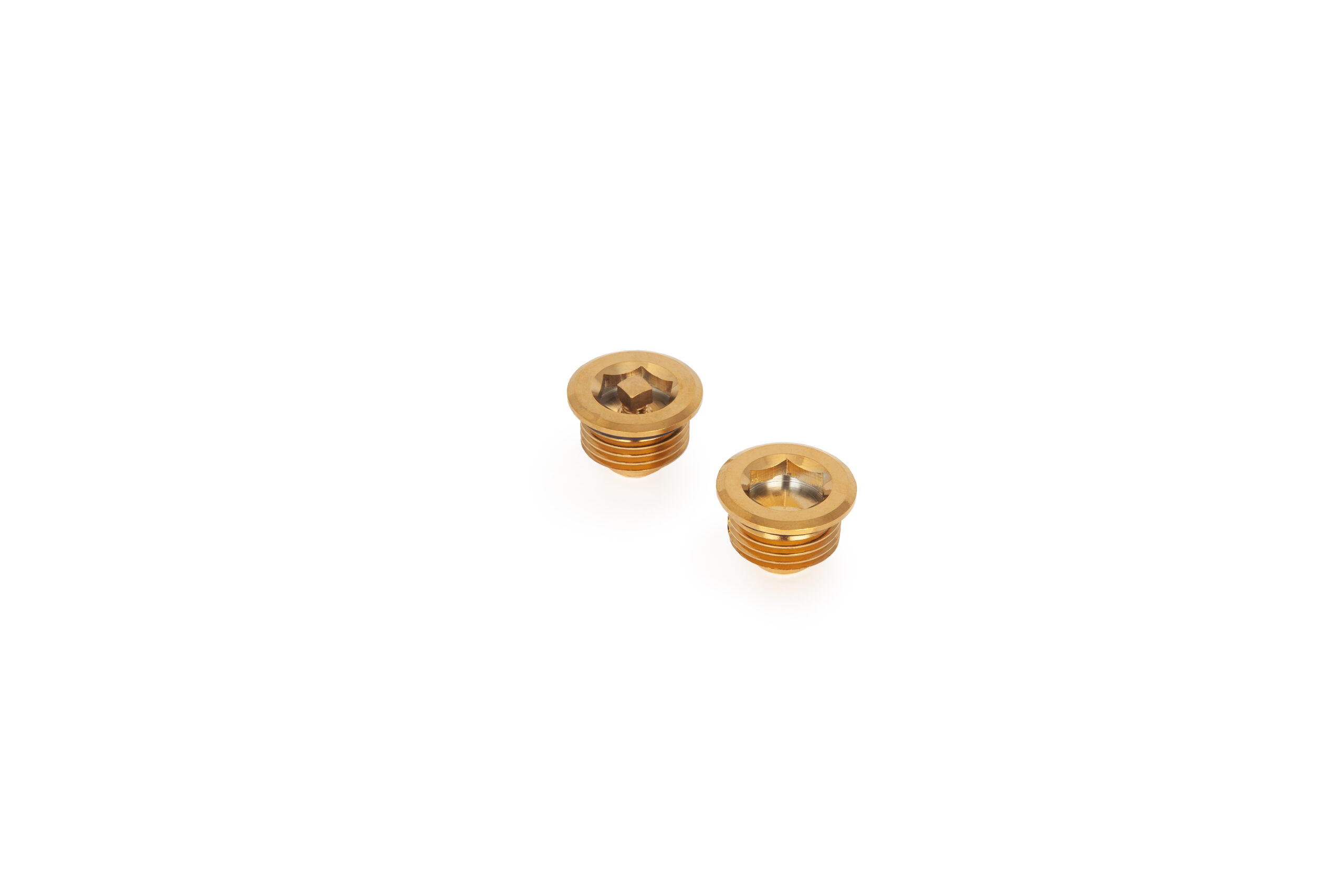

Bleed valve included

Brass or Nickel

Connections

½" BSP as standard

Pipe centres Open document
Declaration of Performance dop-202009-1081_g2c_1040
