Grace 2 Column 1040mm, 21 sections

From: £1,202.40

  • 1040mm tall, 1294mm long, 89mm deep.
  • Heat output (ΔT50): 1728 Watts
  • Heat output (ΔT50): 5897 BTUs
  • Weight: 105 kg
  • Guarantee: 10 years
  • Delivered in: 6 weeks
  • Delivered in 2 pieces for partial home assembly. You will need to hire an Assembly Toolkit with purchase of this radiator.

Configure Radiator

Grace 2 Column 1040mm, 21 sections

Description
Additional information
Product files

Grace striking design sits well in both modern and period properties. Its inclined feet and prominent outer ridge adds gravity to an industrial appearance, but is easily softened in an interior with the use of complementary colors.

Radiator drawing
(H) Height mm
(D) Depth mm
(L) Length mm
(PC) Pipe centres
(TS) Total space required
Open pipe centre measurements document for more information.
Heat output (ΔT50) Watts
Empty weight
Internal volume L
Delivery 1 piece
Maximum operating pressure
Weight 105.0 kg
Dimensions 1294 × 89 × 1040 mm
Number of sections

21

Internal volume

16.8

Length (mm)

1294

Certification

EN442

Height (mm)

1040

Construction material

Cast iron

Depth (mm)

89

Made in

England

Heat output (ΔT50) Watts

1728

Heat output (ΔT50) BTUs

5897

Maximum operating temperature

95°C for hot water systems

Maximum operating pressure

8 bar

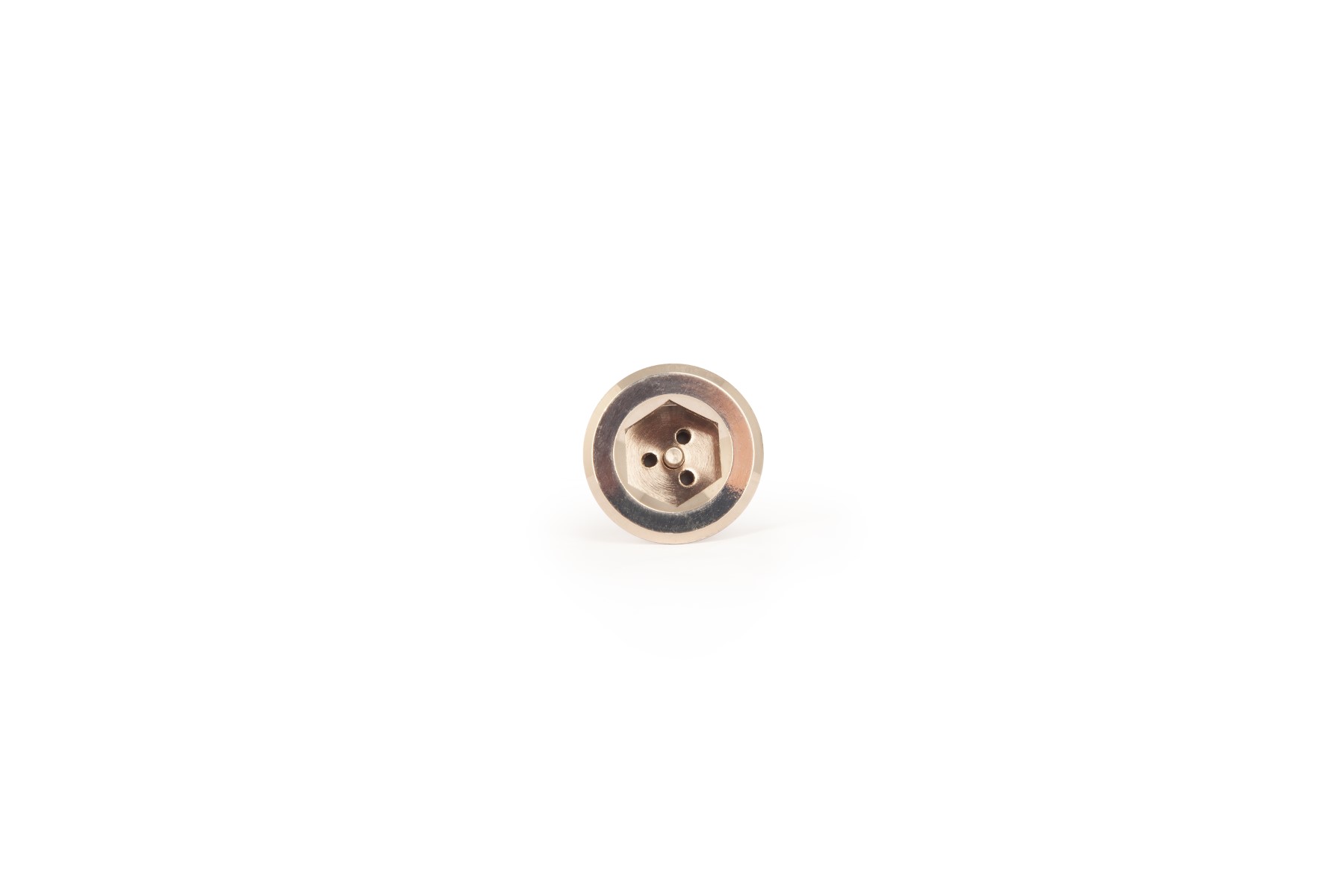

Bleed valve included

Brass or Nickel

Connections

½" BSP as standard

Pipe centres Open document
Declaration of Performance dop-202009-1081_g2c_1040
